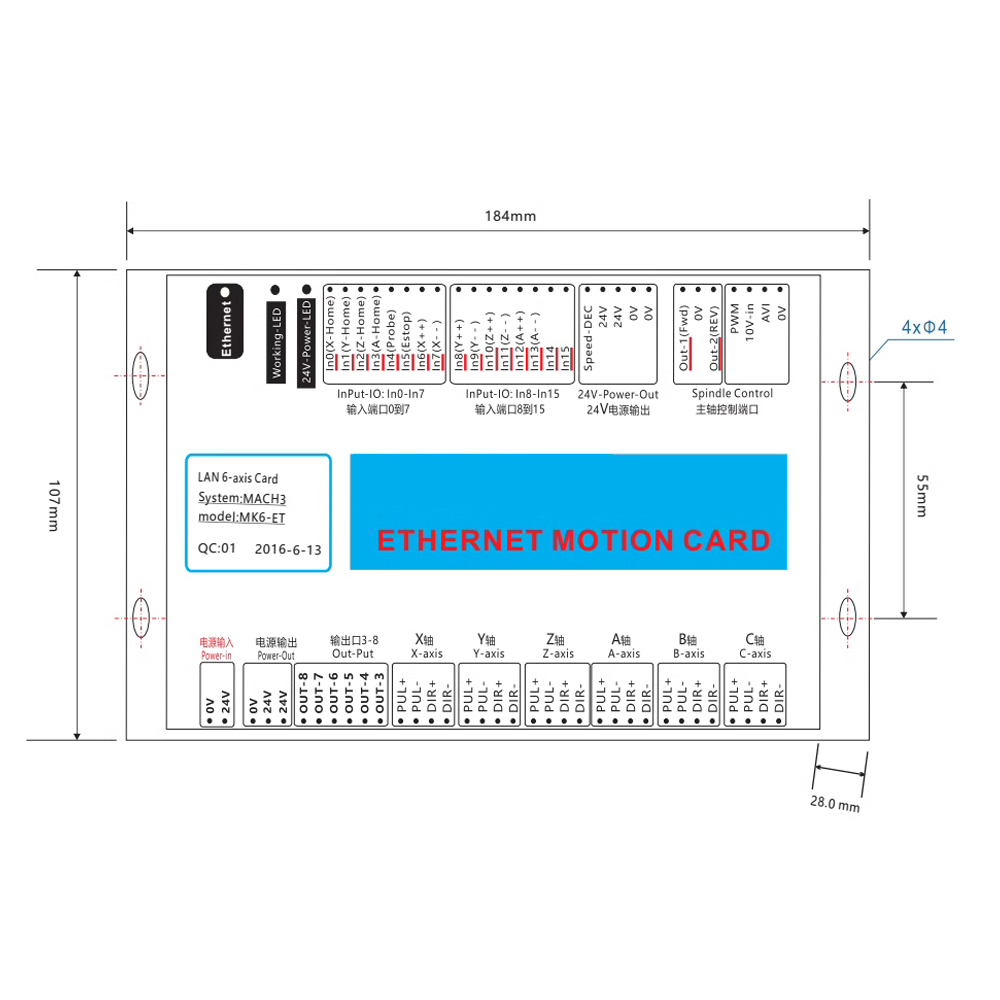

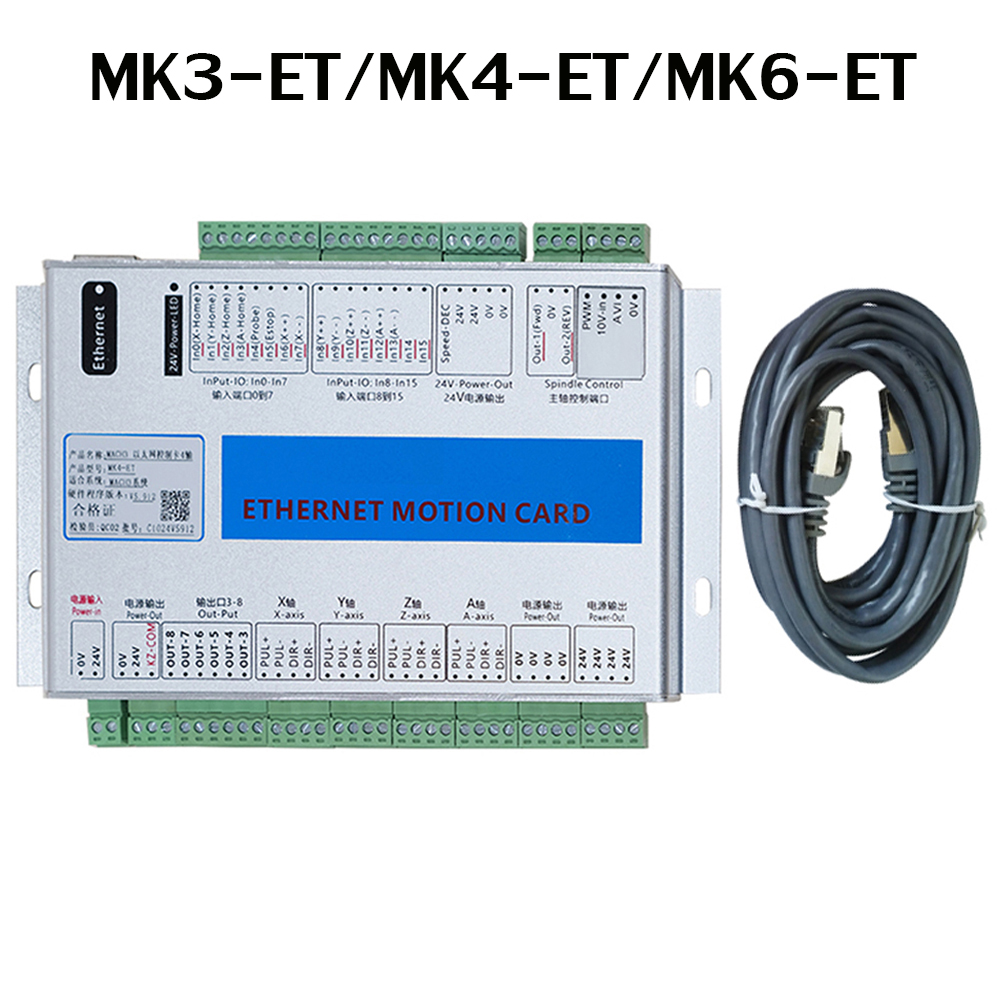

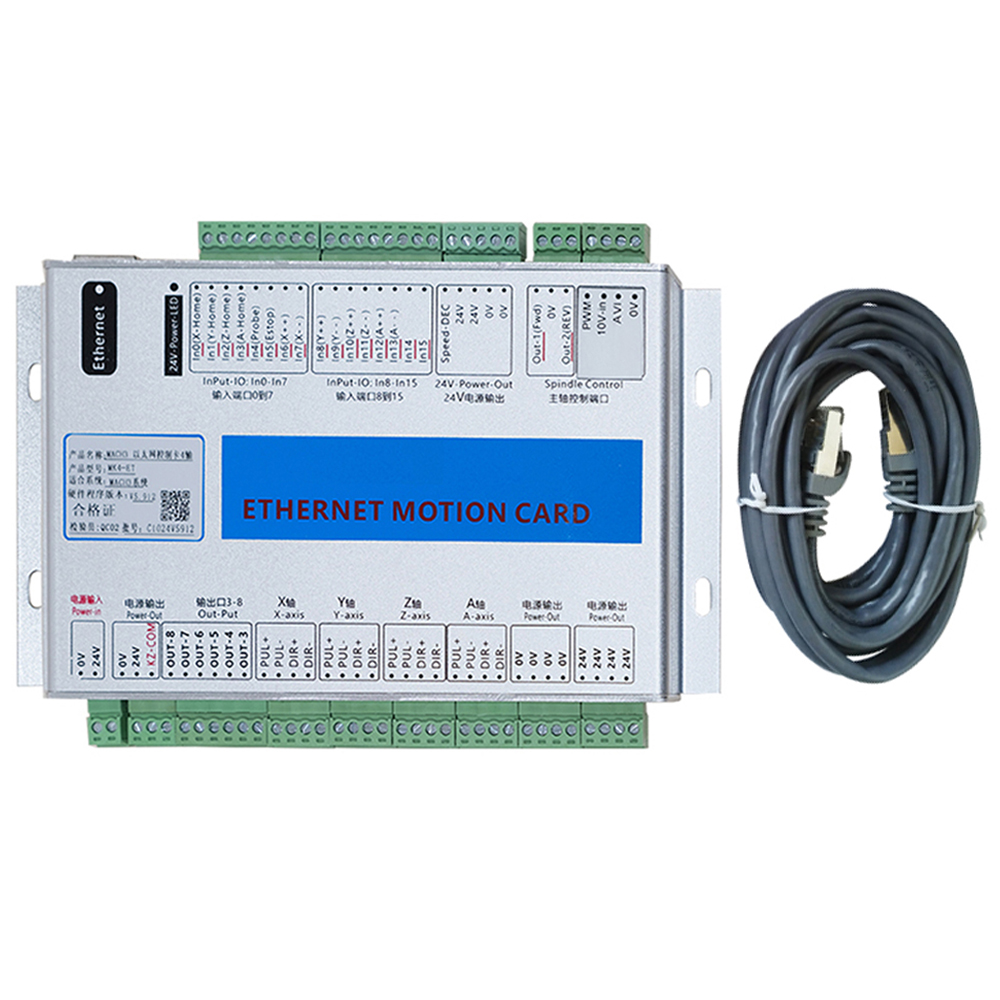

Ethernet 3/4/6 Axis MACH3 CNC Motion Control Card 2000KHZ Frequency Controller Breakout Board for Engraver Stepper/Servo Motor

Features:

1. Support all versions of Mach3, only suitable for Windows operating system, only support Ethernet interface, need to set IP communication address when using.

2. Support spindle speed feedback function.

3. Support power off continued transmission function.

4. Support a maximum of 10 meters Ethernet cable, no need to install a driver, plug and play.

5. Support up to 6-axis linkage, including point-to-point 6-axis linkage. (Depending on the model, the number of supported axes is different).

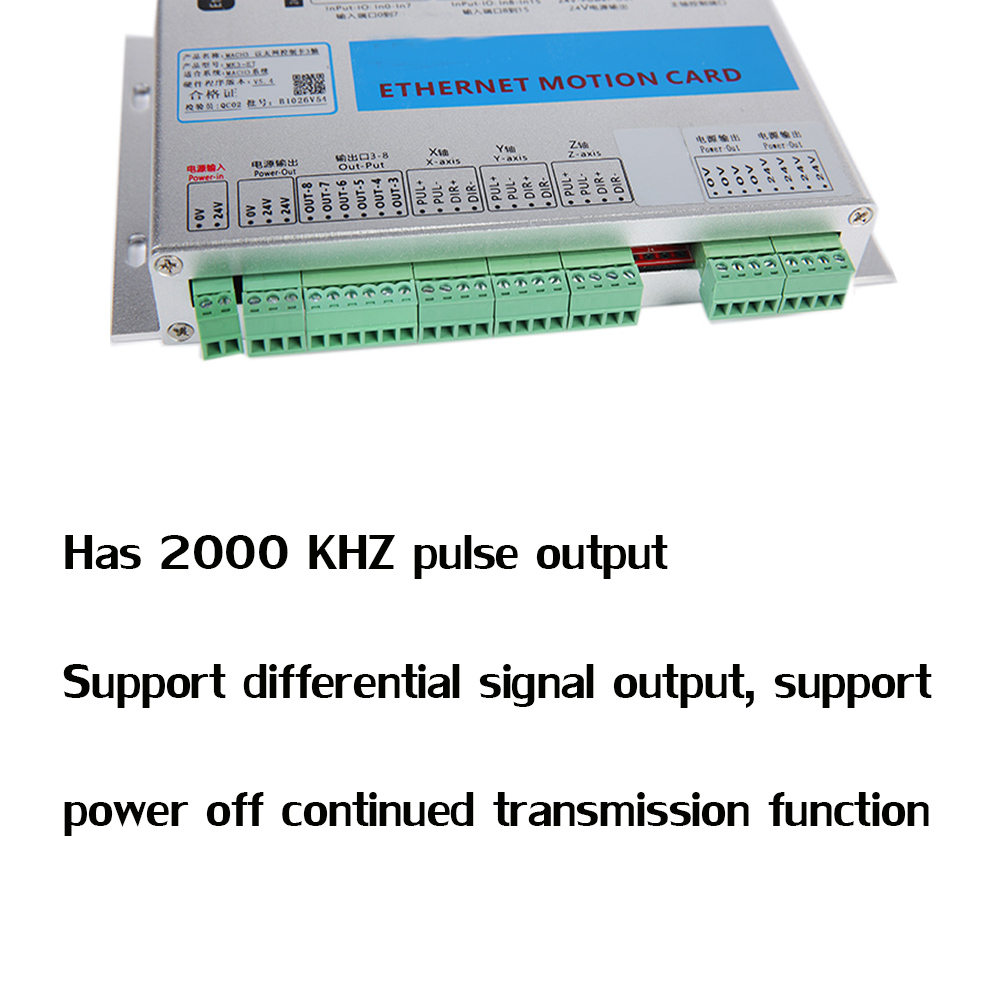

6. With 2000KHz pulse output, support differential signal output, support servo/stepper motor.

7. With the status indicator, can prompt the connection status, Mach3 connection status, running, all kinds of states at a glance.

8. It has 16 input ports and 8 output ports, and supports the expansion of all 10 ports of input and output ports, with strong anti-interference and stable performance.

9. Support spindle PWM speed control output; Support spindle pulse+direction output.

10. Support spindle 0 to 10V analog voltage speed control output.

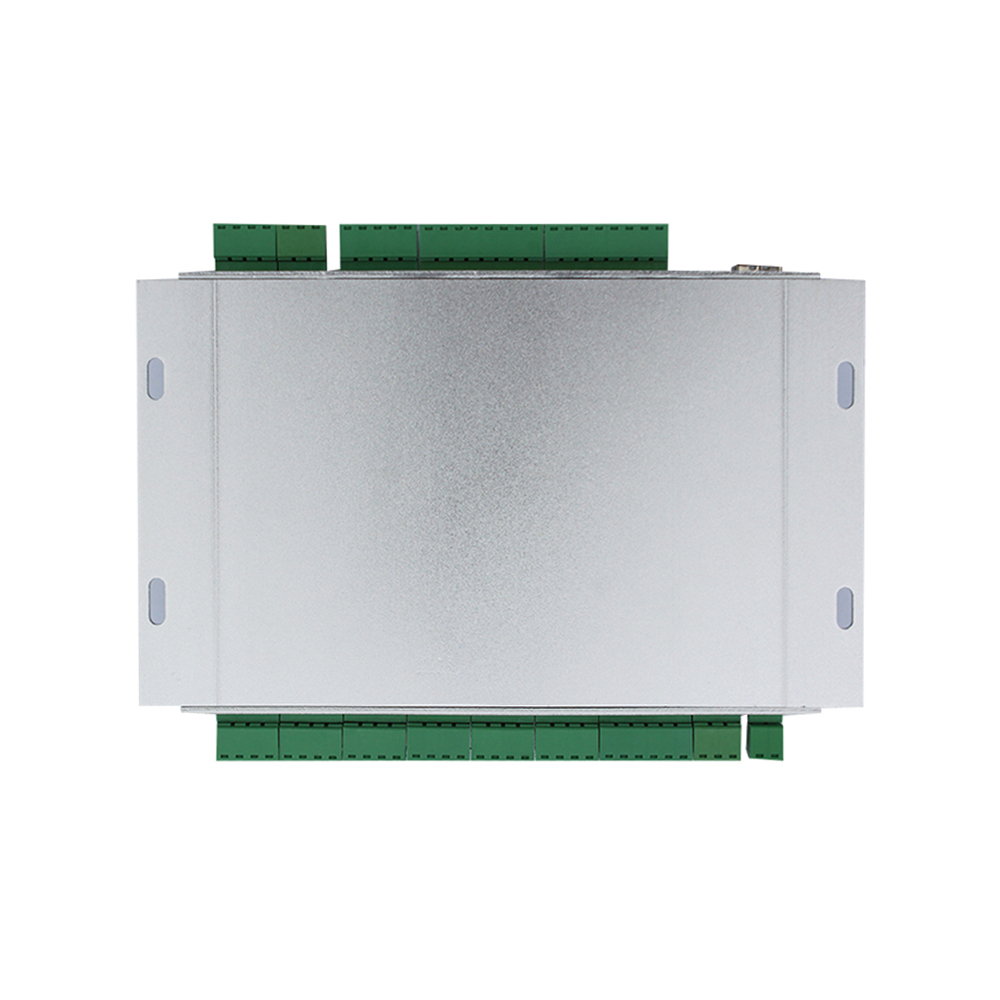

11. Aluminum shell, shielding interference, stable and reliable.

Specifications:

Output control: direction+pulse

Drive current: Isolated open circuit output: 5V, 20mA

Drive mode: pulse+direction output

Output frequency: 2000KHZ

Number of supported axes:

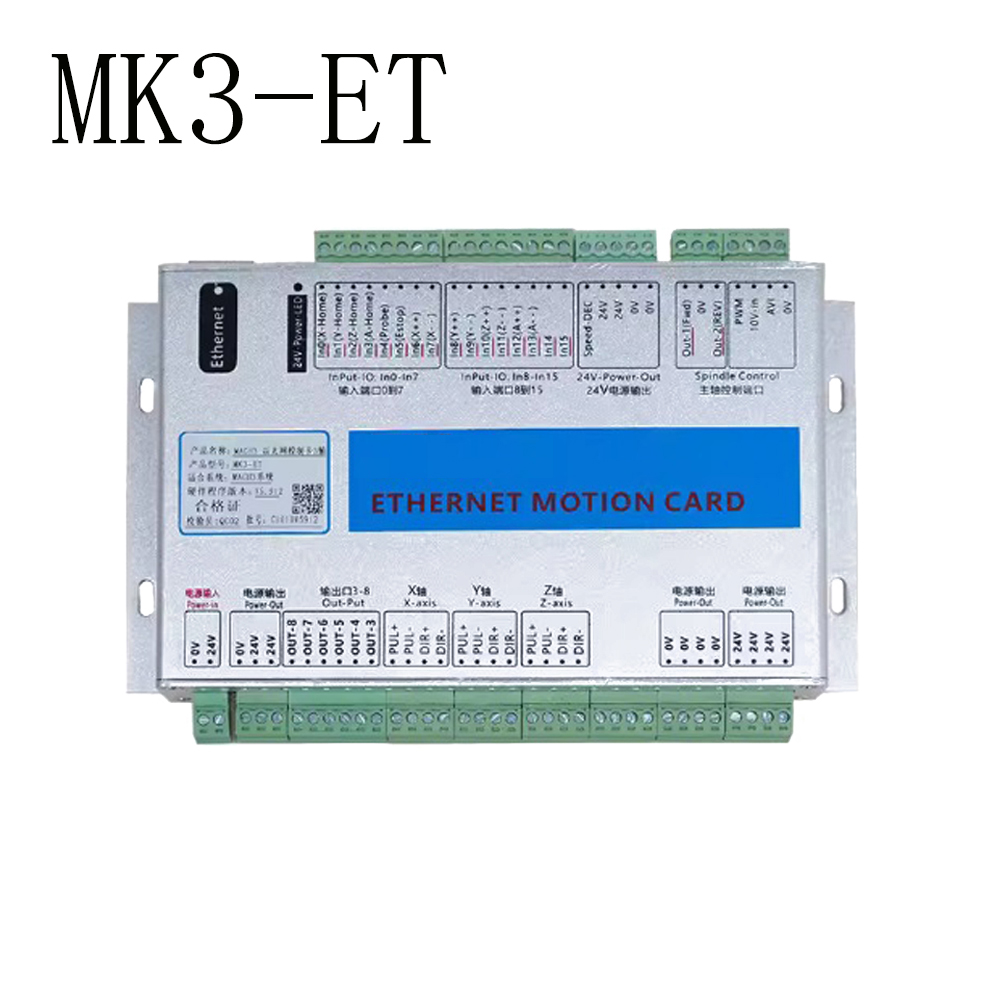

MK3-ET: Supports 3 axes

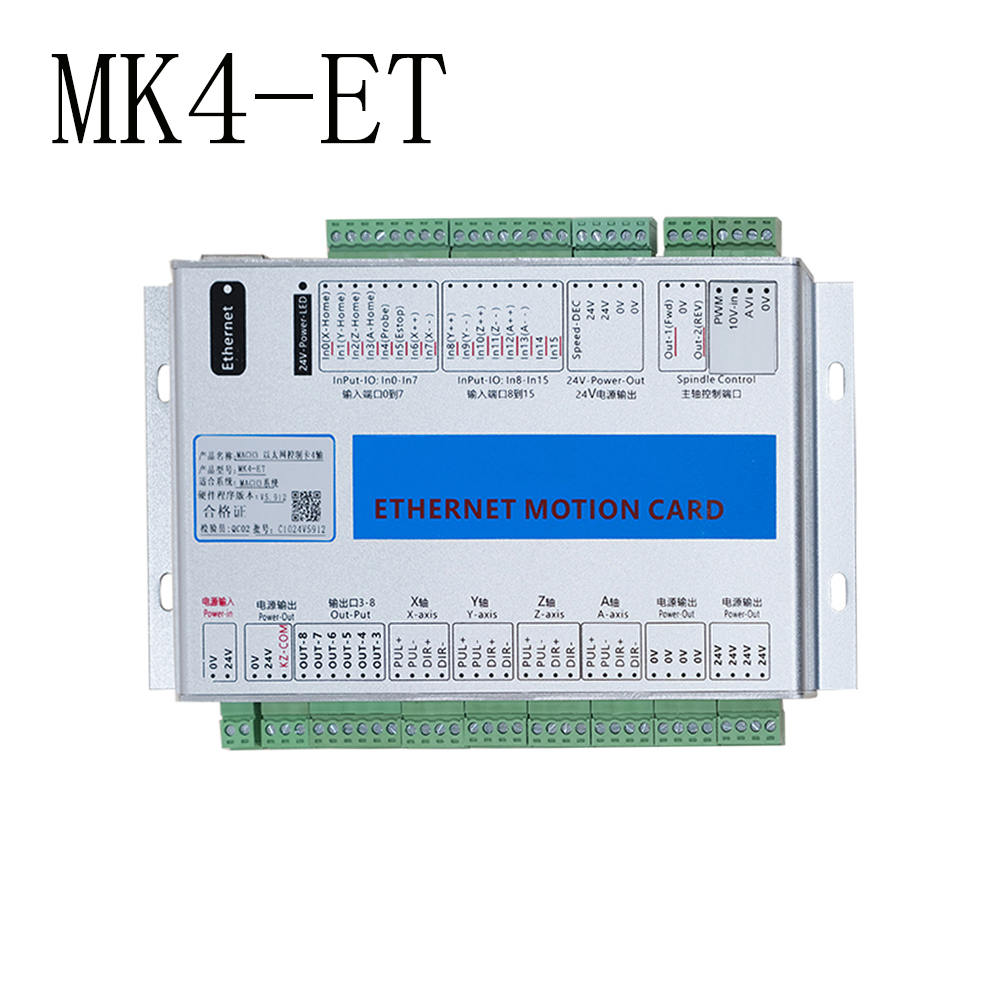

MK4-ET: Supports 4 axes

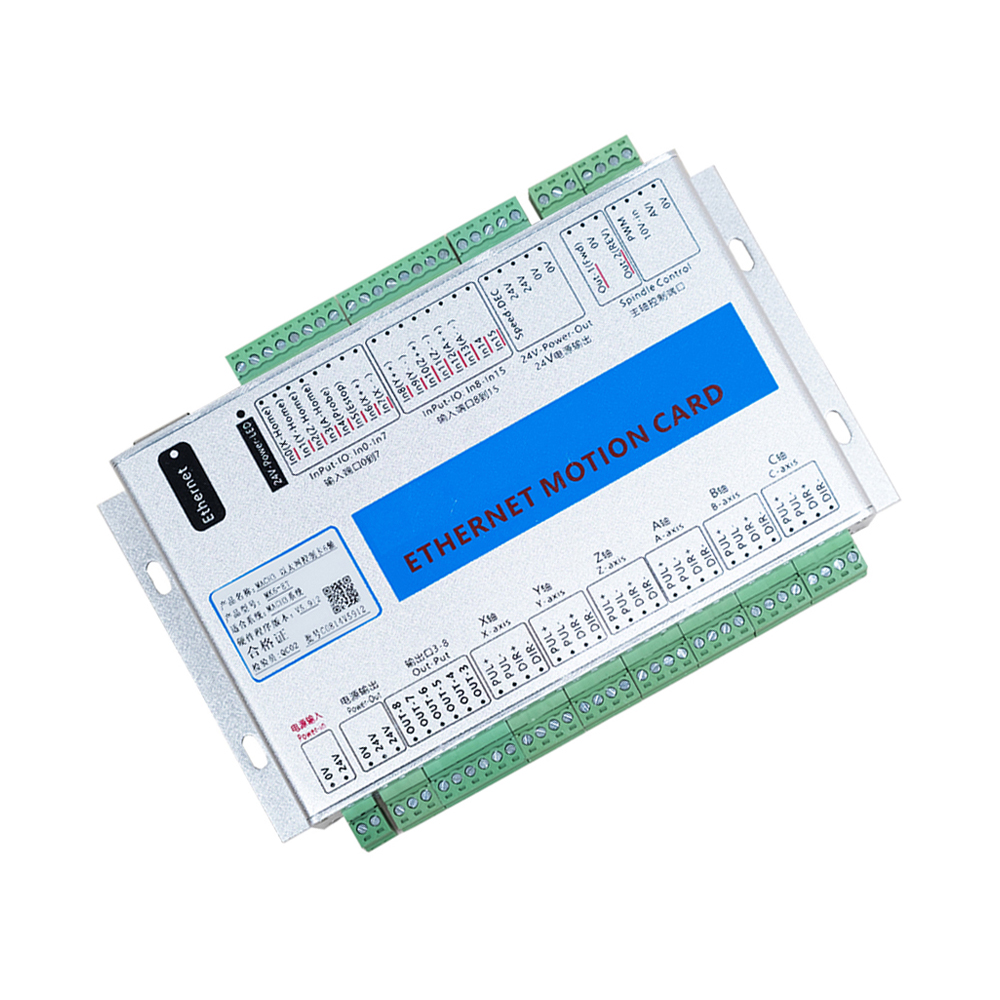

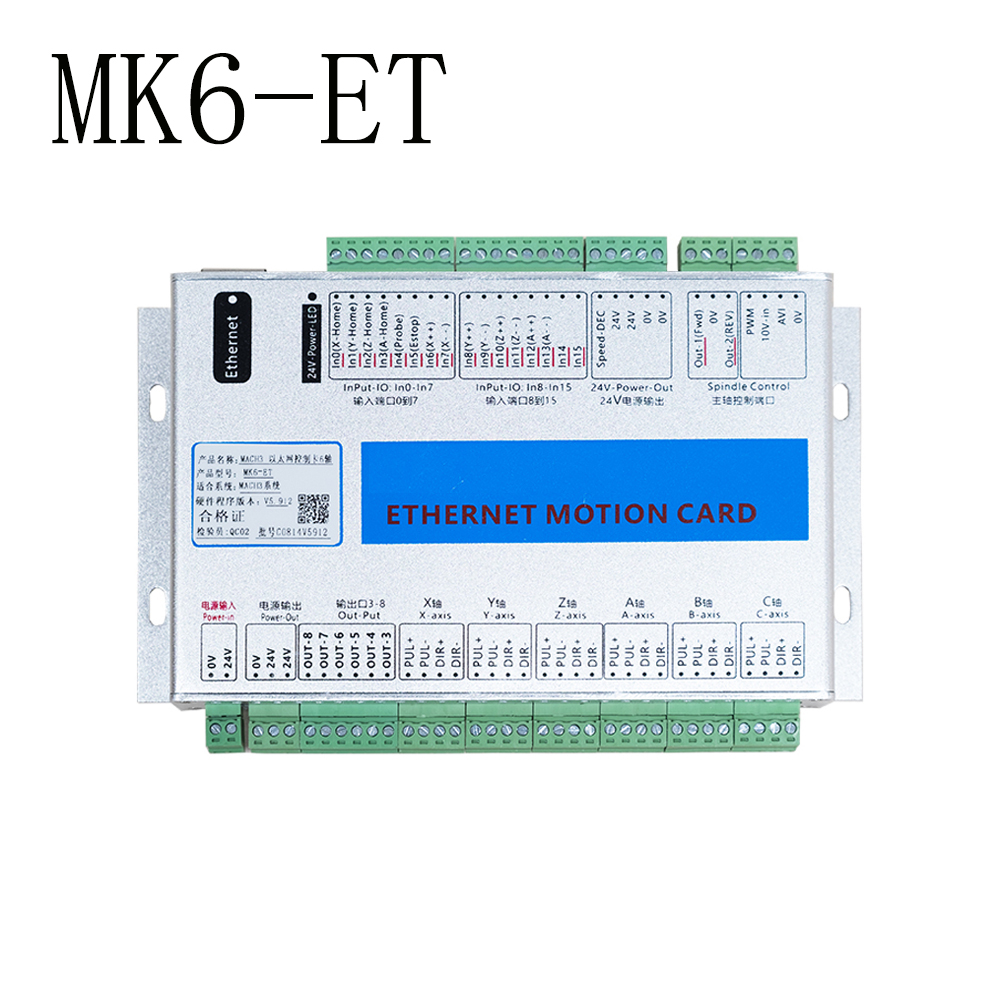

MK6-ET: Supports 6 axes

Spindle speed output: Support 3 modes of output

Analog speed regulation voltage output: 0-10V

PWM output: 5V/1KHZ, duty cycle: 0 to 100%

Pulse+direction output:

Minimum output frequency: 15HZ

Maximum output frequency: 4KHZ

8 way outlets:

Drive current: isolated open circuit output maximum current 50mA; Maximum driving voltage: 25V; Active low

16 way input ports:

Input current: Isolated input: 5mA, maximum voltage 25V

Communication mode: Ethernet interface

Note:

1.Due to the light and screen difference, the item's color may be slightly different from the pictures.

2.Please allow 1mm-1cm differences due to manual measurement.

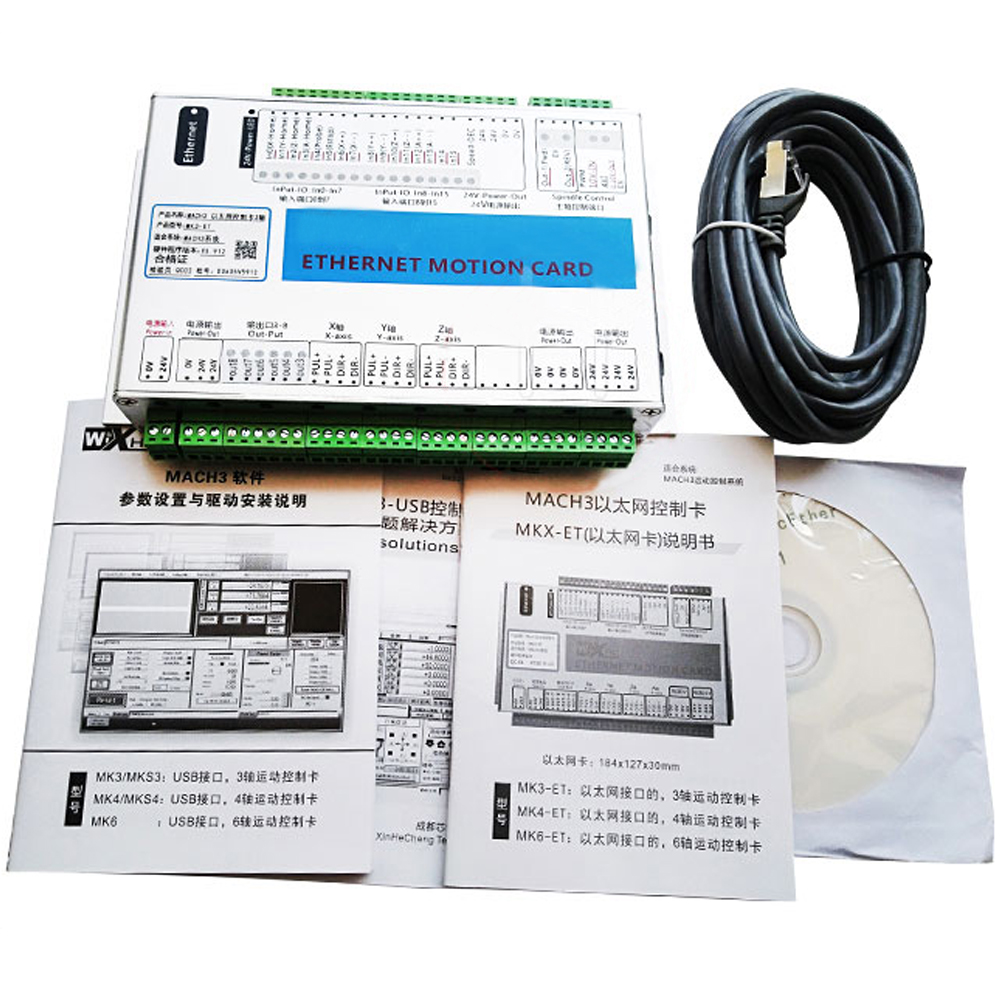

Package Includes:

1x Motion Control Card

1x Ethernet Cable

1x Drive Disc

1x Common Pproblem Solution Manual

1x Installation Instruction

1x MKX-ET Instruction

1x Packing Box
