| Make | Model | Year | Notes | Position |
|---|---|---|---|---|
| Toyota | Camry | 2002 - 2006 | 2.4L | Front Right |
| Toyota | Camry | 2007 - 2008 | CE, LE, SE, XLE | 2.4L | Front Right |
| Toyota | Camry | 2009 | Base, LE, SE, XLE | 2.4L | Front Right |
| Toyota | Highlander | 2001 - 2007 | 2.4L | Front Wheel Drive | Front Right |
| Toyota | Solara | 2004 - 2006 | 2.4L | Front Right |
| Toyota | Solara | 2007 - 2008 | 2.4L | Manual Transmission | Front Right |
|
Weight
|
23.5 lbs
|
|
Height
|
4.3 in
|
|
Width
|
4.3 in
|
|
Length
|
39.4 in
|
|

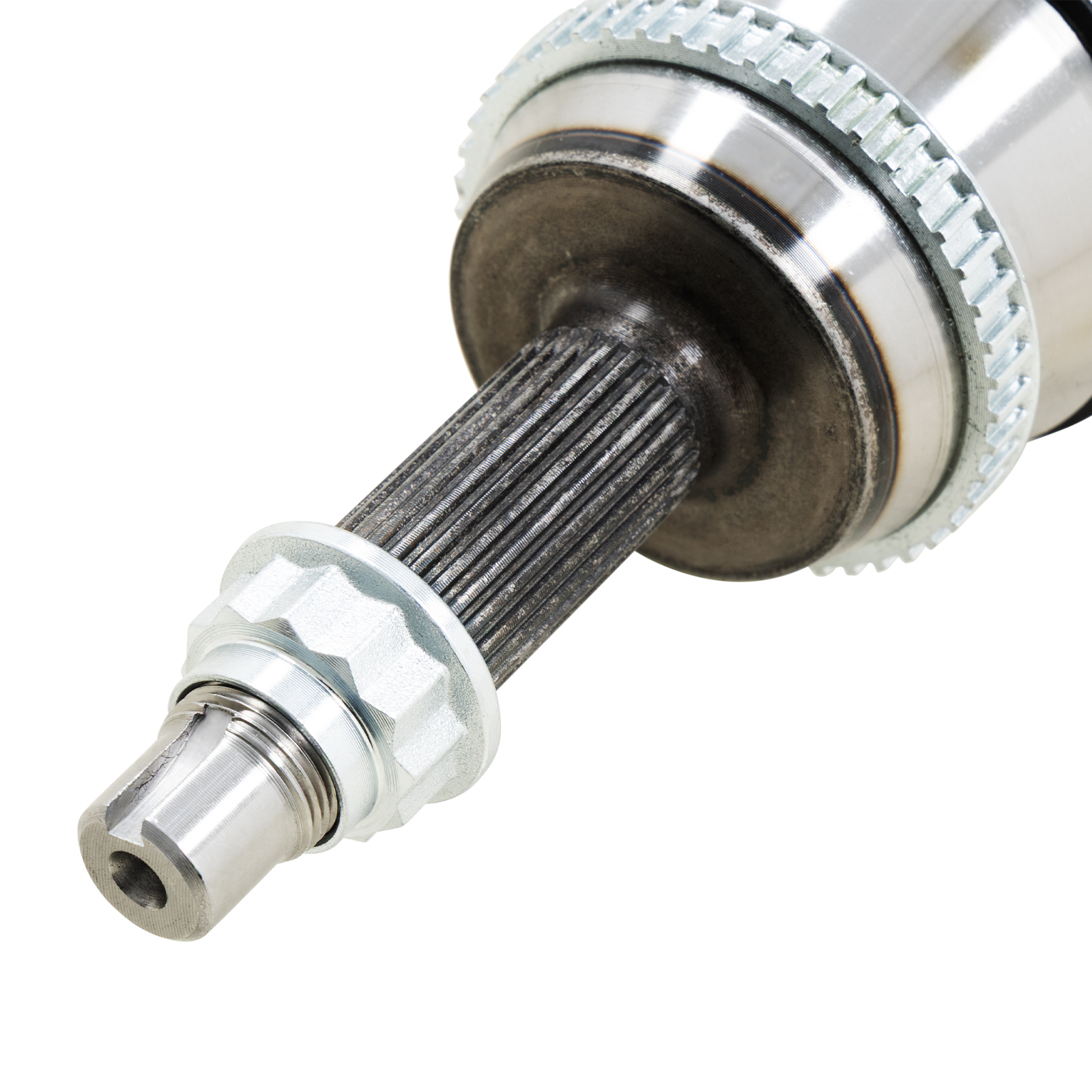

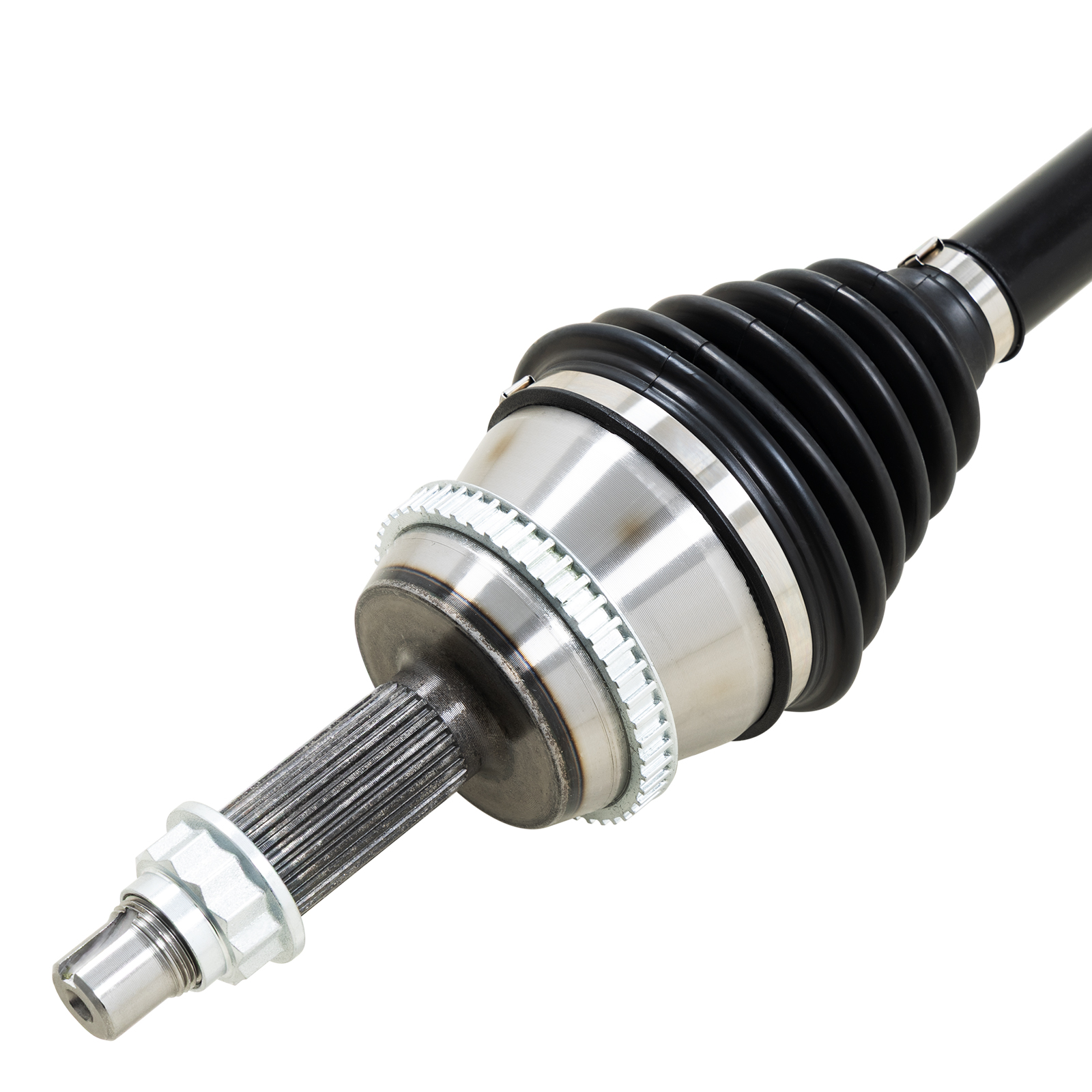

ABS Ring Included
|
Yes
|
|

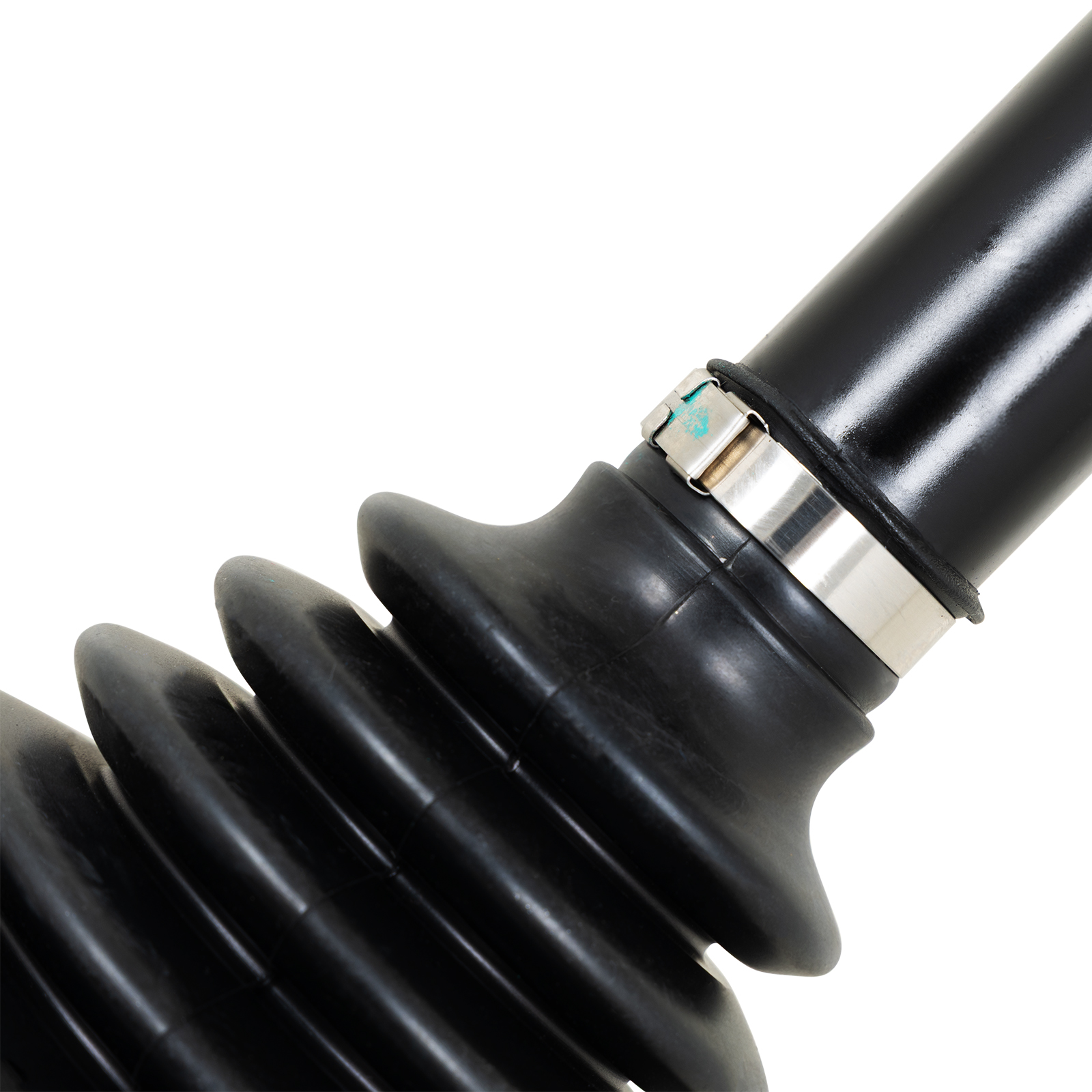

Axle Boot Material
|
Neoprene
|
|
Axle Features
|
ABS
|
|
Axle Nut Hex Size
|
1.18 in / 30 mm
|
|
Axle Nut Included
|
Yes
|
|
Axle Nut Locking Type
|
Open Groove
|
|
Axle Nut Thread Size
|
M22 x 1.5
|
|
Boot Color
|
Black
|
|
Cotter Pin Included
|
No
|
|
Country of Manufacture
|
CN
|
|
Fitment Type
|
Direct Replacement
|
|
Grease Type
|
Molybdenum Disulfide Lithium Grease
|
|
Hardware Included
|
No
|
|
Hazardous Material
|
No
|
|
Inboard Clip Included
|
No
|
|
Input Shaft Connection Style
|
Spline
|
|
ISO Specification
|
ISO 16949
|
|
Items Included
|
N/A
|
|

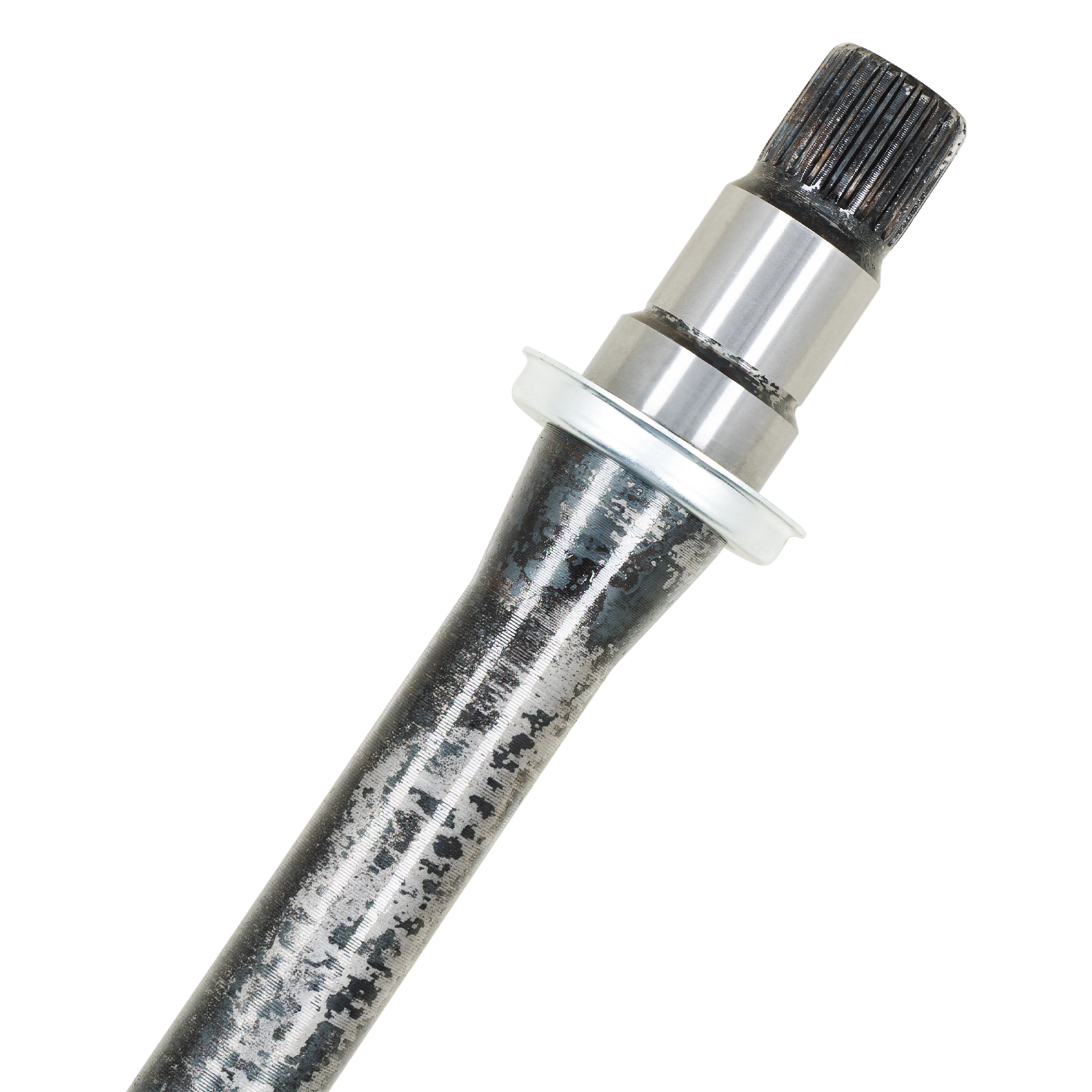

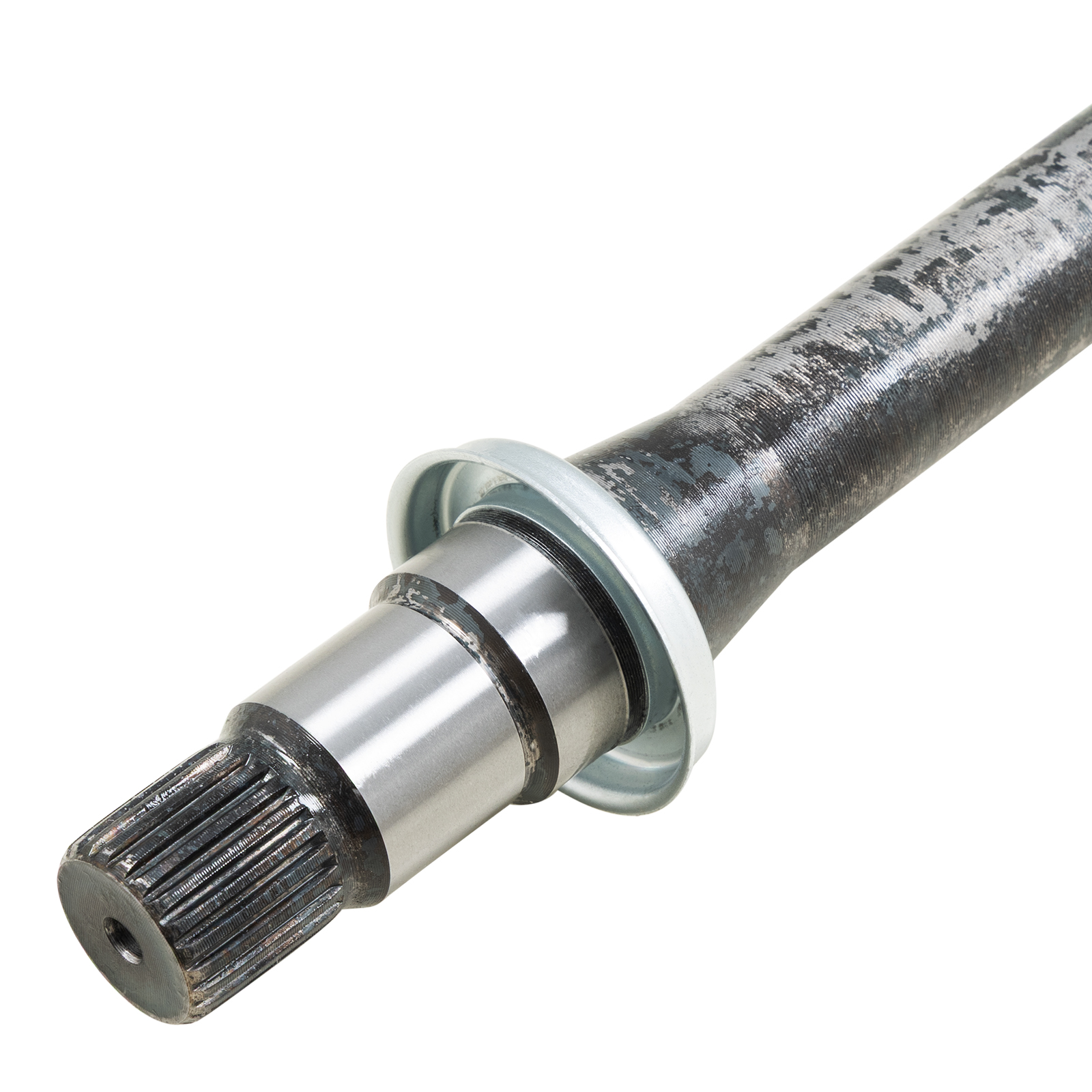

Number of Inboard Splines
|
24 Teeth
|
|
Number of Outboard Splines
|
26 Teeth
|
|
Output Shaft Connection Style
|
Spline
|
|
Overall Compressed Length
|
37.76 in / 959 mm
|
|
Shaft Material
|
40CR
|
|
Surface Finish
|
Black Coating
|
|
