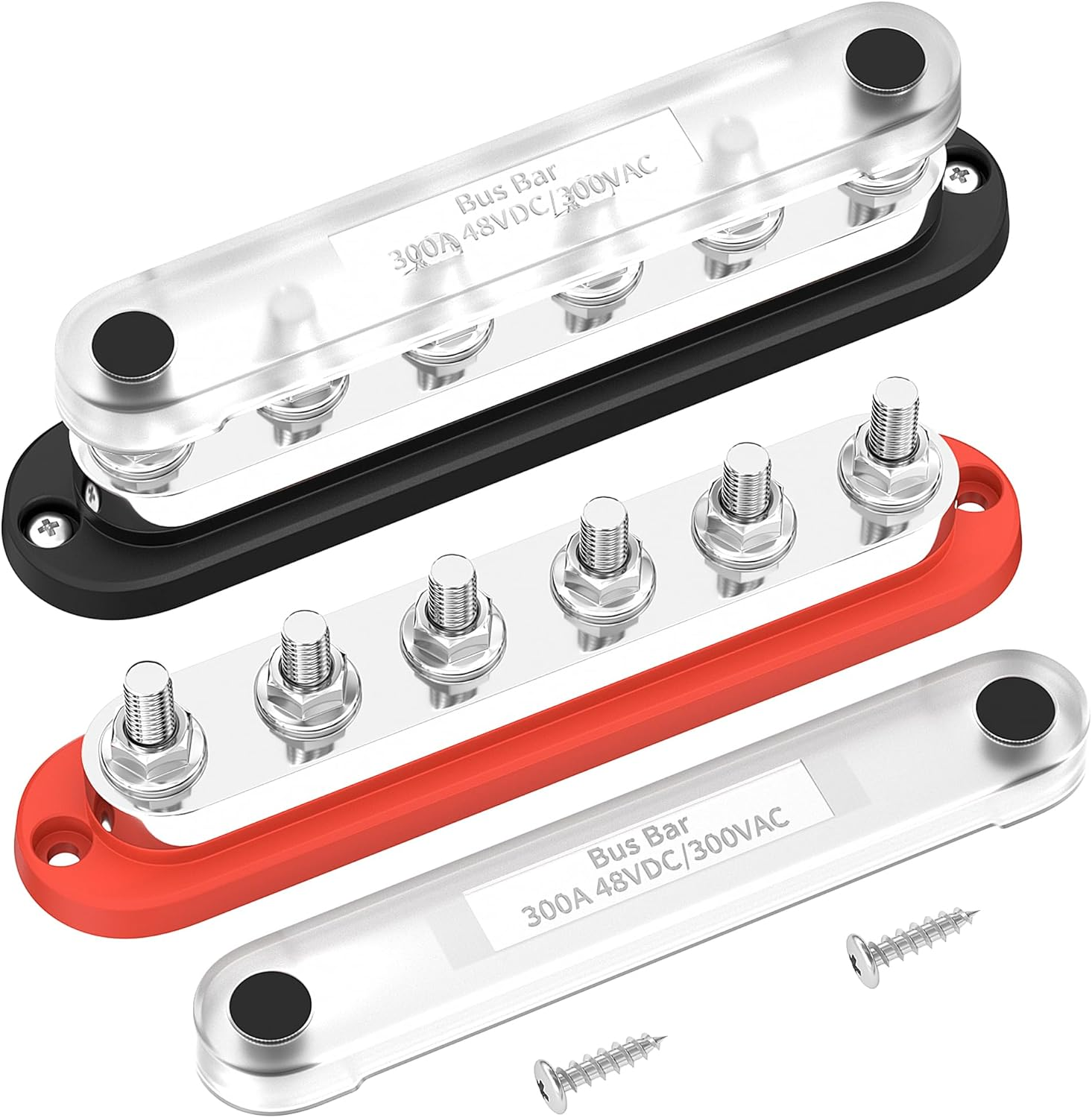

Power Distribution Block 300A 12V Bus Bar 5/16" 6 Post Terminal Block
- 【High Quality】- Power distribution block consists of tin-plated copper bar, stainless steel nuts and terminal studs, nylon bus bar terminal block base and polycarbonate cover. The material is hard and the product is durable.
- 【5/16" Terminal Studs】- The 5/16"(M8) connector is a standardized connector, typically designed as a large-sized connector capable of withstanding high currents and voltages. It features a threaded connection design for easy installation and provides a secure and reliable connection.
- 【Rating】- This bus bar can work in Max 300V AC, 48V DC power supply curcuit, and its size is smaller than other normal 300A bus bars, can meet various mounting demands.
- 【Convenient Connection】- The terminal block has reasonable spacing for connector installation and can be wired 360 degrees.
- 【Wide Application】- The high-quality materials of this battery distribution block enables it to work in extreme environments, universally fit for automotive,car, boat, solar systems, etc.
Product description
Comparision Table
| Price | $38.99$38.99 | $19.99$19.99 | $19.99$19.99 | $23.99$23.99 | $23.99$23.99 | $30.99$30.99 | $119.99$119.99 |
| Current Rating | 300A | 150A | 150A | 150A | 150A | 300A | 600A |
| Voltage Rating | Max 48V DC/300V AC | Max 48V DC/300V AC | Max 48V DC/300V AC | Max 48V DC/300V AC | Max 48V DC/300V AC | Max 48V DC/300V AC | Max 48V DC/300V AC |
| Terminal Studs | 6 x M8 (5/16") | 2 x M6 (1/4") | 4 x M8 (5/16") | 4 x M8 (5/16") | 6 x M8 (5/16") | 3 x M10 (3/8") | 6 x M10 (3/8") |
| Terminal Screws | 0 | 5 x M4 (#8) | 0 | 6 x M4 (#8) | 0 | 10 x M5 (#10) | 0 |
| Dimension | 7”x1.5”x1.6“ | 4.15 x 0.9 x 1.12" | 4.15 x 0.9 x 1.12" | 5.9 x 1.1 x 1.37" | 5.9 x 1.1 x 1.37" | 7.01 x 1.49 x1.82" | 7.01 x 1.49 x 2.15" |
Item Specification
-
Part Number 1 Warranty Description 1 Year Manufacturer Current Rating 300 Amps Mounting Type PCB Mount Color 300A Item Pitch 0.31 Inches Material Nylon, Polycarbonate (PC) Material Type Nylon, Polycarbonate (PC) Connector Type Screw Number of Positions 6 Number Of Poles 6 Voltage 12 Volts Pitch 0.31 Inches Model BB300-T6M8-C-RB Number Of Contacts 6 Specification Met True Item Dimensions W x H 6.49"W x 1.51"H
- Product Dimensions: 1.51 "h x 6.49 "h. Weight: 1.61 lb
