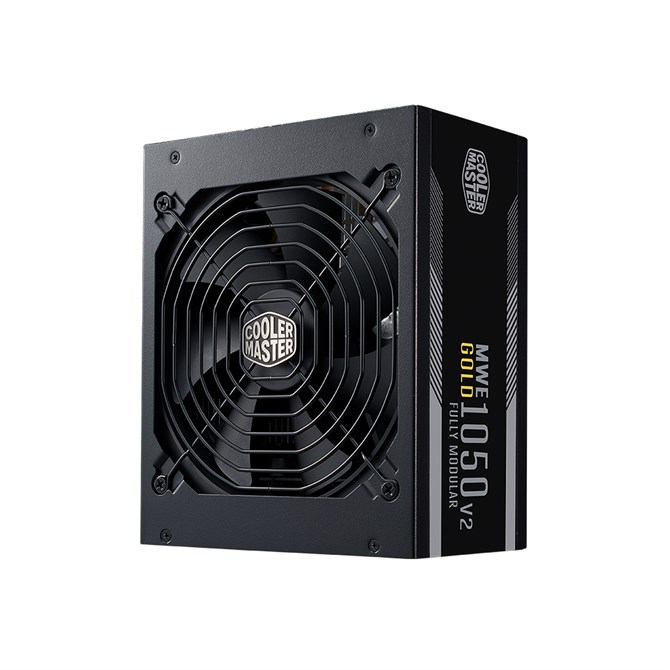

Cooler Master MWE Gold 1050 V2 ATX 3.1 Power Supply Unit 1050 W 24-Pin ATX Black
80 PLUS certification : 80 PLUS Gold
AC input frequency : 50/60 Hz
AC input voltage : 100 - 240 V
ATX Power connector (24-pin) : Yes
ATX version : 3.1
Bearing technology : FDB
Cabling type : Fully-Modular
Case or master carton dimensions (W x D x H) : 325 x 620 x 220 mm
Combined power (+3:3V) : 120 W
Combined power (+5V) : 120 W
Combined power (+5Vsb) : 15 W
Combined power (-12V) : 3.6 W
Compliance certificates : BIS, BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), RCM, TÜV mark, UKCA, cTUVus
Cooling type : Active
Depth : 180 mm
EAN : 4719512150993
Efficiency : 90%
EPS power connector (4+4 pin) : Yes
EPS power connector (8-pin) : Yes
Fan diameter : 14 cm
Fan location : Top
Height : 86 mm
Hold time : 16 ms
Input current : 13 - 6 A
Manufacturer : Cooler Master
Manufacturer Part Code : MPE-A501-AFCAG-3EUK
Max output current (+12V) : 87.5 A
Max output current (+3:3V) : 20 A
Max output current (+5V) : 20 A
Max output current (+5Vsb) : 3 A
Mean time between failures (MTBF) : 100000 h
Model : 1
Motherboard power cable length : 65 cm
Motherboard power connector : 24-pin ATX
Number of SATA power connectors : 12
On/off switch : Yes
Package depth : 333 mm
Package height : 122 mm
Package type : Box
Package weight : 3.36 kg
Package width : 197 mm
PCI Express power connectors (12-pin) : 1
PCI Express power connectors (6+2 pin) : 3
Peripheral (Molex) power cable length : 740,620,500,860 mm
Peripheral (Molex) power connectors (4-pin) : 4
Power Factor Correction (PFC) type : Active
Power Good signal delay range : 100 - 150 ms
Power protection features : Over power, Over total voltage, Over voltage, Overcharge, Short circuit, Under voltage
Power supply unit (PSU) form factor : ATX
Product colour : Black
Product name : MWE Gold 1050 V2 ATX 3.1
Purpose : PC
SATA power cable length : 500,620,740,860 mm
Sustainability certificates : ErP
Total power : 1050 W
Weight : 2.93 kg
Width : 150 mm
