Features
1. Optimized power calculation and charging algorithm, balancing charging efficiency and battery life
2. Prevent overcharging and overdischarging, adding a layer of protection to the battery pack and load devices

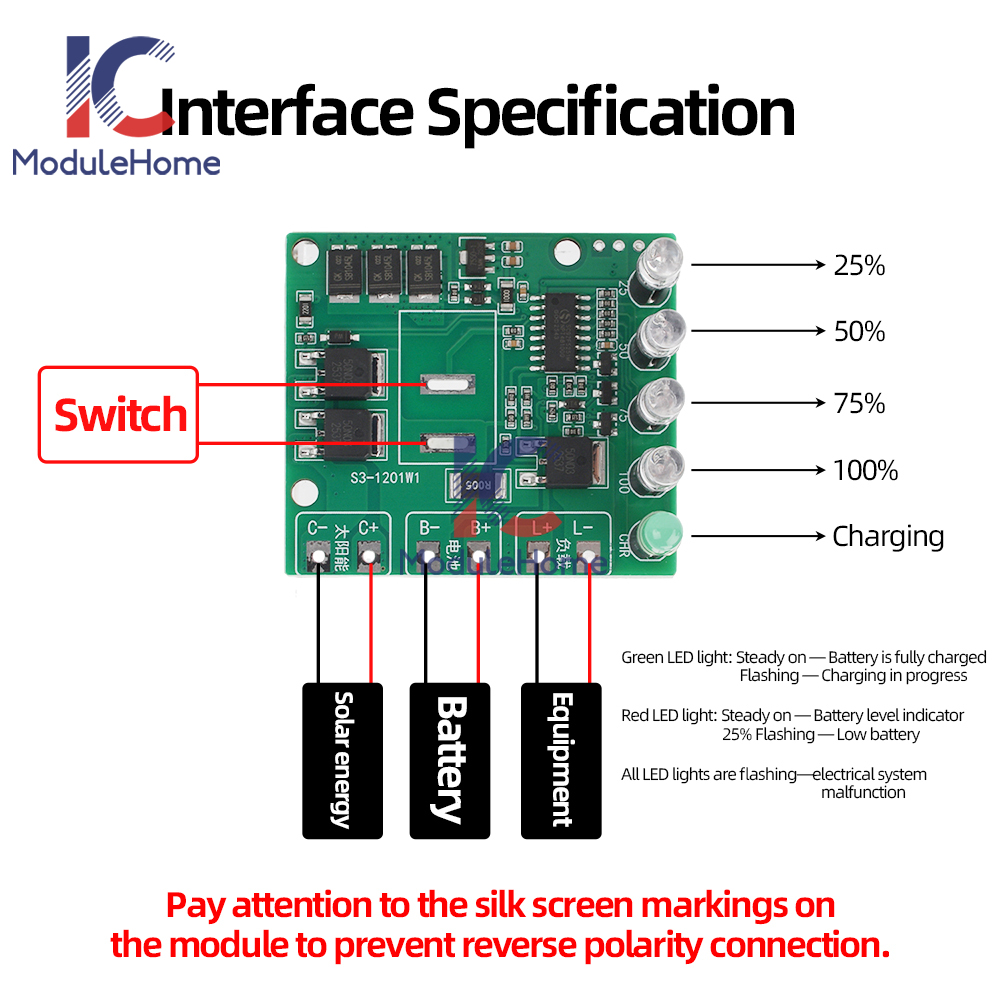

3. High brightness LED multi-color charging indicator light, displaying input/charging/fully charged/abnormal status, etc
4. Integrated anti reflux diode circuit to prevent the battery from discharging backwards to the solar cell
5. Adopting imported power MOS transistors and high-performance microcontrollers for more timely response
1. Optimized power calculation and charging algorithm, balancing charging efficiency and battery life
2. Prevent overcharging and overdischarging, adding a layer of protection to the battery pack and load devices
3. High brightness LED multi-color charging indicator light, displaying input/charging/fully charged/abnormal status, etc
4. Integrated anti reflux diode circuit to prevent the battery from discharging backwards to the solar cell
5. Adopting imported power MOS transistors and high-performance microcontrollers for more timely response

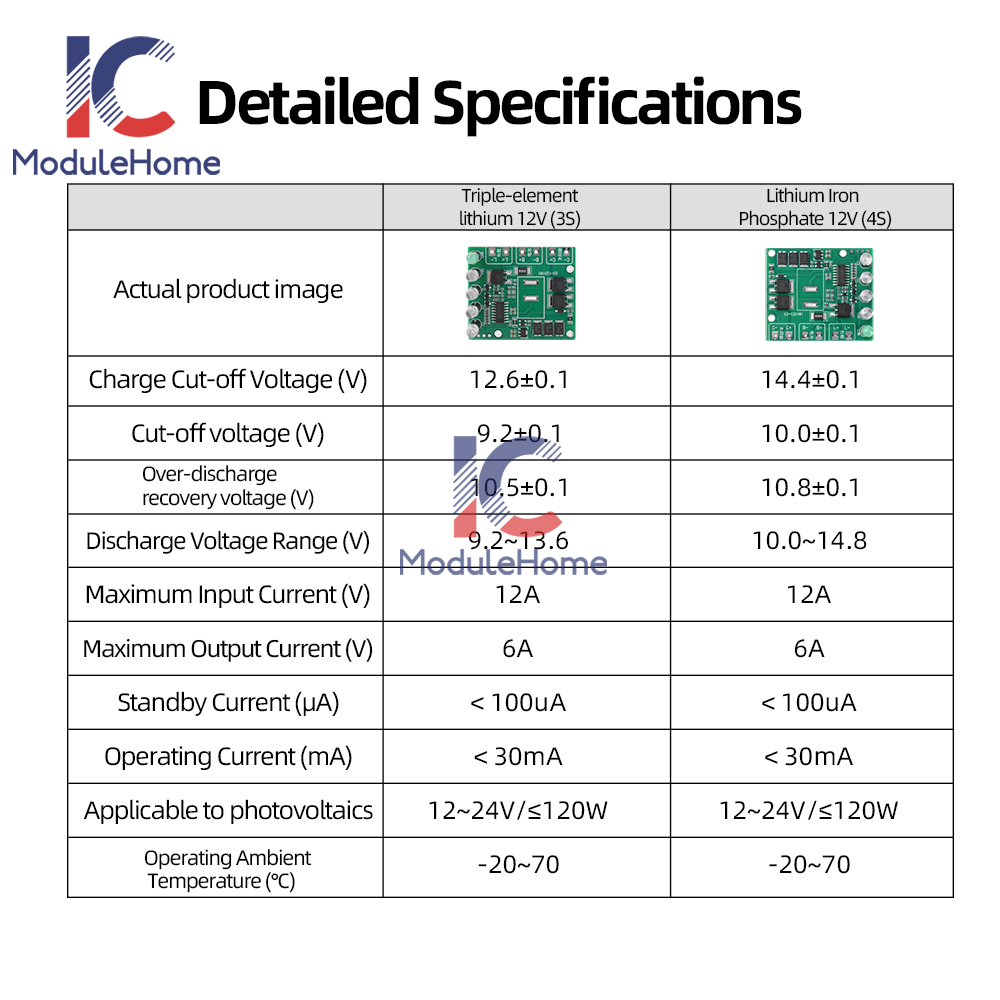

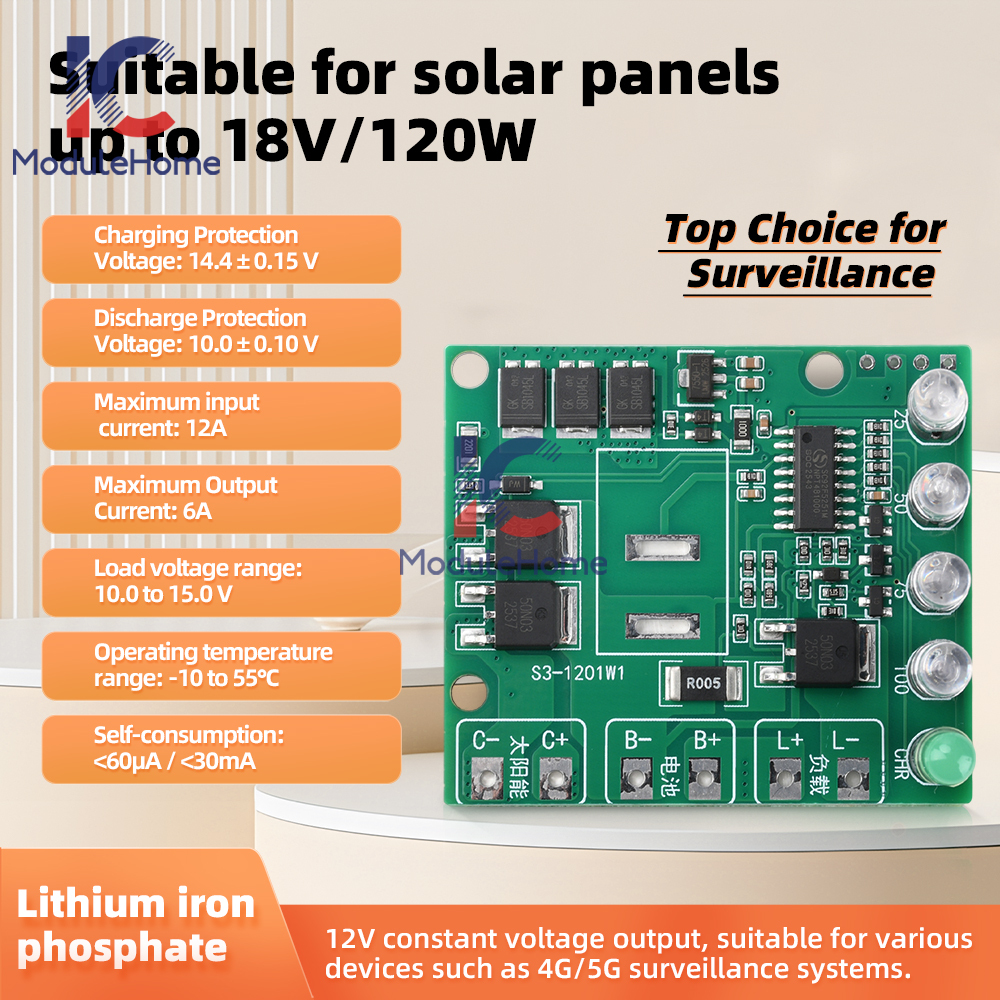

Parameters
Charging cut-off voltage (V): 12.6 ± 0.1V for ternary lithium and 14.4 ± 0.1V for lithium iron phosphate
Discharge cut-off voltage (V): 9.2 ± 0.1V for ternary lithium and 10.0 ± 0.1V for lithium iron phosphate
Overdischarge recovery voltage (V): 10.5 ± 0.1V for ternary lithium and 10.8 ± 0.1V for lithium iron phosphate
Discharge voltage range (V): 9.2~13.6V for ternary lithium and 10.0~14.8V for lithium iron phosphate
Maximum input current (A): 12A
Maximum output current (A): 6A
Standby current (uA):<100uA
Working current (mA): less than 30mA
Applicable photovoltaic: 1224V/≤ 120W
Charging cut-off voltage (V): 12.6 ± 0.1V for ternary lithium and 14.4 ± 0.1V for lithium iron phosphate
Discharge cut-off voltage (V): 9.2 ± 0.1V for ternary lithium and 10.0 ± 0.1V for lithium iron phosphate
Overdischarge recovery voltage (V): 10.5 ± 0.1V for ternary lithium and 10.8 ± 0.1V for lithium iron phosphate
Discharge voltage range (V): 9.2~13.6V for ternary lithium and 10.0~14.8V for lithium iron phosphate
Maximum input current (A): 12A
Maximum output current (A): 6A
Standby current (uA):<100uA
Working current (mA): less than 30mA
Applicable photovoltaic: 1224V/≤ 120W
Note
1. This product is an electronic module that is not a finished product. During use, you need to solder and connect the wires yourself. Please consider carefully when purchasing
During the selection process, it is necessary to understand one's own battery type (ternary lithium, lithium iron, lead-acid), battery voltage, and equipment voltage (5V/12V)
1. This product is an electronic module that is not a finished product. During use, you need to solder and connect the wires yourself. Please consider carefully when purchasing
During the selection process, it is necessary to understand one's own battery type (ternary lithium, lithium iron, lead-acid), battery voltage, and equipment voltage (5V/12V)
Pacakge Include
Module * 1
Module * 1
