ESP32-S3 7-inch Capacitive Touch Screen Development Board, LVGL Programming, CAN RS485 I2C Peripheral Interfaces, Arduino Compatible, WiFi BLE 5, 800x480 IPS Display

Product Description

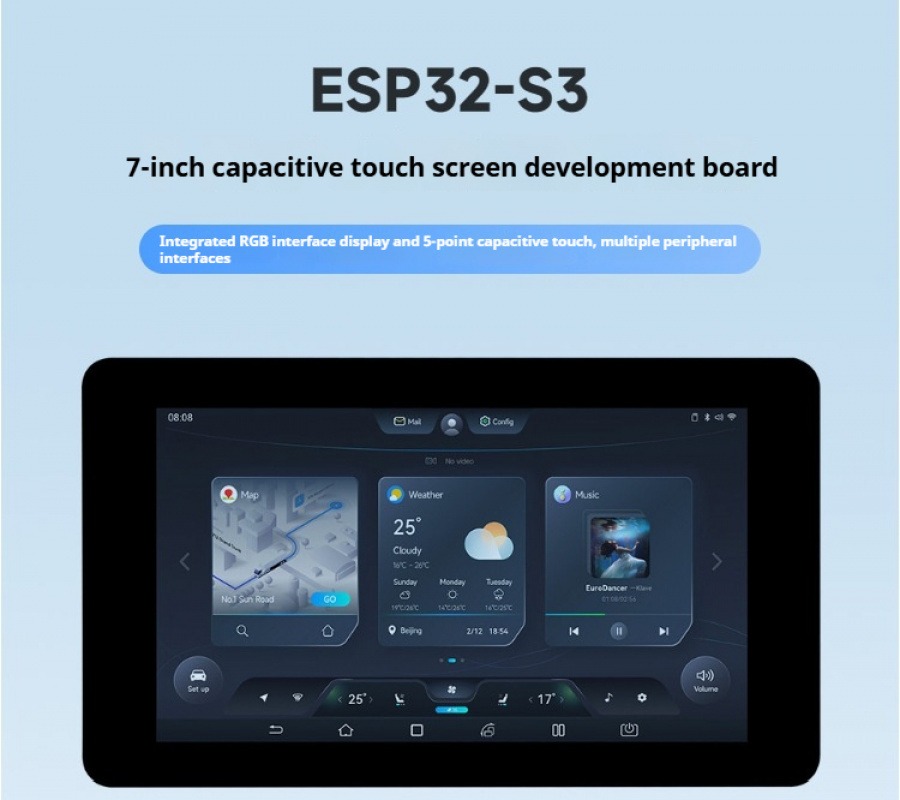

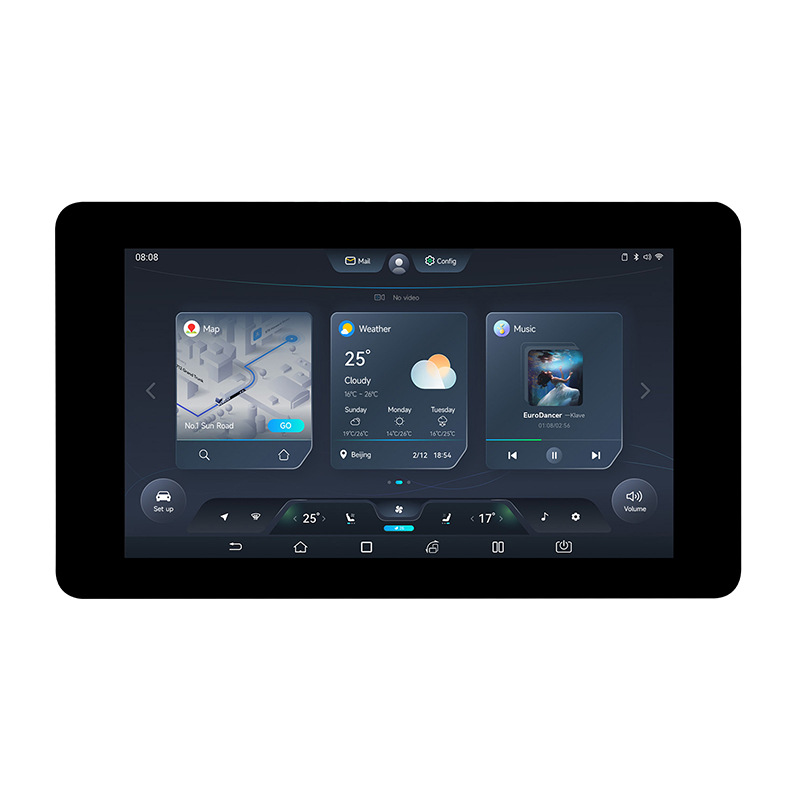

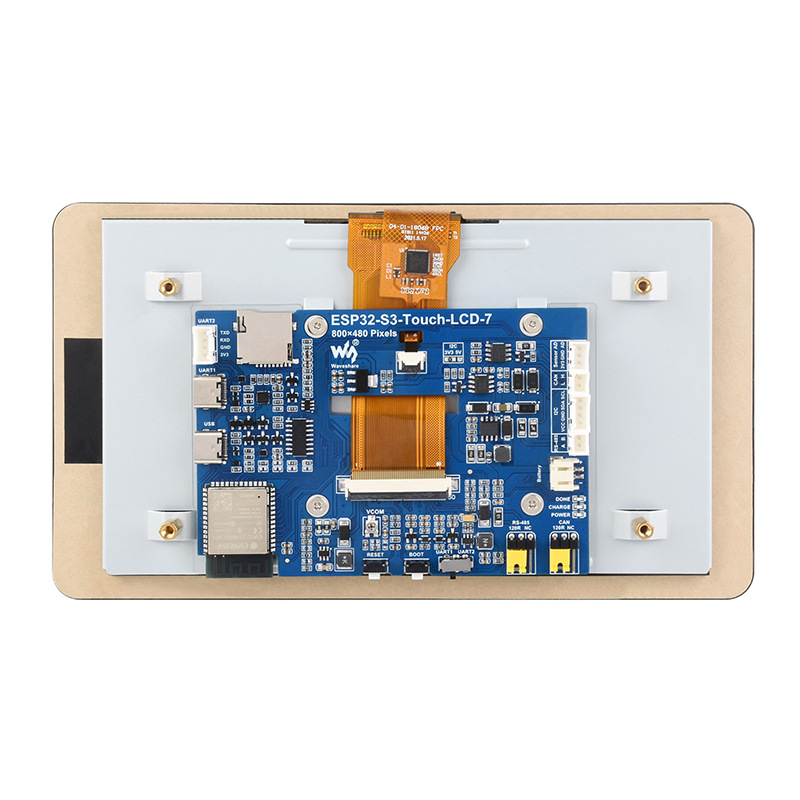

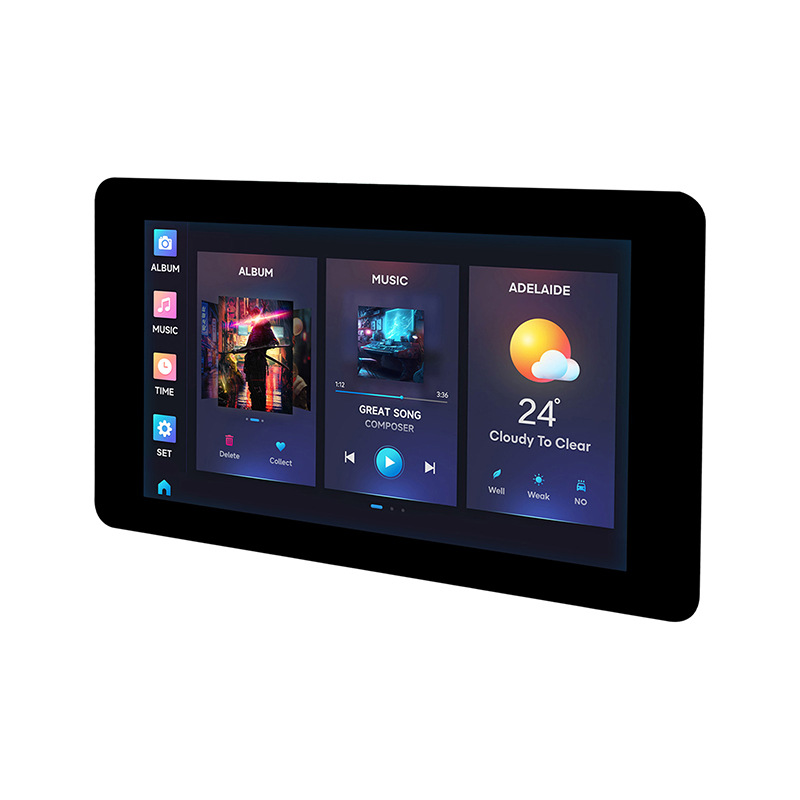

This ESP32-S3-Touch-LCD-7 is a powerful microcontroller development board designed for HMI and GUI applications. It features a 7-inch capacitive touch screen with 800x480 resolution and 65K colors, enabling smooth operation of LVGL and other graphical libraries. The board is equipped with a high-performance Xtensa 32-bit LX7 dual-core processor running at 240MHz, and integrates 8MB Flash and 8MB PSRAM for robust performance.

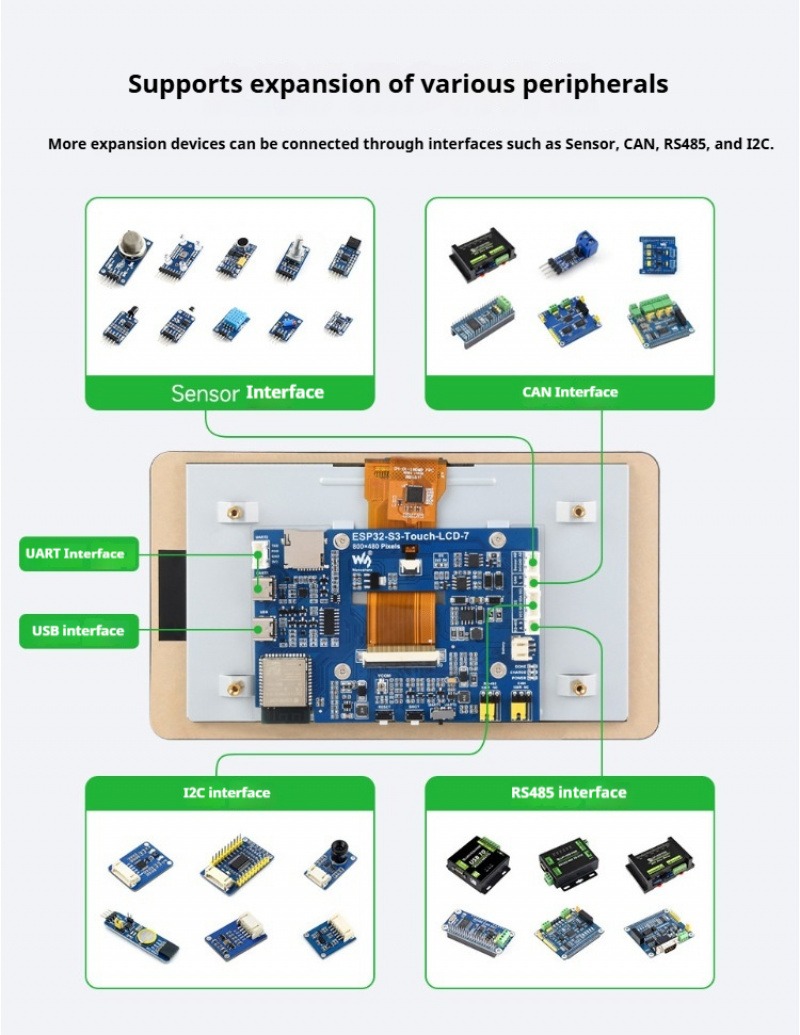

Key connectivity includes 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with an on-board antenna. It provides a rich set of peripherals: CAN, RS485, I2C, UART, USB Type-C, and a Micro SD card slot, making it ideal for IoT and industrial control projects. The board also supports low-power modes and flexible clock configurations for energy-efficient operation.

Available variants:
  • ESP32-S3 7-inch Capacitive Touch Screen

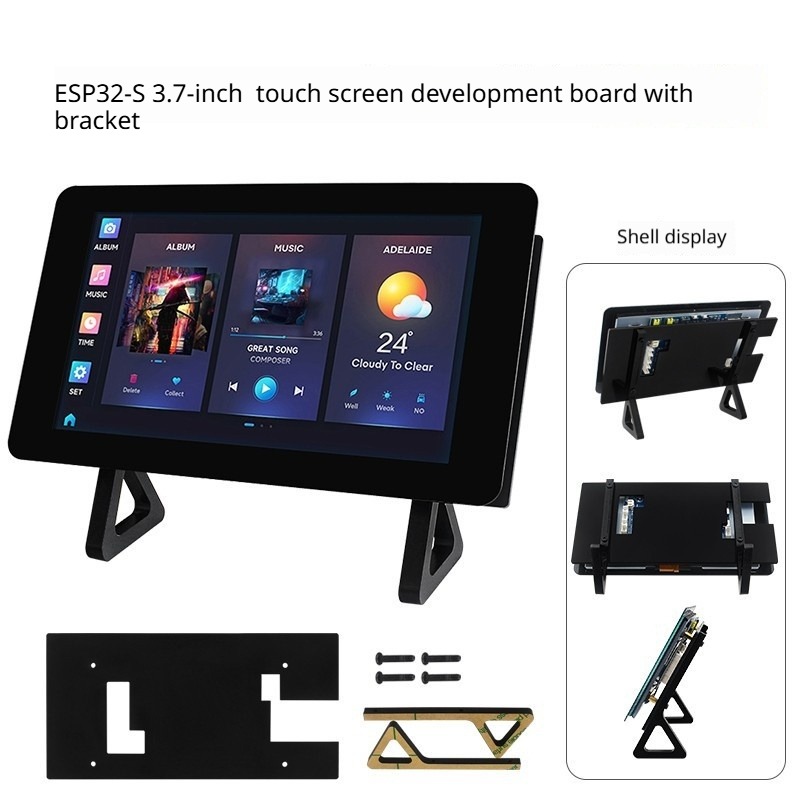

  • ESP32-S3 7-inch Capacitive Touch Screen + Acrylic Case/shell
  • ESP32-S3 7-inch Non-Touch Screen

Key Features

  • Powerful Core: Xtensa 32-bit LX7 dual-core processor, 240MHz clock speed
  • Memory: 512KB SRAM, 384KB ROM, 8MB Flash, 8MB PSRAM
  • Display: 7-inch capacitive touch screen (800x480, 65K colors, 5-point touch)
  • Connectivity: 2.4GHz Wi-Fi, BLE 5, CAN, RS485, I2C, UART, USB Type-C
  • Storage: Micro SD card slot for expandable data storage
  • Power Options: USB Type-C, 3.7V single-cell LiPo battery support
  • Programming: LVGL GUI development, Arduino compatibility, easy firmware flashing via BOOT/RESET buttons

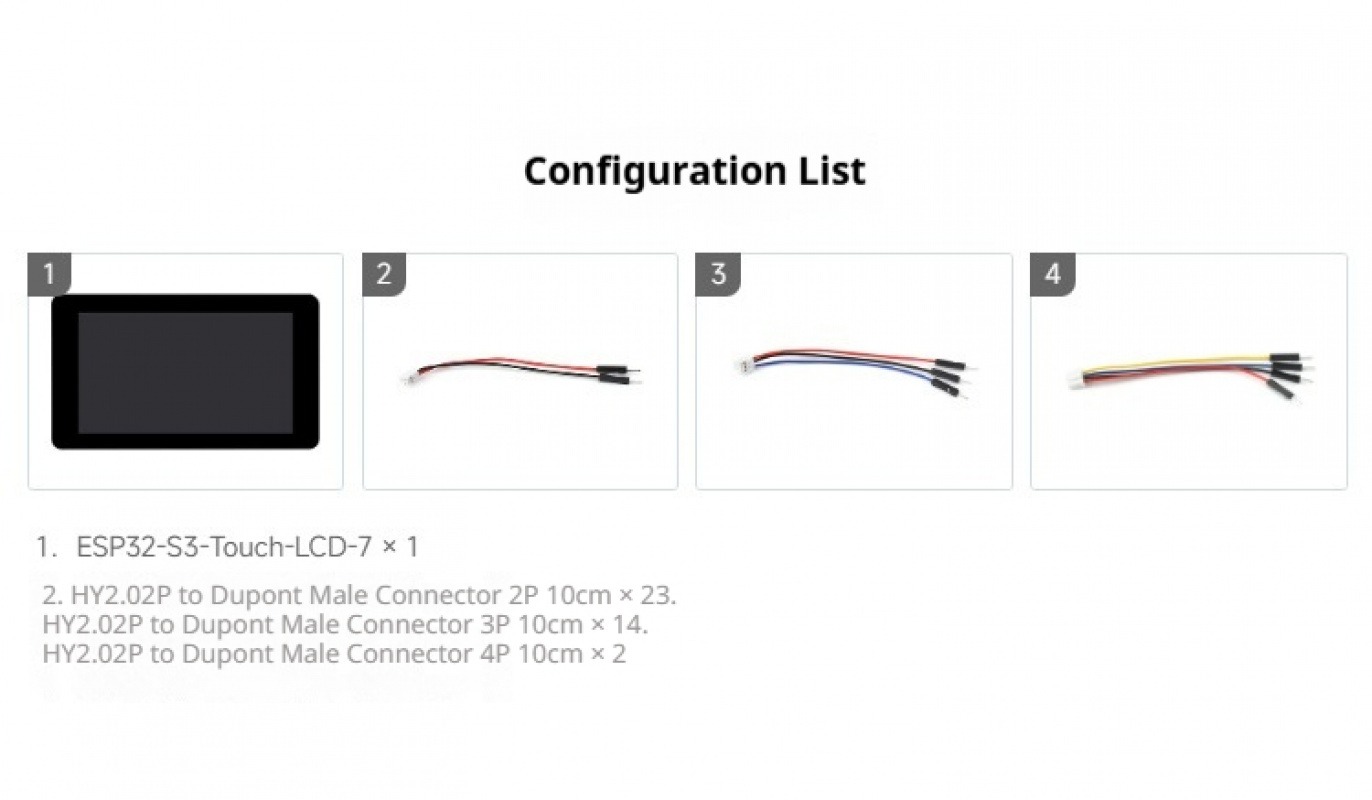

Package Includes

  1. ESP32-S3-Touch-LCD-7 Development Board x 1
  2. HY2.0 2P to Dupont Male 2P 10cm Cable x 2
  3. HY2.0 2P to Dupont Male 3P 10cm Cable x 1
  4. HY2.0 2P to Dupont Male 4P 10cm Cable x 2
