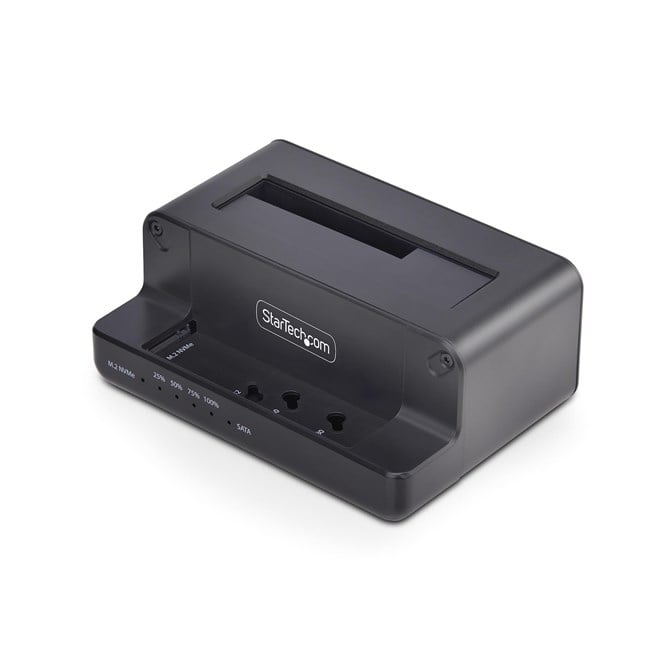

StarTech.com M.2 NVMe to 2.5/3.5 SATA Drive Duplicator Dual Bay Standalone SSD C
Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USB
Perform bidirectional cloning between M.2 NVMe and 2.5/3.5" SATA SSDs/HDDs without a computer, using this M.2 NVMe to SATA Drive Duplicator. The standalone sector-by-sector duplication supports SATA III (6Gbps) and works with any file format.
Standalone M.2 NVMe to SATA Cloner Dock
Clone an M.2 NVMe drive to a 2.5"/3.5" SATA SSD/HDD or vice versa. This solution is ideal for hardware upgrades, system imaging, or routine maintenance. The Duplicator Dock supports 2240, 2260, and 2280 M.2 NVMe sizes and fits all standard SATA drives, seamlessly combining both legacy and modern storage solutions.
External Drive Access over USB-C
The USB 3.2 Gen 2 (10Gbps) host connection provides external access to both M.2 NVMe and SATA drives, facilitating data transfer between systems without the need to install the drives internally.
Compact Form Factor
The Standalone M.2 NVMe to 2.5/3.5in SATA Cloner is portable and minimizes desk space usage. It enables instant data backup, and is ideal for IT Professionals when troubleshooting on-site, with the ability to re-image and re-deploy M.2 NVMe and SATA SSDs/HDDs without the need for a dedicated cloning station.
The SSD Cloner Dock features a top-loading design to promote passive airflow for consistent temperatures during peak performance. The Standalone Duplicator supports 4Kn sector size, TRIM, SMART, and UASP. Please note that the target disk must be equal to or larger than the source disk.
The StarTech.com Advantage
Specs
Features
Product type
The sub-category of the product.
HDD/SSD duplicator
Product colour
The colour e.g. red, blue, green, black, white.
Black
Number of simultaneous copies
The amount of copies that can be made at the same time.
1 copies
Interface
Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.
USB 3.2 Gen 2 (3.1 Gen 2)
Duplicator operating modes
Copy
Transfer rate
27 GB/min
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
JMS581D
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
0 fan(s)
LED indicators
Hard drive
Supported HDD sizes
The size of the hard disk drives which can be used by the device.
2.5, 3.5"
Supported HDD interfaces
The type of interfaces that can be used with the hard disk drive e.g. parallel ATA (PATA), serial ATA (SATA), SCSI.
Serial ATA, Serial ATA II, Serial ATA III
SSD support
Solid-state drive (SSD), a type of memory, can be used with this product.
SSD interface
The type of interface(s) with which the Solid State Drive is connected to other hardware.
M.2, PCI Express 3.0, PCI Express 3.1
Power
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
0.1 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
0 - 240 V
Input current
1.5 A
Output voltage
V
Output current
3 A
Power plug type
Type M
Power
Included power plug types
ANZ, EU, JP, NA, UK
Weight & dimensions
Dimensions (WxDxH)
Dimensions of the product (Width x Depth x Height).
0 x 140 x 55 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
292 g
Packaging data
Package width
The distance from one side of the packaging to the other.
249 mm
Package depth
The distance from the front to the back of the packaging.
8 mm
Package height
The distance from the top to the bottom of the packaging.
65 mm
Package weight
Weight of the packaged product.
600 g
Packaging content
Cables included
USB Type-C
AC adapter included
Manual
Operational conditions
Operating relative humidity (H-H)
- 85%
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 45 -C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 70 -C
Technical details
Compliance certificates
RoHS, Trade Agreements Act (TAA)
Logistics data
Master (outer) case length
350 mm
Master (outer) case width
510 mm
Master (outer) case height
255 mm
Products per master (outer) case
pc(s)
