Notes:If your address is remote, you will need to pay shipping fee difference. Thanks for understanding.
Items Description
Welcome to our store!!! alloy_industry_autoparts hope you are happy with your purchase. Thank you for choosing us, have a great day!
All products support easy return & lifetime warranty!!!Orders paid before 9:30am support same-day shipping. (Notes: Pls make sure the post code&city is right, so that we can send your order in time) Good Feedback is very important to us. Any questions, please feel free to contact us.We will try our best to solve your problem.
Pls check the item pictures and size to get the suitable items.
Vehical Fitment：
2011-2013 Ford Mustang (V6 3.7L),
2004 Ford Mustang (V6 3.9L),
2005-2010 Ford Mustang (V6 4.0L),
2005-2010 Ford Mustang (V8 4.6L),
2011-2013 Ford Mustang (V8 5.0L)
Please Notice :ONLY FOR Manual MT
Radiator Size：
Material: Aluminum
3-Row of tubes Core Racing Design
Overall Height: 21 1/2"
Overall Width: 29 3/4"
Core Height: 19 1/4"
Core Width: 24 1/8"
Inlet Location: Passenger
Inlet Diameter: 1 1/2"
Outlet Location: Driver
Outlet Diameter: 1 1/2"
Transmission Oil Cooler: No
Fan Specification:
Diameter : 16'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
Amp Draw: 10amp
Fan Thickness: 2.95"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.

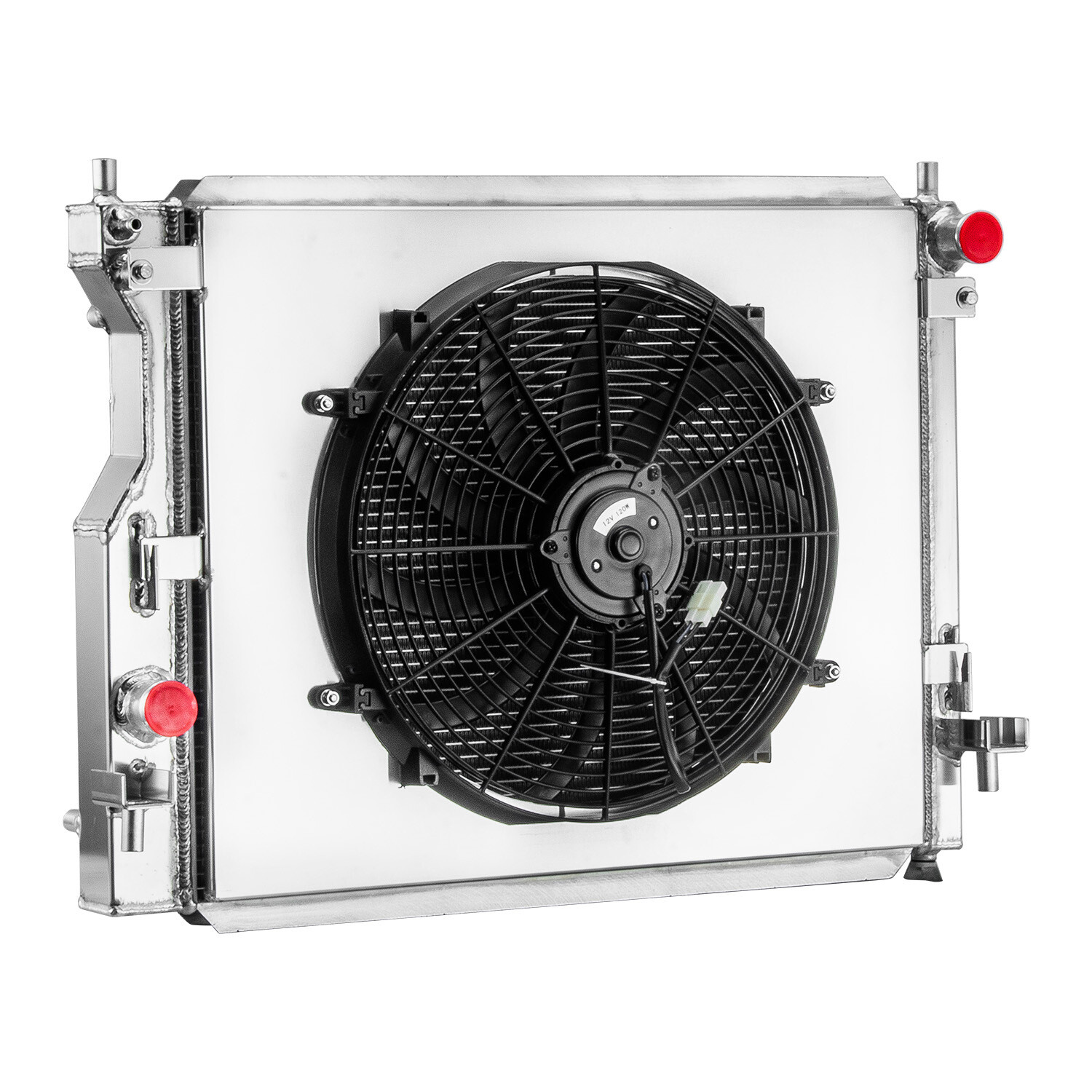

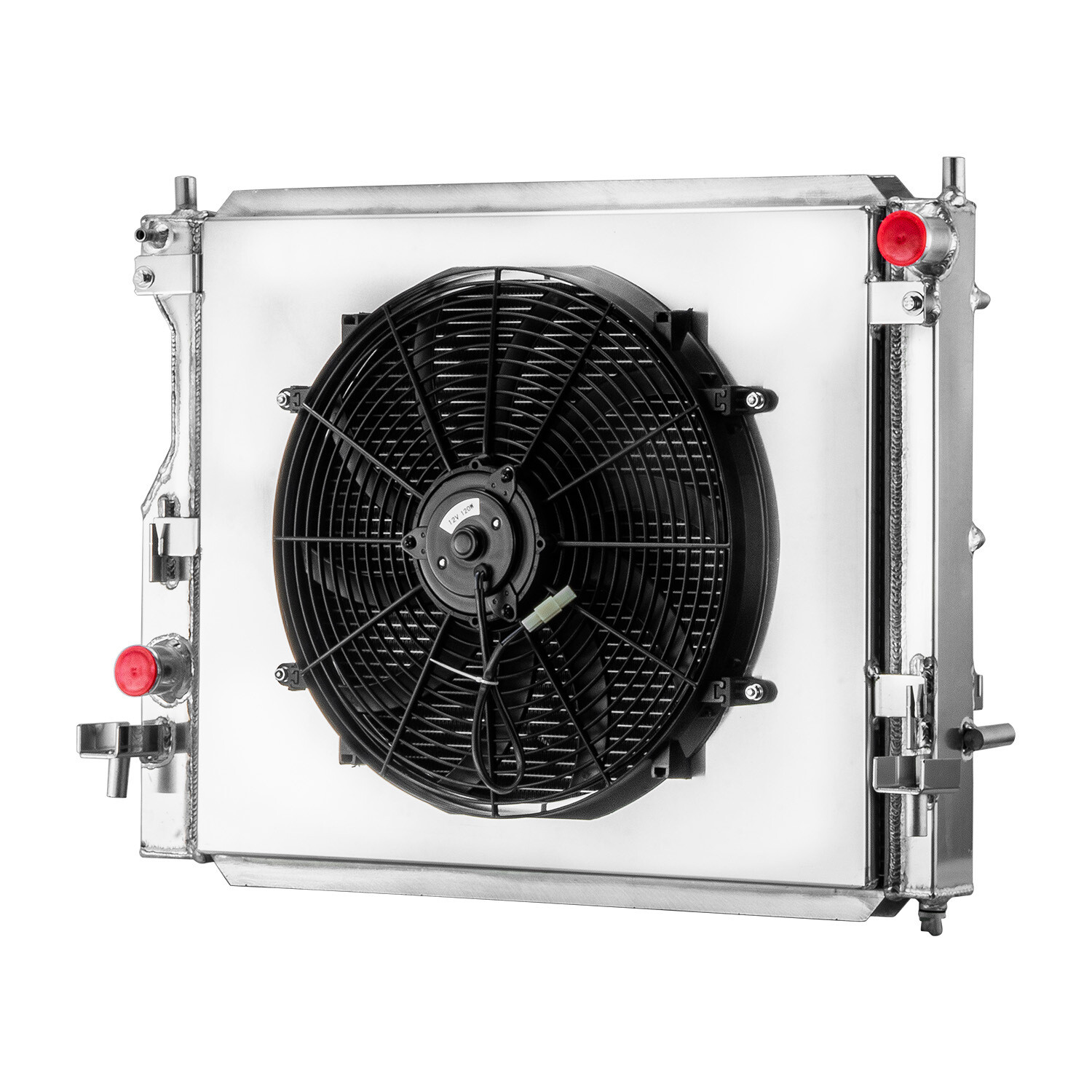

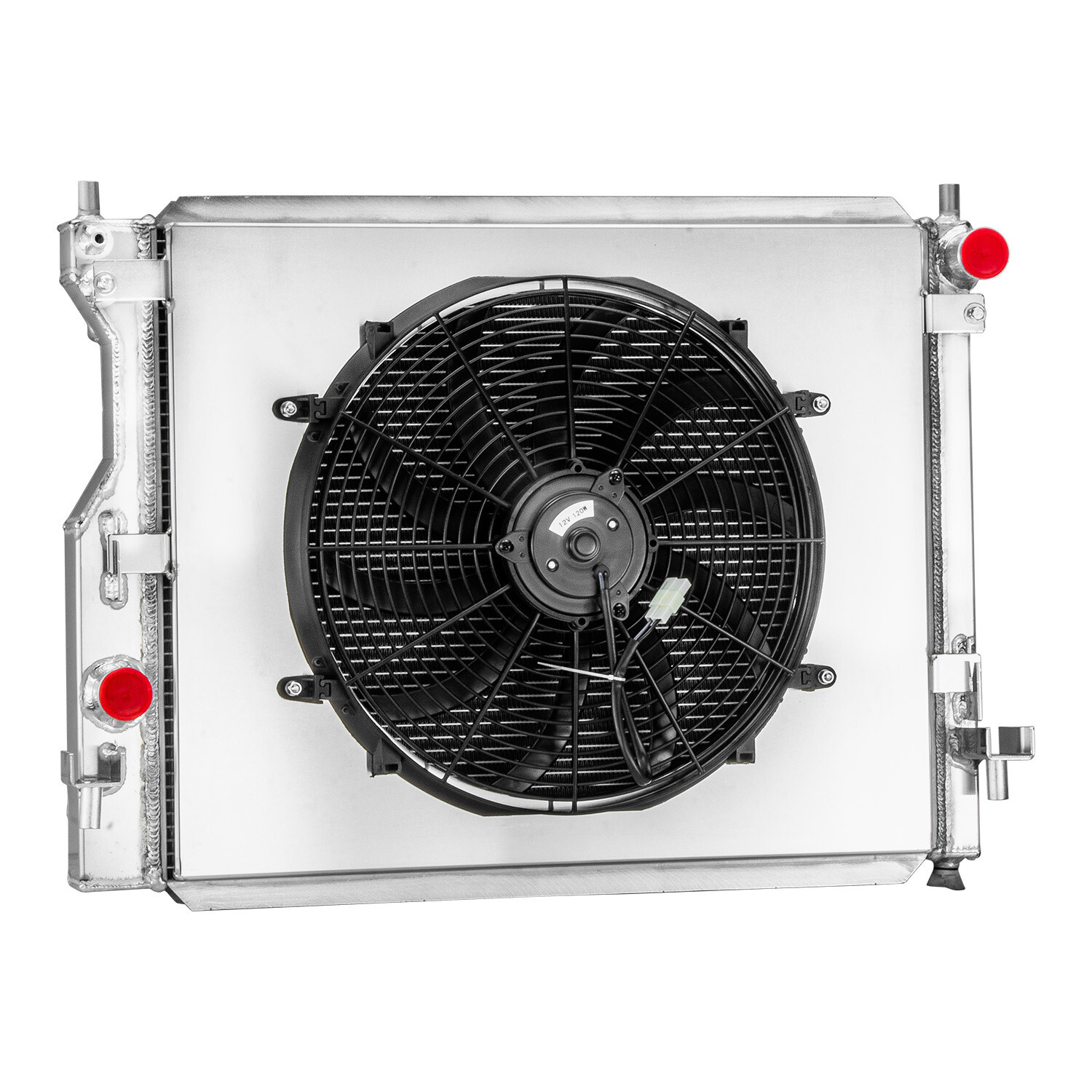

Description:
This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Aluminum Shroud+Fan：
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Alloyworks Radiators has carved a niche by addressing commoninstallation pain points, Their radiators are designed with two keyprinciples:
Precision Fitment
Alloyworks
radiators are built to match factory dimensions,ensuringcompatibility
with stock fans, shrouds, and mounting points. Thiseliminates the need
for cutting or welding in most cases.
High Performance Materials
Constructed
from lightweight, corrosion resistant aluminum, theseradiators feature
advanced cooling fin designs for improved heatdissipation ideal for high
stress applications like racing or towing.
Plug and Play Compatibility
Many
models include pre installed bungs for sensors and pre drilled holesfor
OEM style fittings, reducing the need for adapters or custom parts.
Customer Support
Alloxwgrks
provides detailed installation guides and responsive supportto
troubleshoot fitment issues, a rarity in the aftermarket space.
