Clamping Vices Angle Fixed Flat Jaw Pliers CNC Common Clamping Vise High Precision Hardness 45° Optional Size 4inch 5inch 6inch
High-quality vise, cast iron, optional size 4/5/6 inches, made of high-quality ductile iron 80000 PSI, reduce bending, rotary milling vise high-quality, perfectly aligned precision jaws
The entire workbench clamp is made of high-hardness, high-rigidity materials. The 2 screws on the top pass through the jaws, which can reduce the force on the side of the wrench, making the vise body less likely to break and extending the service life of the vise
After fine polishing, the surface of the clamp is smooth and flat. The workpiece can be clamped without shaking. When clamping, the hemisphere on the pliers applies a 45-degree downward force to the workpiece, which stabilizes the workpiece without upward displacement, and the processing accuracy is higher.
● Product na : Angle fixed flat nose pliers

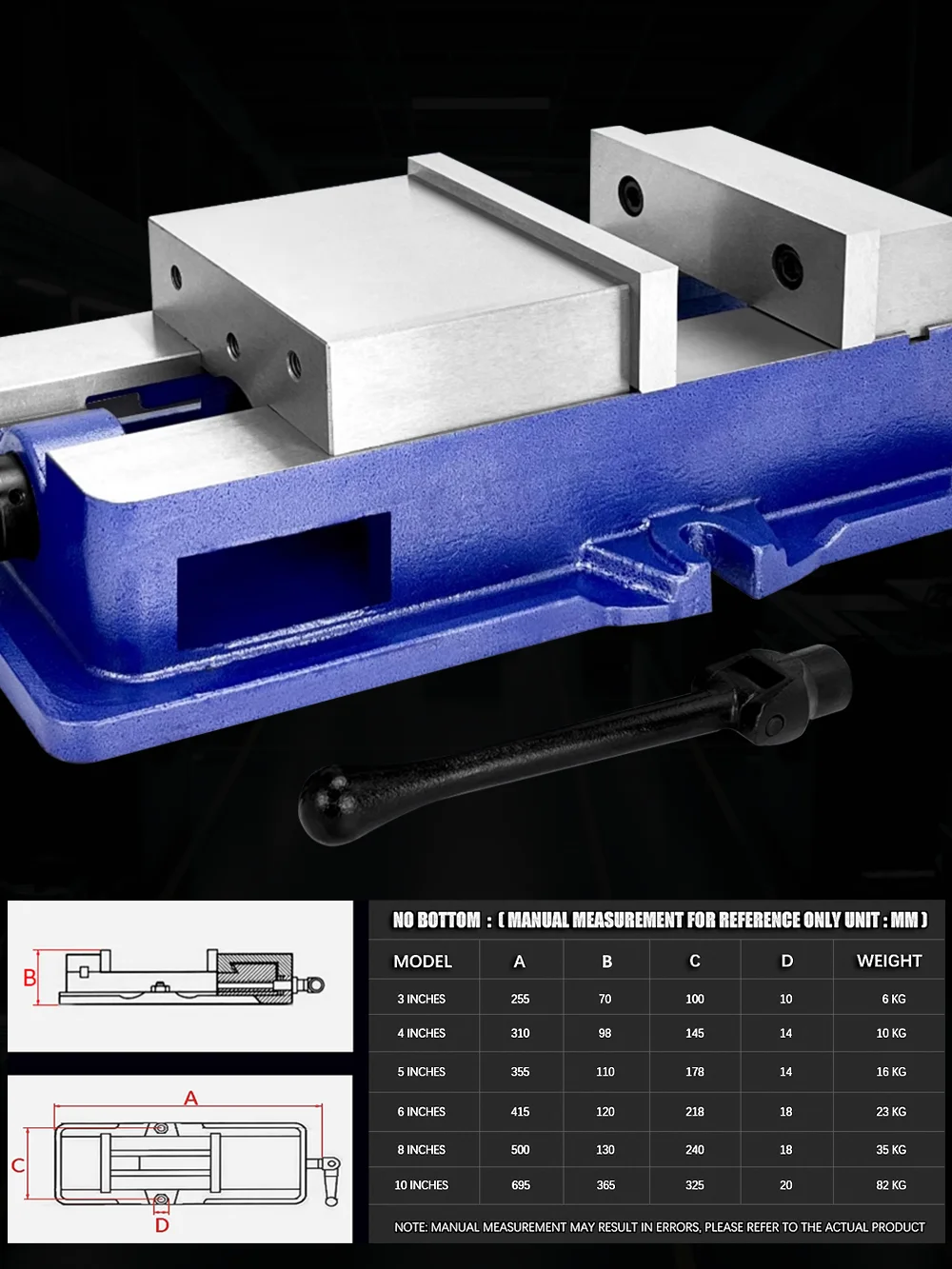

● Product model : 4inch / 5inch / 6inch
● Product material : cast iron
● Product process : Carburizing and quenching
ADOPT T-TYPR QUENCHED AND HARDENED SCREW ROD
The screw rod of the flat-nose pliers adopts T-type design, with stable teeth, high precision, and durability. The screw rod is hardened, has a long service life, and has strong clamping force.

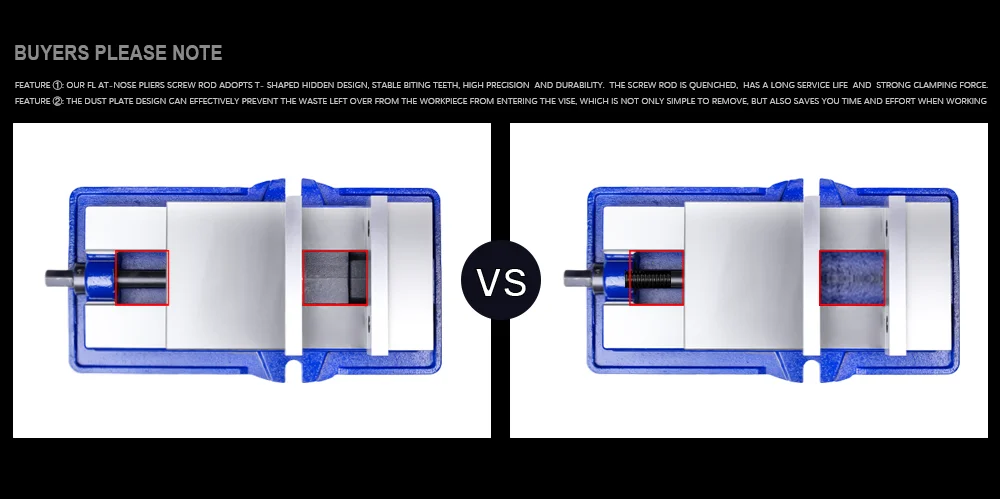

Buyers please note
Feature ①: Our flat-nose pliers screw rod adopts T-shaped hidden design, stable biting teeth, high precision and durability. The screw rod is quenched, has a long service life and strong clamping force.
Feature ②: The dust plate design can effectively prevent the waste left over from the workpiece from entering the vise, which is not only simple to remove, but also saves you time and effort when working
HIGH-QUALITY CAST IRON ANGLE-FIXED DESIGN

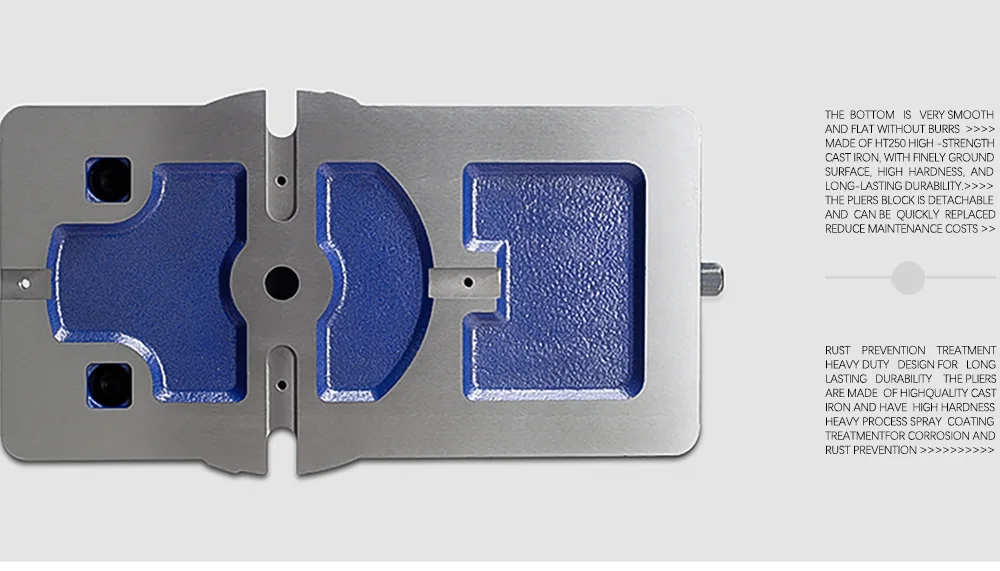

Adopt HT250 high-strength cast iron, fine surface grinding, high hardness Durable, detachable jaws and jaws, can be quickly replaced Reduce maintenance costs and improve work efficiency The guide rail surface is finely ground and the screw is hardened. The screw is quenched to make it harder, clamping quickly and moving smoothly. 2 wires are high-precision, clamping accurately, clamping the workpiece, stable and not moving
Hardened fine steel jaws
The jaws are made of No. 45 (cold drawn material), precisely cut and polished by German machine tools, After quenching treatment The hardness is as high as 45HRC, high precision, more stable clamping, the jaws are detachable, and the opening size can be changed by changing the front and rear positions.
The bearing oil cup design makes the rotation smoother. The screw fixing section adopts a thrust bearing to reduce the friction coefficient and has a large clamping force. The oil cup is filled with lubricating oil for smooth use.

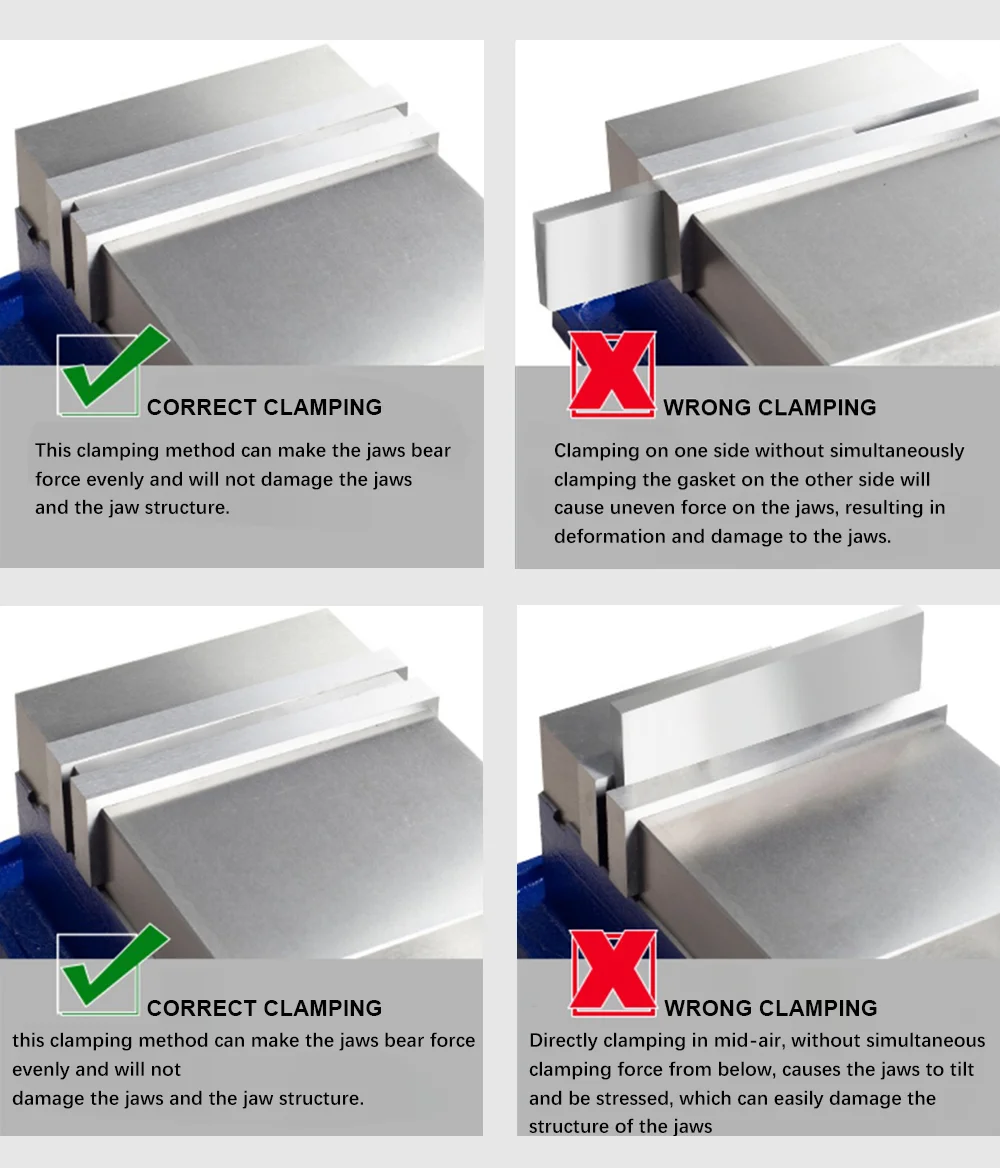

Notes on clamping with flat-nose plier Clamping thin workpieces : Add a pad underneath and clamp at the same time to increase the clamping force area
Application scenarios: A variety of materials can be clamped, and various standard, profiling, and easy-to-slip workpieces can be clamped. The product can be coordinated by multiple units! Also widely used in CNC machine tools, grinder EDM, CNC processing
This caliper can clamp a variety of workpieces. Due to the wide variety of workpieces and materials, please consult customer service for specific clamping conditions.
