Description:

100% Brand New and High Quality Made

Intelligent overvoltage / overcurrent protection.

Products offer the finest electronic ignition systems, packaged with the finest coil at an excellent price

System features an industry standard electronic module with programmed curves suitable for all engines

ITEM PART NUMBER:

53-660, 60-53-660-06.
53-644, 53-646, 53-642, 53-662.

Features:

Intelligent over voltage / over current protection

Adjustable retard timing

Short circuit protection

Ignition kit includes single fire coil that puts out over 30,000 volts with fast rise times and high energy

NOTE: Will not fit fuel injected models

NOTE: Programmable features and data recovery features require programming kit

Fraction of the cost of a Crane

Programmable Features:

8 point fully definable wide open throttle curve

8 point fully definable part throttle curve

Programmable rev limit in 50 RPM steps

Programmable dead cranking revs 0-10

Programmable rear cylinder offset, total of +/- 10 degrees

Programmable rev limiter

Seperate programmable break-in rev limiter

Data Recording Features:

Total engine hours

Time at wide open throttle

Number of engine starts (two minutes running time counts as one start)

Longest time operating at wide open throttle

Maximum RPM

Seconds near rev limit

Statistical analysis of time at RPM

Fitment:

For 1970-1999 BIG TWIN (EXCEPT TWIN CAM),

For 1971-2003 Harley-Davidson Sportster (Except "S" Models).

Will work on Evolution Sportsters & all nose cone type Shovelhead & Evolution Big Twins motors from 1970 to 1999.

Package Includes:

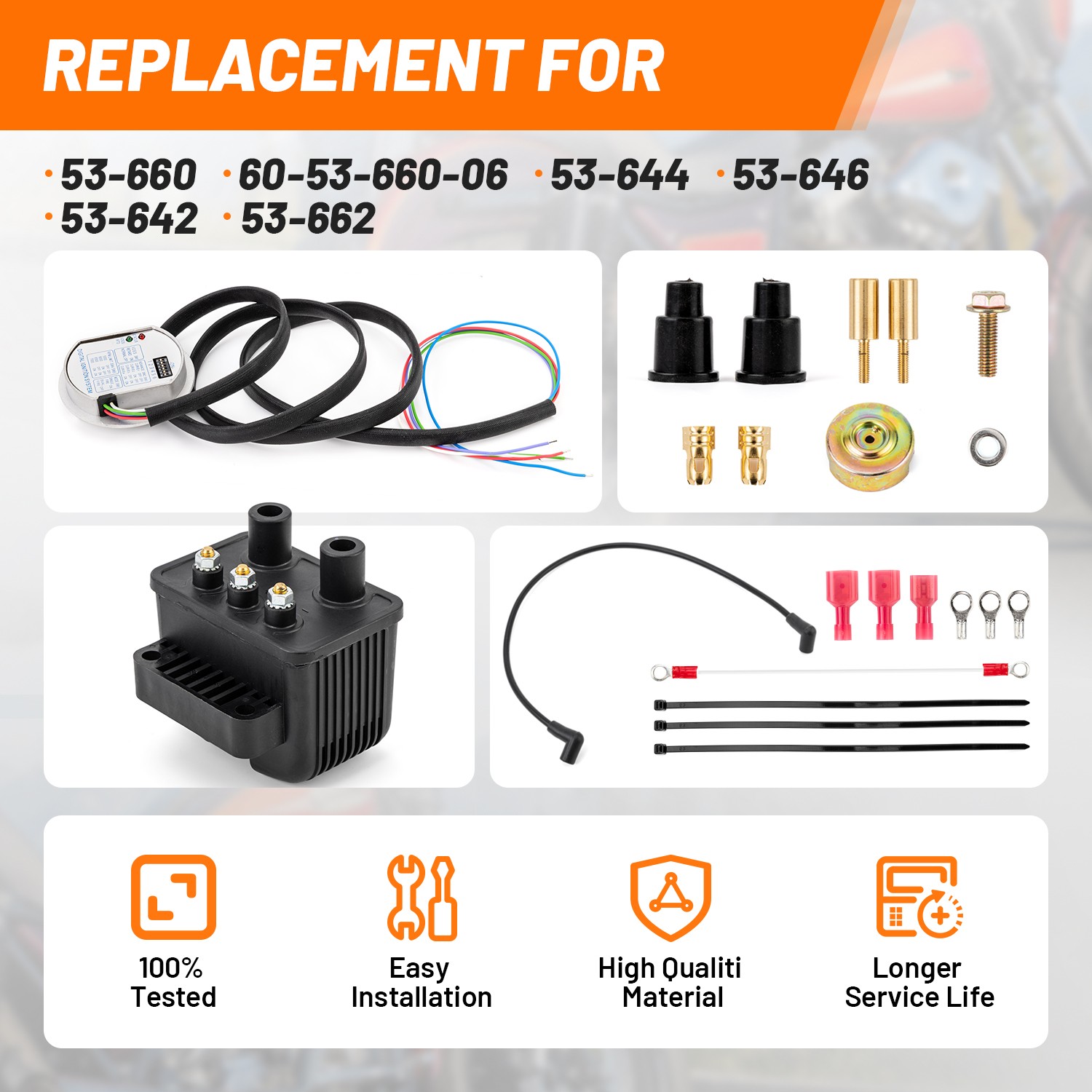

1X Single Fire Programmable Ignition Kit (As shown in the picture）

Notes:

Please confirm the fitment before ordering to make sure this item fits perfectly.

Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
