Features:
1.100% brand new and high quality product.
2.Made of high quality material, durable and practical.
3. Small size, simple application and easy installation.
4. Efficient and stable performance, long working life.
5. Wide range of applications.
1.100% brand new and high quality product.
2.Made of high quality material, durable and practical.
3. Small size, simple application and easy installation.
4. Efficient and stable performance, long working life.
5. Wide range of applications.

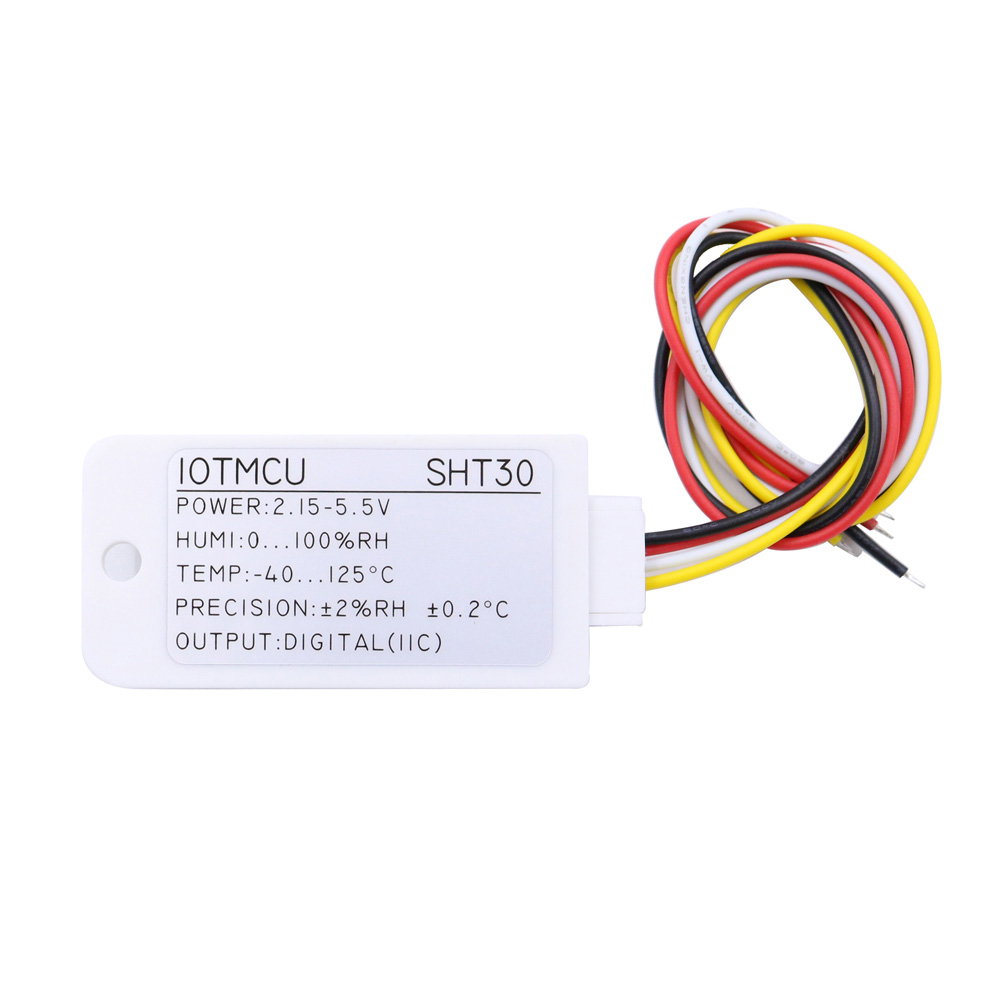

Product Parameters:
Chip Model: SHT30
Operating voltage: 2.15~5.5V
Output signal: IIC digital signal
Humidity measurement range: 0~100%RH
Temperature Measuring Range: -40~125℃ (Please use it in the environment of -40~80℃ as the shell and wire are not high temperature resistant)
Accuracy: ±2%RH ±0.2°C
IIC address: 0X44
Product shell material: ABS
Chip Model: SHT30
Operating voltage: 2.15~5.5V
Output signal: IIC digital signal
Humidity measurement range: 0~100%RH
Temperature Measuring Range: -40~125℃ (Please use it in the environment of -40~80℃ as the shell and wire are not high temperature resistant)
Accuracy: ±2%RH ±0.2°C
IIC address: 0X44
Product shell material: ABS
Description of use

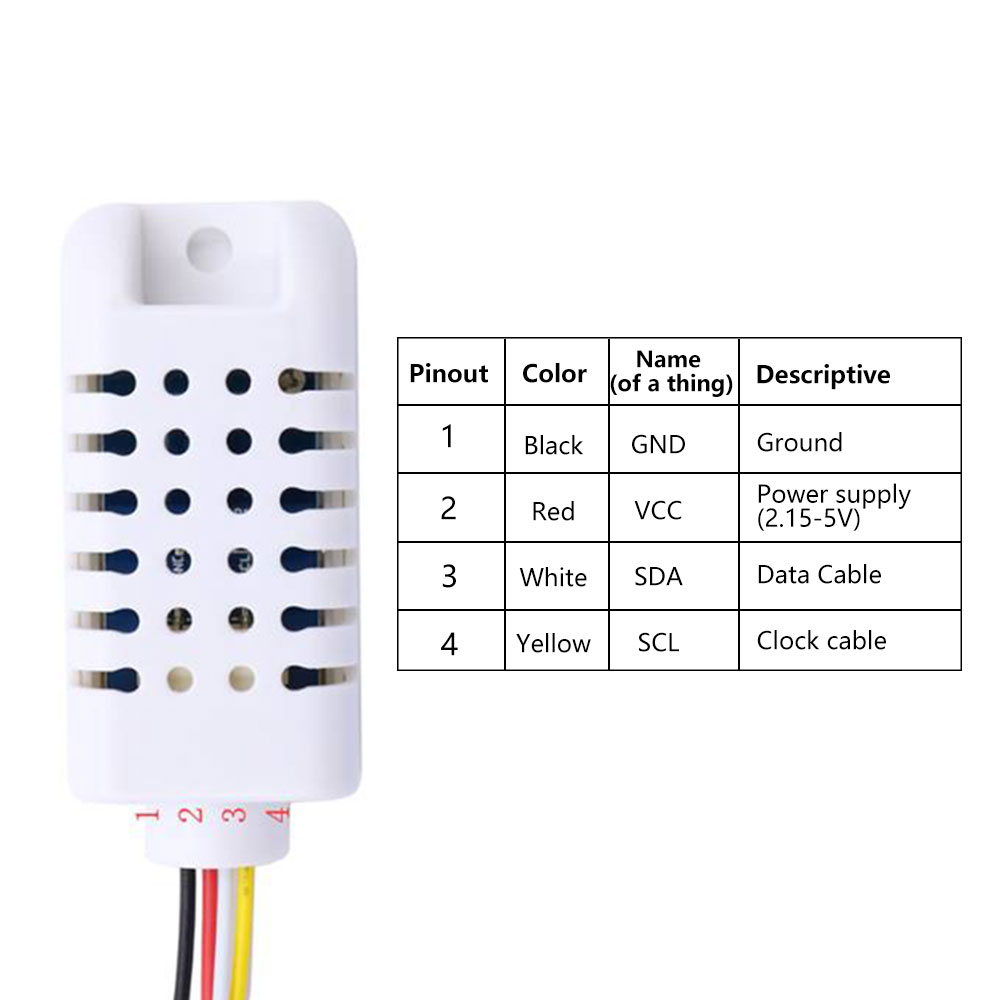

Pin Color Description
1. Black GND ground
2. Red VCC power (2.15-5.5V)
3. White SDA data line
4.Yellow SCL clock line
Pin Color Description
1. Black GND ground
2. Red VCC power (2.15-5.5V)
3. White SDA data line
4.Yellow SCL clock line
Packing list:
Temperature and humidity sensor *1
Temperature and humidity sensor *1
