Product Description
Overview

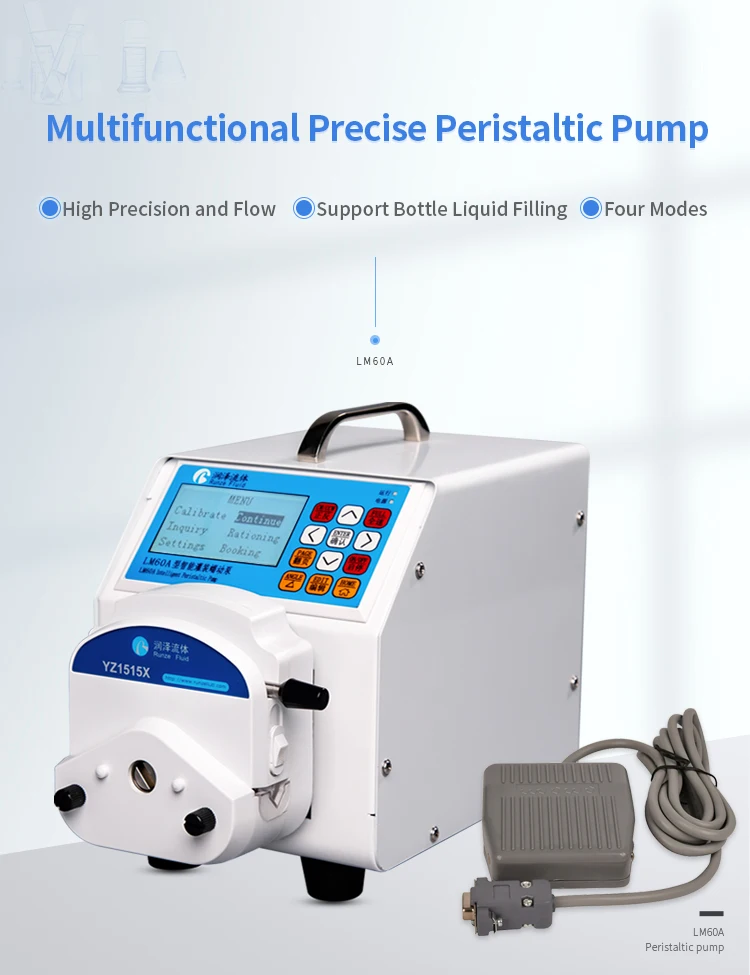

LM60A intelligent filling peristaltic pump, using high-performance processor and japan imported motor drive, controlling stepper motor, motor subdivision adaptive, the minimum speed can reach 0.1rpm; rich application scenarios, support keyboard control mode, communication control mode (RS232 /RS485), external control mode (optional multiple signal conversion modules); passive contact status output.
Features
* Support bottle liquid filling and infinite loops.
* Speed resolution can reach 0.1 rpm.
* Japan imported stepper motor drive, high precision liquid delivery in high flow rates or volumes

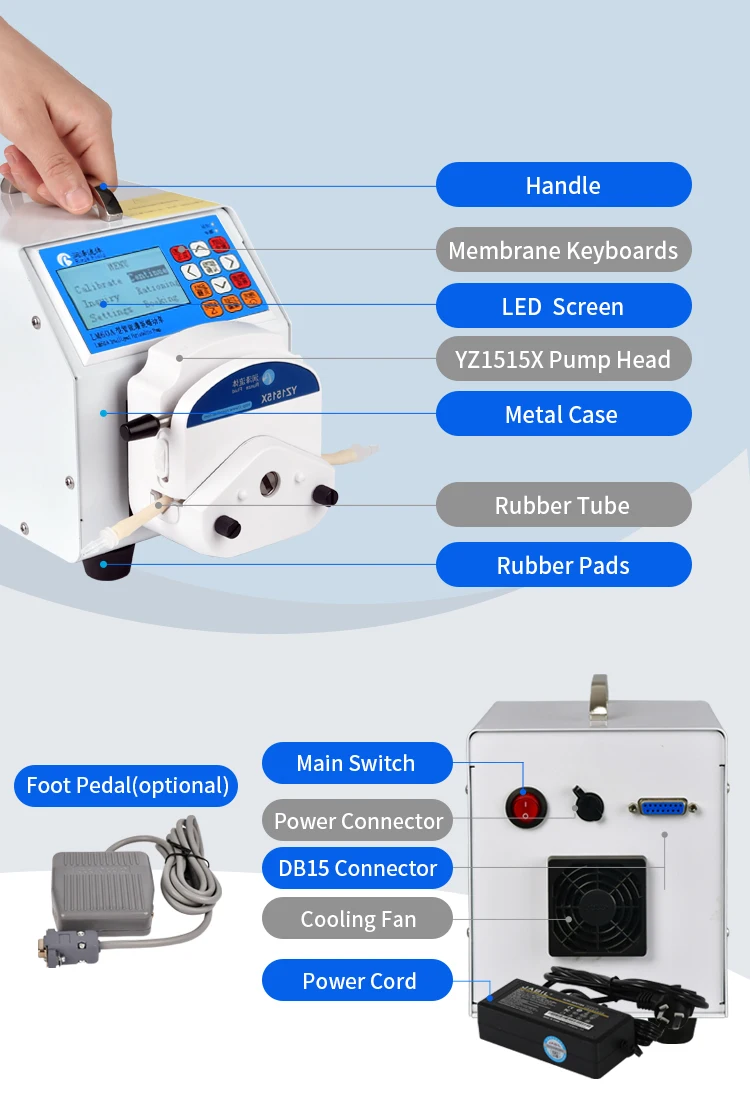

* Handle mechanism allows tube loading in seconds
* Foot pedal (switch) control mode: toggled mode, momentary mode
* LCD display screen and buttons works together to control speed, flow rate, volume and time
* Japan imported stepper motor drive, high precision liquid delivery in high flow rates or volumes
* Handle mechanism allows tube loading in seconds
* Foot pedal (switch) control mode: toggled mode, momentary mode
* LCD display screen and buttons works together to control speed, flow rate, volume and time
Instruction of four working modes
1.Calibration Mode: Proceed calibration model before starting any other working mode to ensure high accuracy of test result.
2. Rationing Mode: Realize one-off liquid dispensing in specific volume
3. Booking Mode: Realize liquid dispensing in specific volume at N times
4. Continuous mode: For continuous liquid transfer with no specific requirements
3. Booking Mode: Realize liquid dispensing in specific volume at N times
4. Continuous mode: For continuous liquid transfer with no specific requirements
Specification
|
Product name
|
LM60 Series Intelligent Peristaltic Pump
|
|
Pump head
|

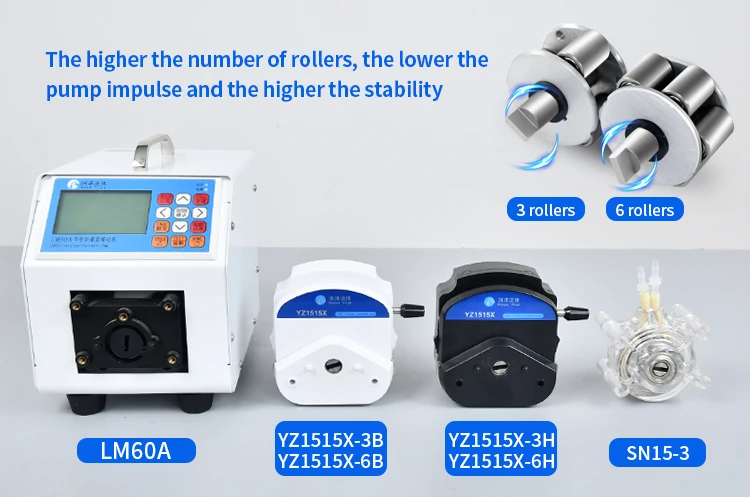

YZ1515X /SN15 series
|
|
Motor type
|
Japan imported stepper motor
|
|
Brand name
|
RUNZE
|
|
Motor control accuracy
|
±0.1 rpm
|
|
Language
|
Chinese/English
|
|
Pump Roller
|
SST 3 rollers/6 rollers
|
|
Speed range
|
0.1-400rpm, reversible
|
|
Speed resolution
|
0.1rpm
|
|

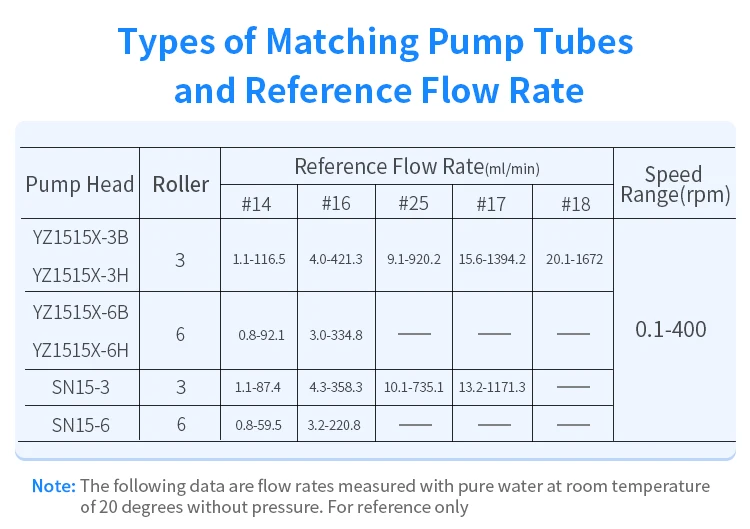

Flow rate
|
0.027-1380 ml/min
|
|

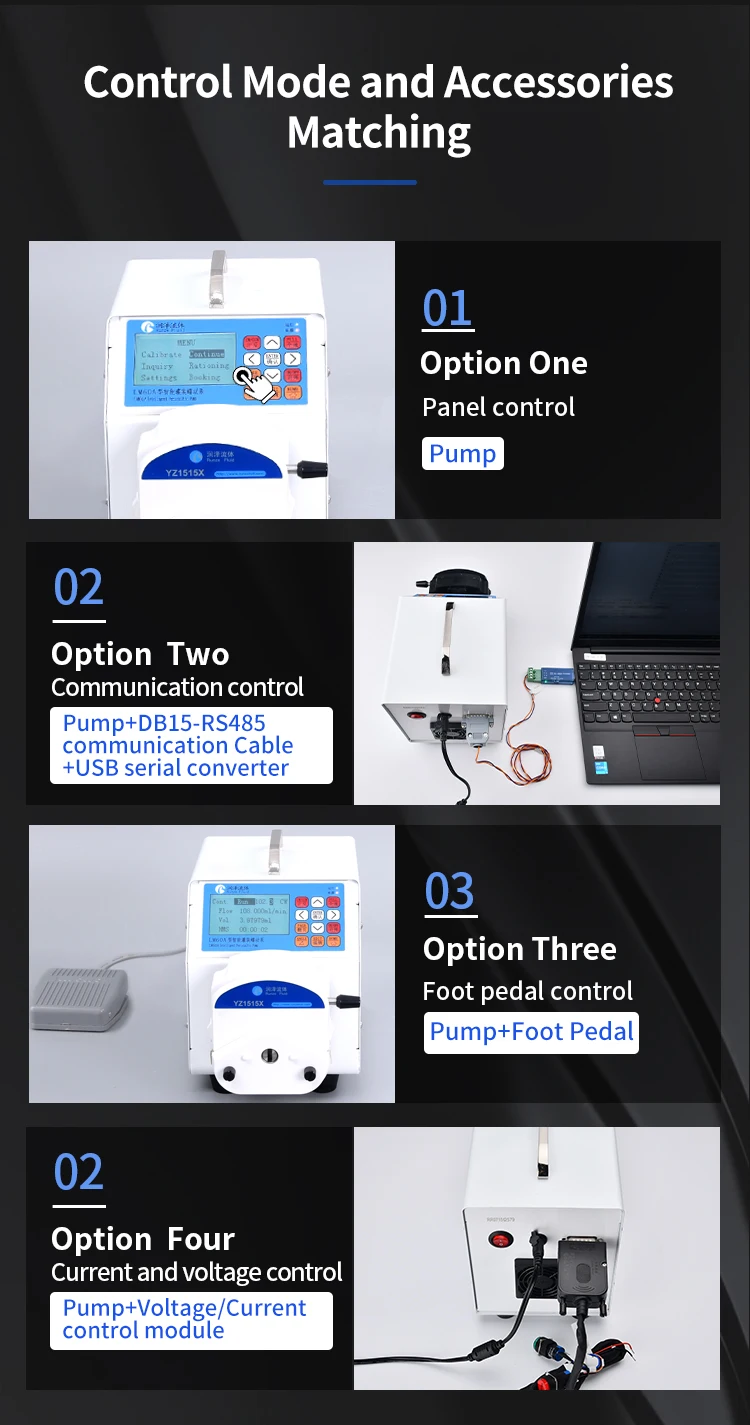

External control
|
Foot pedal switch, RS232, RS485
|
|
Working mode
|
calibration mode, continuous mode,
metering mode, booking mode |
|
Latency time
|
0-999999s
|
|
Dispensing volume/Dispensing time
|
Pre-settable
|
|
Interval time
|
0-999999s Pre-settable
|
|
Full speed
|
One button to make it full speed (filling or empty)
|
|
Power supply
|
AC100-240V, 50/60Hz
|
|
Maximum power
|
35W
|
|
Working temperature
|
0-40℃
|
|
Working humidity
|
<80% relative humidity, non-condensing
|
|
Protection grade
|
IP31
|
|
Ne weight
|
3.5kg
|
|
Time accuracy
|
0.1s
|
|
Dimension (L*W*H)
|
272.8*143*199.3mm (LM60A-YZ1515X)
276.6*143*199.3mm (LM60A-SN15) |
Tips: We highly recommend the speed of Tube #18 below 350 rpm
