2. Equipped with a 16-bit ADC chip, bringing unparalleled high precision measurement, to meet your requirements

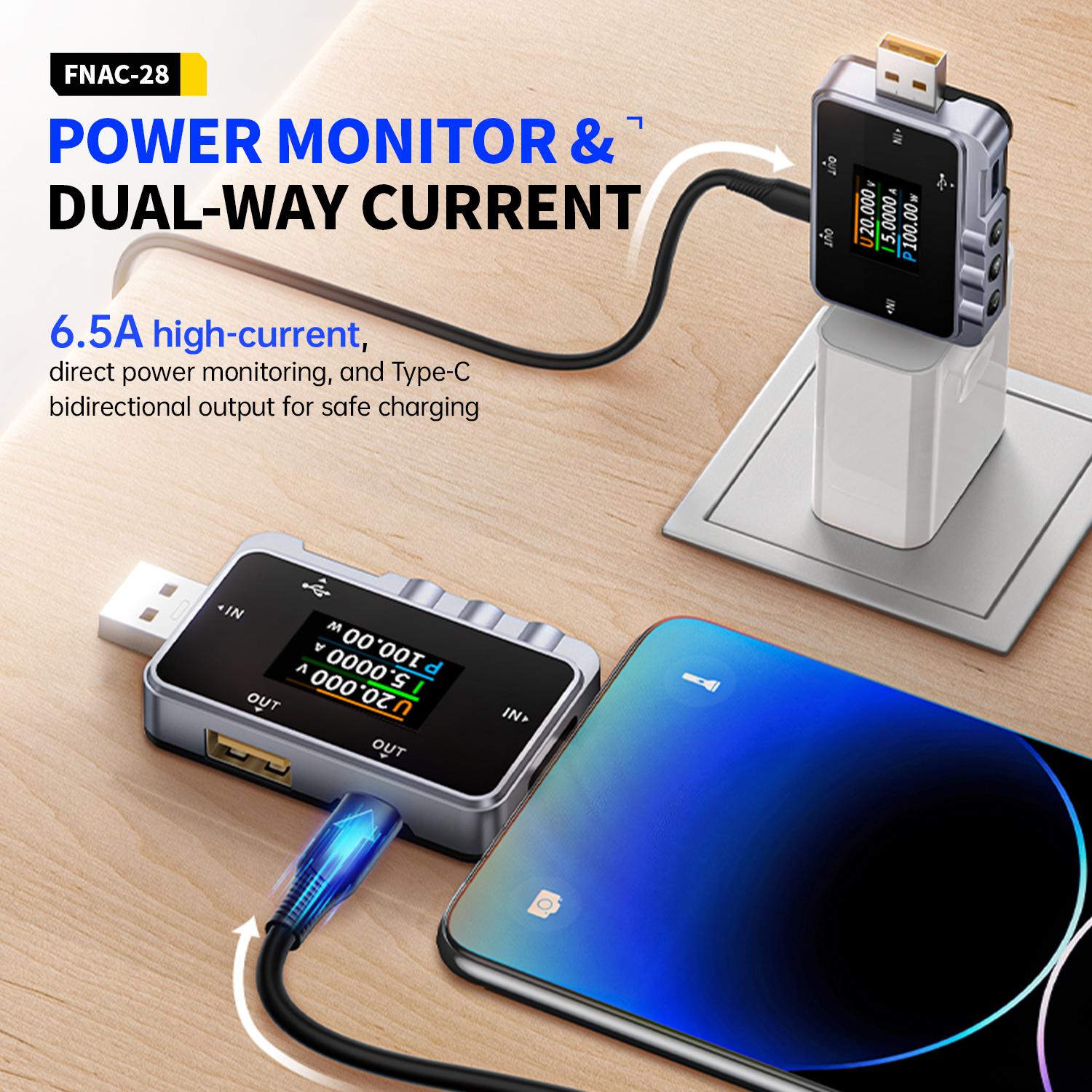

3. Real-time power detection bidirectional current charging: 6.5A high-current USB interface, straight-through charging power detection, Type-C interface support bidirectional current output

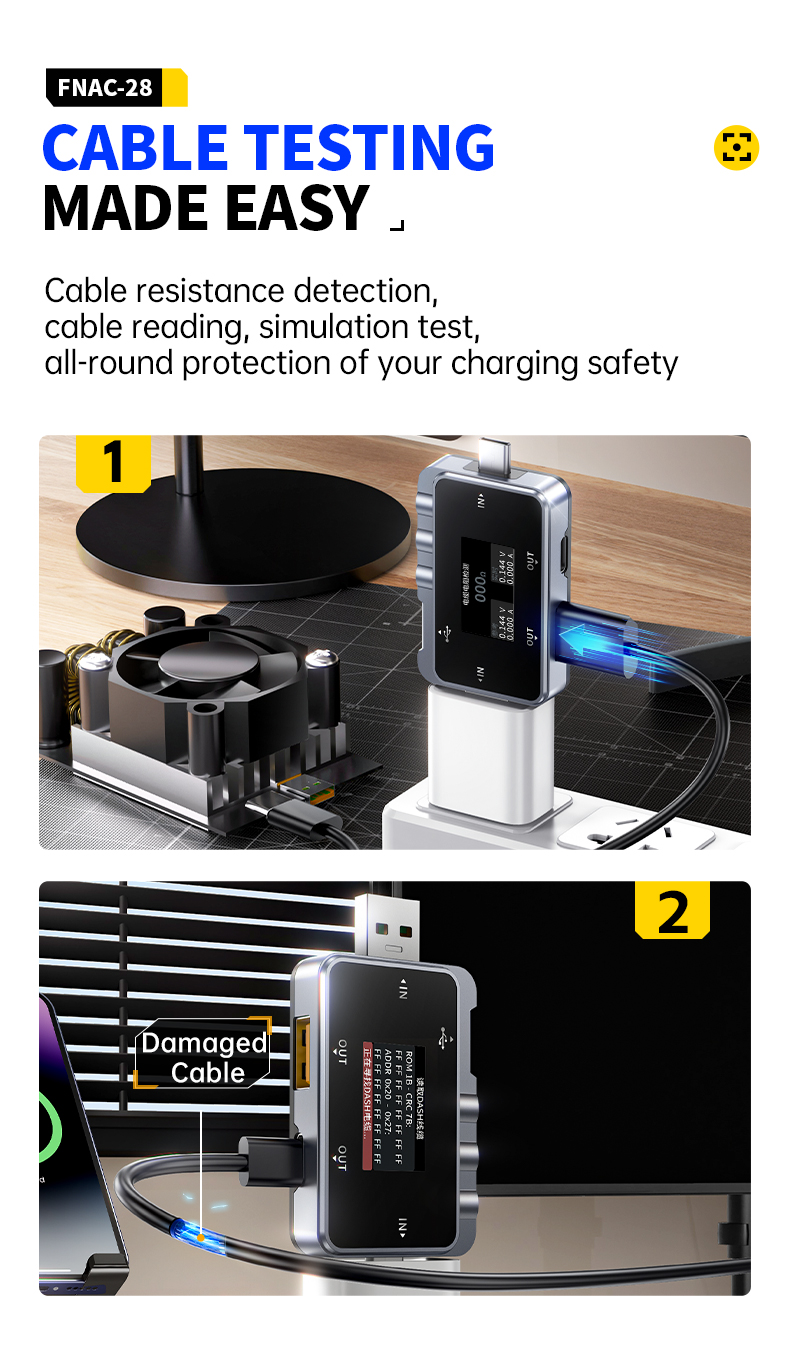

4. Cable detection in one machine, cable resistance detection, cable reading, analog testing, all-round protection of your charging safety

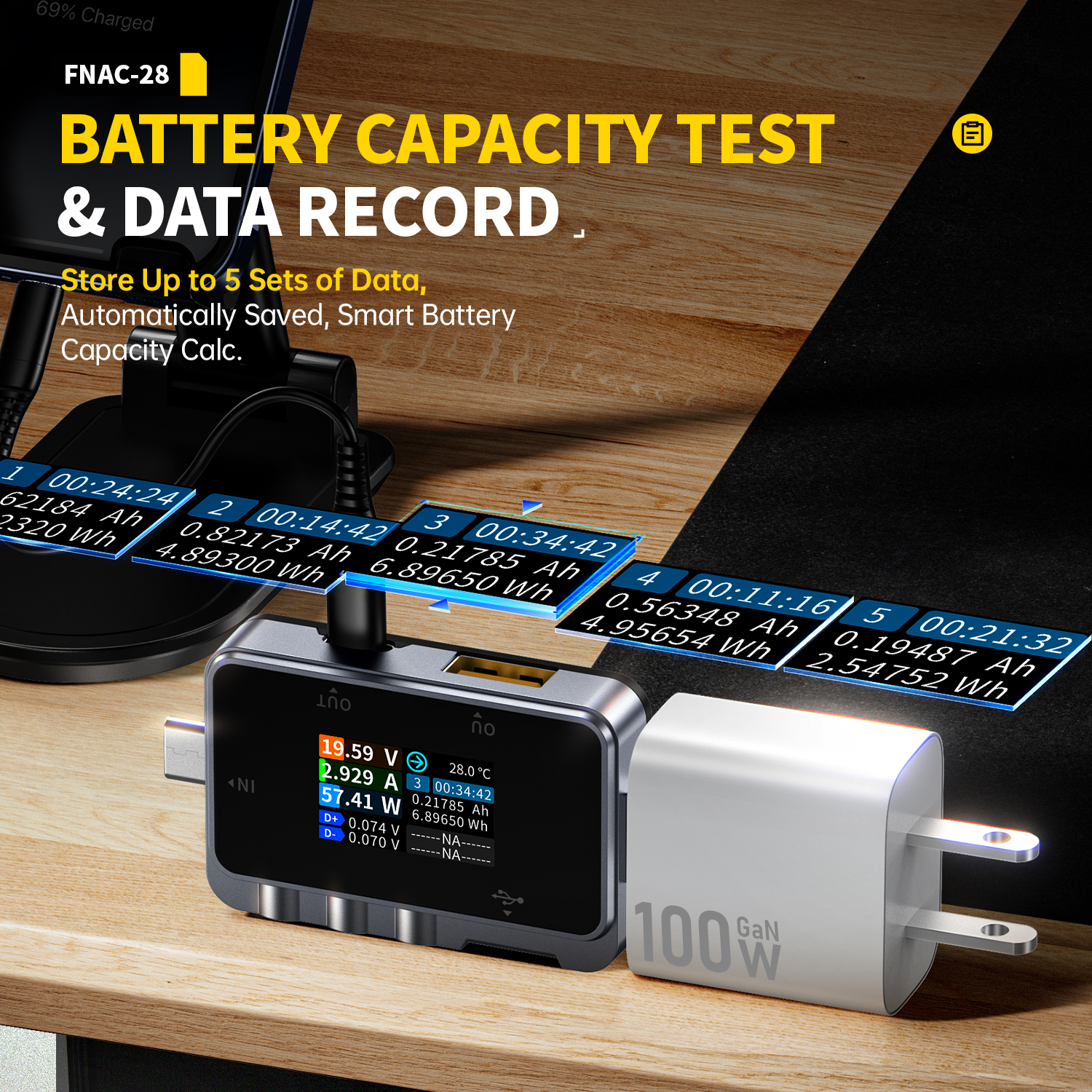

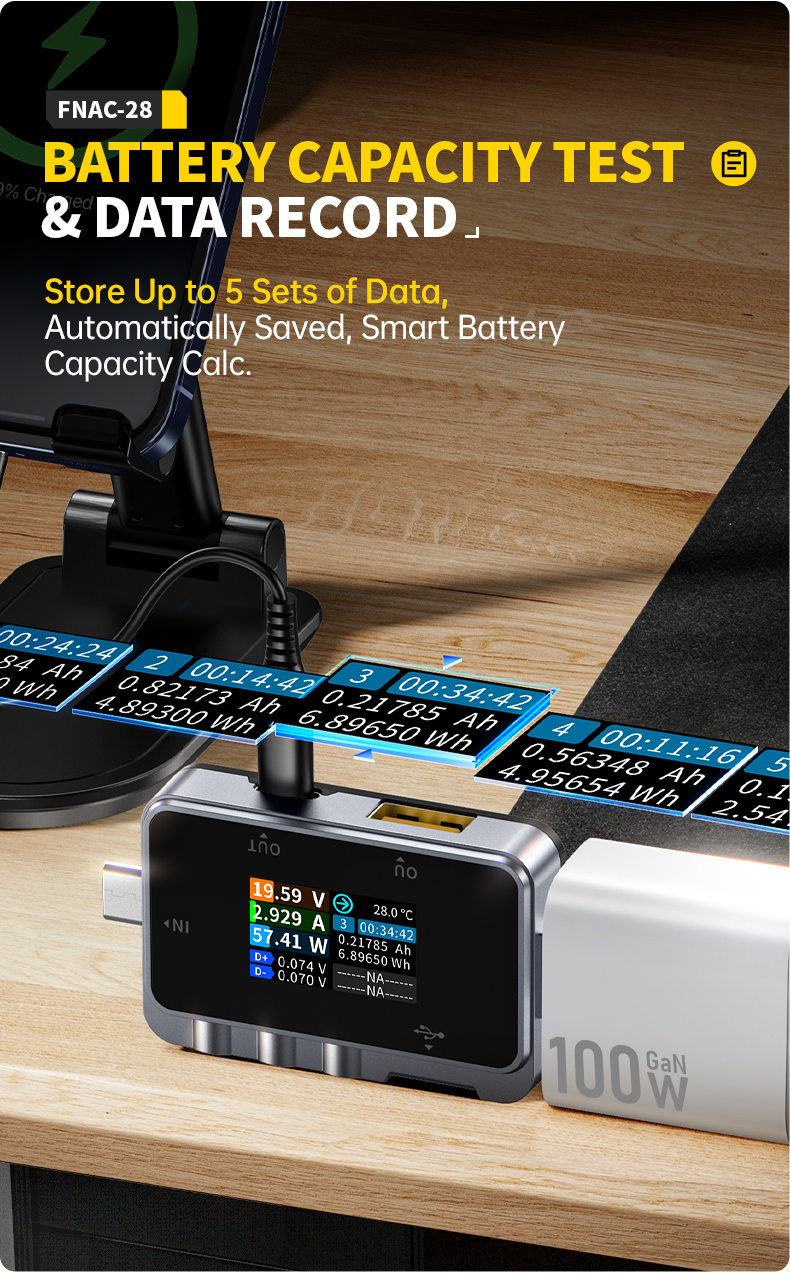

5.Multi-group data logging accurate battery capacity detection: 5 groups of data logging, power outage renewal worry-free, restart renewal test uninterrupted, built-in battery capacity intelligent calculation, always master the power state

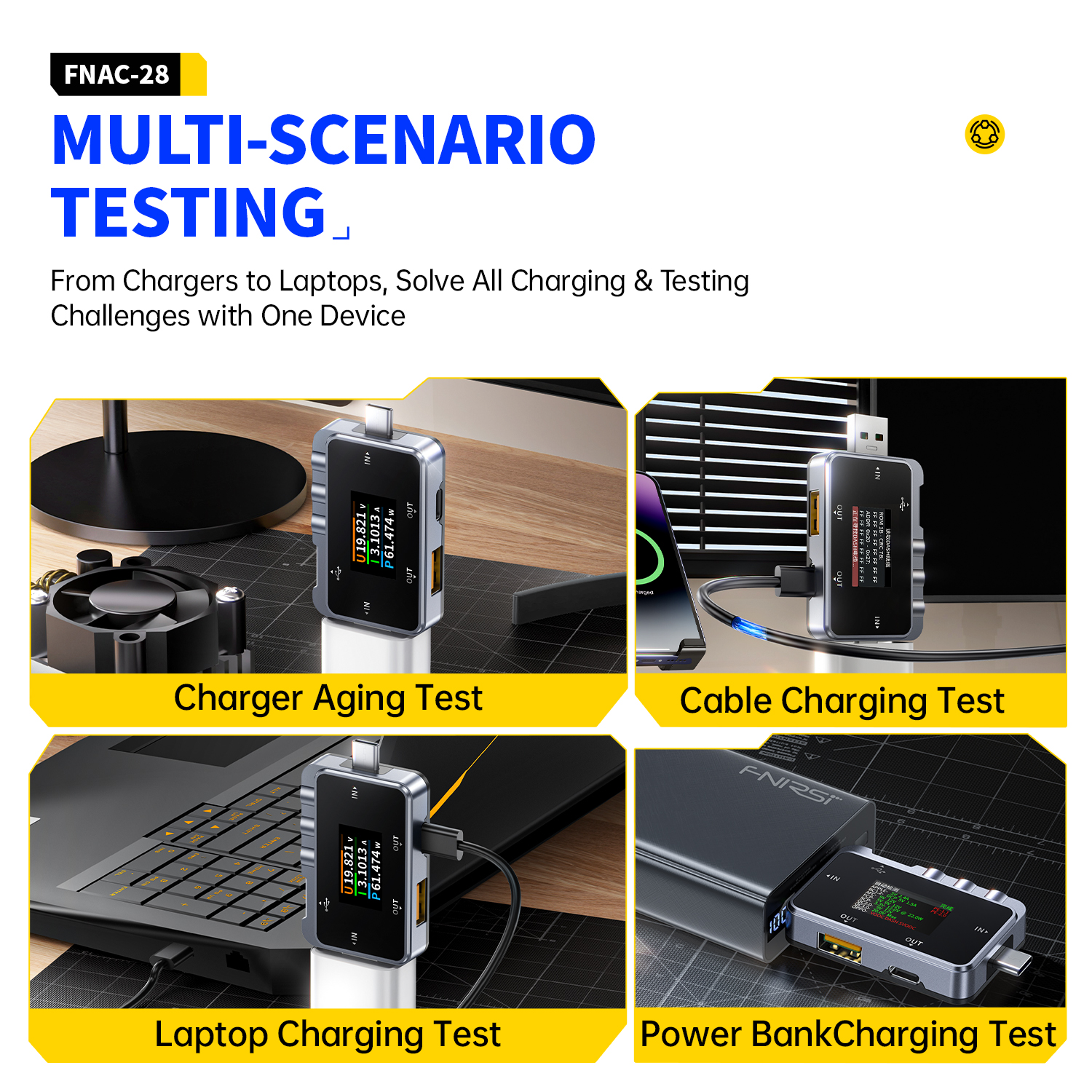

6. Wide range of applications: charger aging detection, data cable charging detection, charging detection, laptop charging detection

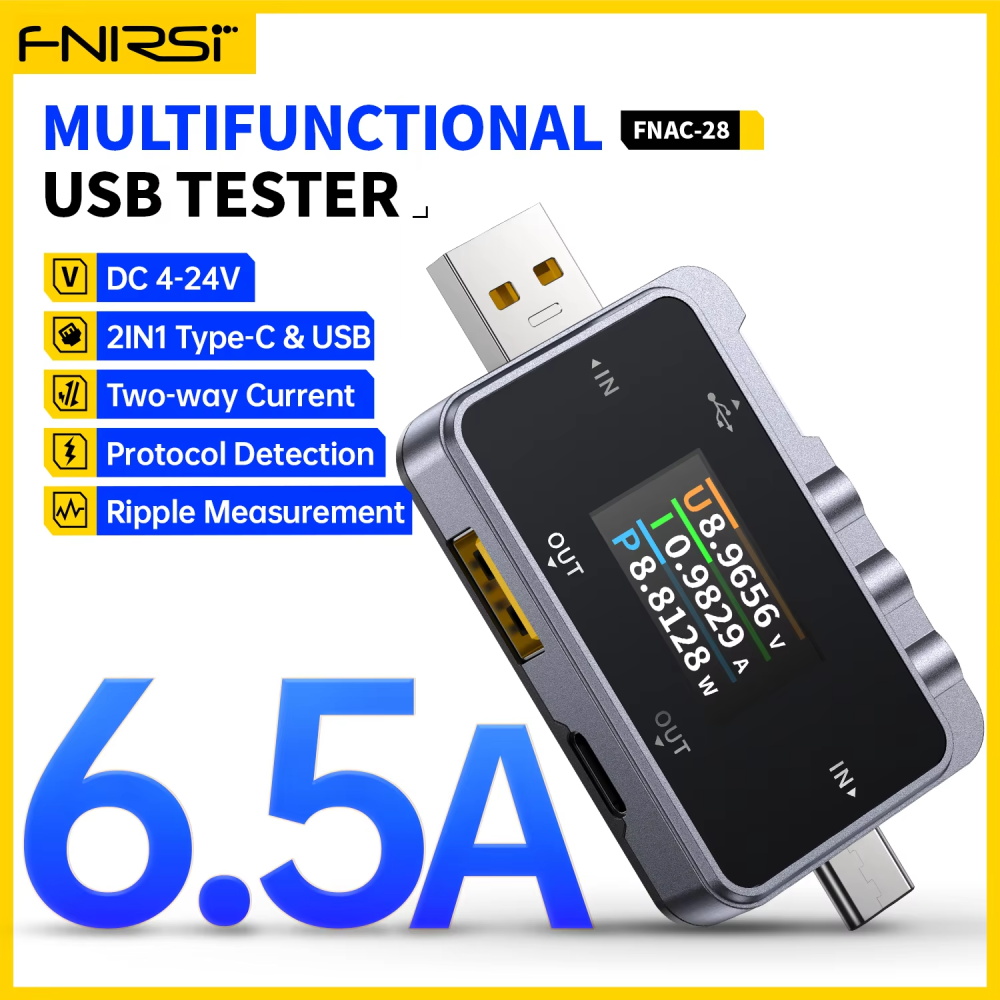

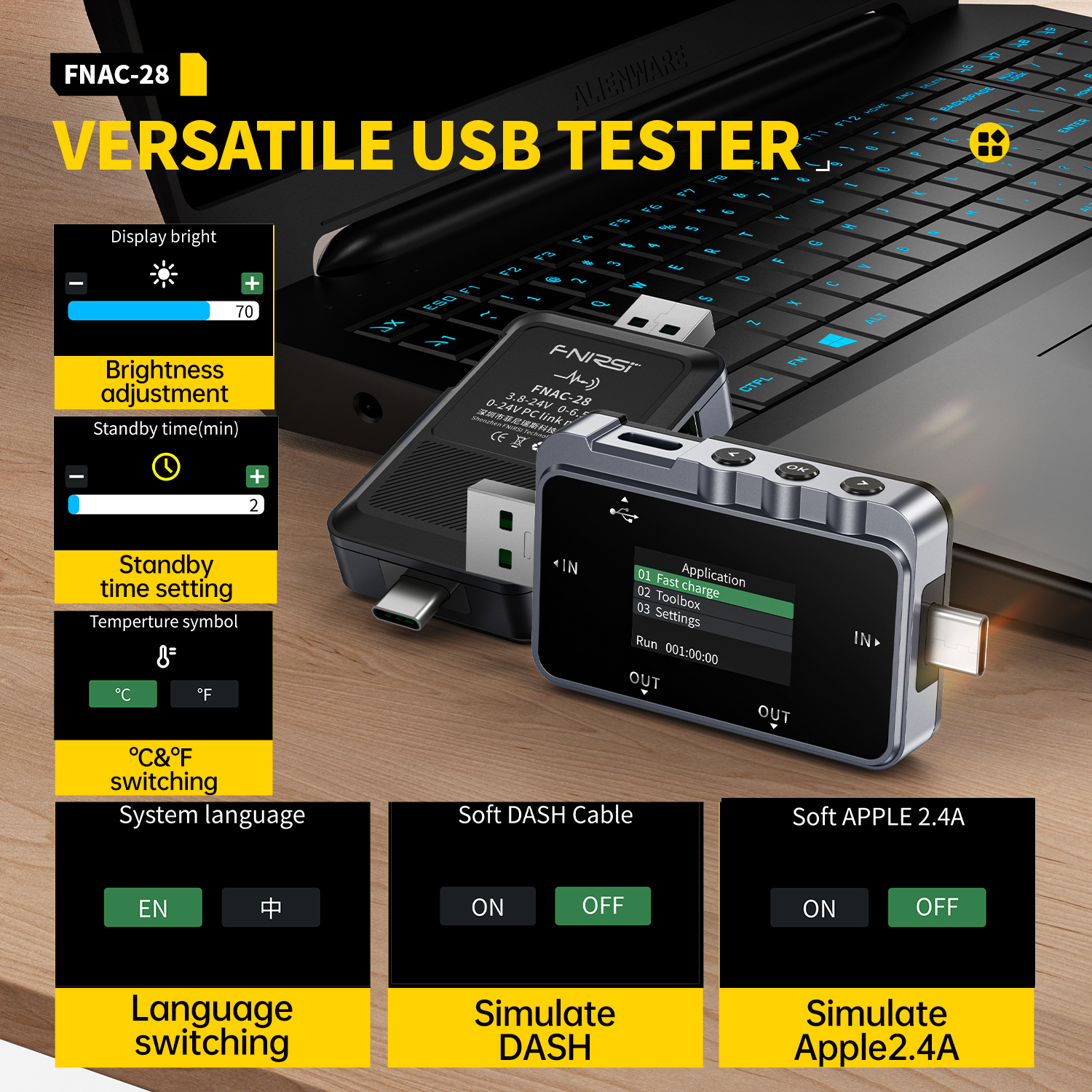

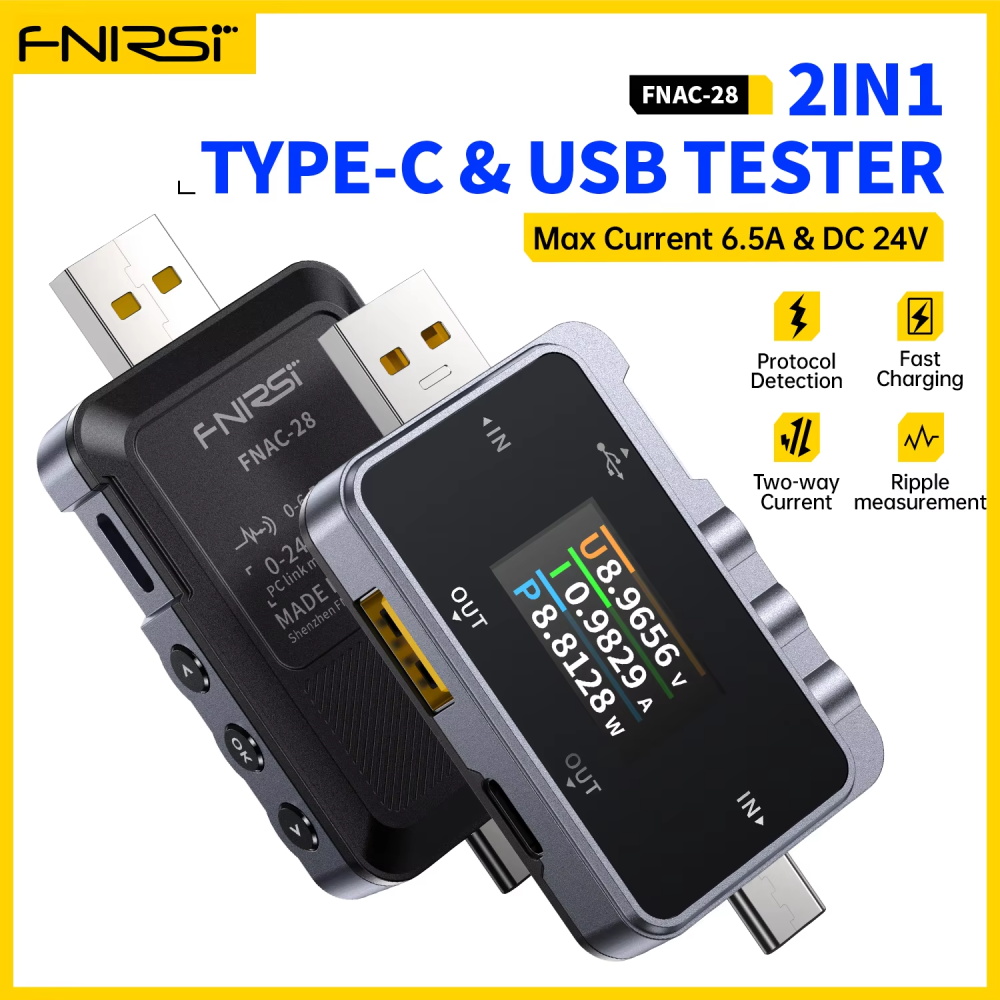

Model: FNAC-28
Screen: 1.06 inch
Monitor voltage: range 4~24V, resolution 0.001V, accuracy: ± (0.2‰+2)
Monitor current: range 0~6.5V, resolution 0.001A, accuracy: ± (0.2‰+2)
Monitor power: range 0~156W, resolution 0.001W, accuracy: ± (0.2‰+2)
Device temperature: Celsius range ℃, resolution 1℃, accuracy: ± (1.2%+3), Fahrenheit range ℉, resolution ℉, accuracy: ± (1.2%+4)
Running time: 1 second
1 x USB Tester

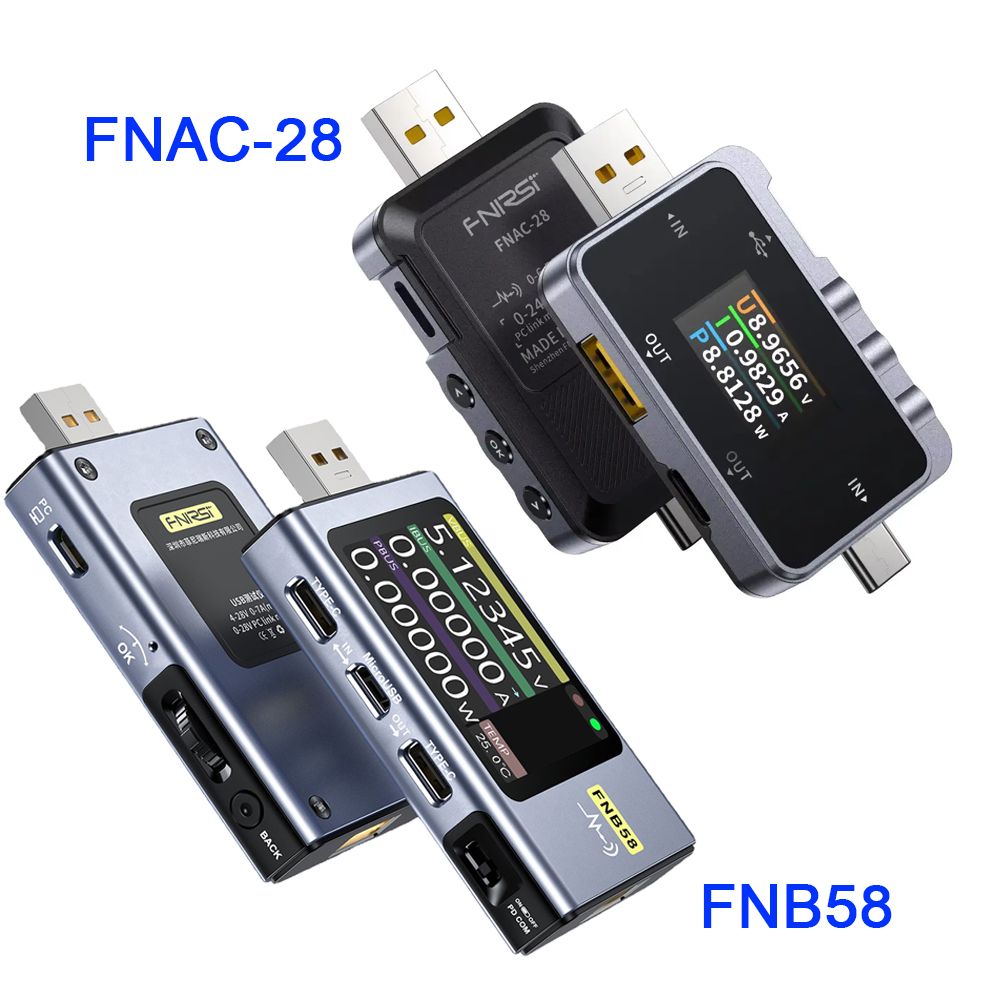

FNIRSI FNB58
Product Features.
1. Full interface compatible with large display, data at the bottom, equipped with 2.0-inch LCD high-definition display, measurement data clearly visible; with 5P high-current USB-A, 24P full-pin Type-C input and output interface, charging detection, a step faster.
2. strong compatibility, 0.00001 low resolution, real-time monitoring of the subtle changes in voltage, current and power during charging.
3. Support automatic protocol detection protocol decoy, PD2.0, 3.0, PPS, QC2.0, 3.0, QC4, FCP, SCP, AFC, PE, DASH VOOC, SuperVOOC ......
4. human-computer interaction, cell phone like intelligent operation, simple display interface; independent function menu; humanized operation.
5. 10 groups of energy records, battery capacity calculation in one step, support 10 groups of charge and discharge energy data records; built-in battery capacity calculation formula, through the recorded data can quickly calculate the battery capacity.
6. Bluetooth APP and upper computer, driver-free installation, synchronized data, efficient and convenient; Bluetooth APP over-voltage and over-current alarm. (Only with Bluetooth version)
Product parameters.
2 styles: without Bluetooth version, with Bluetooth version
Monitoring voltage: 4~28V resolution 0.00001V ±(0.2%o+2)
Monitoring Current: 0~7V Resolution 0.00001A ±(0.5%o+2)
Monitoring Power: 0~120W Resolution 0.00001W ±(0.5%o+2)
Load Equivalent Internal Resistance: 0~9999.9Ω Resolution 0.0001Ω ±(0.5%o+2)
D+/D- Voltage: 0~3.3V Resolution 0.001V ±(1.0%+2)
Device Temperature: ℃ , °F
Capacity: 0~9999.99Ah
Power consumption: 0~9999.99Wh
Cable internal resistance: 0~9999.9Ω
Equipment running time: 99 days 23 hours 59 minutes 59 seconds
Recording time: 99 days 23 hours 59 minutes 59 seconds
Product list.
Tester X1
