Product Features:

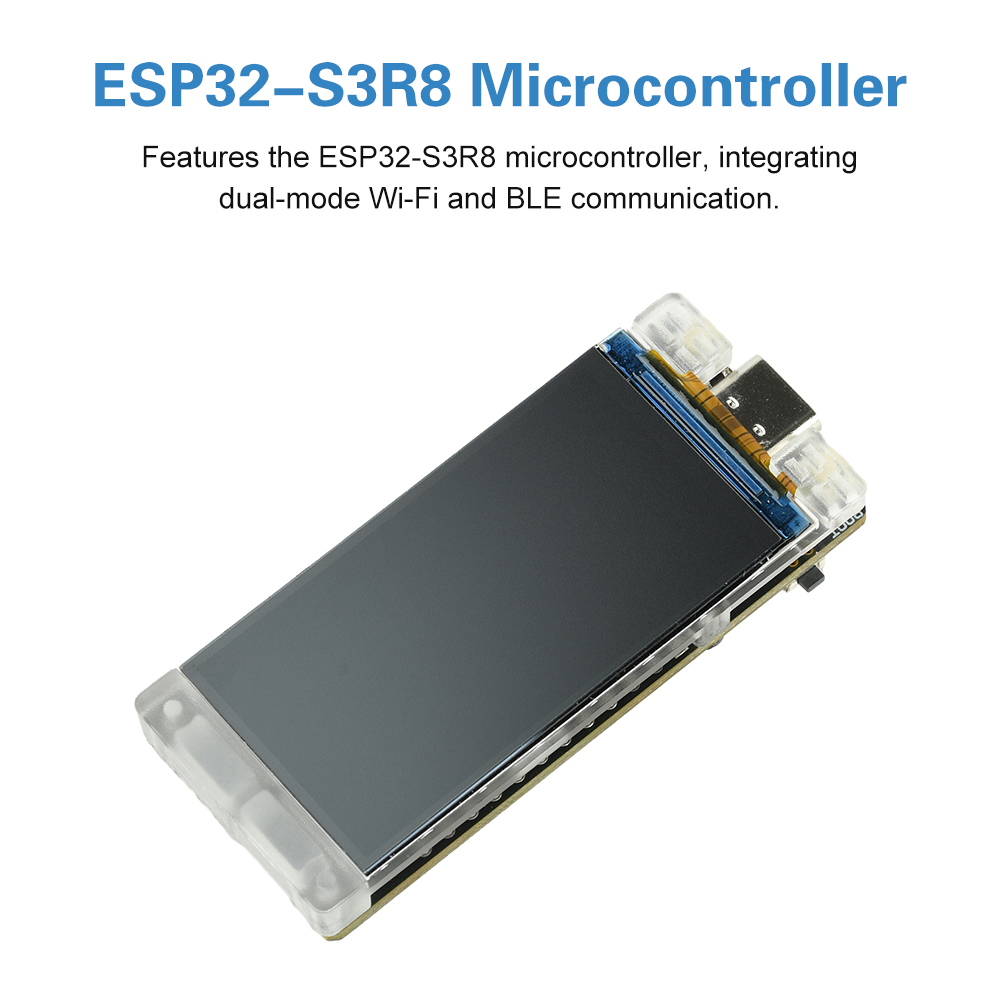

1. Powered by ESP32-S3R8 controller with integrated Wi-Fi and BLE dual-mode communication.

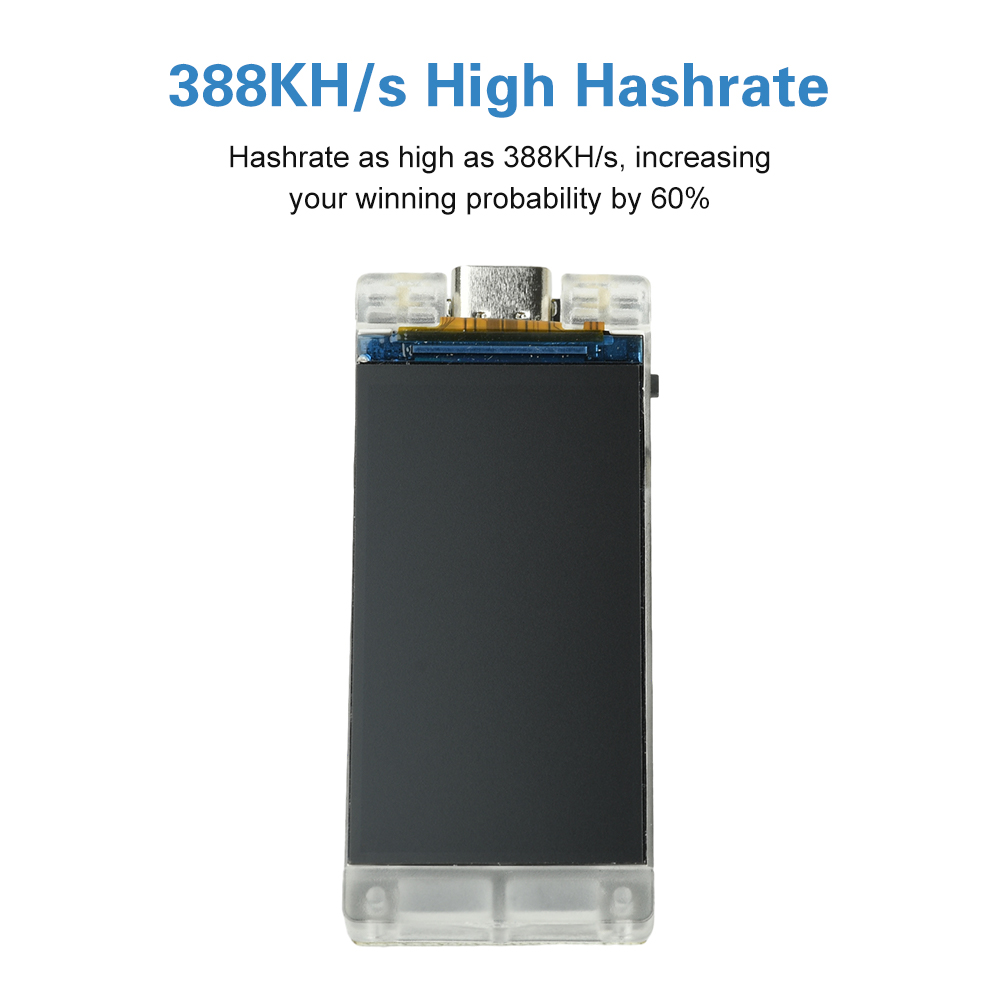

2. Delivers up to 388 KH/s hashrate, boosting mining success rate by 60%.
3. Features optimized firmware for low-power, high-reliability operation.

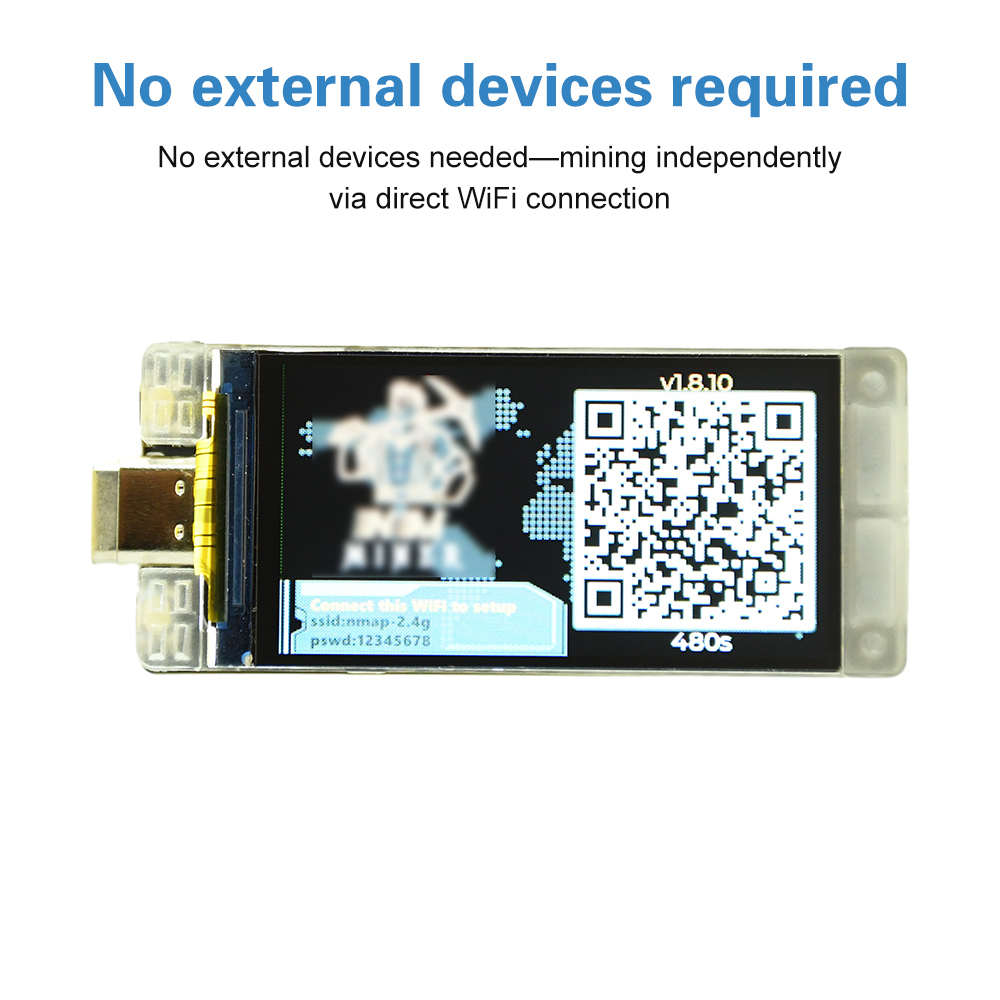

4. Operates independently via Wi-Fi connection without external devices.

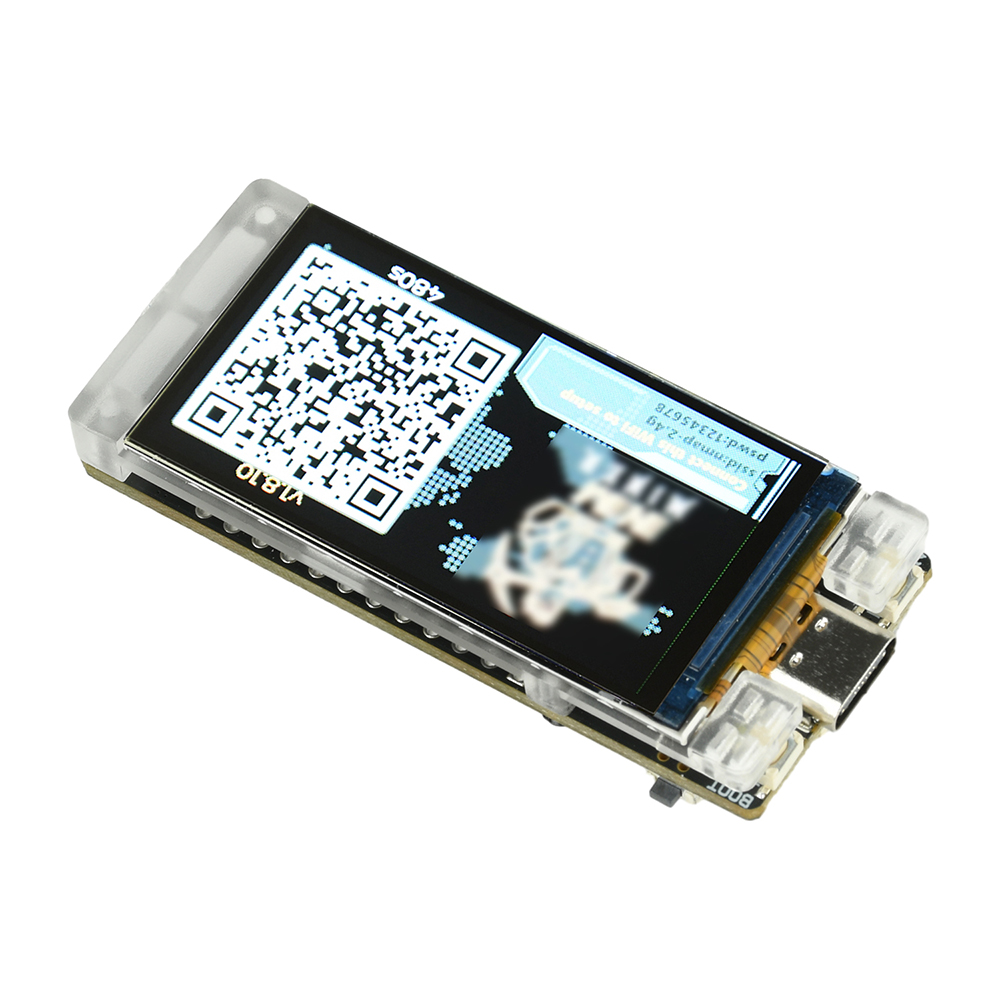

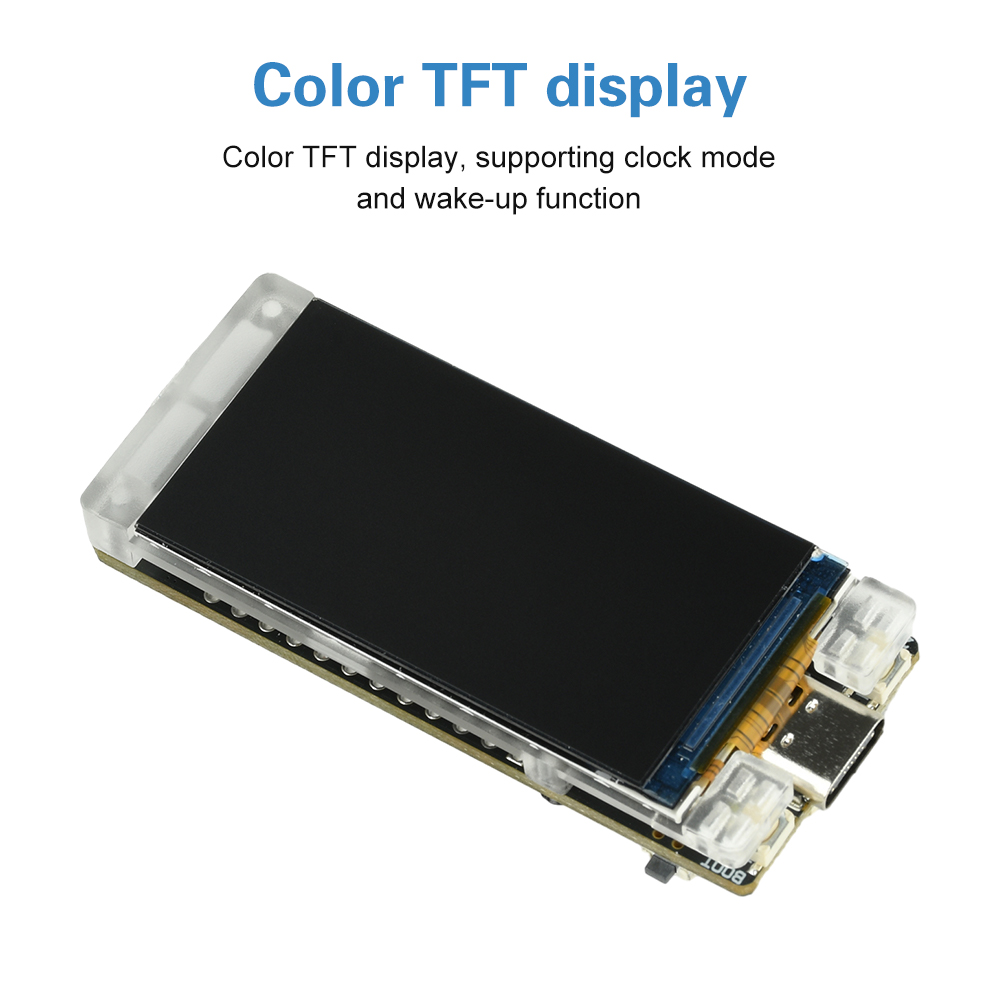

5. Features a color TFT display supporting clock mode and wake-up functionality.
1. Powered by ESP32-S3R8 controller with integrated Wi-Fi and BLE dual-mode communication.
2. Delivers up to 388 KH/s hashrate, boosting mining success rate by 60%.
3. Features optimized firmware for low-power, high-reliability operation.
4. Operates independently via Wi-Fi connection without external devices.
5. Features a color TFT display supporting clock mode and wake-up functionality.

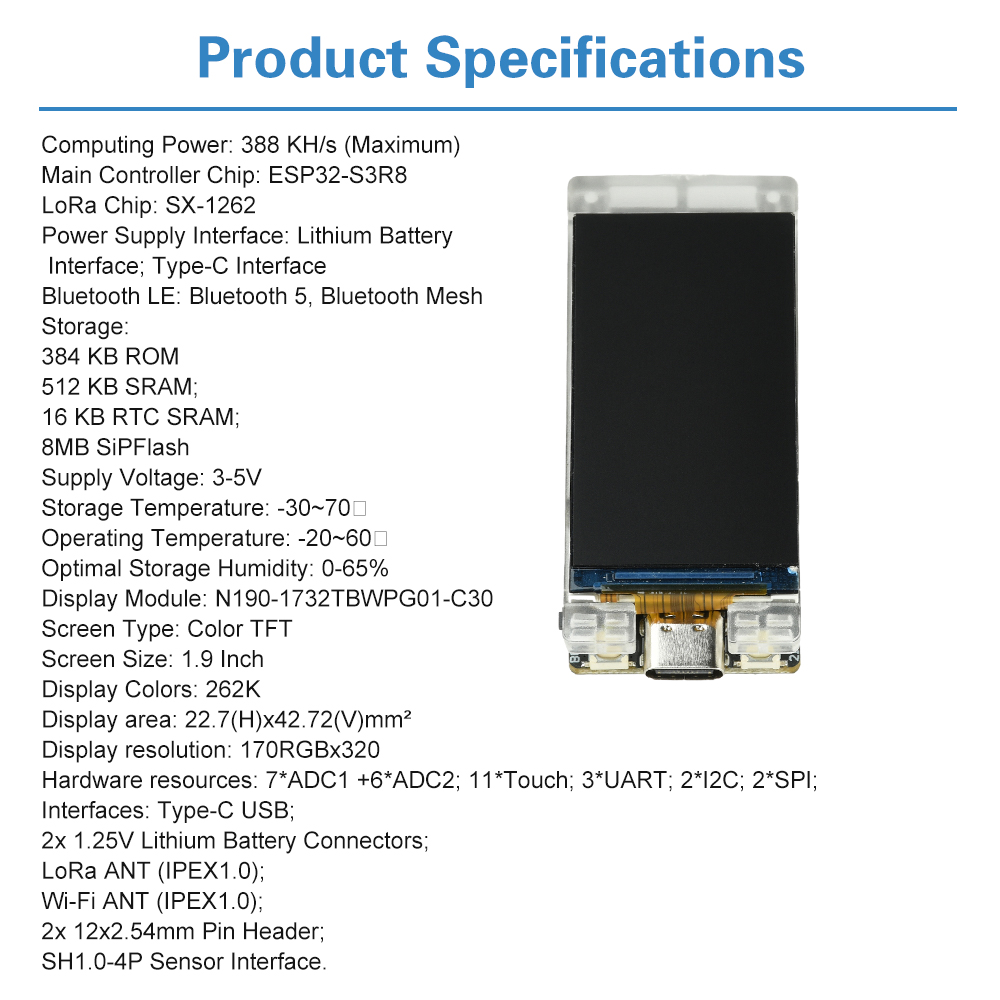

Product Specifications:
Hash Rate: 388 KH/s (Max)
Main Controller: ESP32-S3R8
LoRa Chip: SX-1262
Power Interface: Lithium Battery Port; Type-C Port
Bluetooth LE: Bluetooth 5, Bluetooth Mesh
Storage:
384 KB ROM
512 KB SRAM
16 KB RTC SRAM
8MB SiPFlash
Supply Voltage: 3-5V
Storage Temperature: -30~70℃
Operating Temperature: -20~60℃
Optimal Storage Humidity: 0-65%
Display Module: N190-1732TBWPG01-C30
Screen Type: Color TFT
Screen Size: 1.9 Inch
Display Colors: 262K
Display Area: 22.7(H)x42.72(V)mm²
Display Resolution: 170RGBx320

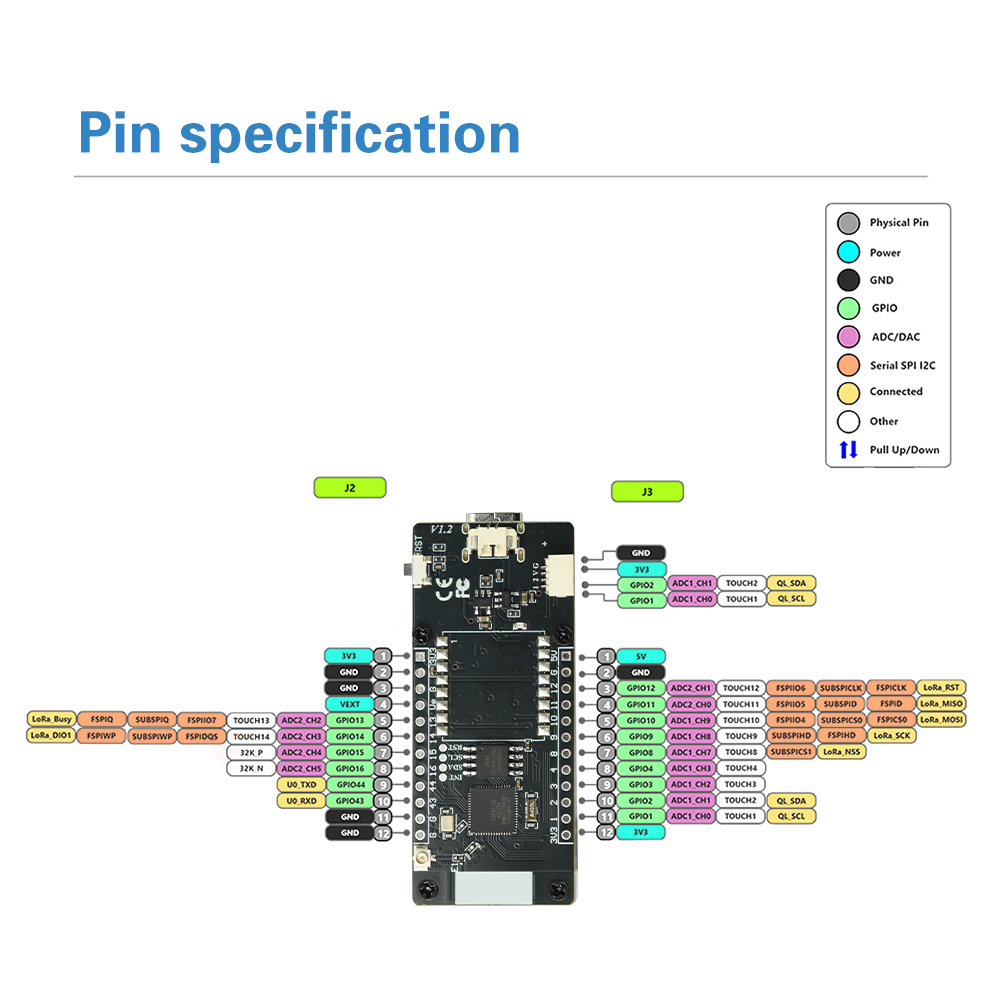

Hardware Resources: 7*ADC1 +6*ADC2; 11*Touch; 3*UART; 2*I2C; 2*SPI;
Interfaces: Type-C USB;
2*1.25V Lithium Battery Connectors;
LoRa ANT (IPEX1.0);
Wi-Fi ANT (IPEX1.0);
2x 12*2.54mm header pins;
SH1.0-4P sensor interface.
Dimensions: 60x25.4x10.2mm
Hash Rate: 388 KH/s (Max)
Main Controller: ESP32-S3R8
LoRa Chip: SX-1262
Power Interface: Lithium Battery Port; Type-C Port
Bluetooth LE: Bluetooth 5, Bluetooth Mesh
Storage:
384 KB ROM
512 KB SRAM
16 KB RTC SRAM
8MB SiPFlash
Supply Voltage: 3-5V
Storage Temperature: -30~70℃
Operating Temperature: -20~60℃
Optimal Storage Humidity: 0-65%
Display Module: N190-1732TBWPG01-C30
Screen Type: Color TFT
Screen Size: 1.9 Inch
Display Colors: 262K
Display Area: 22.7(H)x42.72(V)mm²
Display Resolution: 170RGBx320
Hardware Resources: 7*ADC1 +6*ADC2; 11*Touch; 3*UART; 2*I2C; 2*SPI;
Interfaces: Type-C USB;
2*1.25V Lithium Battery Connectors;
LoRa ANT (IPEX1.0);
Wi-Fi ANT (IPEX1.0);
2x 12*2.54mm header pins;
SH1.0-4P sensor interface.
Dimensions: 60x25.4x10.2mm

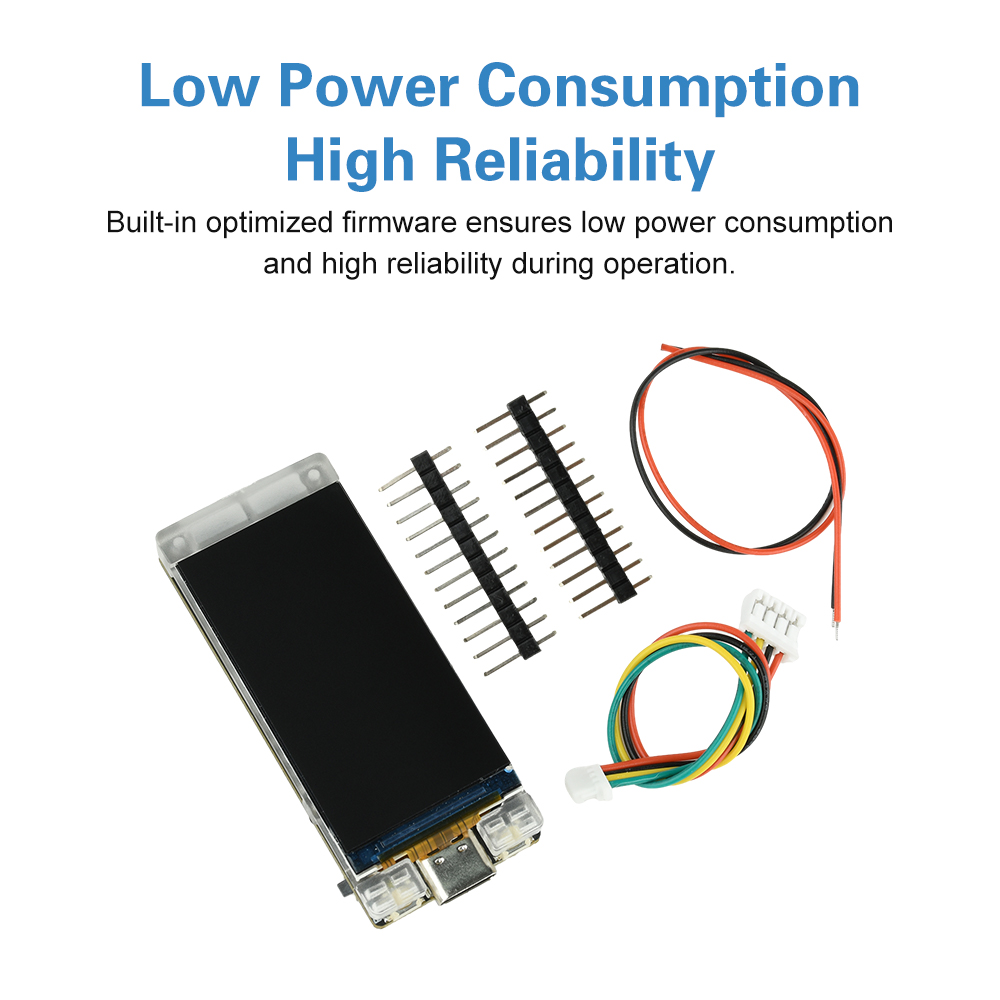

Package Contents:
1x Development Board
2x Header Pins
2x Terminal Cables
1x Heat Sink
1x Development Board
2x Header Pins
2x Terminal Cables
1x Heat Sink
