Features:

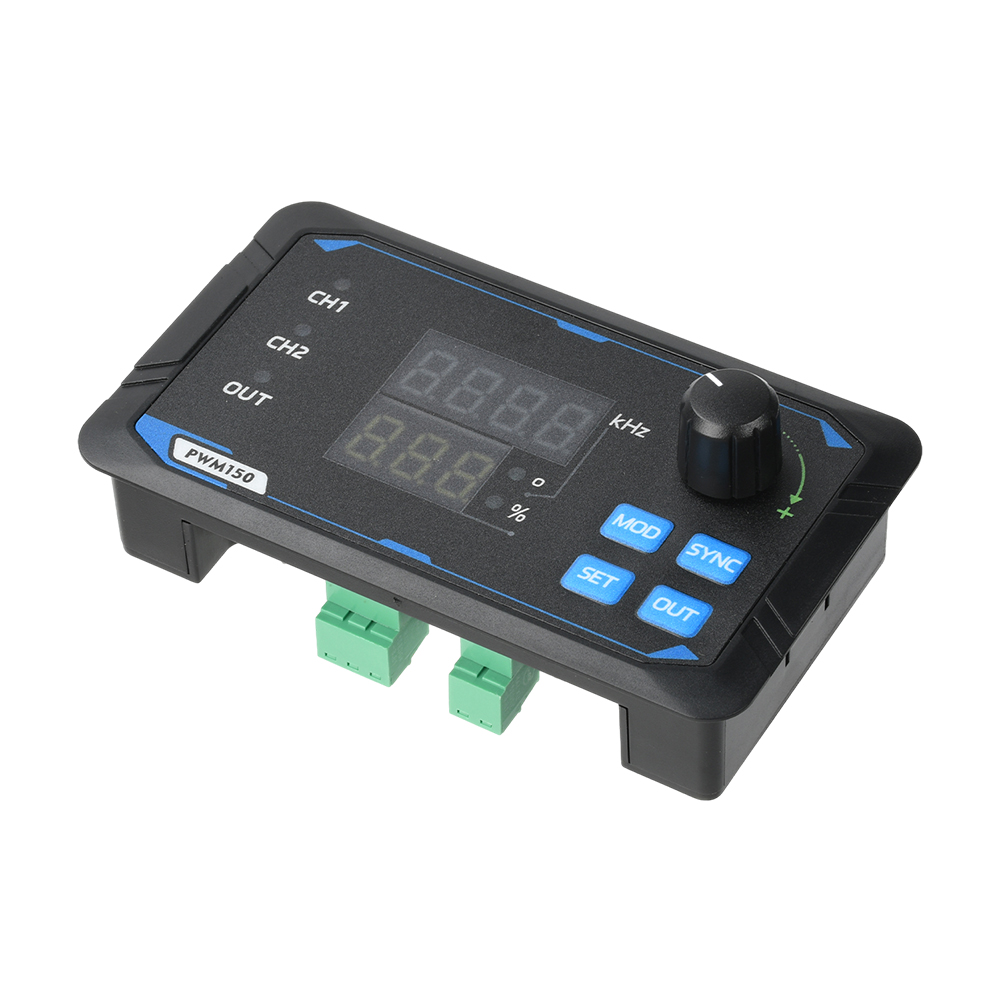

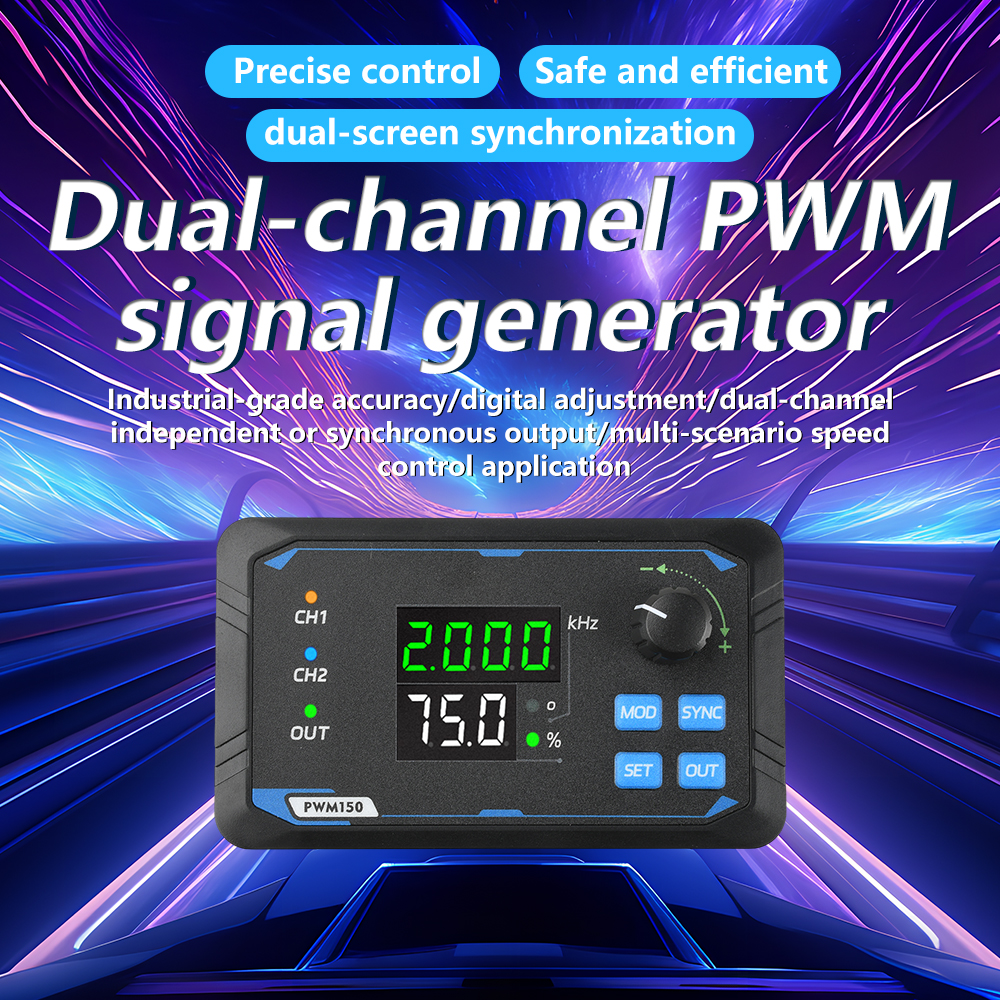

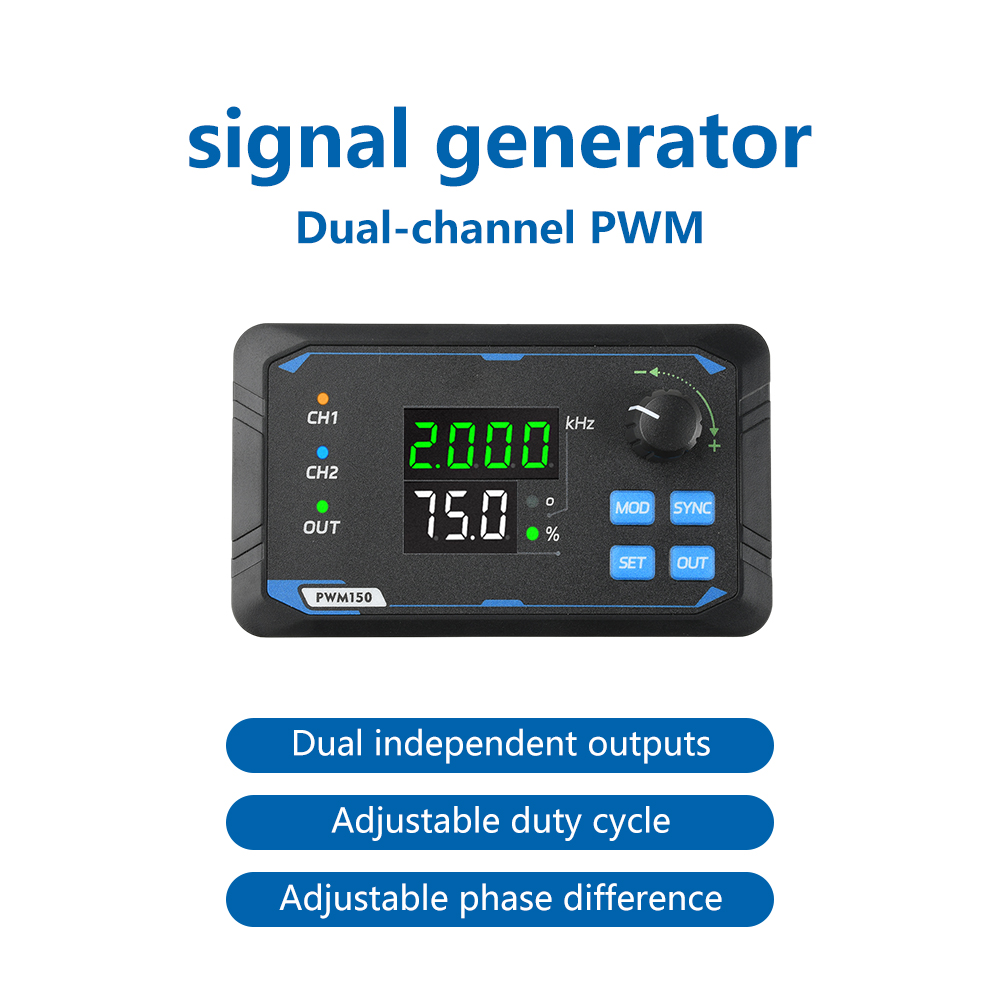

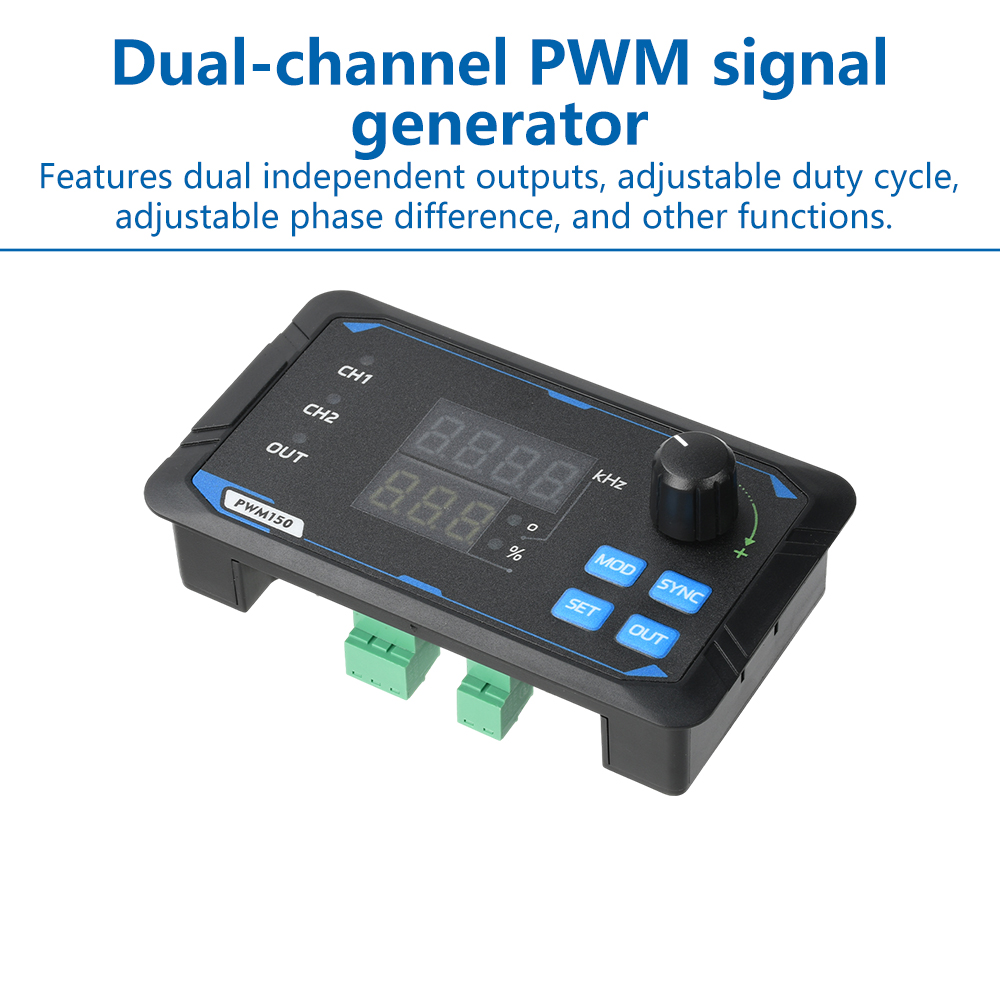

1. Dual-channel PWM signal generator: Features dual independent outputs, adjustable duty cycle, and adjustable phase difference.

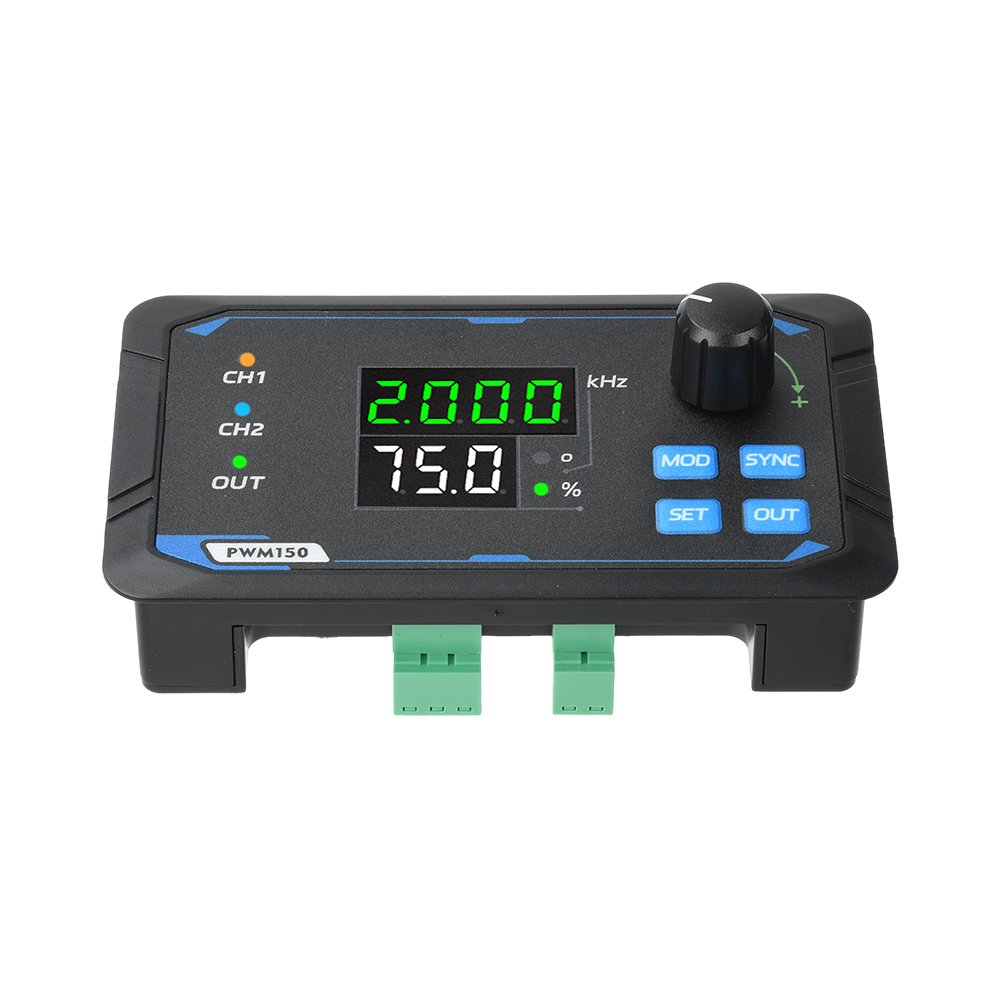

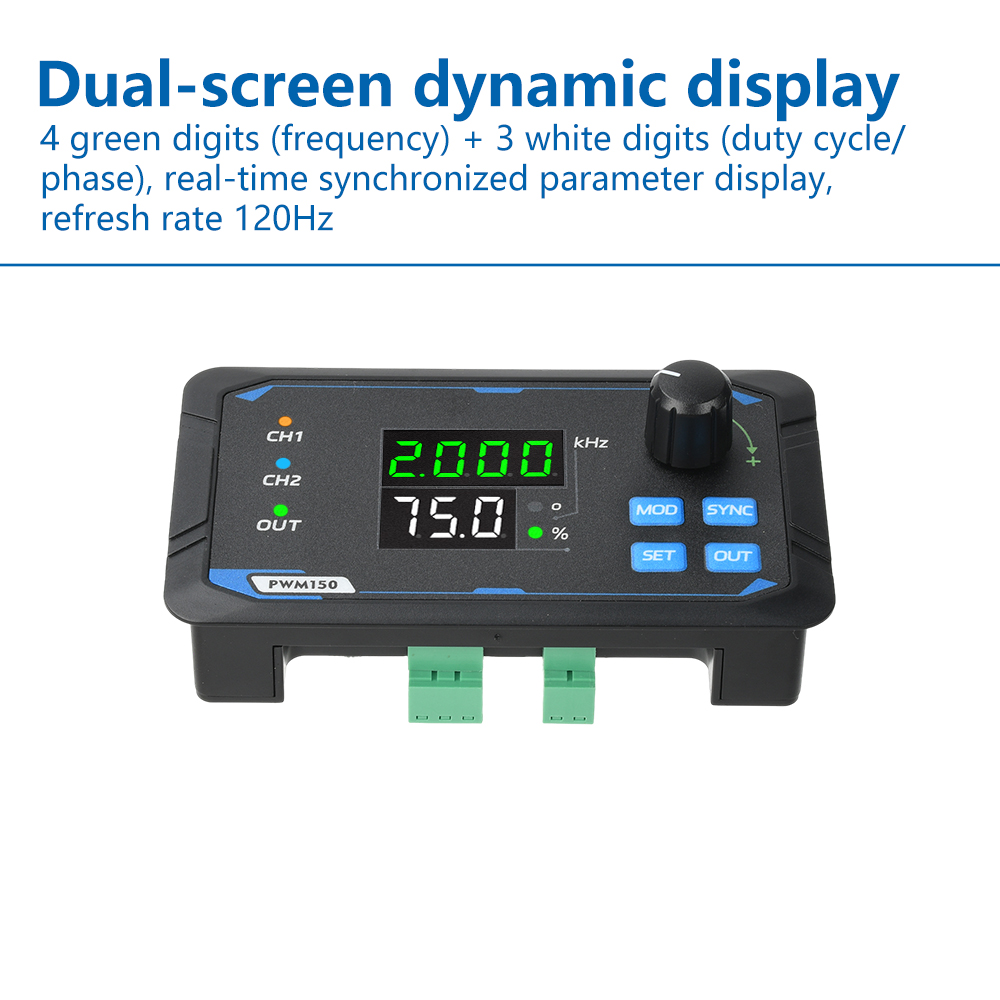

2. Dual-screen dynamic display: 4-digit green (frequency) + 3-digit white LED (duty cycle/phase), real-time synchronized parameter display with 120Hz refresh rate.

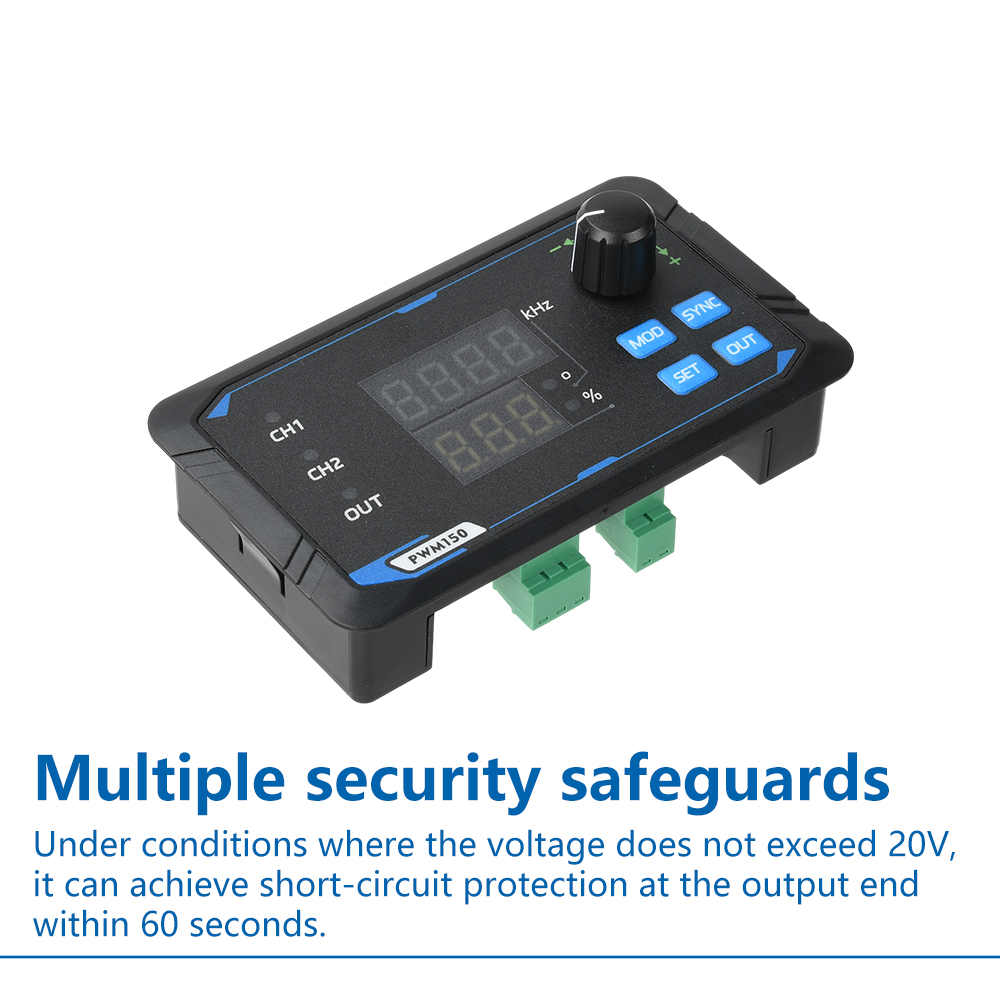

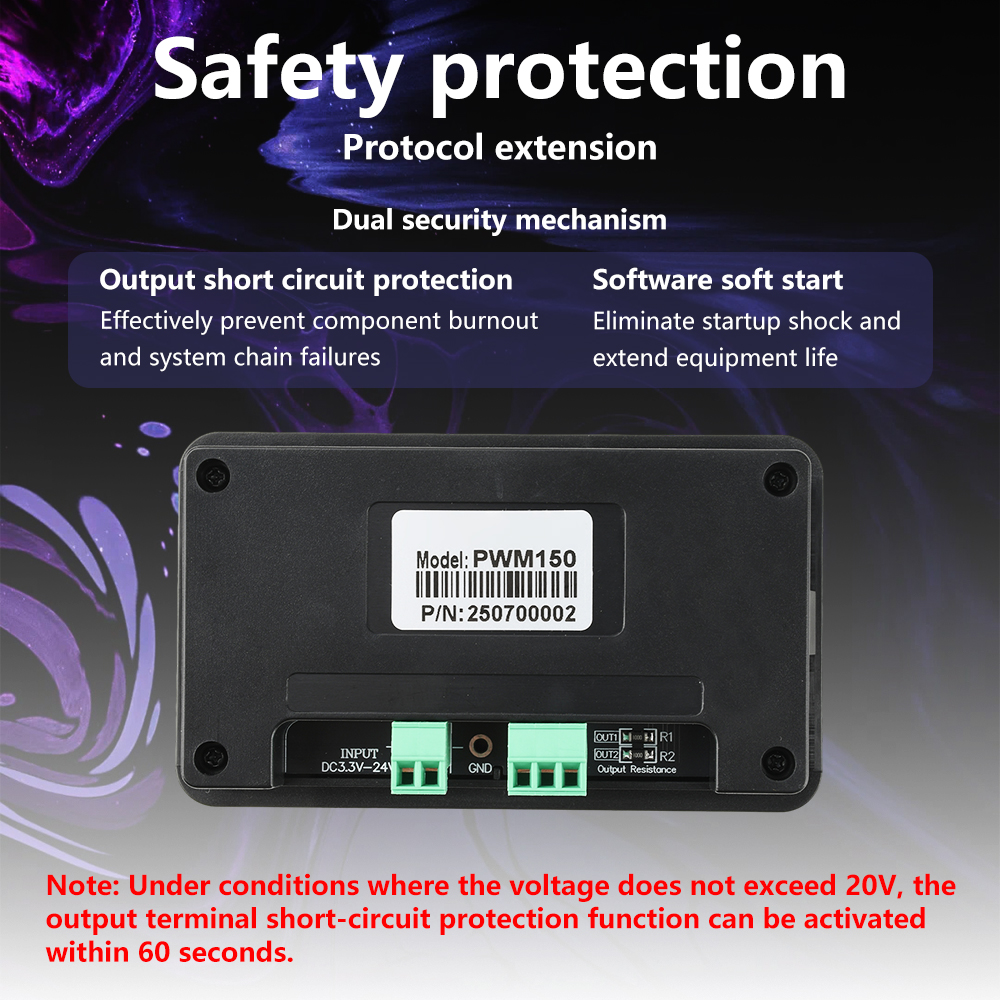

3. Multi-level safety protection: Provides output short-circuit protection within 60 seconds under 20V voltage conditions

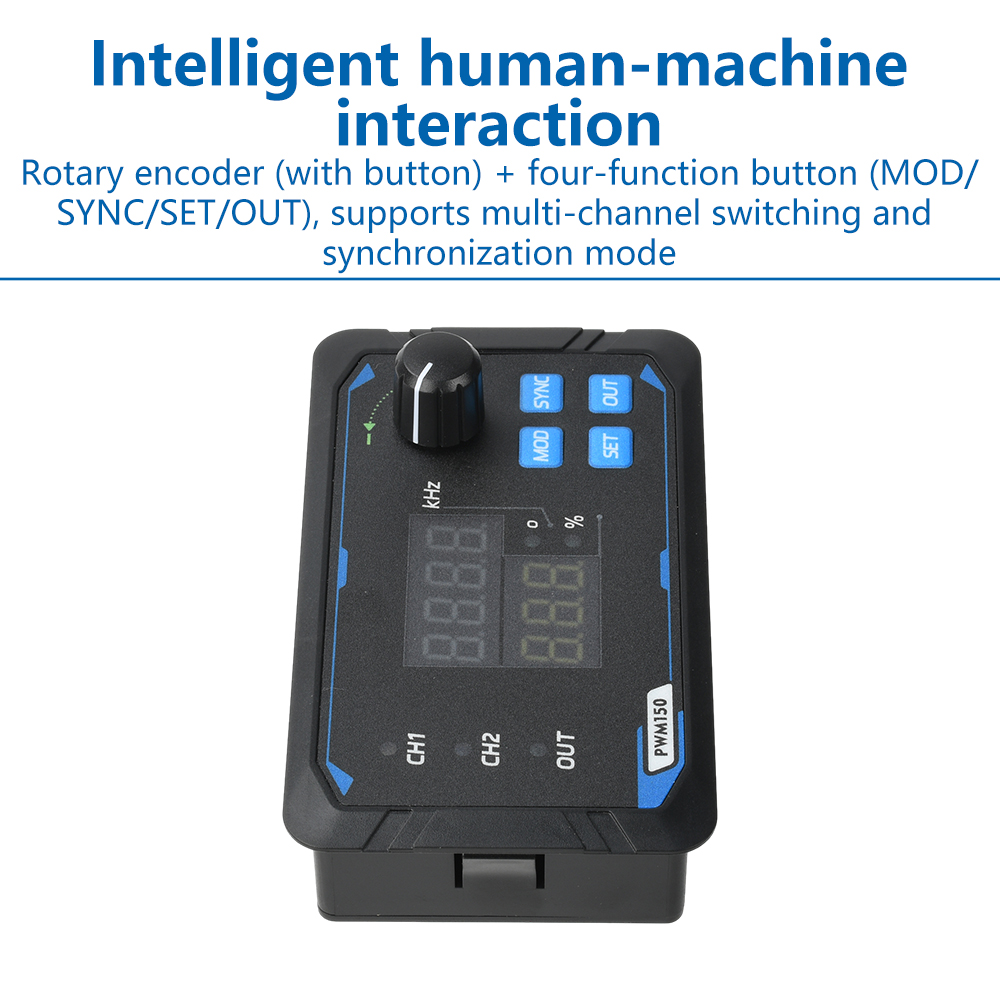

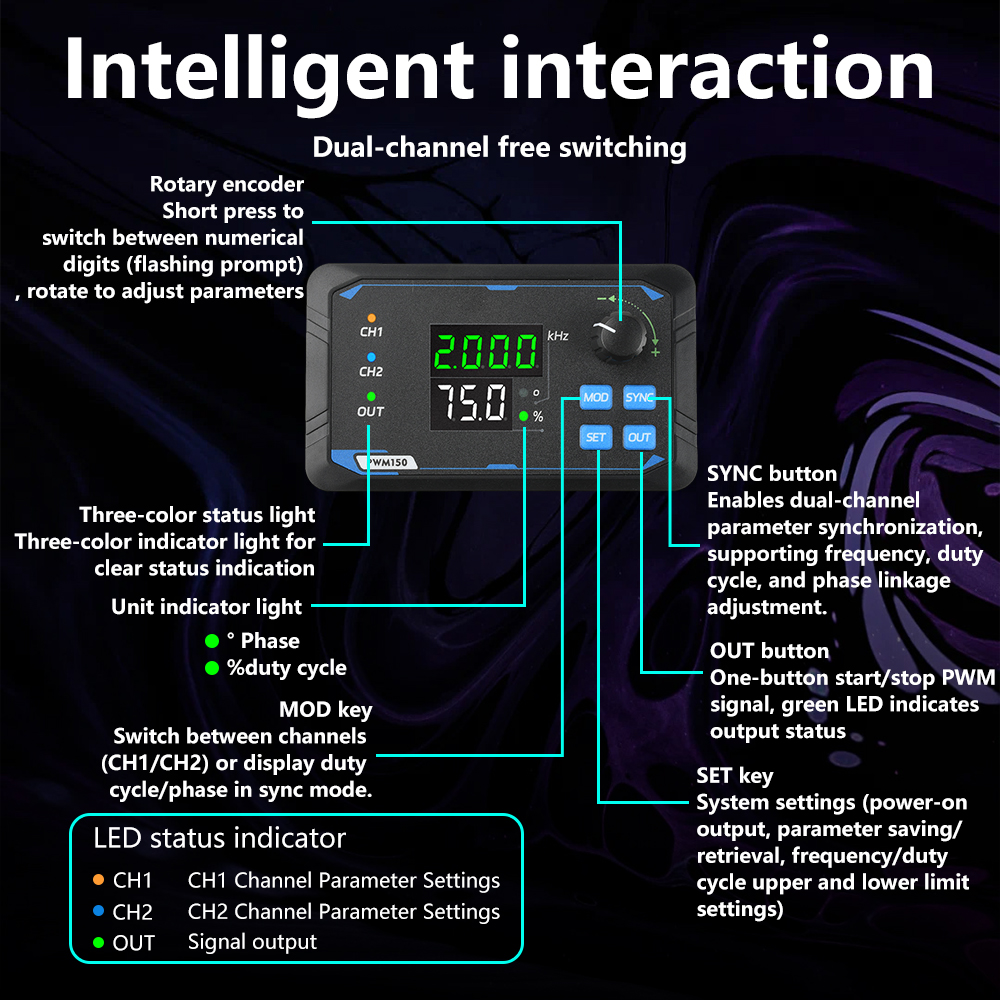

4. Intelligent human-machine interface: Rotary encoder (with button) + four-function keys (MOD/SYNC/SET/OUT) for multi-channel switching and synchronization modes
5. Wide applicability: Suitable for electronic labs, industrial automation, education/training, creative DIY projects, and more
Parameter:
Output Frequency: 1Hz-150kHz
Duty Cycle Accuracy: 0-100%, adjustable in 0.1% increments
Rise Time: 20ns
Phase Adjustment: 0-360° (1° increments, available in synchronous mode)
Output Voltage: DC 5-24V, maximum output current 0.2A
Display: 4-digit green + 3-digit white LED
Power Supply: External power supply (DC 5-24V)
Product Dimensions: 108*63*24mm
1Hz-10kHz (Accuracy: 0.2%)
10Hz-50kHz (Accuracy: 0.4%)
50Hz-150kHz (Accuracy: 2%)
Package include:
Display panel*1
Instruction manual*1
