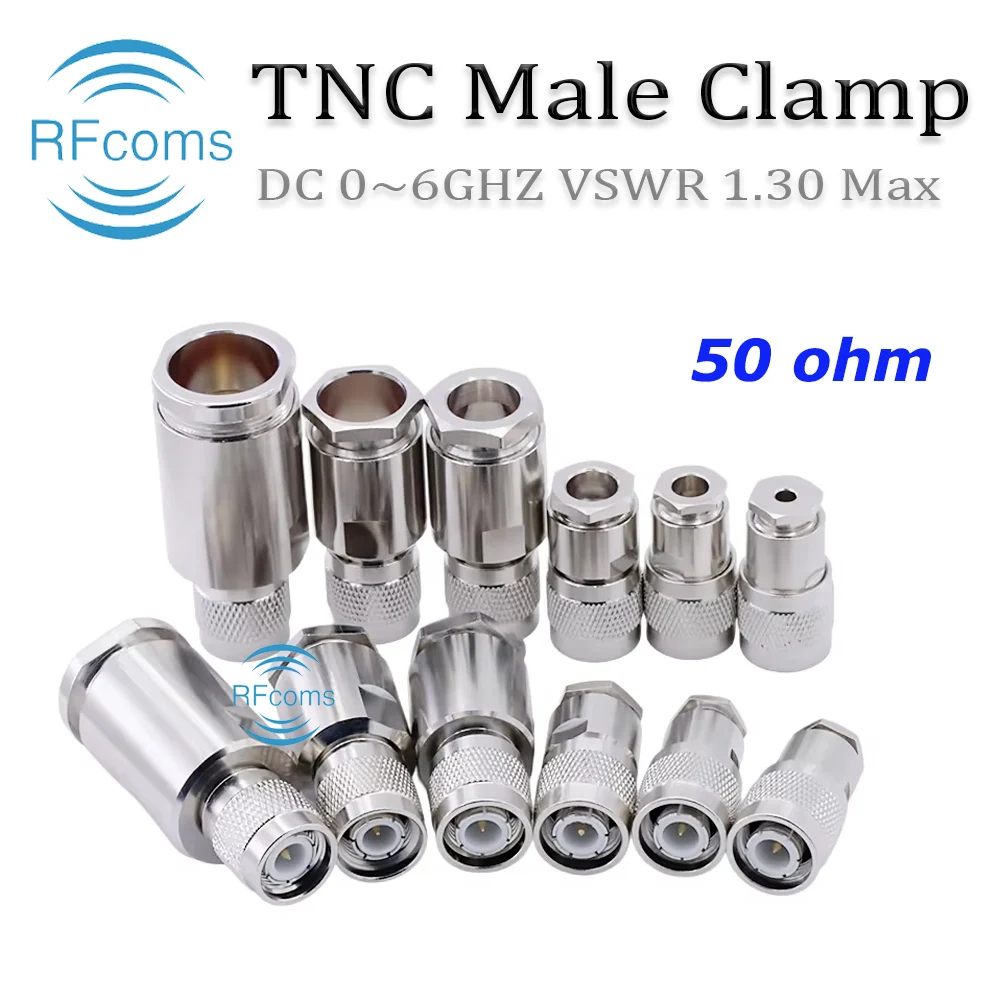

RFcoms TNC Male Clamp Plug Adapter 50ohm Connector TNC-J3 TNC-J5 TNC-J7 TNC-J8 TNC-J9 TNC-J10 for LMR195 LMR200 300 LMR400 500 LMR600 RG316 RG402



TNC-J1.5：Fit for 50-1.5/RG316 SYV-50-1.5 etc.
TNC-J2：Fit for 50-2/ SYV-50-2 etc.
TNC-J3：Fit for 50-3/LMR200 RG58 RG402 3D-FBSYV-50-3 etc.
TNC-J4：Fit for 50-4/LMR240 SYV-50-4 etc.
TNC-J5：Fit for 50-5/LMR300 5D-FB SYV-50-5 etc.
TNC-J7：Fit for 50-7/LMR400 7D-FB SYV-50-7 etc.
TNC-J8：Fit for 50-8/8D-FB SYV-50-8 etc.
TNC-J9：Fit for 50-9 9D-FB SYV-50-9 etc.
TNC-J12：Fit for 50-12/CNT/LMR600 12D-FB CNT600 SYV-50-12 etc.

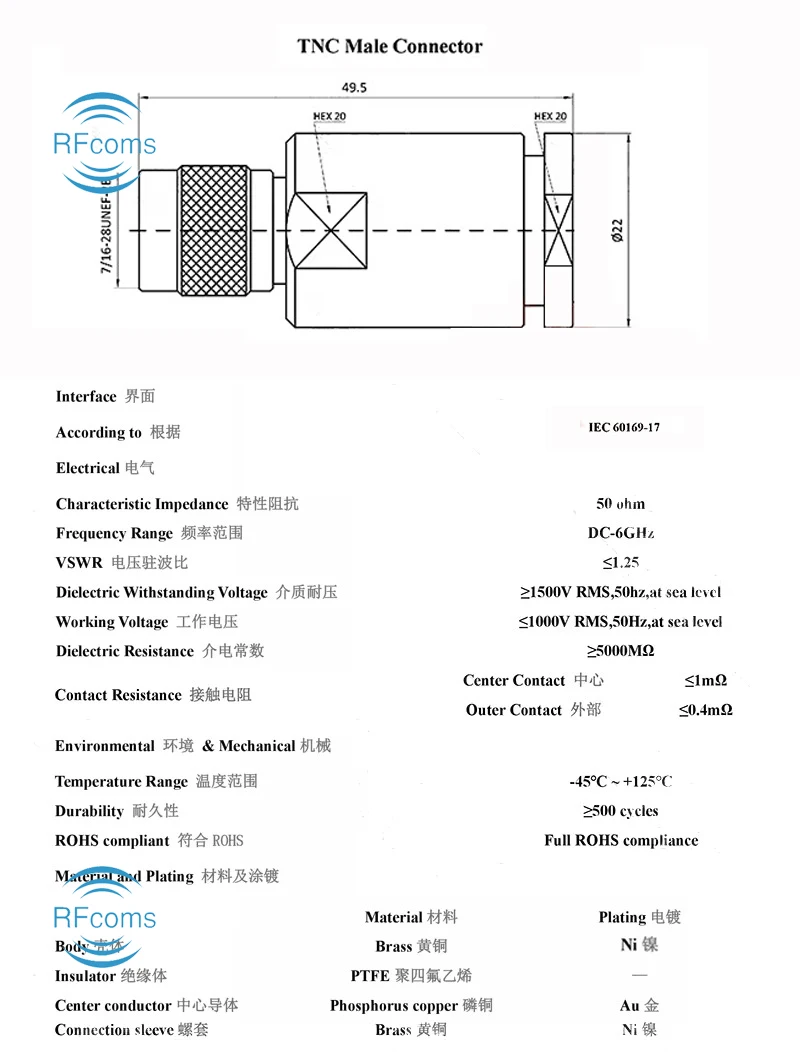

Impedance：50Ω
Frequency：DC-6GHz
VSWR: ≤1.3
Dielectric Withstanding Voltage:  ≥1500V RMS,50hz,at sea level
Working Voltage:  ≤750V RMS,50hz,at sea level
Dielectric Resistance: ≥5000MΩ
Durability：≥500 cycles
Temperature Range：-45℃~+125℃
According to: IEC60169-17
ROHS Compliant:  Full ROHS compliance

Material:
Body: Brass, Ni/Au plating
Insulator: PTFE
Center conductor: Brass, Au Plating

Package included:
1x Connector as your choose
