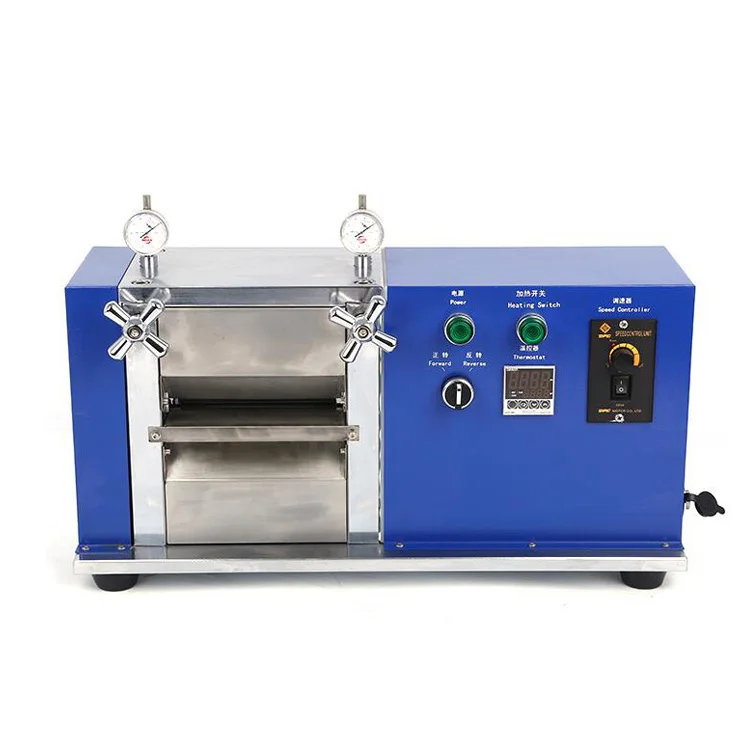

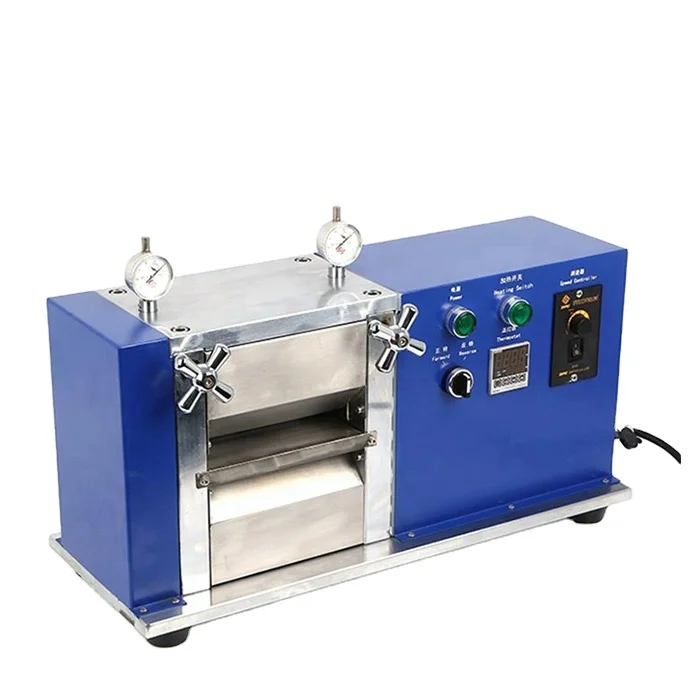

Lab Hot Roller Press Machine for Battery Electrode Sheet MRX-JS100 750w
Battery lab equipment ( HOT PRESSER ) :
This equipment is mainly used for electric rolly pressing of battery materials, a few precious metal materials like gold and silver, nonferrous materials like copper and aluminum in lab under a certain hot temperature. The rolling thickness can be regulated, it is easy to operate. This equipment is especially used for thickness reduction and density increase of clean energy material Li-battery electrodes.
Features :
1. Heat rolling, temperature can be regulated & digital displayed.
2. Rolling hardness is high, surface plated by chrome treatment that hardness can reach HRC 62 and anti-rust.
3. Install transparent protection plates for safety use.
4. Vertical design for convenient feeding and pressing of strip and piece materials.
5. Use gear engagement to accomplish rolling press.
6. Thickness and speed can be regulated.
7. Electric rolling makes automation
8. Small dimension, convenient and operation, flexible and quick use.
1. Heat rolling, temperature can be regulated & digital displayed.
2. Rolling hardness is high, surface plated by chrome treatment that hardness can reach HRC 62 and anti-rust.
3. Install transparent protection plates for safety use.
4. Vertical design for convenient feeding and pressing of strip and piece materials.
5. Use gear engagement to accomplish rolling press.
6. Thickness and speed can be regulated.
7. Electric rolling makes automation
8. Small dimension, convenient and operation, flexible and quick use.
Application :
-
Battery lab
-
Battery research
-
Lithium ion battery lab
-
Material research
-
Trial-production
Parameter：
|
Item Name
|
battery material hot presser
|
|

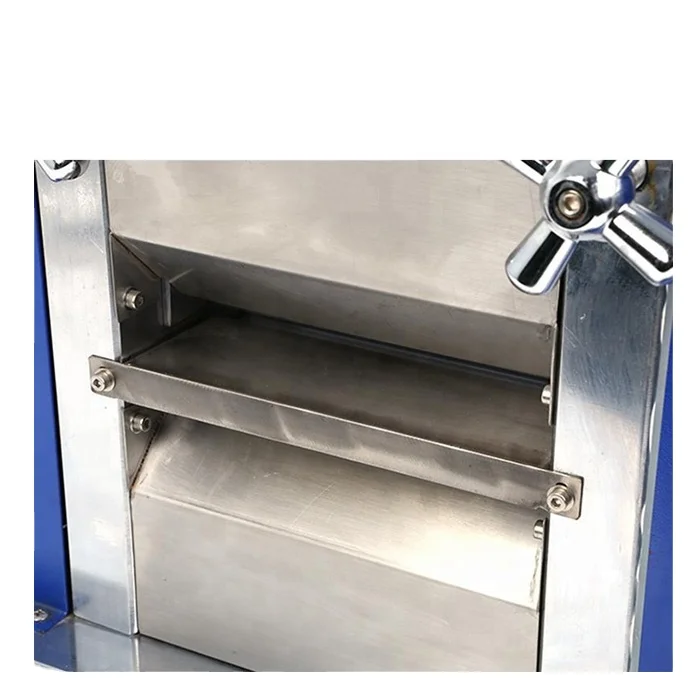

Roller diameter
|
2~Φ100mm
|
|
Roller hardness
|
HRC62
|
|
Roller finish
|
Ra > 0.4
|
|
Pressing thickness
|
0~2mm, adjustable
|
|
Pressing sheet width
|
0~100mm
|
|
Roller placing
|
vertical placed
|
|
Rolling temperature
|
Room temperature ~120℃, adjustable, with digital display
|
|
Operating method
|
Electrical
|
|
Voltage and Frequency
|
AC220V/50Hz
|
|
Power
|
750W
|
|
Feeding Speed
|
0~40mm/s
|
|
Dimension
|
L500mm*W220mm*H320mm
|
|
Weight
|
60KG
|
DISPLAY:
