Adjust Damper Coilover For BMW E46 3 Convertible 330ci 325ci 323ci 320cd 330cd

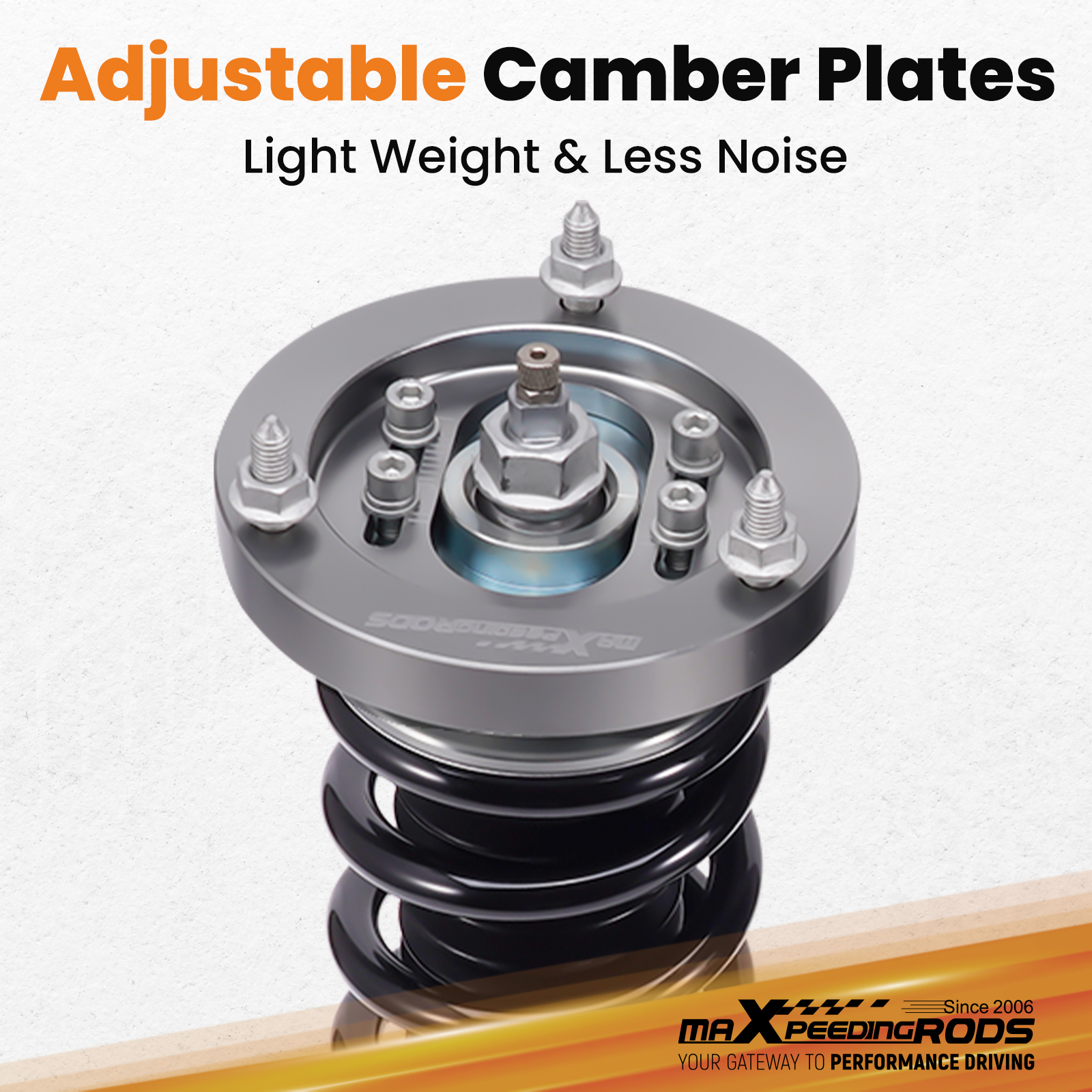

Aluminum Adjustable Camber Plate

Aluminum Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering.

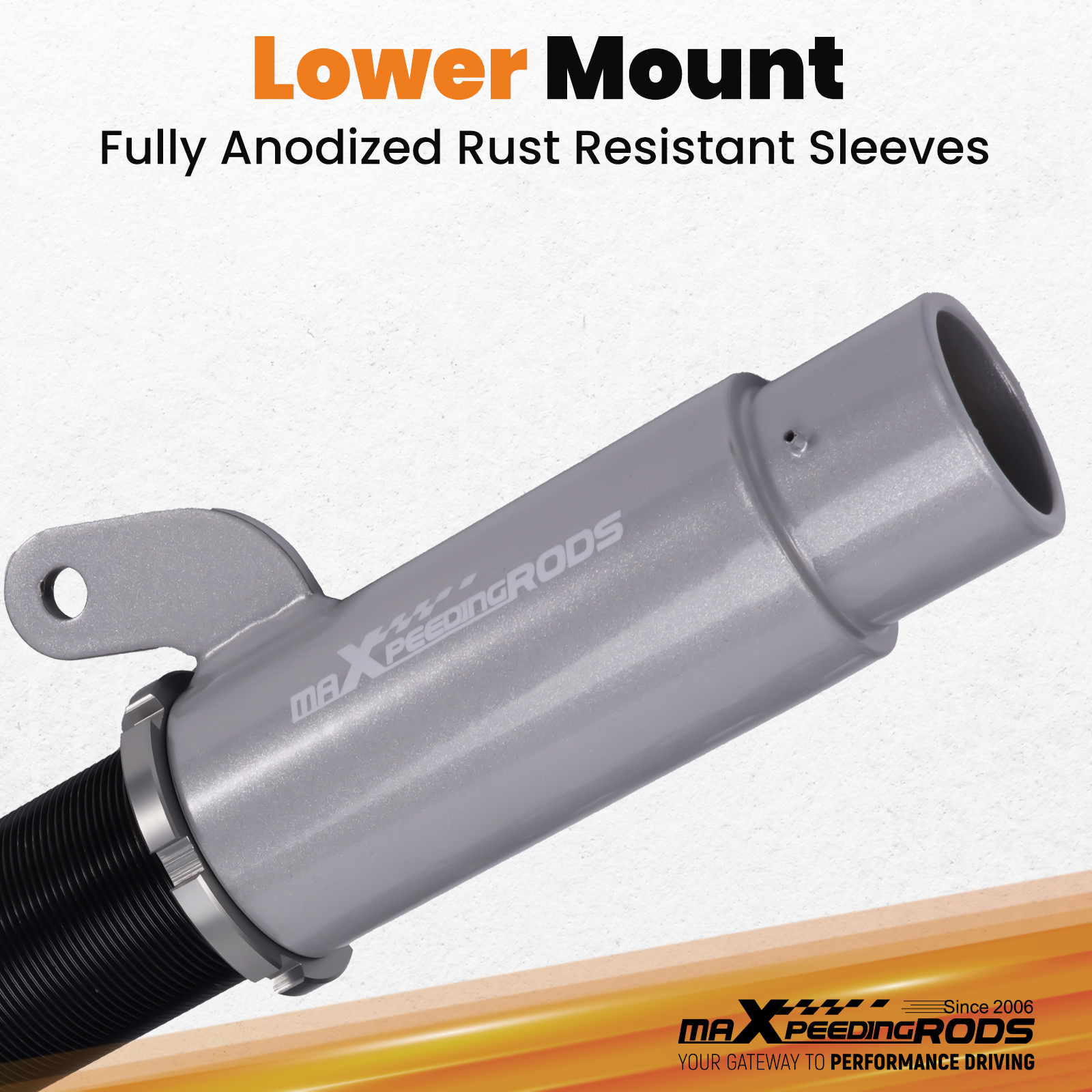

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.

Drops From 1 to 3 Inch From Factory Ride Height

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

Durable Cold Wound Steel & Heat Treated Coils

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications

Adjustable height	Yes, Lowering 1-3 inch / 25-75mm depending on the vehicle models
Adjustable damper	Yes, 24 levels of rebound damping force
Front Spring length	180 mm
Rear Spring length	180 mm
Front spring length	8 kg/mm (448 lbs/in)
Rear spring length	7 kg/mm (392 in/lbs)
Top mounts	Front: Pillow ball bearing camber plate, Rear: Pillow ball
Front spring inner diameter	70.5 mm
Rear spring inner diameter	63-69 mm
Package Including	2 Front + 2 Rear
Spring Preload advised	7-10 mm

Features

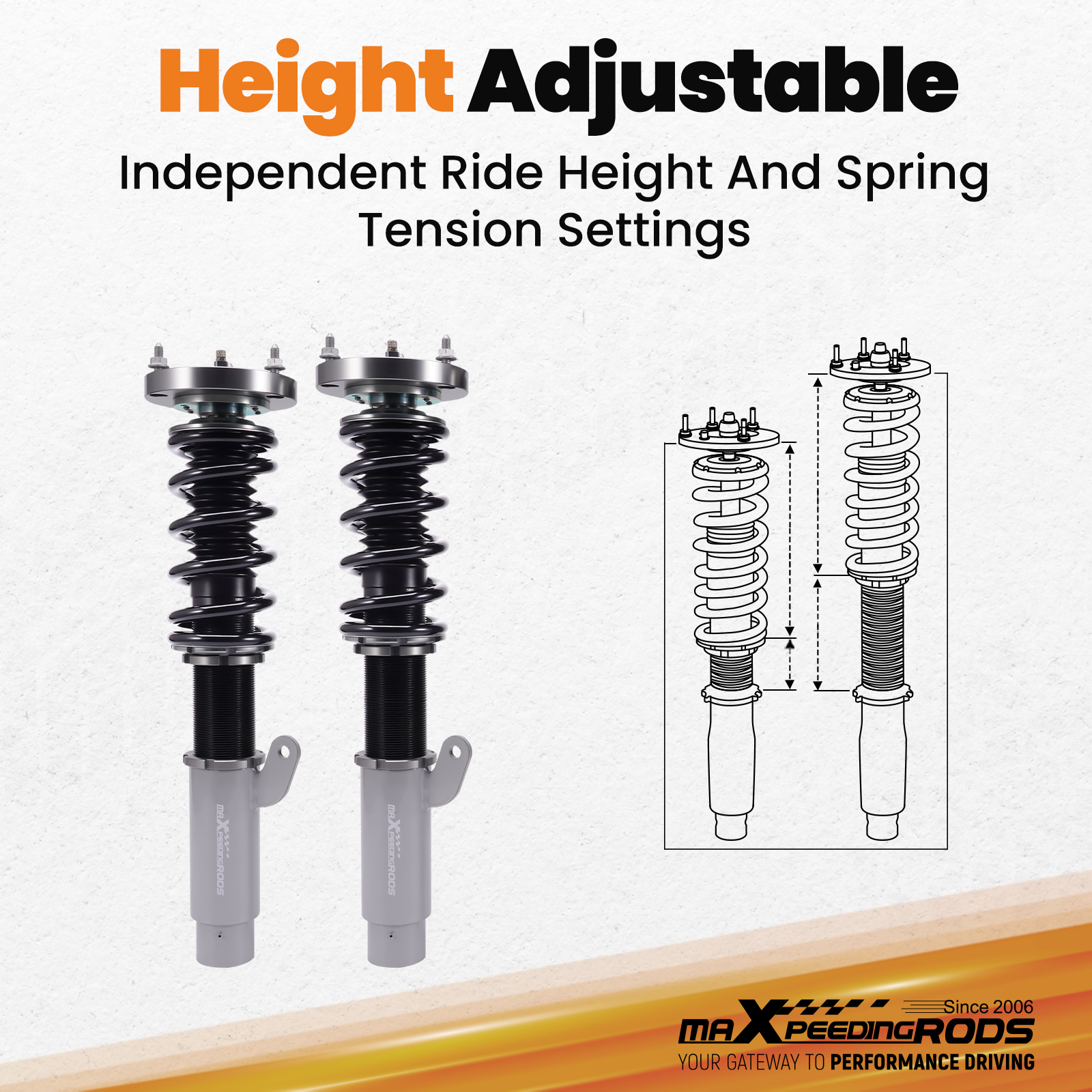

- Independent ride height adjustable: Easily adjust the height of your ride! This coilover also allows for height and preload adjustments. This means you can reach optimal suspension tuning while maintaining a stable, comfortable ride at all times.

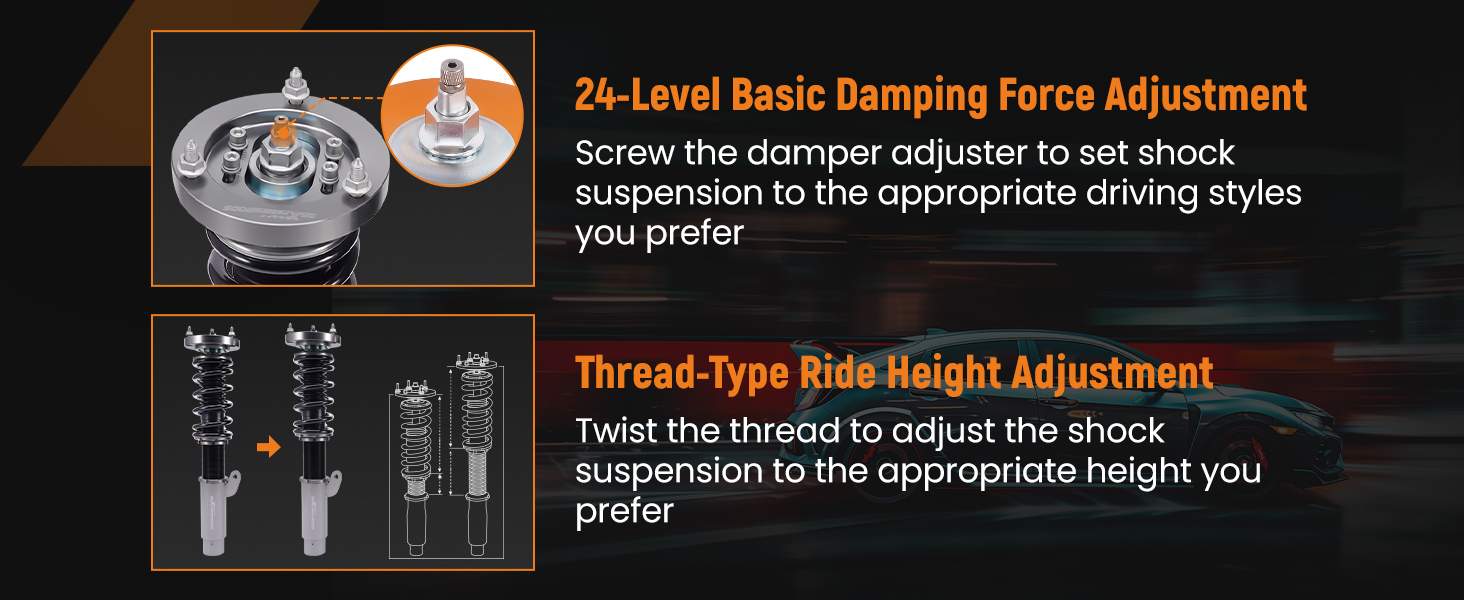

- 24 Levels Damping Force Adjustable: Provides an extensive range of adjustability, making it easy to customize for various purposes and achieve desired ride comfort.

- High Durability Bearing and Thrust Seat: Utilizes top-quality components for durability and noise reduction, ensuring long-lasting performance and silent operation.

- Reinforced Rubber Bushing Upper Mount: Specifically designed for each vehicle, enhances silence and comfort. Adjustable camber angle for certain strut mechanism suspension cars. Full Length Adjustable Type: Allows ride height adjustment without affecting suspension stroke, maintaining comfort while customizing height.

- 55CrSi Steel Cold-bent Spring: Features extreme lightweight and high durability with world-class tensile strength, reducing metal fatigue and enhancing performance.

- Balanced Comfort & Performance: Strikes a harmonious blend between sporty handling dynamics and daily drivability.

Fitment

For BMW 3 (E46) 4-door sedan 330i; 325i; 328i; 318d; 320d; 320i,325i ;330d (02/1998-04/2005)
For BMW 3 2-door Convertible (E46) 330ci; 325ci;323ci; 320cd,330cd (04/2000-12/2007)
For BMW 3 2-door Coupe (E46) 320ci; 325ci; 328ci; 330ci;320cd; 330cd; (02/1999-12/2006)
For BMW 3 Touring 5-door wagon/estate (E46) 316i; 325i; 328i; 330i; 323i; 325i; 318d; 320d; 330d; (10/1999-05/2005)

Note: not for Xi/xd 4 wheel drive/M3

Specifications

- Front top mounts: pillow ball with camber plate
- Rear top mounts: pillow ball
- Damping adjustable: Available, 24 levels of rebound damping force
- Camber adjustable: Yes
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 8 kg/mm (448 lbs/in)
- Spring rate Rear: 7 kg/mm (392 in/lbs)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 63-69 mm
- Spring length Front: 180 mm
- Spring length Rear: 180 mm
- Spring Preload advised: 7-10 mm

Package Content

2x Front coil-overs
2x Rear coil-overs
2x C spanners
1x Allen wrench
