X-Ray XRF Spectrometer Analyzer Testing Machine For Au,Ag,Pt,Pd,Cu Etc 220V
New X-Ray XRF Spectrometer Analyzer Testing Machine For Au,Ag,Pt,Pd,Cu Etc 220V
The Principle of Energy Dispersive X Fluorescence Spectrometer
The atomic electron layer is excited by high-energy X-rays, causing the transition of electrons outside the nucleus, resulting inthe release of secondary X-ray energy.
Because the energy released by different elements has different characteristics, the detection system measures these energies andquantities to calculate element content.
Because the energy released by different elements has different characteristics, the detection system measures these energies andquantities to calculate element content.

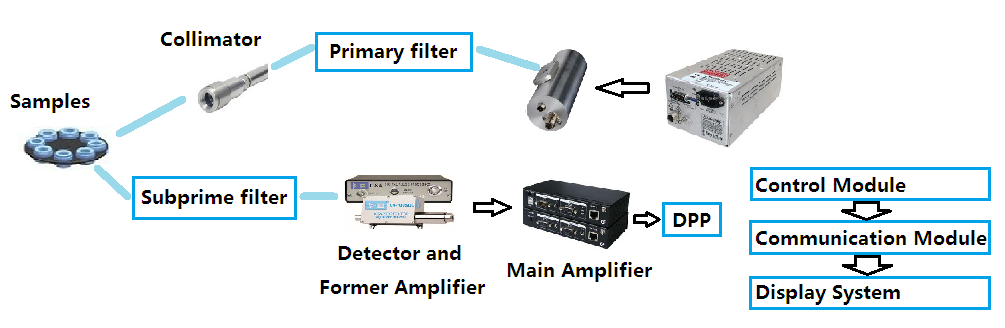

The Main Components
High VoltageX-Ray Tube-Detector
Collimator
Primary filter
Former-Amplifier
Main Amplifier
DPP
Control Module
Communication Module
Display System, etc
Collimator
Primary filter
Former-Amplifier
Main Amplifier
DPP
Control Module
Communication Module
Display System, etc
Specification parameters
MAY05 Gold Karat Tester,XRF Gold Tester Machine,Precious Metal Purity Tester
Model | X-MAY05 | X-MAY16 | X-MAY72 | X-MAY72-Pro | |||
Detector Type | Proportional Counter tube | Si-pin (USA) | SDD（USA） | ||||
Multichannel Analyzer | Multi channel simulation | ||||||
Operating system | Windows 7 system | ||||||
Sample Chamber Size | 310 *280 * 60 (mm) | 290 * 290 * 95 (mm) | 380 *380 * 60 (mm) | ||||
Test Time | 10sec ~ 50sec | ||||||
Measuring Element | Au,Ag,Pt,Pd,Cu (Display elements: Ni,Zn,Cd,Ir,In ) | Au, Ag, Pt, Pd, Cu, Ni,Zn,Rh,Cd,Ru,Fe,Co,Ir,W,Os,Pb (content ≥5%) | 72 elements from sodium (Na) touranium (U) between all the elements | ||||
Analysis Range | 1ppm to 99.99% | ||||||
Accuracy (content ≥96%) | 0.1% | 0.05%-0.1% | 0.03% | 0.01% | |||
Sample Form | Solid | ||||||
Measuring Mode | Automatic measurement with one click | ||||||
Tube Voltage | 5KV ~ 50KV | ||||||
High Voltage Power Supply | 0 ~ 50KV | ||||||
Camera | HD camera | ||||||
Filters | Selectable customized switches | ||||||
Analysis Software | Qualitative and quantitative analysis software | ||||||
External Dimensions (mm) | 400 * 430 * 350 | 410 *300*280 | 480 * 480 * 390 | ||||
Net Weight | 33 Kg | 30 Kg | 38 kg | ||||
Gross Weight | 37 kg | 34 Kg | 42 kg | ||||
Instruments Environmental Requirements | |||||||
Ambient Temperature | -5 ° C ~ 40 ° C (Suggested that in air conditioning room) | ||||||
Relative Humidity | 15% ~ 90% | ||||||
Power Requirements | AC110v- 220V ± 5V, 50/ 60 Hz No high power electromagnetic and vibration interference sources nearby | ||||||

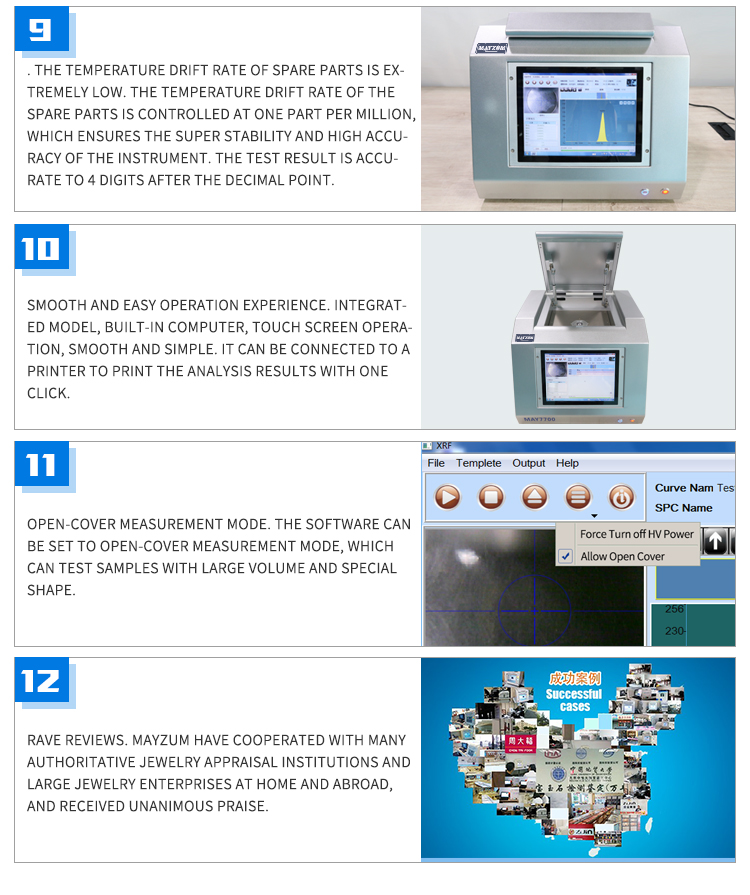

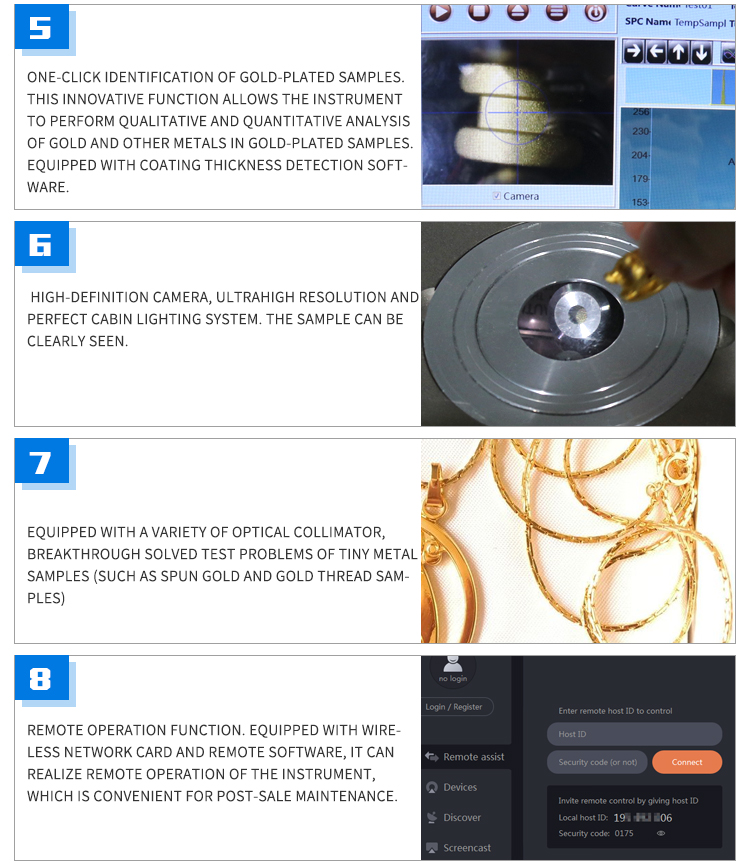

Advantages & Characteristics：
MAY05 Gold Karat Tester,XRF Gold Tester Machine,Precious Metal Purity Tester

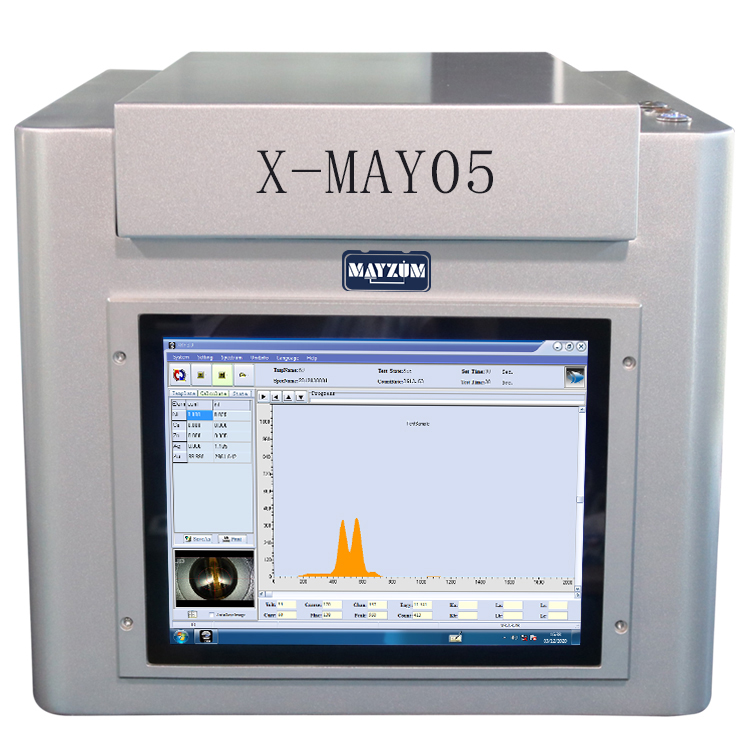

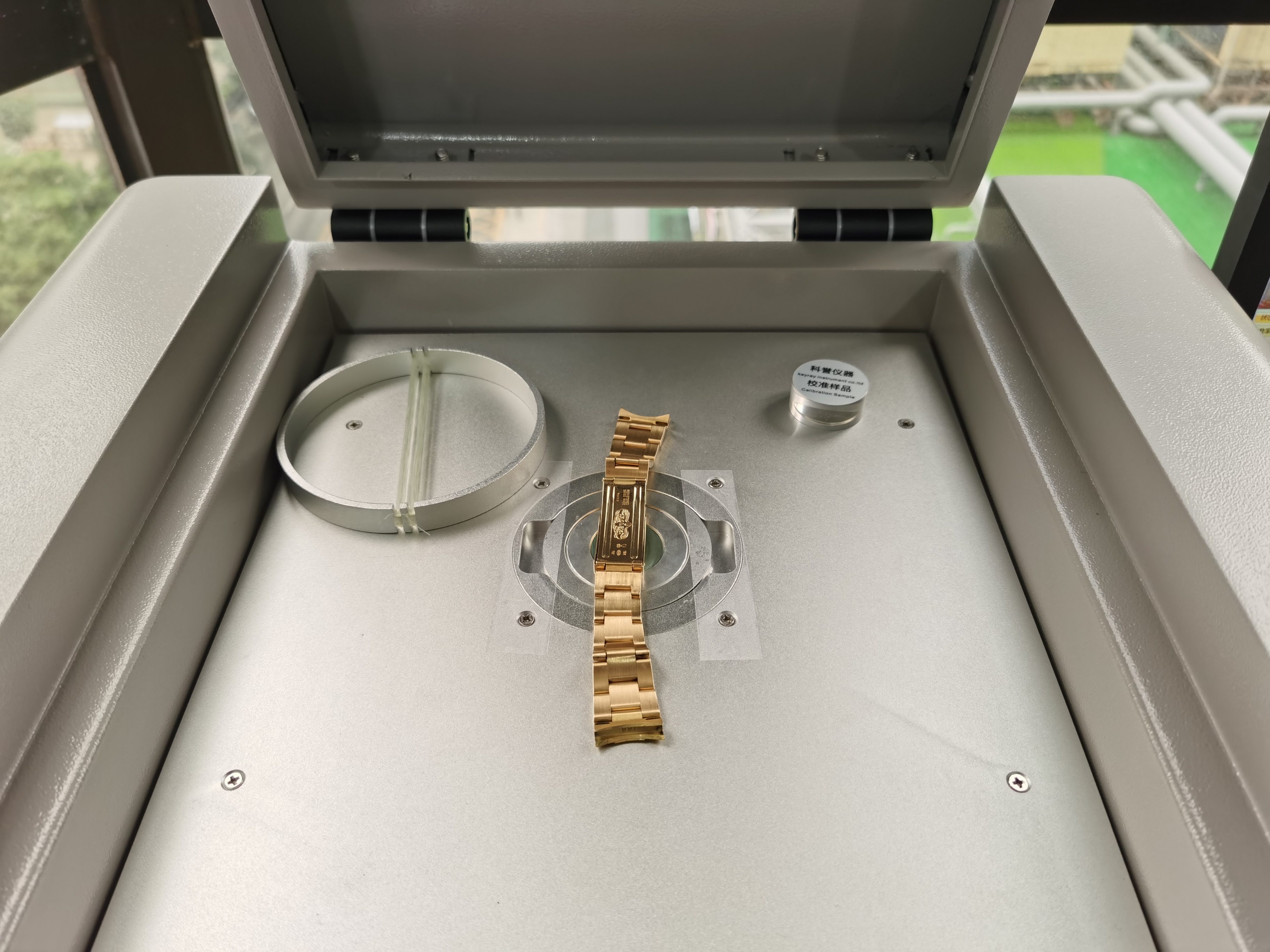

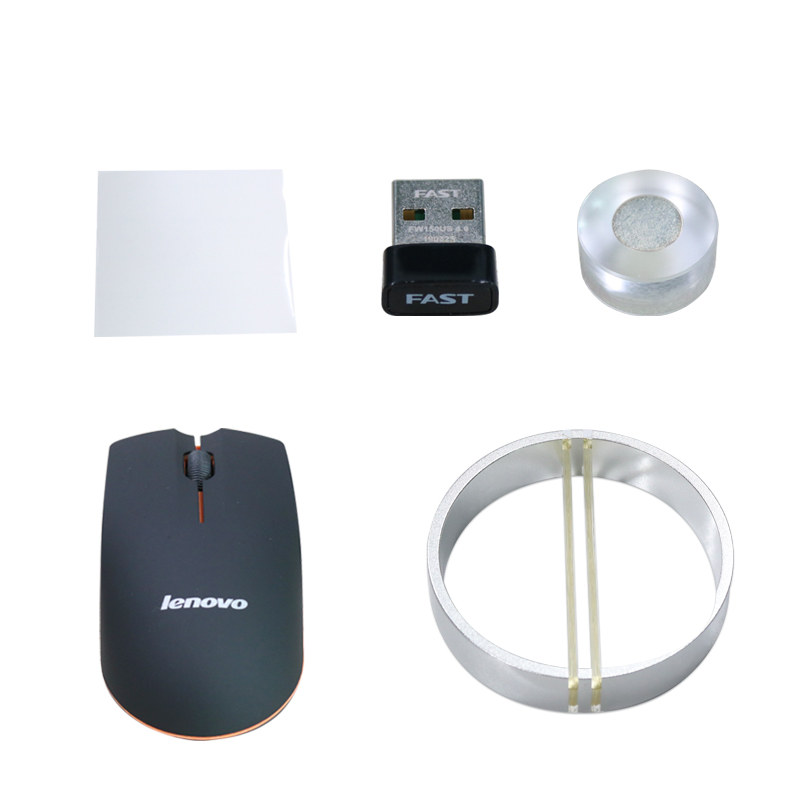

Detailed Images:

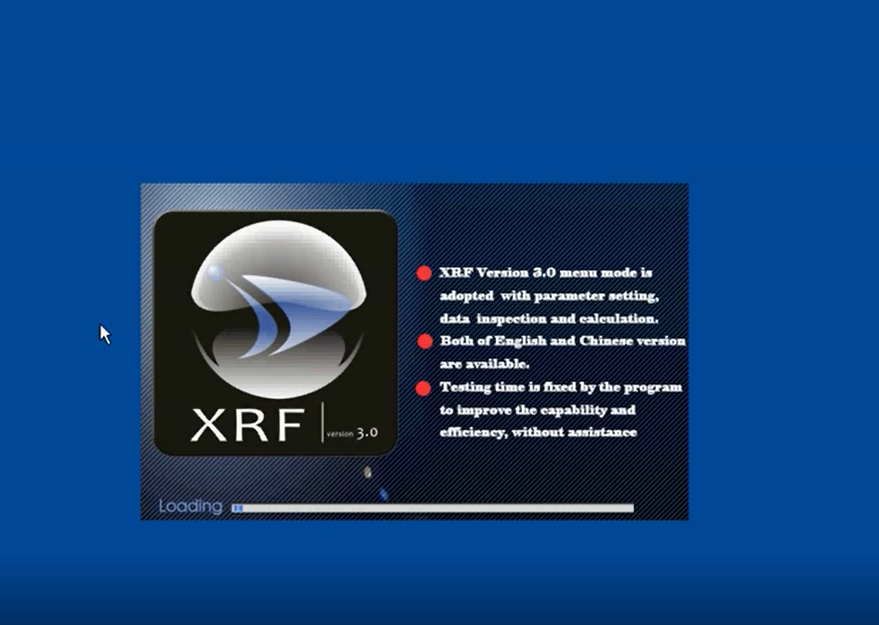

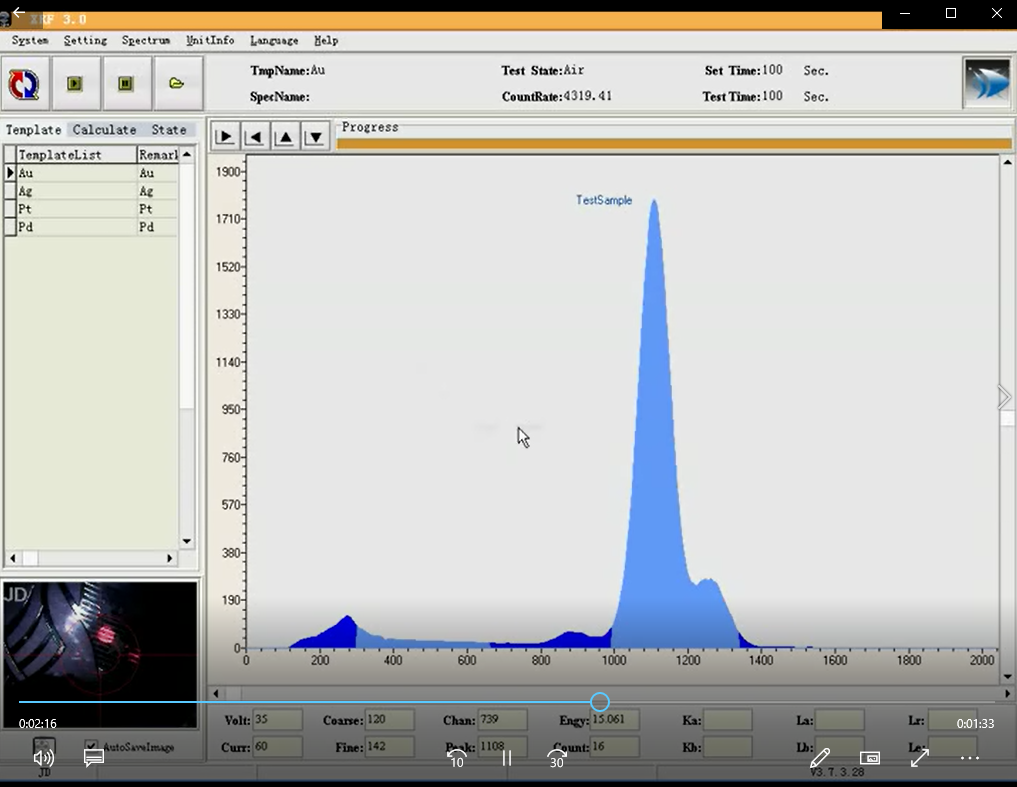

Screenshot of software interface：
NOTE:
Import duties and taxes are NOT included in the item price or shipping cost, buyer is responsible for it.
Import duties and taxes are NOT included in the item price or shipping cost, buyer is responsible for it.
