Handheld Spectrophotometer for Leather/Food Color Analysis 400-700nm
1. 400-700nm, full-band balanced LED ligh source
2. High precision: 0.01, accurate measurement
3. Manual input LAB value
4. Measuring aperture: 4mm or 8mm optional
5. Accurate results, one second measurement
6. All kinds of specimens can be tested
7. Multiple measurement modes available
8. 8000 data stored in the body, support APP mass storage
Features:2. High precision: 0.01, accurate measurement
3. Manual input LAB value
4. Measuring aperture: 4mm or 8mm optional
5. Accurate results, one second measurement
6. All kinds of specimens can be tested
7. Multiple measurement modes available
8. 8000 data stored in the body, support APP mass storage
1.Full spectrum combined LED light source to ensure the data stability of each measurement
2.High precision beam splitting structure, accurate measurement of LAB value
3.Φ8/4mm diameter is available for selection to adapt to more tested samples;
4.Unique body design, lightweight and convenient to carry
5.Super dirt resistant and stable standard whiteboard; For your every measurement escort
Specification
|
Model
|
Sy3020-Basic version
|
Sy3060-Professional version
|
|
Caliber
|
Single Caliber 4mm or 8mm
|
Switchable caliber 4mm and 8mm
|
|
SCI SCE
|
SCI
|
SCI and SCE
|
|
Light type
|
High accuracy full spectrum LED
|
High accuracy full spectrum LED+Dual UV
|
|
Fix position
|
Visual
|
Camera location
|
|
Repeated Accuracy
|
△E≤0.07
|
△E≤0.03
|
|
Color space
|
CIE-Lab, CIE-LCh, Luv, Hunter-Lab, XYZ, Yxy, sRGB, DIN LAB99, CMYK (A/T/E/M/I) Field density, Munsell, Reflectance (bright
vision), Blackness, YI yellow, Isochromatic spectrum (light jumping), hiding power, tint/strength/dye strength, Color fastness, Taube whiteness, Berger whiteness, Tappi whiteness, Cros whiteness, Stephansen whiteness, Ganz whiteness, Hunte r whiteness (ASTM), Whiteness (CIE), AATCC whiteness, R457/ISO2470 whiteness, GB/T17644 whiteness |
|
|
Color difference formula
|
△E*ab、AE*ch、AE*uv、AE*HunterLab、AE*CMC(l:c)、AE*94、AE*00、AE*sR GB、AE*BFD、M*FCMII、AE*DIN99
|
|
|
Light source
|
A、C、D50、D55、D65、D75、F1、F2、F3、F4、F5、F6、F7、F8、F9、F10、F11、F12、CWF、U30、U35、DLF、NBF、TL83、TL84
|
|
|
Observer
|
10°(CIE1964) 2°(CIE1931)
|
|
|
Wave length
|
400-700nm 10nm interval
|
|
|
Reflectivity
|
Range: 0-200% Resolution: 0.01%
|
|
|
Sensor
|
CMOS sensor
|
|
|
Geometric
|
D/8 40mm integrating sphere
|
|
|
Calibration
|
Default: Automatic
|
|
|
Display Resolution
|
0.01
|
|
|
Table difference
|
△E*ab≤0.4
|
|
|
Test speed
|
1.0s
|
|
|
Display
|
3.5 inch full color capacitive touch screen
|
|
|
Language
|
English
|
|
|
Quality Control Software
|
Polymer Li-ion battery 10000 times full charged
|
|
|
Interface
|
Type C Bluetooth
|
|
|
App platform
|
Andorid IOS Windows
|
|
|
Storage
|
8000 group Mass storage for APP
|
|
|
Size:
|
181x67x67mm (without base)
|
|
|
N.W/G.W
|
330g/1500g
|
|
|

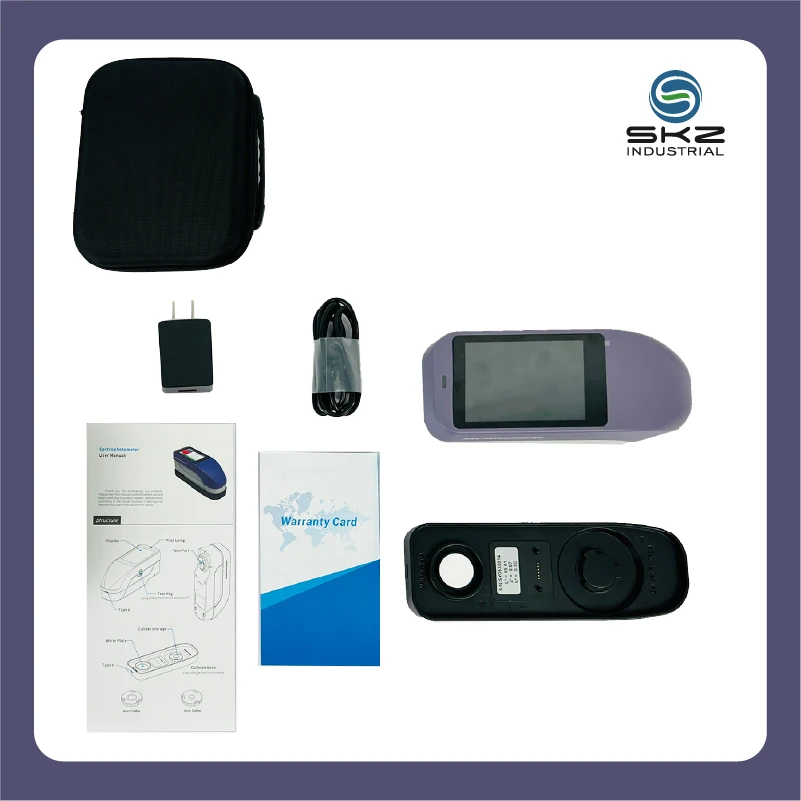

Packing list
|
Instrument,calibrate base,type C charger,user manual,warranty card,single caliber
|
Instrument,calibrate base,type C charger,user manual,warranty card,dual caliber
|
Description
Product details：
One-click testing in just 1s.
3.5-inch full-color touch screen
30 color spaces available, CIE-Lab, CIE-LCh, Luv, AATCC-Whiteness, XYZ etc.
Multiple color difference formulas available
Support Bluetooth communication, can be controlled by cell phone.
Type-C/Bluetooth dual port data transfer
3D color space coordinates to calculate color bias and total color difference. values.
Dirt-resistant calibrated whiteboards that don't require long hours of maintenance.
Single caliber, Φ8mm & Φ4mm
Product acessories
