2-In-1 3D Filament extruder machine 1.75mm / 3mm+ Winding machine For 3D Pinter pinting

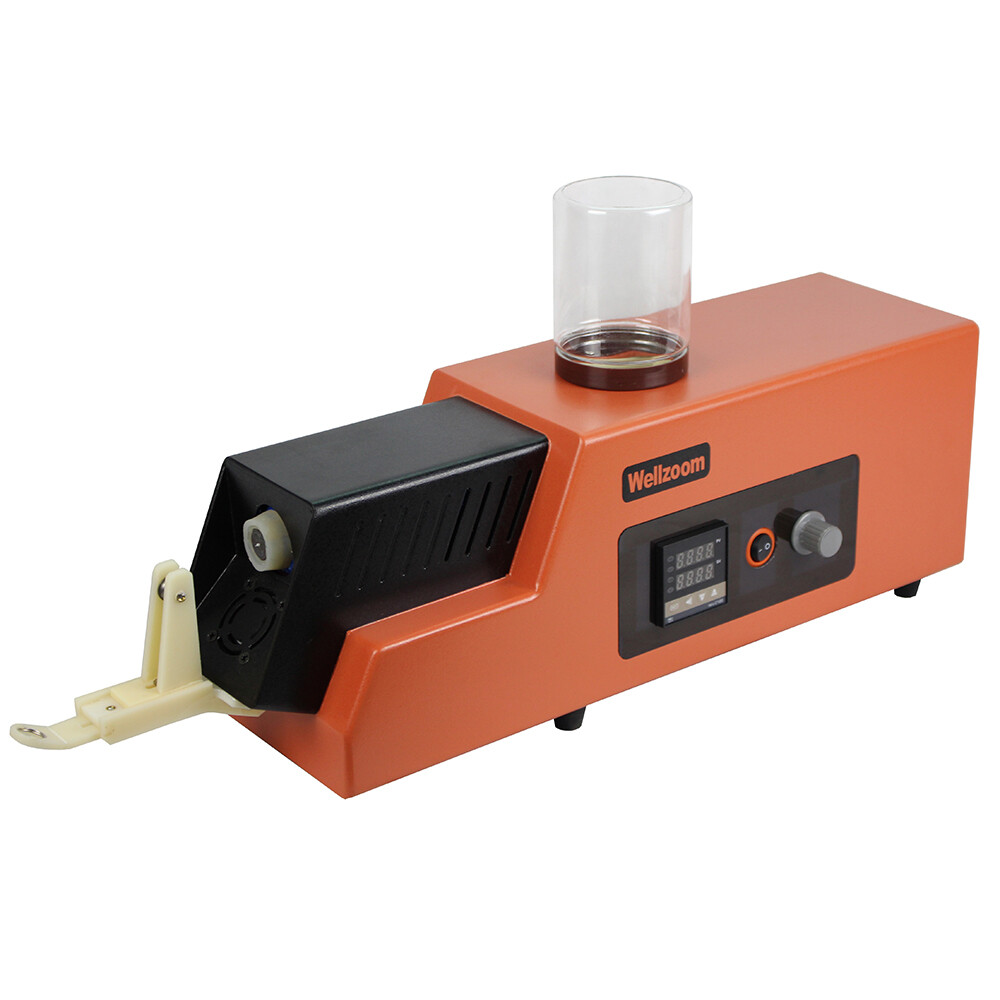

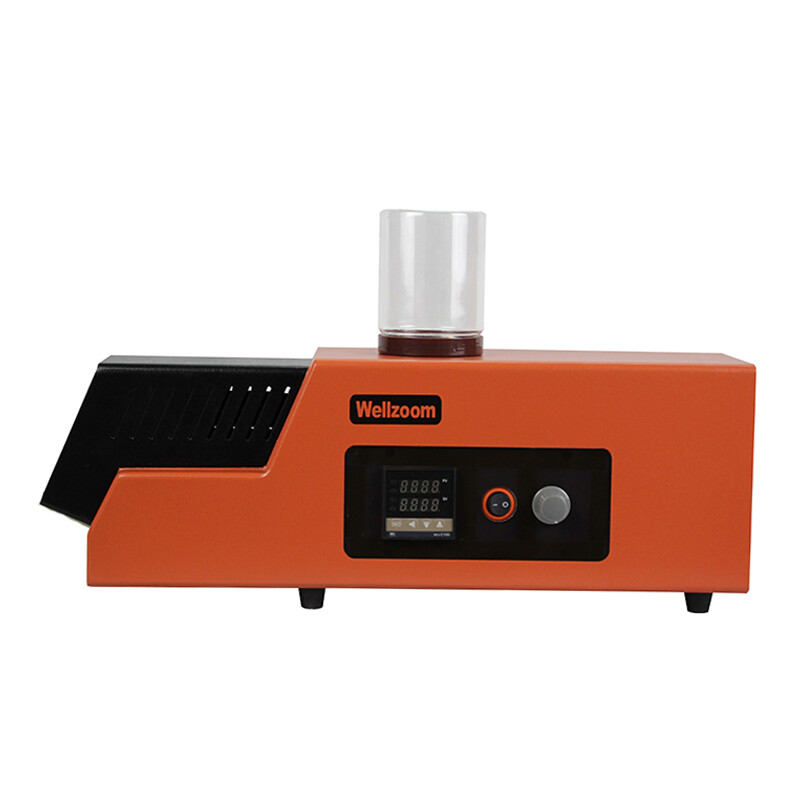

Wellzoom B2 Desktop Filament extruder
Description:
B2 machine is improved based on the A-type machine. Increase the speed control function, it applies more broadly
Using a stepper motor, it has better scalability
Simple appearance. Easy to operate, reduce misuse
Easy to clean the material cavity and change the nozzle
Air-cooling + self weight traction, more convenient and efficient
Parameters:
1.Extrusion rate : 10”~26” / min
2.Diameter: 1.75mm and 3.00mm( 2 nozzles)
3.Extrusion accuracy: +/-0.05mm(in 1.75mm); +/-0.1mm(in 3mm)
4.Adapt material: PLA ,ABS, PVA and wood-plastic etc.
5.Working temperature: 300 ℃(max)
6.Accuracy of PID：+/-1℃
7.Power requirement: 220V, 50Hz or 110V 50Hz
8.Power: 120W
9.Hopper capacity: 400ml(Transparent)
10.Dimensions: 20”x5.52”x10” (No holder)
Wellzoom auto Winder for extruder
Description:
Simple appearance, easy to operate.
Own control technique,use photoelectric switches to detect position.
Automatically match the extrusion speed of the extruder.
Winding displacement mechanism can put in order the filament .
It can be adjusted according to the thickness of the reel, to ensure the filament is arranged evenly.
Parameters :
Power supply: 220V, 50Hz (or 110V, 50Hz)
Power: 20W
Size: 275*185*300（mm）
What in Package: 1 X 3D Filament extruder machine 1 X Auto Winding machine
|
