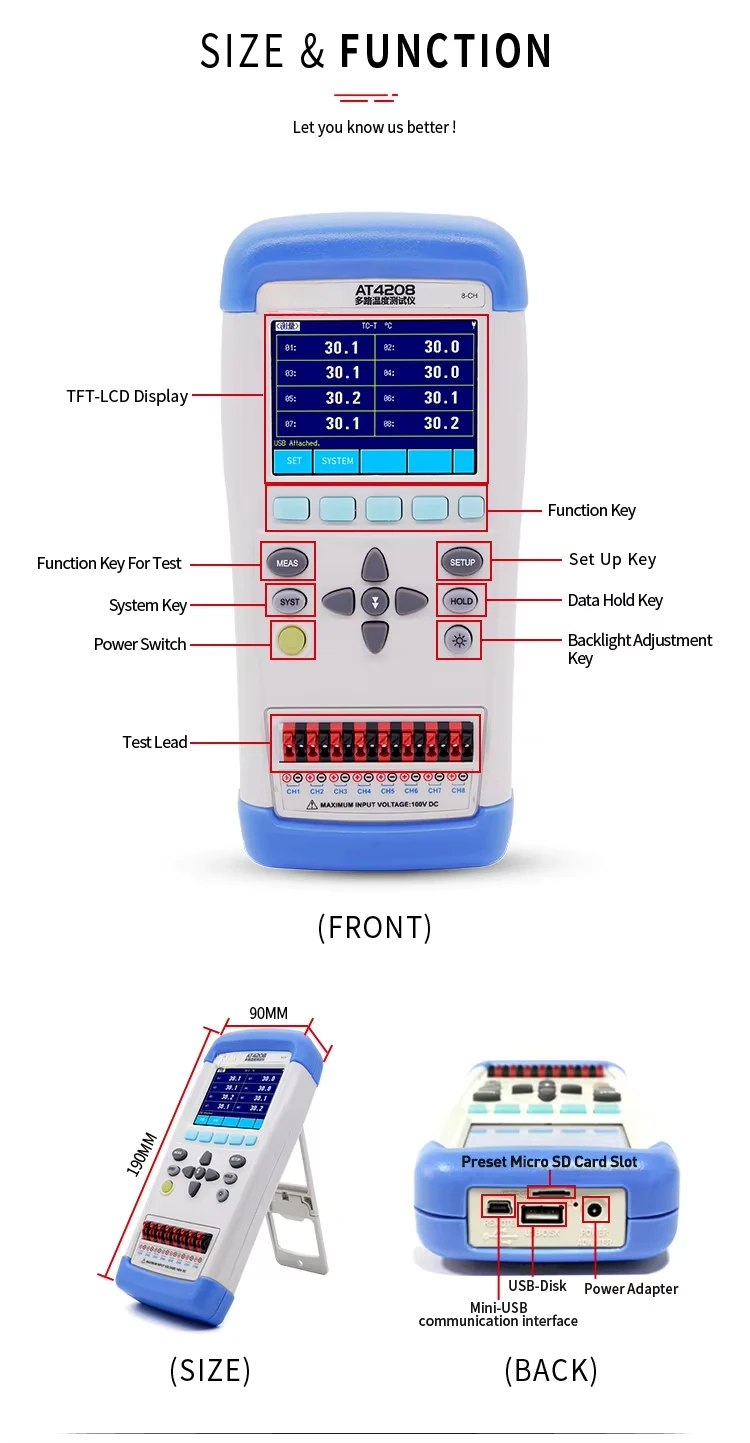

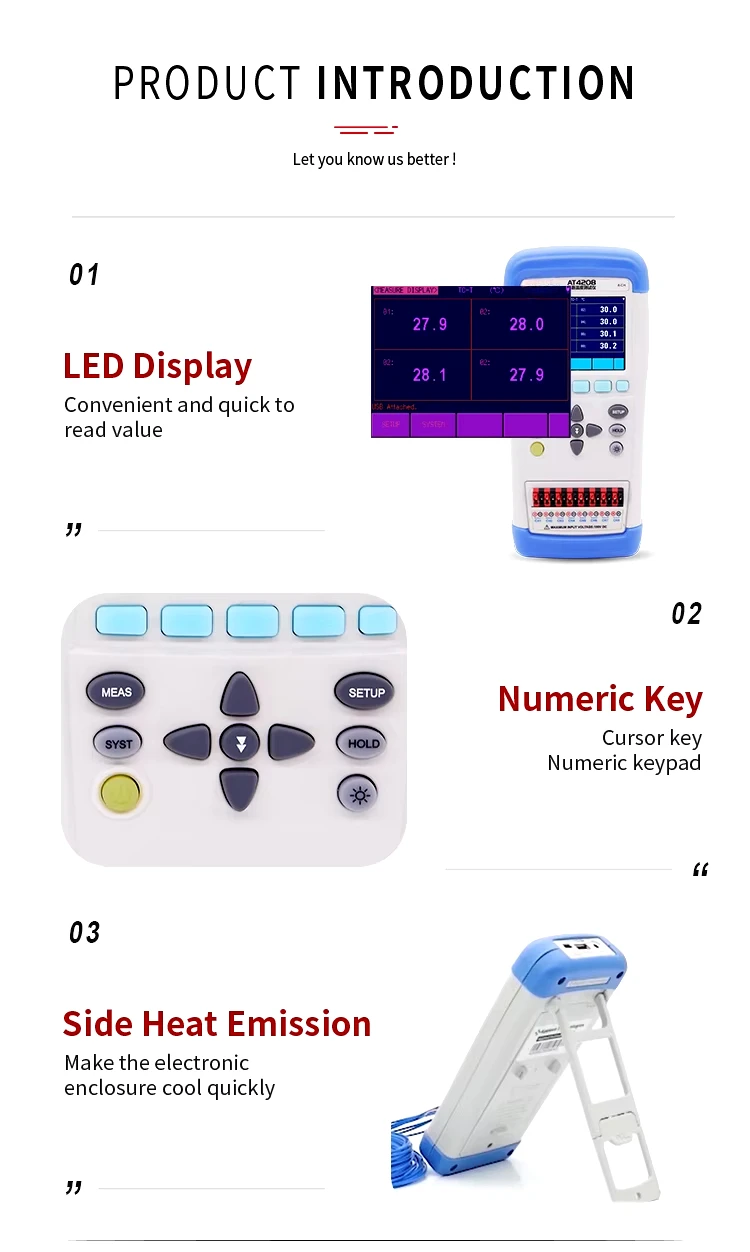

AT42 series handheld multi-channel temperature meter adopts high-performance ARM micro processor, can collect multi-channel temperature data simultaneously and response quickly. AT420 series has the function of broken thermocouple checking, high/low beep function and communication transmission. Ultra-low power consumption and high density SMD assembly technology. True-color TFT liquid crystal display, keypad and touch screen double control. It is Li- battery powered. USB communication. Switch in both English and Chinese.
| SPECIFICATIONS | ||||||
| AT4202 | AT4204 | AT4208 | ||||
| Graduation | Thermocouple:J/K/T/E/S/N/B/R | |||||
| Accuracy | 0.2ºC ± 2 digits | |||||
| Range | -200°C~1300°C(variation depend on graduation) | |||||
| Resolution | 0.1°C | |||||
| Channel | 2 channels | 4 channels | 8 channels | |||
| Speed | Fast:100ms/channel Medium:500ms/channel Low:1s/channel | |||||
| Correction | Error correction for each channel | |||||
| Comparator | High & low beep function | |||||
| Interface | Mini-USB interface, U-disk interface, SD card slot | |||||
| Software | ATS42 data acquisition software | |||||
| Cold Junction | Accuracy:0.5ºC | |||||
| Compensation | ||||||
| Others | 2.8 inches True-color 16M TFT-LCD LCD display, touch screen, USB communication, compatible SCPI instruction set, switch in both English and Chinese;adjustable back light; automatic power off | |||||
| GENERAL FEATURES | ||||||
| Power Supply | Input:100-240V~50/60Hz 0.35A | |||||
| Output:9V 1A DC | ||||||
| Battery Parameters | 8.4V, Li, 1400mA rechargeable battery | |||||
| Charging time | Single continuous charging time: Max 200Mins | |||||
| Working Time | Brightness 30%≥14 hours, Brightness 50%≥12 hours, Brightness 100%≥9 hours | |||||
| Size | Outside(mm):90 (Width)x190(Height)x31 (Depth) 400g | |||||
| ORDERING INFORMATION | ||||||
| Accessories | K thermocouple 2/4/8 teams(2m/team) ATL909: DC power adaptor | |||||
| ATL805: Lithium battery ATL105Mini-USB communication cable | ||||||
| ATS42 data acquisition software | ||||||
1. What is the lead time of your products?
A: It depends on the order quantity and the season you place the order. Usually we can ship within 3-5 days for small quantity,for large quantity please contact us.
2. What is your payment term?
A: By Alibaba Trade Assurance or T/T in advance.
3. What is the shipping method?
A: Usually shipped by express (DHL, FEDEX UPS and etc).
4. How can I place order?
A: You can contact us by send inquiry about your order details, or place order online.
5. How long is the warranty?
A: Most of our products provide the 1 years warranty policy.
6. Do you accept OEM or ODM?
A: Yes, it depends on the quantity.
For other questions we will reply you as soon as possible while receiving your inquiry.
Technical Service:
We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.
We provide free technical training and offer free equipment maintenance technology.
We can design special test programs and test fixture according to the customer.
