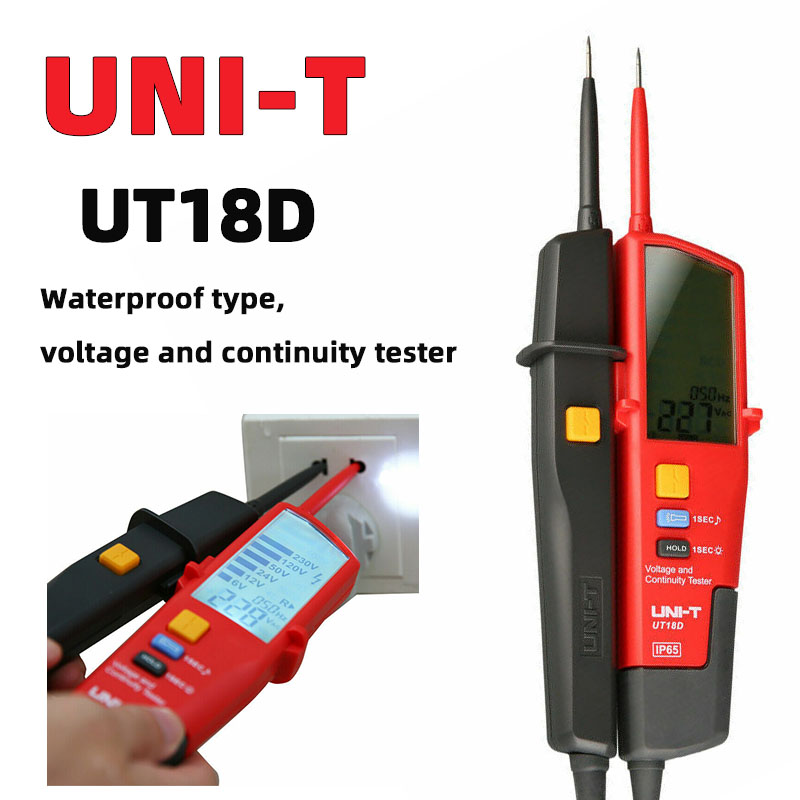

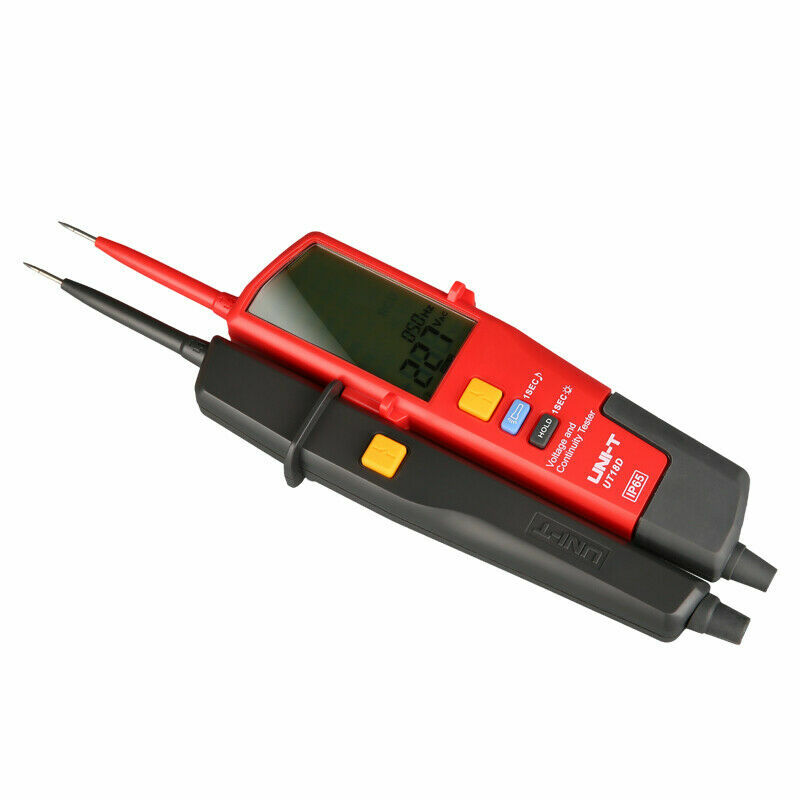

Overview of UT18D Voltage and Continuity Test Products
UT18D Waterproof, Voltage and Continuity Test Series Products: If your working environment is dim, damp and rainy, and you require a high safety level for testing, the UT18 waterproof, voltage and continuity test series products are your ideal choice. This series not only has passed the fourth category CAT IV certification for voltage measurement, ensuring that sudden transient overvoltages do not cause harm to staff. With an IP65 waterproof rating, built-in lighting, RCD testing, phase position rotation testing and other functions, it is fully capable of meeting the needs of maintenance and troubleshooting in various harsh environments
Main features of UT18D product
It meets the IP65 waterproof rating
It complies with the safety grade requirements of double insulation, CAT III 690V and CAT IV 600V
Complies with CE standards of the European Union (EU)
Single test lead measurement can determine the neutral wire or the live wire
It is equipped with a three-phase AC phase rotation test, which can indicate the phase relationship of three-phase electricity
Continuous test, beeping and LED light indication
Polarity indication, showing the positive and negative poles of the voltage of the measured conductor
RCD: Used for detecting leakage protection switches

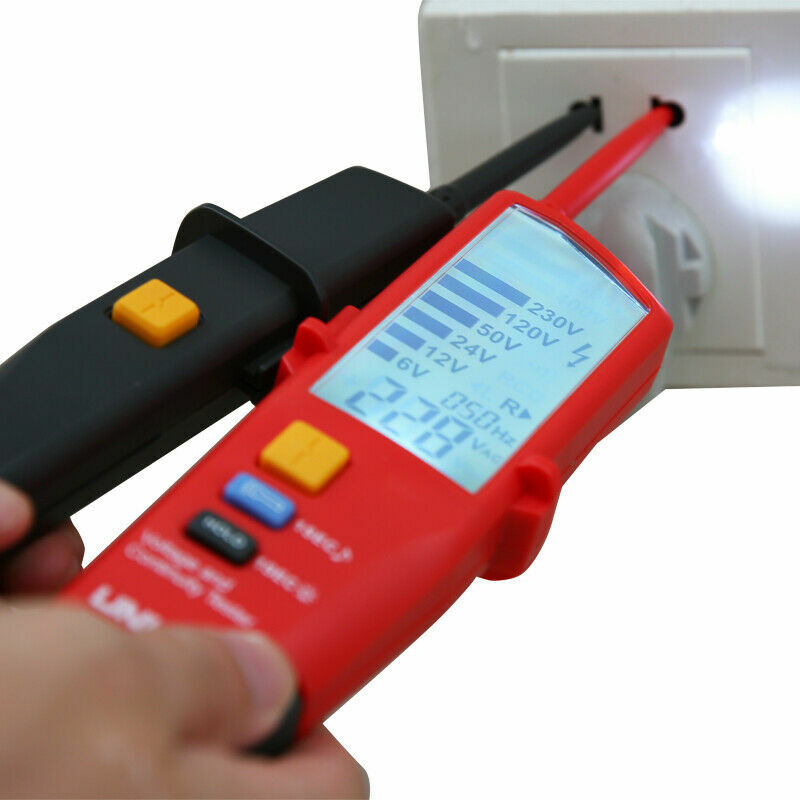

Built-in lighting function, suitable for working at night or in dark environments
Two modes to choose from: beeping and silent
Low battery voltage and over-range measurement voltage prompt
Automatic standby function
Automatic range
Self-check function
It features LCD voltage and frequency display
It features a large LCD display with a digital bar chart
Digital hold
Backlight function
It automatically starts up when the measured conductor is greater than 12V
|
Specifications |
Range |
UT18D |
|
Voltage (V) |
6V |
5V±1V |
|
12V |
8V±1V |
|
|
24V |
18V±2V |
|
|
50V |
38V±4V |
|
|
120V |
94V±8V |
|
|
230V |
180V±14V |
|
|
400V |
325V±15V |
|
|
690V |
562V±24V |
|
|
Phase rotation test |
57Vac～400Vac (3 phase) |
√ |
|
Frequency: 50Hz~400Hz |
||
|
Single lead (L2) |
Operating voltage: 100V~690V |
√ |
|
Frequency: 50Hz~400Hz |
||
|
Continuity test |
Resistance: 0Ω~100kΩ (+50% accuracy) |
√ |
|
Beeper and LED light indication |
||
|
RCD test |
Operating voltage: 230V (50Hz~400Hz) |
√ |
|
Polarity detection |
Positive & Negative |
√ |
|
Self-inspection |
All LED or LCD |
√ |
|
Features |
||
|
Voltage indication |
|
LCD |
|
Exceed voltage |
Voltage range: 713V~788V |
√ |
|
Auto standby |
Standby current＜10μA |
√ |
|
Slient mode |
All range |
√ |
|
Work light |
|
√ |
|
Low battery indication |
Around 2.5V |
√ |
|
LCD backlight |
|
√ |
|
LCD display (voltage) |
6V~690V |
±(1.5%+5) |
|
LCD display (Frequency) |
40Hz~400Hz |
±(3%+5) |
|
IP65 |
|
√ |
|

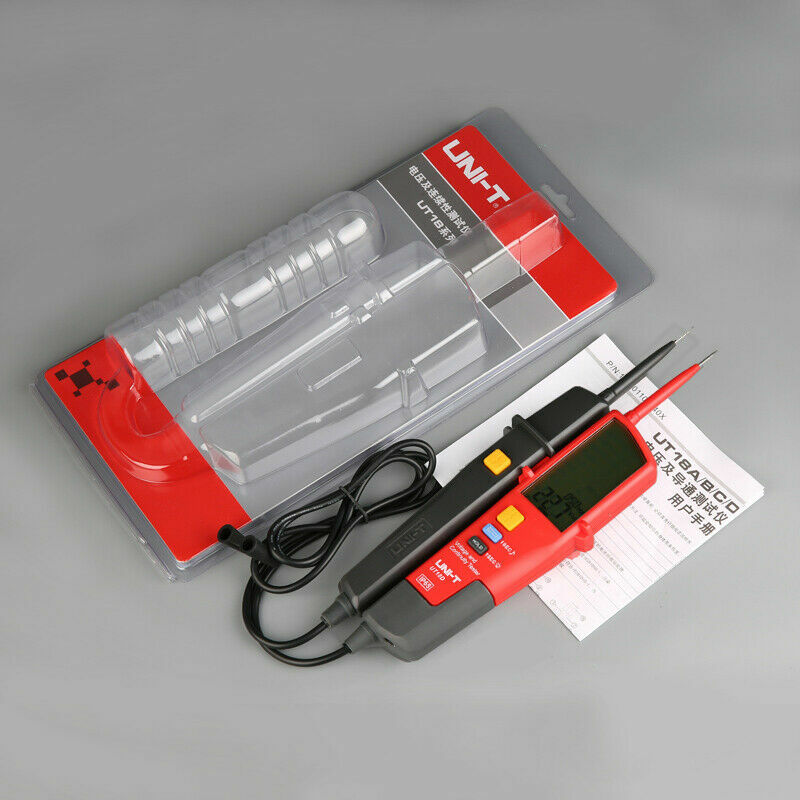

Standard individual packing |
Blister, English manual |
