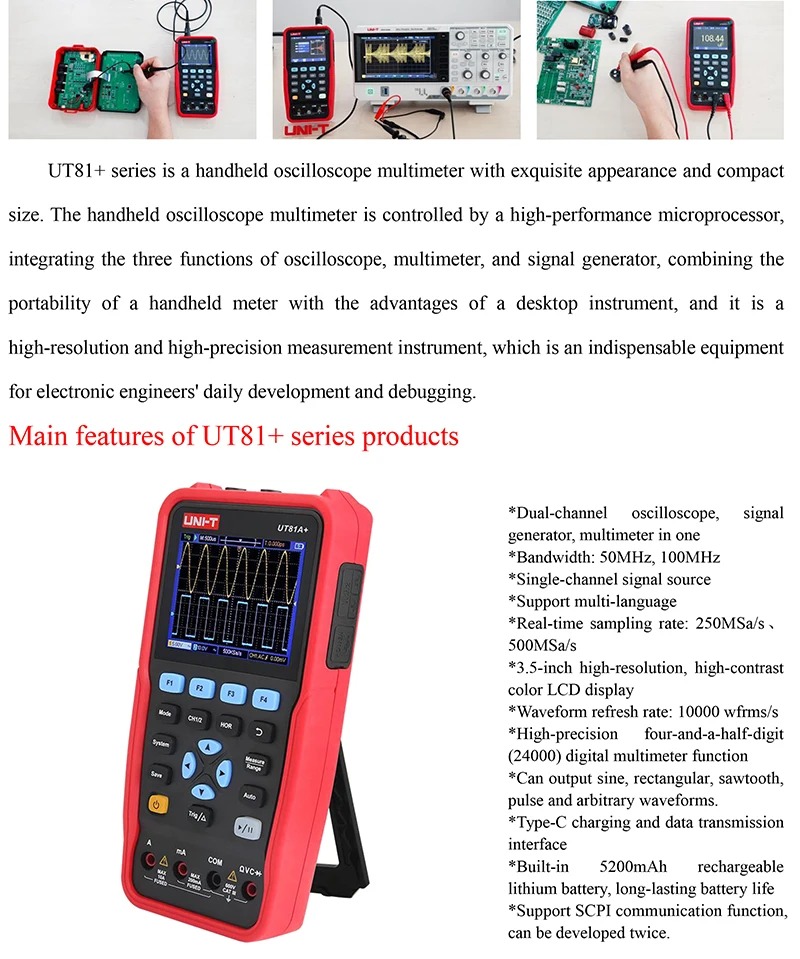

UT81C+ Product Main Features


Dual-channel oscilloscope,digital multimeter, Signal Generator

Bandwidth: 50MHz

Real-time sampling rate: 250MSa/s

3.5-inch high-resolution, high-contrast colour LCD display

Waveform refresh rate: 10000 wfrms/s

High-precision four-and-a-half-digit (24000) digital multimeter function

Output sine wave, rectangular wave, sawtooth wave, pulse wave, arbitrary waveforms

Type-C charging and data transmission interface

Built-in 5200mAh rechargeable lithium battery, long-lasting battery life

Support SCPI communication function, can be developed twice.



model

UT81A+

UT81C+

Analogue bandwidth

50   MHz

Vertical Resolution

8 bit

Channel

2 analogue channels

2 analogue channels + 1 signal generator channel

Sampling

Sampling Method

Sampling, Peak Detection

Real-time sampling rate

250 MSa/s (single channel)

Waveform Refresh Rate

10,000 wfms/s

Input

Input Coupling

DC, AC, Ground

Input impedance (DC coupling)

1 MΩ ± 2% in parallel with 16 pF ± 10 pF

Probe attenuation coefficient

1X, 10X, 100X, 1000X, 10000X

Maximum Input Voltage

400 V (DC + AC peak)

Bandwidth Limit

20 MHz, full bandwidth

Horizontal

Sample Rate Range

0.25 Sa/s to 250 MSa/s

Waveform interpolation

(Sinx)/x

Sweep rate range (S/div)

5ns/div - 1000s/div, in 1 - 2 - 5 decimal steps

Time base accuracy

±100ppm

Record Length

8K or 4K  selectable

Vertical

Sensitivity (volts/gram) Range

10   mV/div～10 V/div

Displacement Range

±6 Grid

Analogue bandwidth

50   MHz

Low Frequency Response (AC coupled, -3dB)

≥10   Hz

Rise Time (typical on BNC)

≤   7 ns

DC Gain Accuracy

±3%

Measurement

Cursor Measurement

Voltage difference between cursors (△V), time difference between cursors (△T)

Automatic Measurement

Period, frequency, amplitude, peak-to-peak, maximum value, minimum value, average value

trigger

Signal Source

CH1、CH2

Type

Edge Trigger

Coupling

DC, AC

Trigger type

Auto, Normal, Single

Trigger Level Range

±4 frames from the centre of the screen

Trigger Level Accuracy

±0.3 grid

Trigger Displacement

Depending on memory depth and time base gear

edge triggering

slope

Rising edge, falling edge

Output Voltage (typical)

3.3Vpp, high resistance

Frequency (typical)

Square wave 1 kHz (±1%)


Multimeter (General Purpose)

Model

UT81A+

UT81C+

Digital Display

24000 readings

Measurement Type

Voltage, current, resistance, capacitance, on-off, diode

Maximum Input Voltage

AC :750V DC : 1000V

Maximum Input Current

AC : 10A DC : 10A

Basic Functions

Range

Minimum Resolution

Accuracy

DC Voltage

240.00mV

0.01mV

±(0.3%+10dig)

2.4000V

0.1mV

±(0.3%+5dig)

24.000V

1mV

240.00V

0.01V

1000.0V

0.1V

AC Voltage[1]

240.00mV

0.01mV

±(0.8%+10dig)

2.4000V

0.1mV

24.000V

1mV

240.00V

0.01V

750.0V

0.1V

±(1%+10dig)

frequency range：40Hz-1000Hz

DC current

240.00mA

0.01mA

±(0.8%+10dig)

10.000A

1mA

±(2.5%+10dig)

Milliampere grade: Self-recovering 400mA/250V; Ampere grade: 10A/600V, D5.2*20, quick disconnection

AC current [1]

240.00mA

0.01mA

±(1%+10dig)

10.000A

1mA

±(2.8%+10dig)

frequency range：40Hz-1000Hz

Overload protection: milliampere grade: self-recovery 400mA/250V; ampere grade: 10A/600V, D5.2*20, quick-break

Resistance

240.00Ω

0.01Ω

±(0.8%+10dig)

2.4000kΩ

0.1Ω

±(0.8%+5dig)

24.000kΩ

1Ω

±(0.8%+3dig)

240.00kΩ

10Ω

2.4000MΩ

0.1kΩ

24.000MΩ

1kΩ

±(1%+3dig)

100.00MΩ

0.01MΩ

±(5%+10dig)

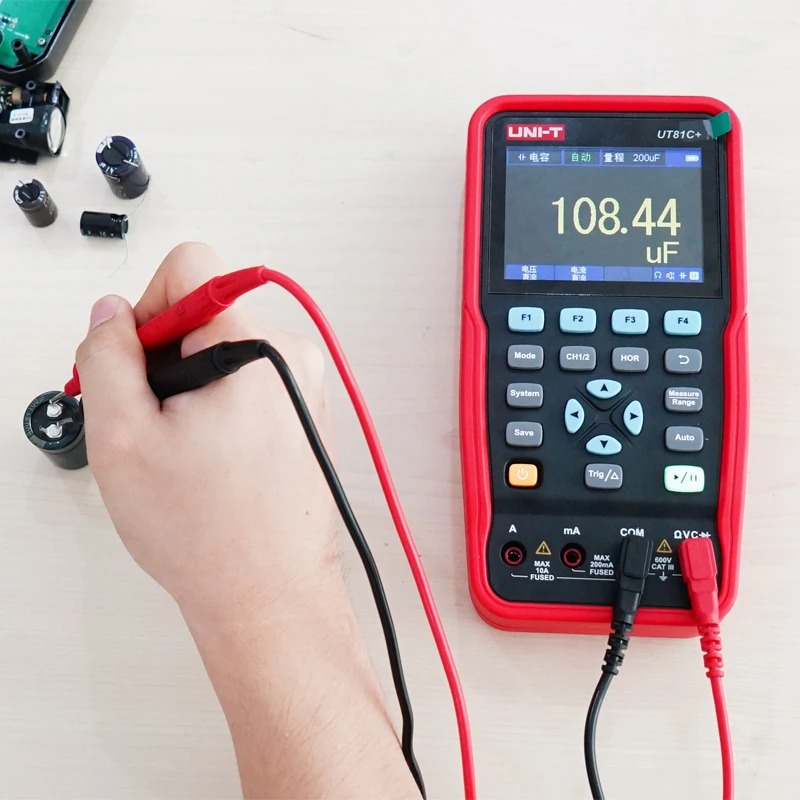

Capacitance [1]

20.000nF

1pF

±(3.0%+10dig)

200.00nF

10pF

2.0000μF

0.1nF

20.000μF

1nF

200.00μF

10nF

2.0000mF

0.1uF

Others

On-Off Test

√ (<50Ω)

Diode Test

√(Apx.3V)

Auto Ranging

√

True RMS

√

[1] For AC voltage/current and capacitance measurements, the accuracy is guaranteed from 5 per cent to 100 per cent of the range.



Signal Generator UT81C+ only

Characteristics


Frequency Characteristics

sine wave

0.1Hz～30MHz

Rectangular Wave

0.1Hz～5MHz

Sawtooth Wave

0.1Hz～1MHz

Pulse Wave

0.1Hz～5MHz

Arbitrary Wave

0.1Hz～5MHz

Real-time sampling rate

125MSa/s

Amplitude (50Ω)

0.01Vpp ～ 2.5Vpp

DC Offset Range (High Resistance)

±(2.5V - range Vpp/2)

Frequency Resolution

0.0001

Channel

1

Waveform Length

8k

Vertical Resolution

14 bit

Output Impedance

50 Ω
