Overview:
This product is an infrared camera that integrates surface temperature measurement and real-time thermal image. The traditional inferred thermometer needs to measure every component one by one while it is not necessary for infrared imaging camera, thus saving time. The potential problems may be displayed on color display screen clearly. Moreover, the central point measurement cursor is used to locate quickly and accurately to measure the temperature of the target object.
In order to increase the differentiation, the product is provided with a visible light camera. The thermal images and visible images are stored in the device and can be read through USB or stored in a computer to generate a report or for print.
With small volume, the product is easy to operate and has strong function. it is the ideal selection for electric power, electronic manufacturing, Industrial inspection and other fields.
The following major functions increase the product's accuracy and usability:
The radiation coefficient may be adjusted to increase the measurement accuracy of objects with half reflection surface.
The highest temperature and lowest temperature cursor may guide the users to the areas with highest and lowest temperature of the thermal images.
The selectable color palette
Specification:
Model: HT-04D
Infrared resolution: 160x120
Field angle: 50°x37.2°
Infrared detector type: Vanadium Oxide Uncooled Infrared Focal Plane
NETD: ≤40mK @25 C,@F/1.0
Temperature measurement: -20℃ to +550 C (-4 F to 1022F)
Range Infrared response : 8 to14μm
Cell size: 17μm
Thermal imaging frame rate: ≤25Hz
Lens focal length: 3.2mm
Emissivity setting: Adjustable from 0.01 to 1.00
Measurement accuracy :-15℃ to 550°C ±2°C 0r ±2%;-20°℃ to-15℃ ±4℃
IFOV: 5.31mrad
Focus mode: Fixed
Temperature measurement mode: Center point/hot and cold spot tracking
Color palette: Rainbow, iron, cold color, white hot,black hot
Display size: 2.8-inch(240x320)
Image display mode: Infrared/visible light/dual light fusion
Lighting system: LED fill light

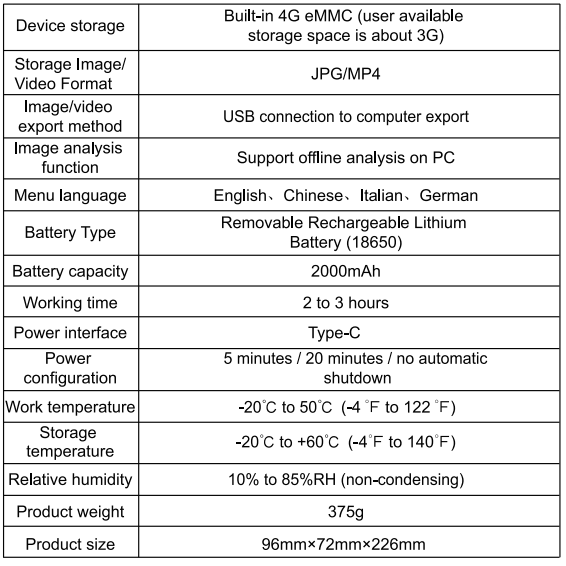

Device storage: Built-in 4G eMMC (user available storage space is about 3G)
Storage Image/Video Format: JPG/MP4
lmage/video/export method: USB connection to computer export
Image analysis function: Support offline analysis on PC
Menu language: English、Chinese、Italian、German
Battery Type: Removable Rechargeable Lithium Battery (18650)
Battery capacity: 2000mAh
Working time: 2 to 3 hours
Power interface: Type-C
Power configuration: 5 minutes /20 minutes / no automatic shutdown
Work temperature: -20℃ to 50C (-4 F to 122F)
Storage Temperature: -20℃ to +60'℃ (-4F to 140F)
Relative humidity: 10% to 85%RH (non-condensing)
Product weight: 375g
Product size: 96mmx72mmx226mm
