Specification
Model：ZQ02821
Input voltage: AC110V-240V 50/60Hz
Rated (power) power: 450W
Light source: 1 350W HID+29 1W (RGB) LEDs
Light output angle: 2.3°
Light output diameter: 145mm
Color temperature: 8000K-9000K
CRI index: Ra≥90
Luminous flux of the whole lamp: 12000lm
Optimal projection distance: 5-30M
Illuminance: 162000Lux@10 meters
Average life of the bulb: 2000h
Dimming curve: 0-100% mechanical dimming
Mechanical strobe: 1-13Hz
Color disk: 13+1 color disk; forward and reverse water flow with half color
Fixed pattern disk: 14+1 pattern disk; forward and reverse water flow
Effect disk: 8 prisms + 24 prisms + rainbow effect + atomization effect
Prism: Independent 48 honeycomb prism, rotating in the positive direction, can be used in combination with the effect disk
Focus: Electronic linear focus, from near to far
X axis: 540° Fine-tuning accuracy: 2°
Y axis: 270° Fine-tuning accuracy: 1°
Operation mode: self-propelled, voice control, master-slave, national standard DMX512
Control channel: 18CH/22CH
Protocol: standard DMX512 protocol, RDM protocol
Data connection: three-core XLR input/output
Display: LCD display
Protection level: IP20
Working environment: -10℃-45℃
Material：Sheet metal structure + nylon plastic shell
Product Size：31.5*24*47cm/12.4*9.45*18.5in
Net Weight：10.3kg/22.7lb
Features：

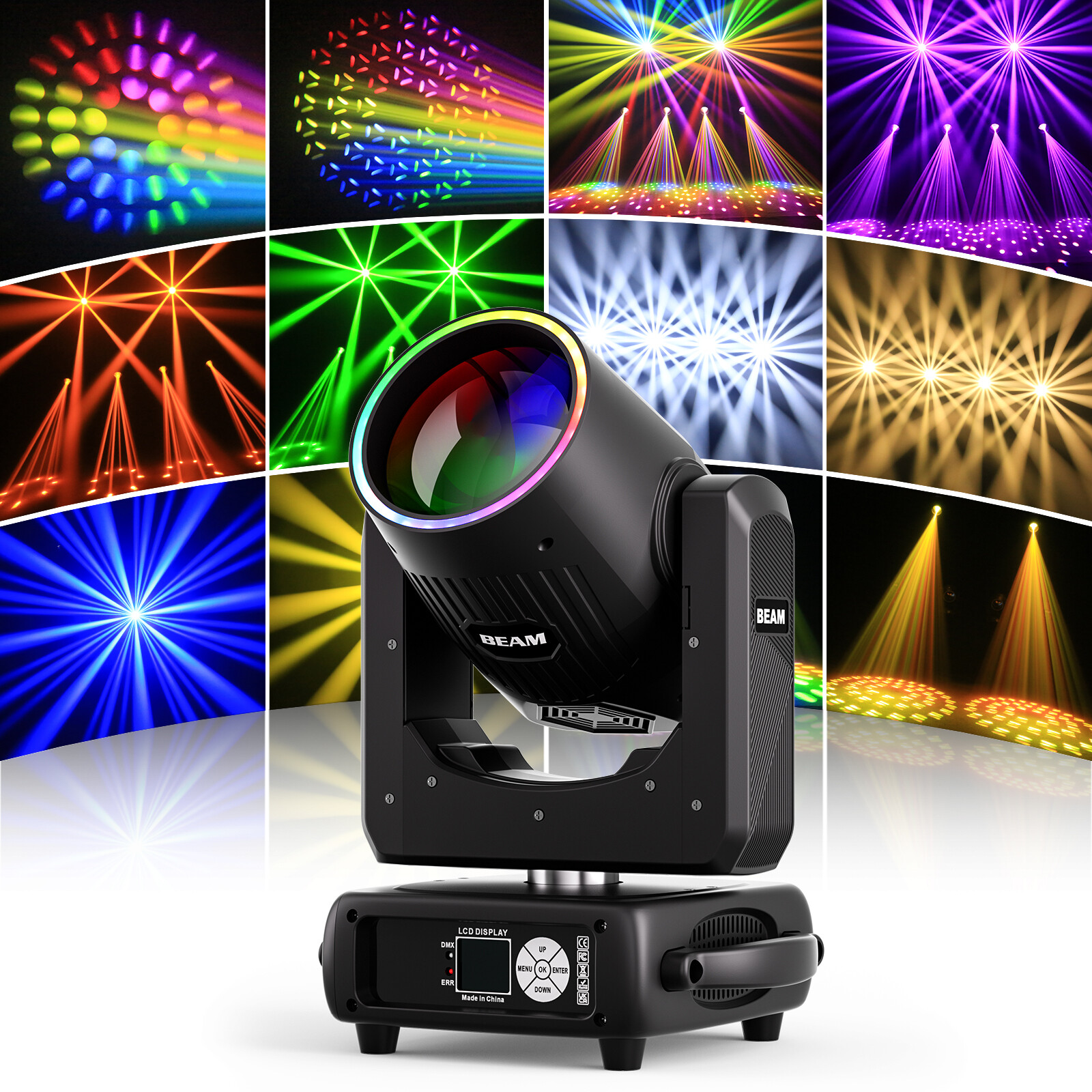

1.Ultra-Bright 350W HID & Precision Optics
Equipped with a 350W high-intensity HID lamp and a 145mm high-definition lens, this moving head delivers an ultra-narrow 3° beam angle with 162,000 Lux intensity at 10m. Perfect for razor-sharp beam projections, crisp gobos, and stunning prism effects—ideal for creating breathtaking stage visuals.
2.Multi-Layer FX: Prisms + Rainbow + Fog (Stackable!)
Features a dedicated effects wheel with 8/24 prisms, rainbow, and atomization effects—all stackable with an independent 48-prism system and color/pattern wheels for limitless creative combinations.
3.Dynamic Gobos: 14 Patterns + Rotating Effects
Includes 14 high-precision gobos + 1 open aperture, with bi-directional rotation and adjustable speed control for seamless transitions and dynamic displays.
4.Rich Color Mixing: 13 Colors + Half-Color Effects
The 13-color wheel (plus white) enables smooth color fading, bi-directional scrolling, and half-color effects—all with programmable speed for vibrant lighting sequences.

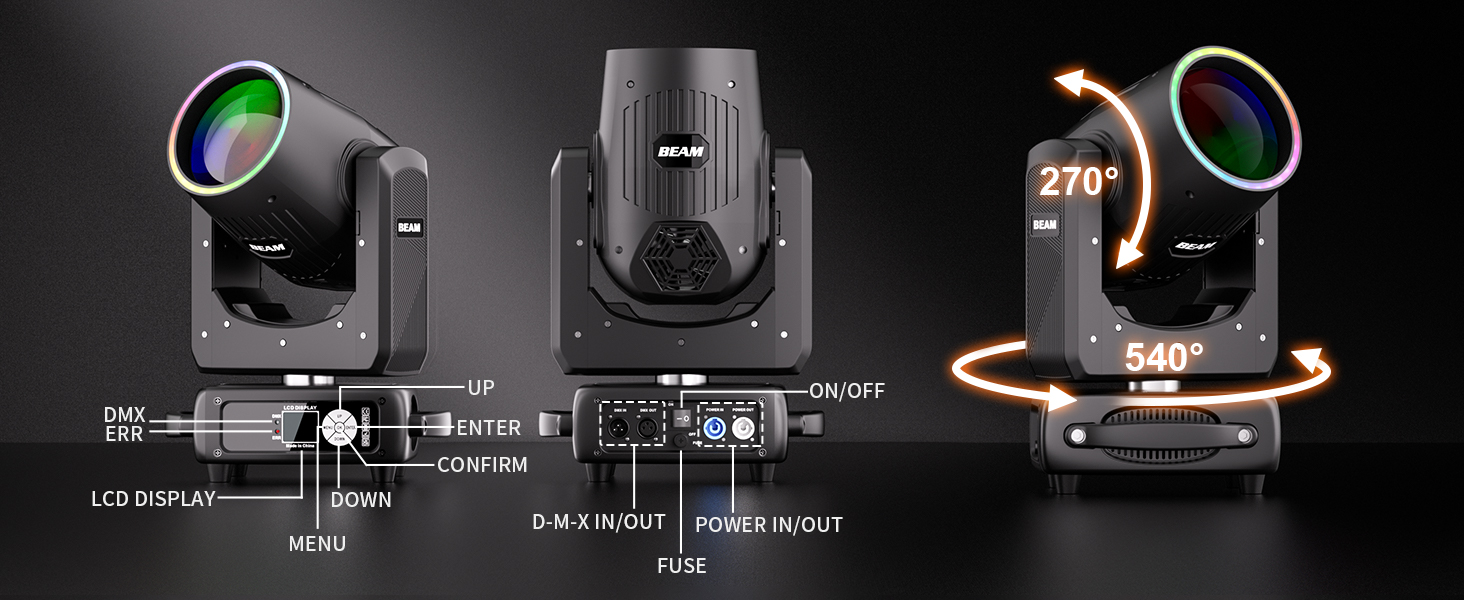

5.Full Motion & Advanced Control
540° pan / 270° tilt for full-stage coverage
Motorized focus + mechanical strobe (1-20Hz)
DMX512, master/slave, sound-active, and auto modes
Perfect for concerts, clubs, theaters, and live events
Packing list:
Power cord*1
Signal cable*1
Quick lock light hook bracket*2
Instruction manual*1
