Specifications
- Material: Cast Iron, Stainless Steel, ABS
- Rated Power: 1100W
- Motor Type: Brushless
- Spindle Bore: 1.5 in. (38 mm)
- Swing Over Bed: 8.7 in. (220 mm)
- Tailstock Taper: MT#2
- Spindle Taper: MT#5
- Metric Thread Range: 0.5-2.5 mm
- Inch Thread Range: 10-44 tpi
- Center Distance: 23.6 in. (600 mm)
- Chuck Diameter: 5 in. (125 mm)
- Max. Spindle Speed: 3000 rpm
- Product Dimensions: 39.6 x 13.8 x 16.9 in. (100.5x35x43 cm)
- Net Weight: 158.7 lb. (72 kg)

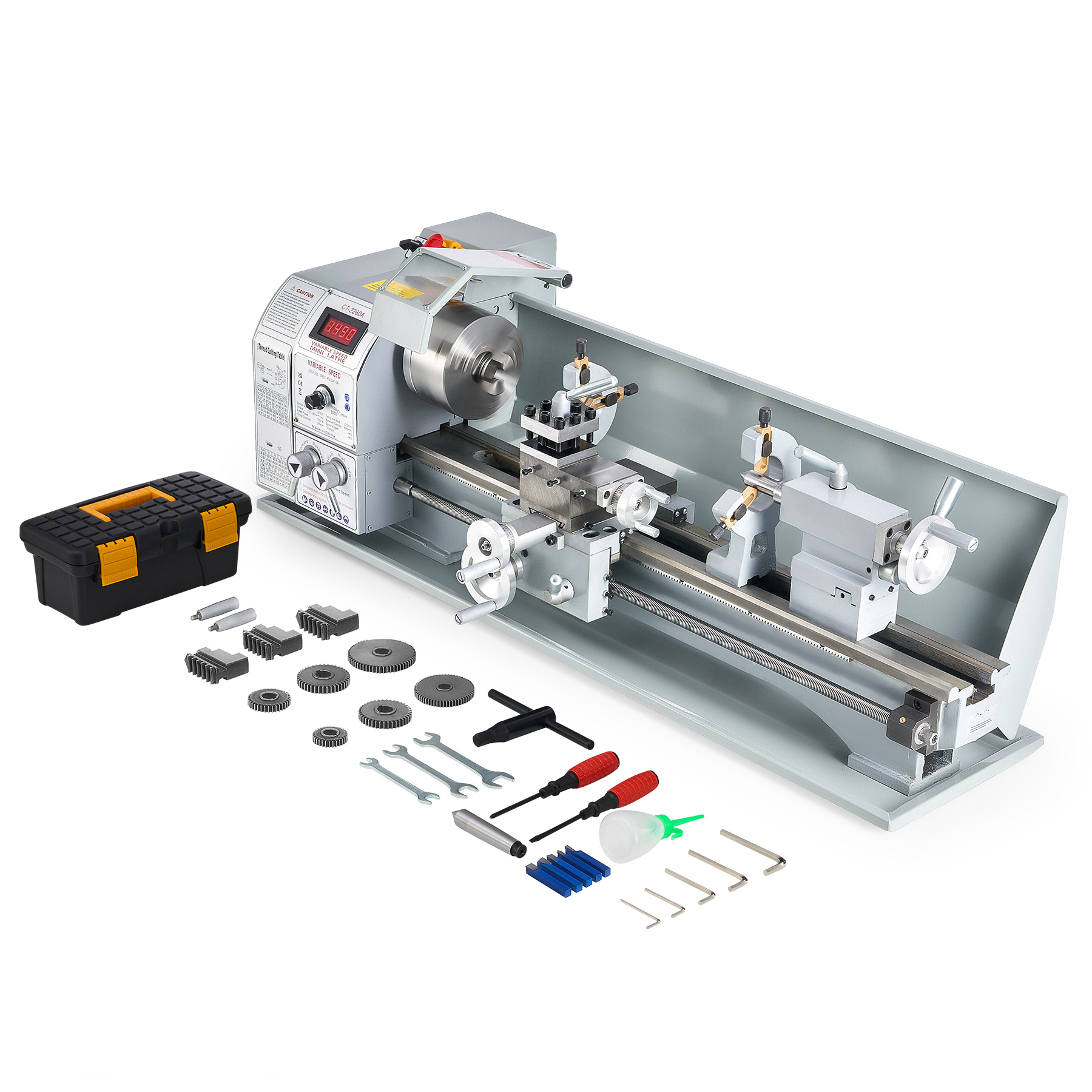

Packing List
- 1 x Mini Metal Lathe
- 1 x Steady Rest
- 1 x Follow Rest
- 5 x Brazed Carbide Tools
- 2 x Screwdrivers
- 5 x Hex Wrenches
- 1 x Dead Center
- 3 x Wrenches
- 2 x Slideway Levers
- 3 x Chuck Jaws
- 1 x Chuck Wrench
- 1 x Spare Fuse
- 1 x Bottle for Cutting Oil
- 6 x Metal Change Gears
- 1 x Tool Box
- 1 x Instruction
