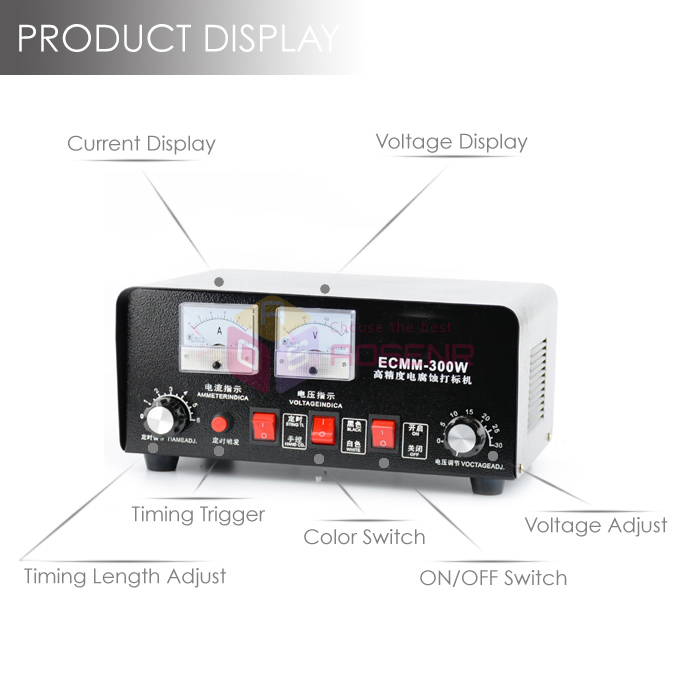

DESCRIPTION:
Specification:
|
Name
|

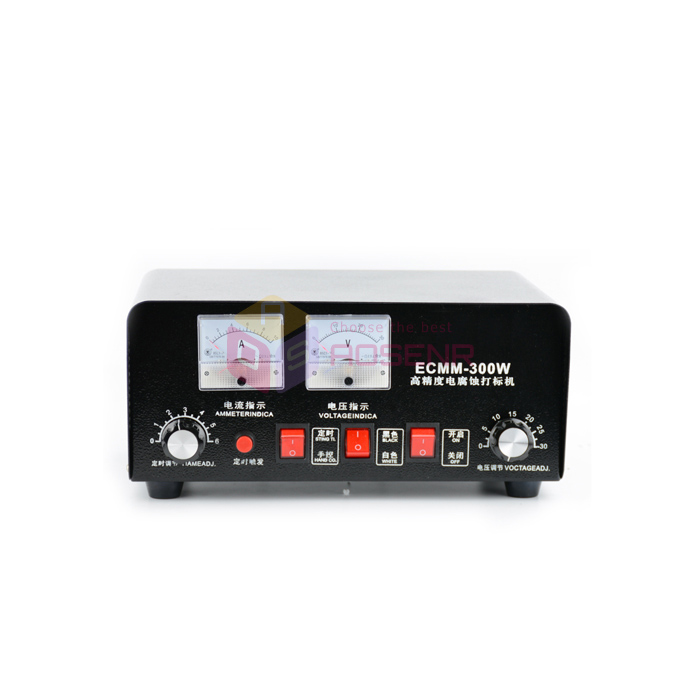

Electro-Corrosion Marking Machine
|
|
Time Setting Scope
|
0.6-10 seconds
|
|
Max. Export Current
|
10A
|
|
Integrate Machine Power Consumption
|
30V
|
|
Power Supply
|
220V±10%
|
|
Max. Export Capacity
|
300W
|
|

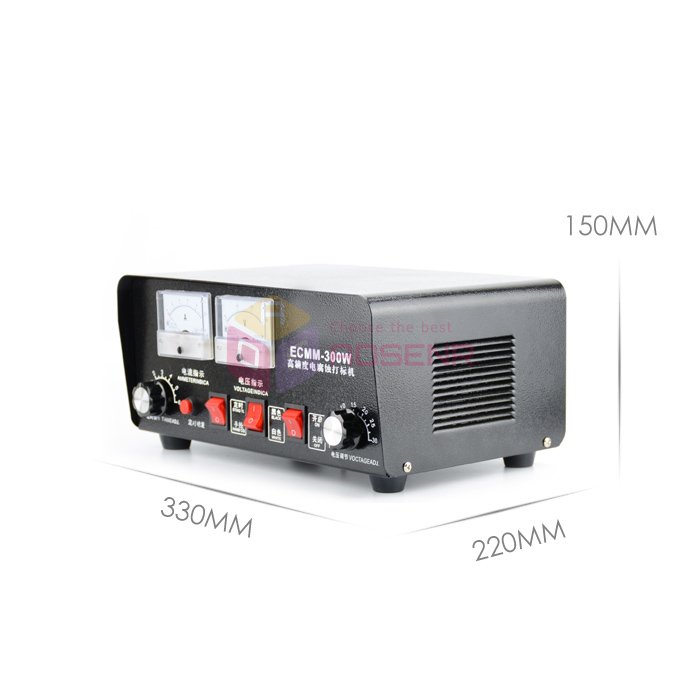

Weight
|
8kg
|
Introduction:

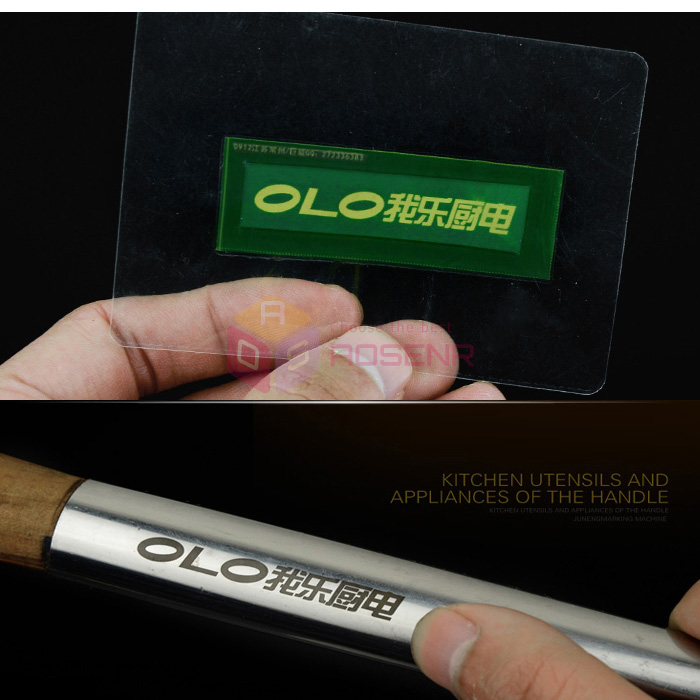

This equipment using electro-chemical principle to marking on multi-type of electric conductive metal surface, suitable to print on stainless steel, hand alloy, hand ware tools, Medicare equipment, water heating materials, measuring tooling, machinery parts, meters, kitchen utensil, gear and bearings, valve tags, car accessories, stainless products and cooper, aluminum product to mark for products name, index and parameters, factory name and security cautions, as well as label for high quality stainless steel products, also on shell marking etc. The feature is to make the products looks more formal, clear and durable, no color vanishing, high temperature proof and diluents proof, whatever the product is big or small, the surface is smooth or rough, curve or in thin sheets it can print on all of it. Printing line is fine and delicate, the marking depth from 5-100um, easy for operation, images can be done in a few seconds, no solidification is needed
Main Application field:
Hardware and tools, medical equipment, plumbing equipment, carbide, Measuring Tool knives, machine parts, instruments, kitchen utensils, gear bearings, valves signs, vehicle accessories, stainless steel products, such as copper-aluminum products. Suitable for a variety of metal materials such as stainless steel, carbon steel, hard high alloy steel, aluminum alloy, surface plating chromium, galvanized, nickel plating) tagging characters directly on Products, printed or high-grade stainless steel plate.
Using method:
Make the contents that is going to print on the templates (for large quantity of marking, make screen printing templates, small quantity can print on wax templates), then lay the templates on top of the work pieces, to let the electric export pole of the machine dip on the marking liquid and pressing for 1-2 /3-5seconds, after the electric pole is moving away a perfect beautiful marking will printed out, and it will never falling off.

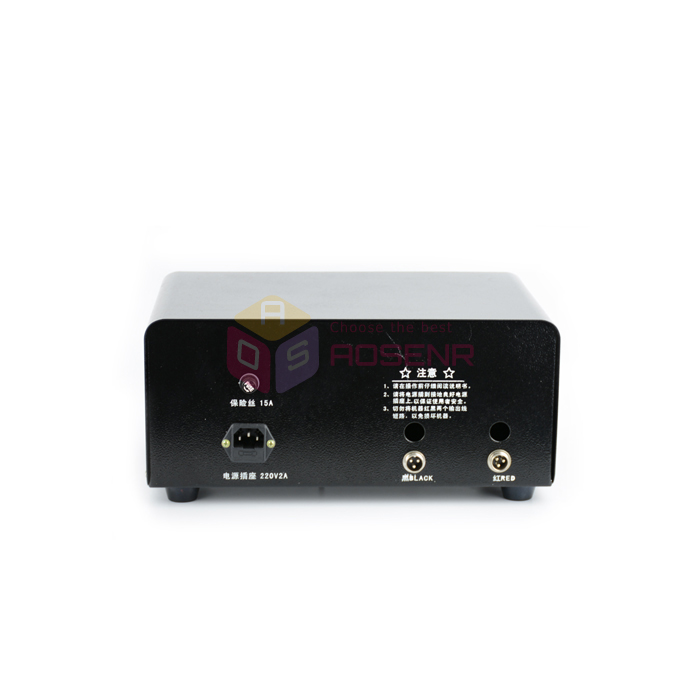

A. check red alligator clip and to indicate the metal products are reliable, and then put the stencil plate and wire mesh in depending on the surface of the metal products, straighten against.
B. the black graphite part marking wire electrode pads in the fluid of the marking with completely drenched, and let it keep proper marking liquid extrusion, hold on version 3-5 seconds or evenly on the version control several times, watch, can see the version of the portion of land is gradually changed from white to black, is a clear pattern of the corrosion.
C. After the end of the course. Shut off the power switch, the marking a rinse with water or ethanol cotton swab.
Package Included:
1 x Electro-Corrosion Marking Machine (DO NOT include the corrosive liquid)
1 Set of Accessories
|
