Specification:

Metal gear 37 type reduction motor, all metal gear reduction gearbox, reduction ratio of about 202:1,

motor housing sealed treatment, dustproof and waterproof, but not suitable for diving use.

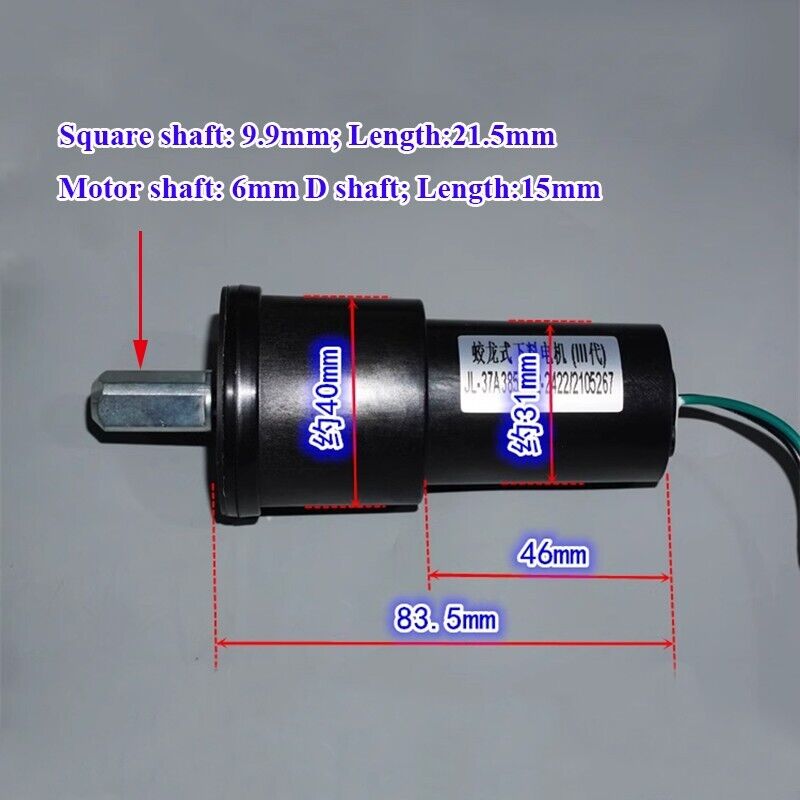

The output shaft of the deceleration motor is a 9.9mm square shaft. To remove the square shaft,

simply heat the head and the internal thread glue will soften, which can be directly removed.

The internal shaft is a 6mm D-shaped shaft.

The motor has a nominal voltage of 24V and a rated speed of 22 revolutions per minute.

It is a low-speed DC motor that can also be used normally with a measured voltage of 12-36V.

The specific use depends on the size of the load test. The actual no-load current and speed of

the motor tested at different voltages are as follows:

Voltage 12V, no-load current 0.02A, no-load speed about 10 revolutions per minute.

Voltage 24V, no-load current 0.03A, no-load speed about 22 revolutions per minute.

Voltage 36V, no-load current 0.04A, no-load speed about 32 revolutions per minute.

The gear motor weighs approximately 215 grams.

=========================

Package List:

Gear Motor x 1PCS
