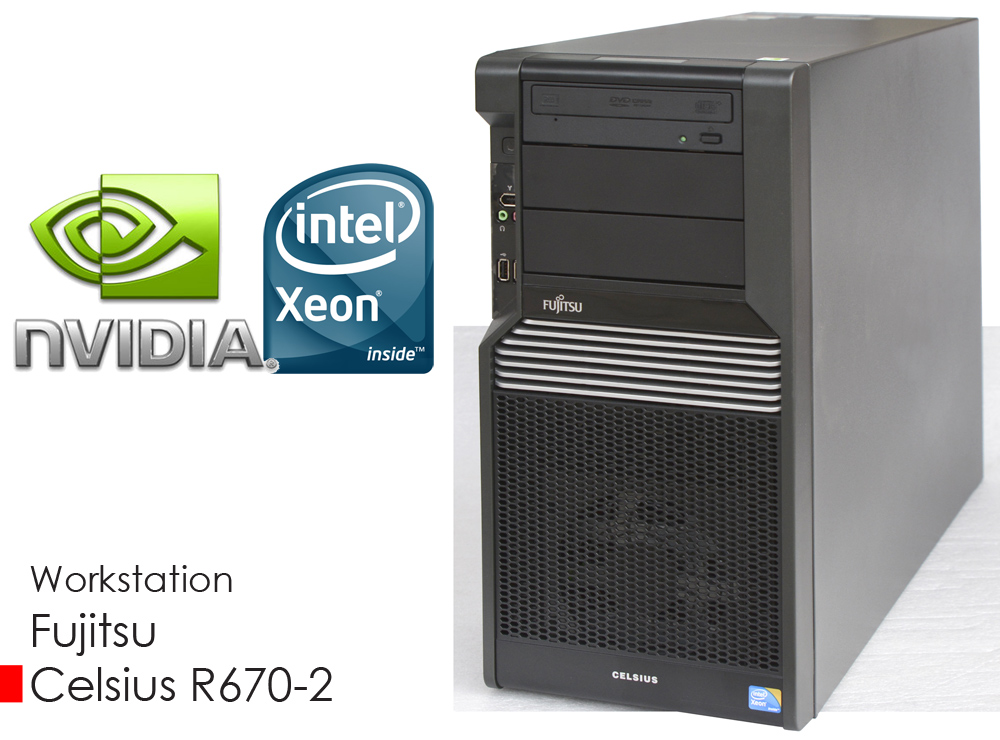

Fujitsu CELSIUS R670-2 – Reliable workstation power for professional demands, in original packaging, new
The Fujitsu CELSIUS R670-2 is a powerful dual CPU workstation specifically designed for demanding applications in CAD, 3D visualization, simulation and engineering calculations. With high-quality server hardware, ECC memory support and professional graphics card, it offers a stable and efficient platform for everyday use. Whether for engineers, designers or developers - this workstation offers a solid foundation for computing-intensive projects and reliable continuous operation.
Components and equipment
CPU: 1× Intel Xeon E5540 (4 C / 8 T, 2.53 GHz)
RAM: 32 GB DDR3 ECC (2 × 16 GB, expandable up to 192 GB)
GPU: Nvidia Quadro FX 3800 (1GB GDDR3)
Storage: 2 × 500GB SATA + RAID options
Network: 2 × Gigabit LAN
Audio: HD Audio
Mainboard: Fujitsu D2618 / W26361-W1842-Z4-06-36
Chipset: Intel 5520 + ICH10

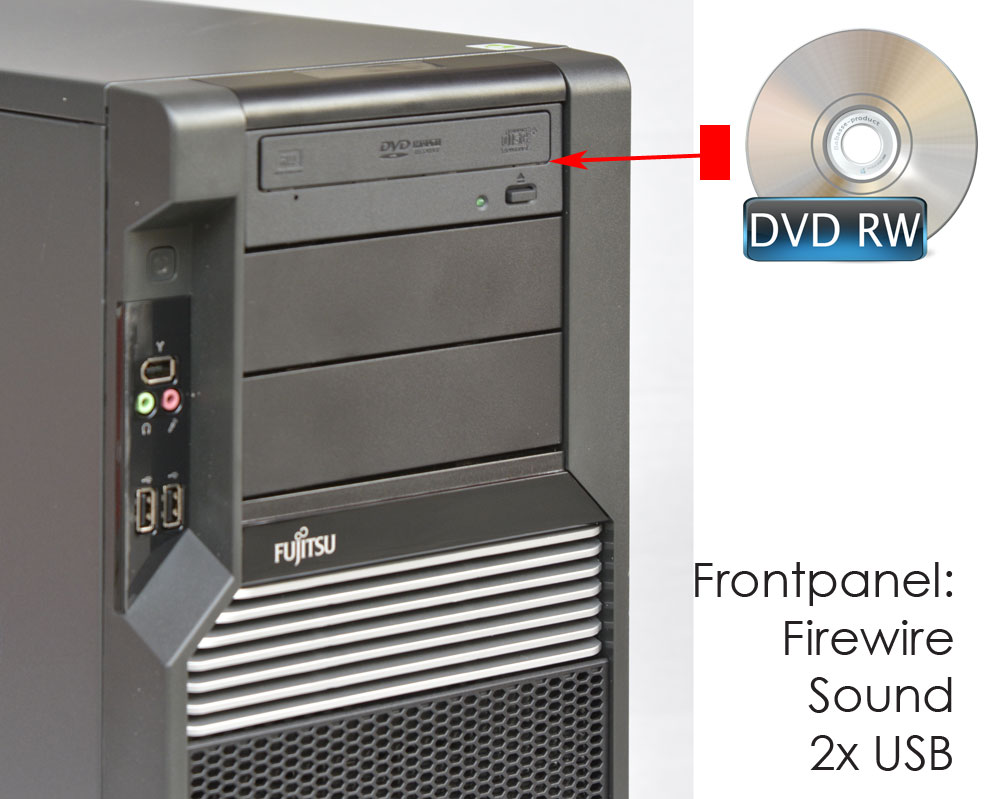

Drive: DVD burner;

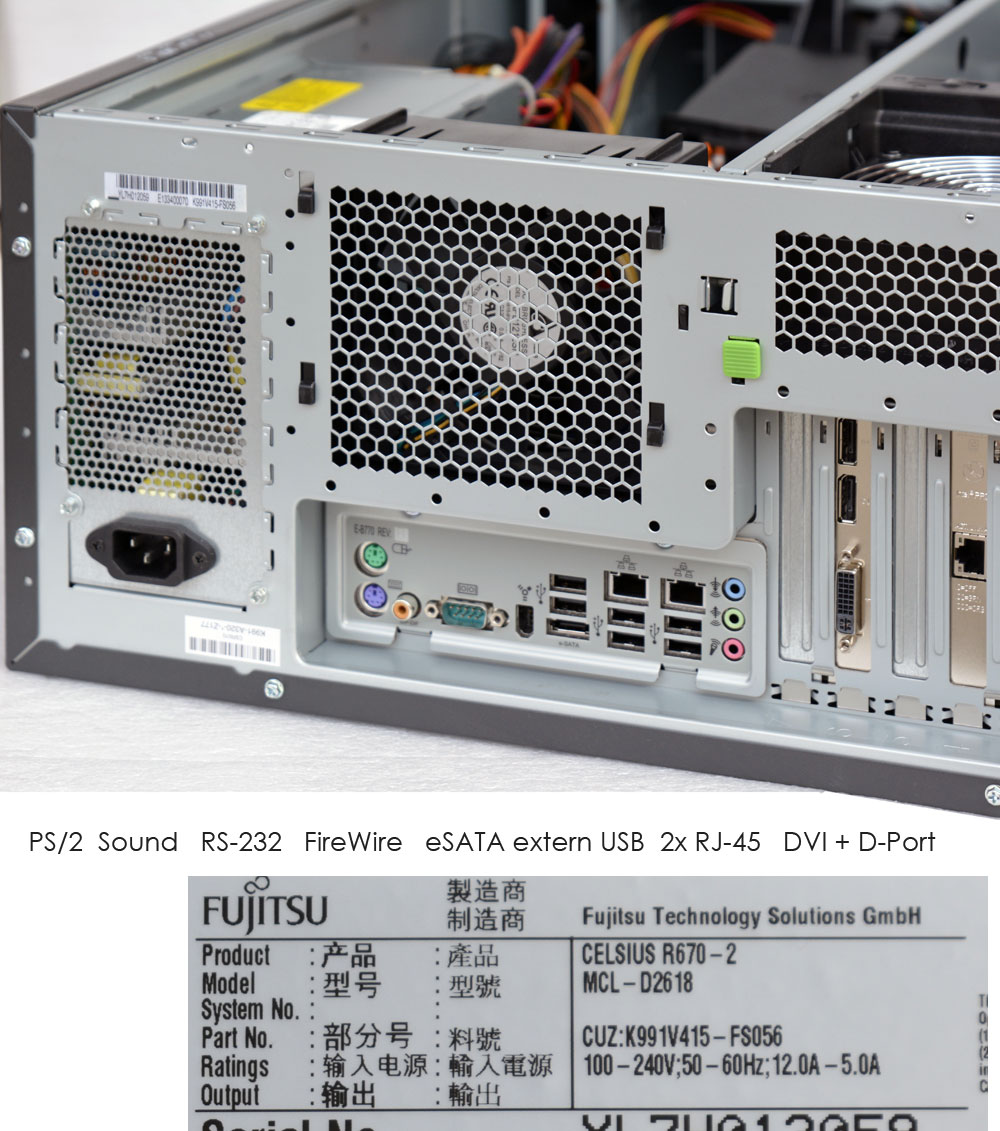

P/n K991V415-FS056 Model 1D590746




Technical data
Mainboard: Fujitsu W26361-W1842-Z4-06-36 (embossed on board)
Motherboard Type: D2618
Chipset: Intel ® 5520 + Intel 82801JIB (ICH10)
Processor socket: 2× LGA 1366
Maximum number of processors: 2
Memory slots: 12 (6 per CPU)
Maximum memory: up to 192 GB DDR3 ECC

processor
CPU: 1× Intel ® Xeon E5540
4 cores / 8 threads
Clock frequency: 2.53GHz
Intel® Hyper-Threading & Turbo Boost Technology



RAM
Installed: 32GB DDR3 ECC (2 × 16GB)
Expandable: up to 192 GB DDR3 ECC (Registered)

graphics card
GPU: Nvidia ® Quadro FX 3800
1GB GDDR3 memory
Professional OpenGL performance for CAD/CAM, 3D design and technical visualization

Storage & Drives
Hard drives: 2 × 500GB SATA
Optical drive: DVD burner

RAID controller: LSI 1068E SAS controller with RAID 0, 1 and 1E
eSATA port: available

    Network & Audio
Network: 2 × Gigabit LAN (onboard)
Sound: HD audio integrated

Housing & expandability

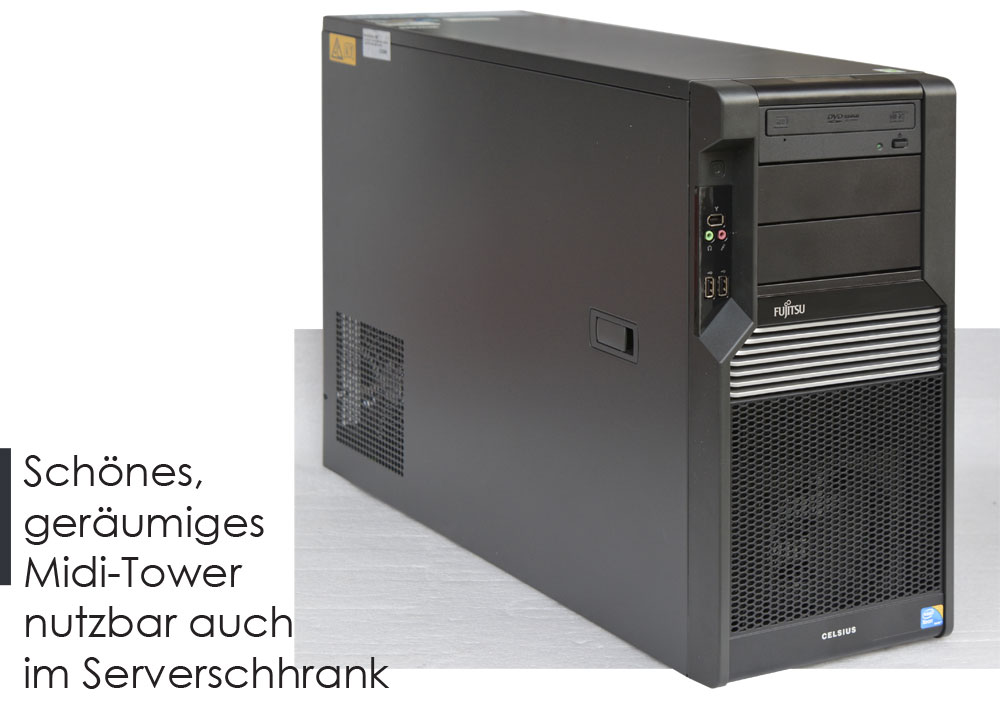

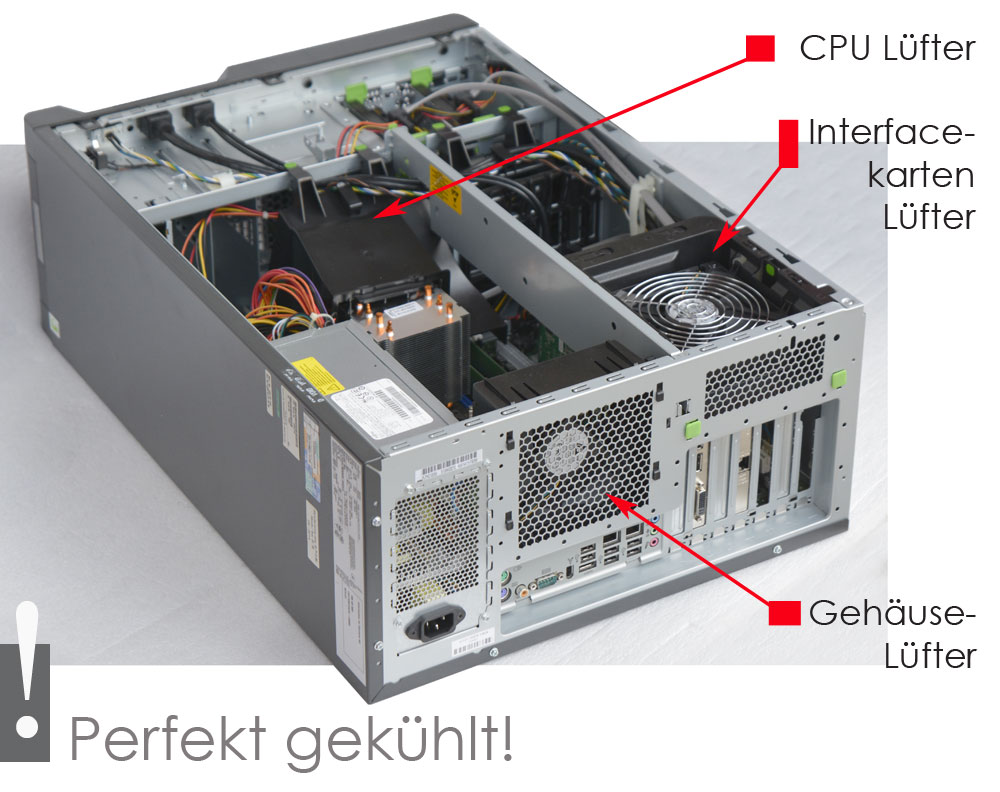

Robust tower design with excellent cooling
Modular design for easy maintenance and upgrades
Numerous PCIe slots for additional expansion cards
