Product Details
ESP32-C6
Product Features:
1. Ultra-compact size: Measuring just 21x18mm, specifically designed for space-constrained applications.
2. Rich interfaces: Up to 11 pin-supported multi-purpose interfaces, including analog, digital, I²C, UART, and SPI.
3. Powerful CPU: Robust core delivering strong performance for diverse complex applications.
4. SMD Design: Single-sided components with surface-mount technology for seamless integration into other boards for mass production.
5. Dual RISC-V Cores: High-performance and low-power cores operate in tandem, enabling seamless smart home interoperability.
1. Ultra-compact size: Measuring just 21x18mm, specifically designed for space-constrained applications.
2. Rich interfaces: Up to 11 pin-supported multi-purpose interfaces, including analog, digital, I²C, UART, and SPI.
3. Powerful CPU: Robust core delivering strong performance for diverse complex applications.
4. SMD Design: Single-sided components with surface-mount technology for seamless integration into other boards for mass production.
5. Dual RISC-V Cores: High-performance and low-power cores operate in tandem, enabling seamless smart home interoperability.

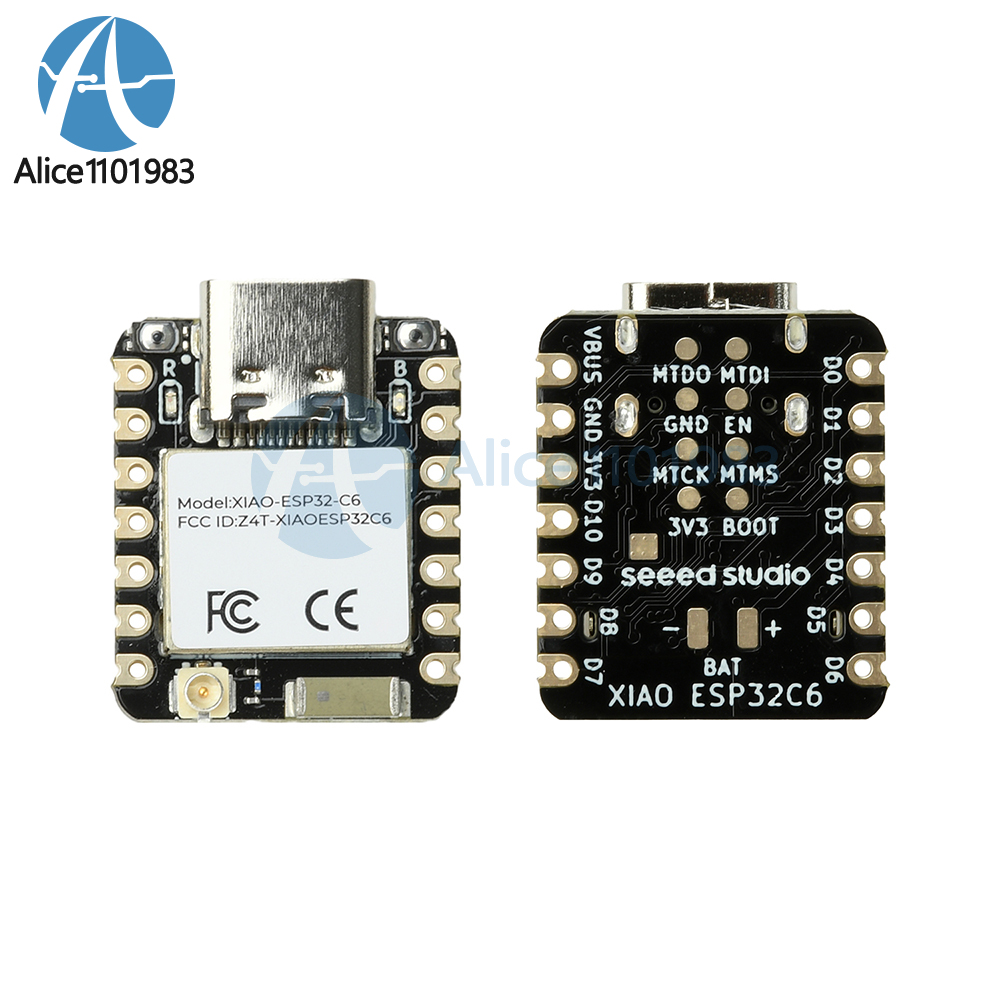

Product Overview:

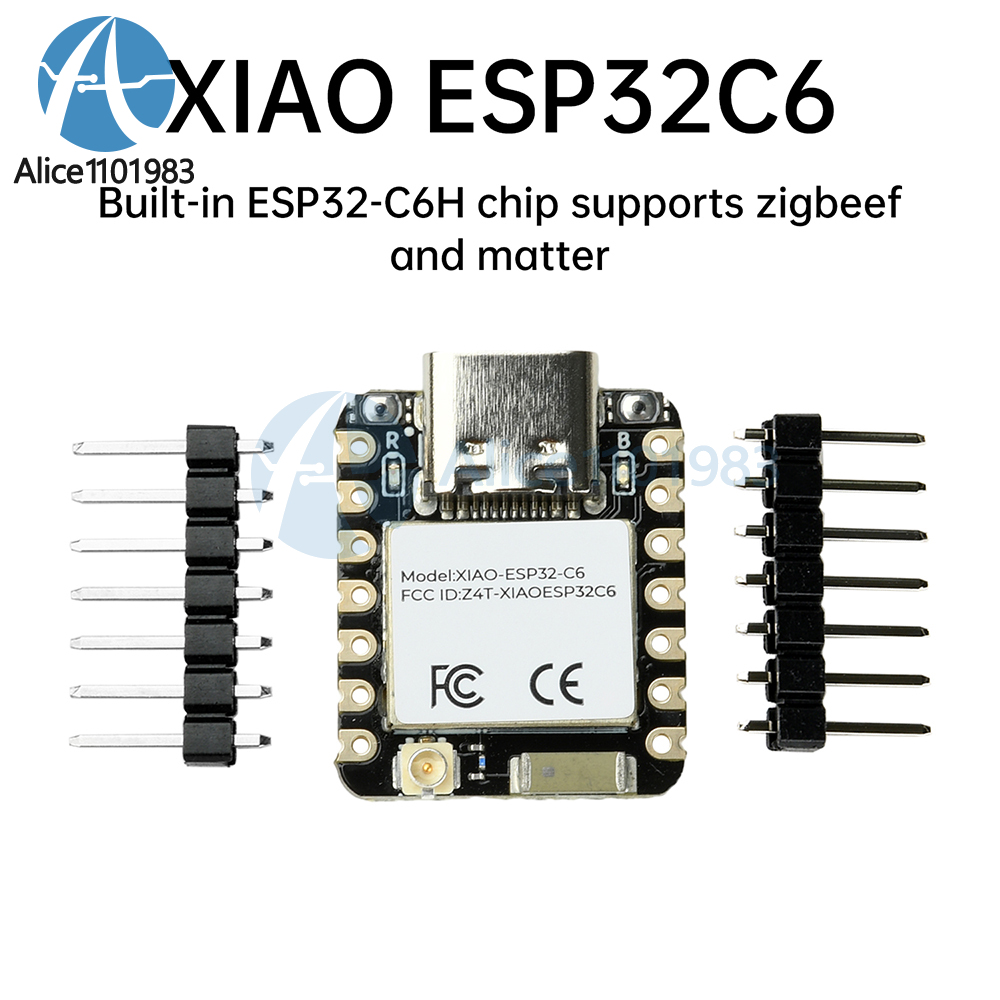

The ESP32-C6 is a cost-effective MCU based on Espressif's ESP32-C6 architecture. This compact MCU excels in Matter-compliant smart home applications, supporting diverse wireless connectivity (2.4GHz Wi-Fi 6, BLE 5, Zigbee, and Thread). Its thumb-sized, single-sided mounting design makes it ideal for space-constrained projects. ESP32-C6 features on-chip encryption, ensuring required security levels, simplified development, and rapid market access through seamless integration with major IoT cloud platforms.
The ESP32-C6 is a cost-effective MCU based on Espressif's ESP32-C6 architecture. This compact MCU excels in Matter-compliant smart home applications, supporting diverse wireless connectivity (2.4GHz Wi-Fi 6, BLE 5, Zigbee, and Thread). Its thumb-sized, single-sided mounting design makes it ideal for space-constrained projects. ESP32-C6 features on-chip encryption, ensuring required security levels, simplified development, and rapid market access through seamless integration with major IoT cloud platforms.
Product Specifications:
Model: ESP32-C6
Processor: ESP32-C6 32-bit RISC-V processor, high-performance core operating at up to 160 MHz
Wireless: Full 2.4GHz Wi-Fi 6 subsystem
BLE: Bluetooth 5, Bluetooth Mesh, Zigbee, Thread, IEEE 802.15.4
On-Chip Memory: 512KB SRAM and 4MB Flash

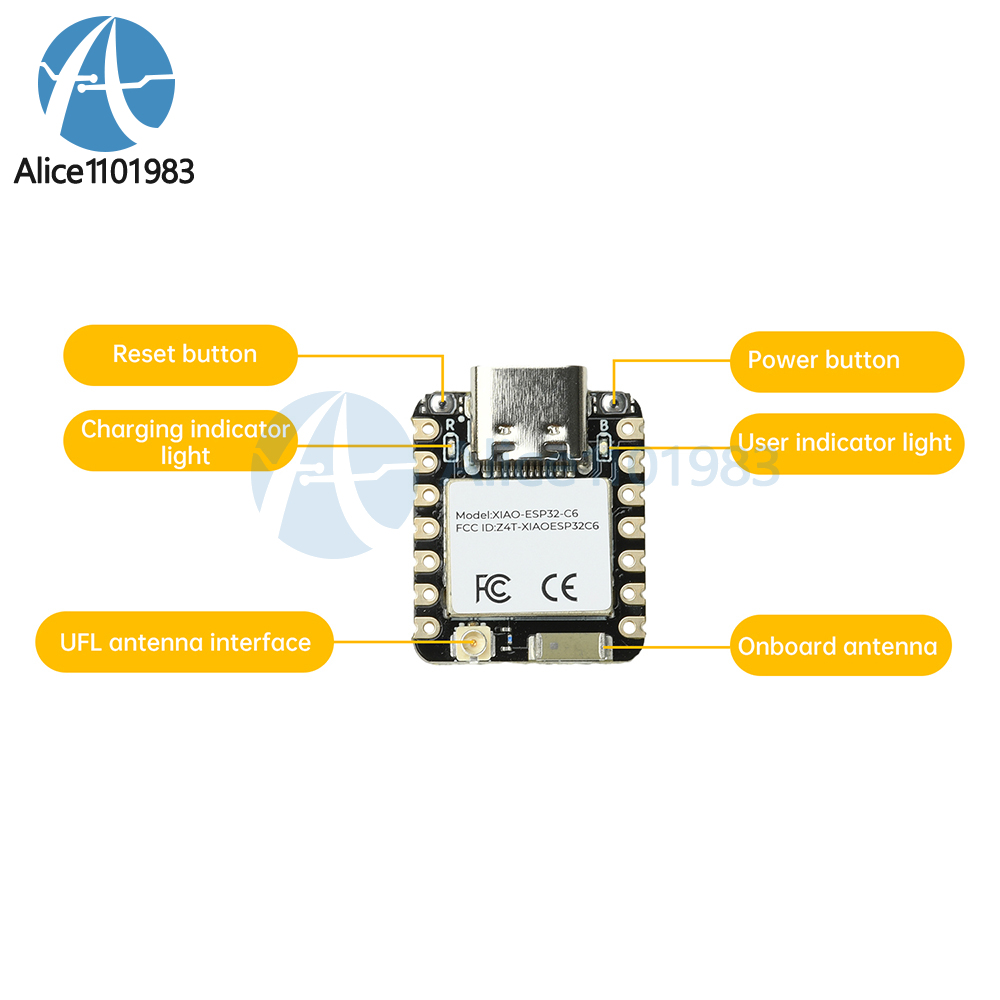

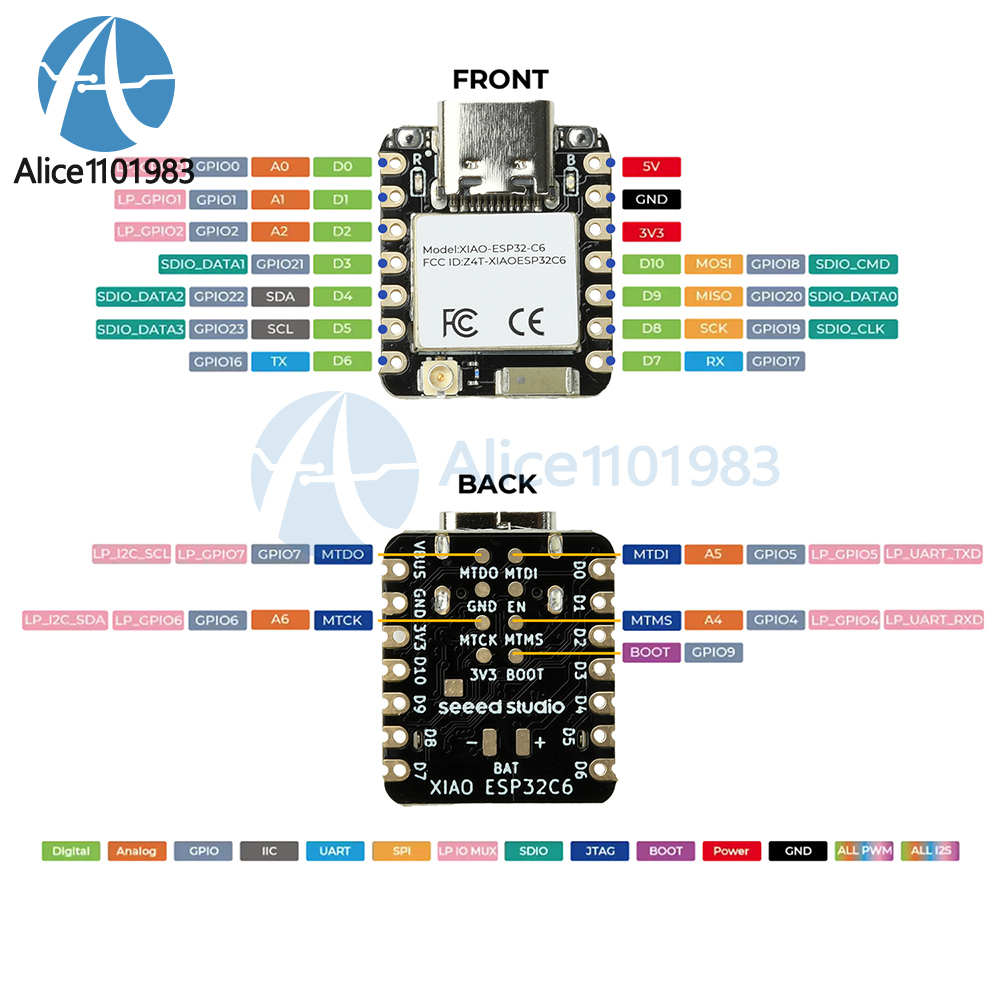

Interfaces: 1x UART, 1x LP_UART, 1x I²C, 1x LP_I²C, 1x SPI, 11x GPIO (PWM), 7x ADC, 1x SDIO, 1x Reset Button, 1x Power Button
Input Voltage (Type-C): 5V Input Voltage (BAT): 4.2V
Operating Voltage (Standby):
- USB: 5V @ 9mA
- BAT: 3.8V @ 9mA
Charging Battery Current: 100mA
Power Consumption Model (Power Supply: 3.8V):
Modem Sleep Mode: ~30mA
Light Sleep Mode: ~2.5mA
Deep Sleep Mode: ~15μA
Operating Temperature: -40°C to 85°C
Dimensions: 21mm x 18mm
Model: ESP32-C6
Processor: ESP32-C6 32-bit RISC-V processor, high-performance core operating at up to 160 MHz
Wireless: Full 2.4GHz Wi-Fi 6 subsystem
BLE: Bluetooth 5, Bluetooth Mesh, Zigbee, Thread, IEEE 802.15.4
On-Chip Memory: 512KB SRAM and 4MB Flash
Interfaces: 1x UART, 1x LP_UART, 1x I²C, 1x LP_I²C, 1x SPI, 11x GPIO (PWM), 7x ADC, 1x SDIO, 1x Reset Button, 1x Power Button
Input Voltage (Type-C): 5V Input Voltage (BAT): 4.2V
Operating Voltage (Standby):
- USB: 5V @ 9mA
- BAT: 3.8V @ 9mA
Charging Battery Current: 100mA
Power Consumption Model (Power Supply: 3.8V):
Modem Sleep Mode: ~30mA
Light Sleep Mode: ~2.5mA
Deep Sleep Mode: ~15μA
Operating Temperature: -40°C to 85°C
Dimensions: 21mm x 18mm
Product Listing:
1x Development Board
2x Pin Header
1x Development Board
2x Pin Header
ESP32-C3
Product Features:
1. Flexible MCU Board: Integrates ESP32-C3 32-bit RISC-V chip with up to 160 MHz operating frequency and multiple development ports.
2. Superior RF Performance: Delivers full Wi-Fi functionality and low-power Bluetooth while supporting U.FL antenna communication.
3. Carefully Engineered Power Management: Offers four operating modes with as low as 44μA in deep sleep mode, plus lithium battery charging management.
4. Thumb-Sized Design: Classic form factor and elegant single-sided component placement ideal for wearable devices.
5. Production-Ready: Compact PCB footprint with SMD design and component-free backside.
1. Flexible MCU Board: Integrates ESP32-C3 32-bit RISC-V chip with up to 160 MHz operating frequency and multiple development ports.
2. Superior RF Performance: Delivers full Wi-Fi functionality and low-power Bluetooth while supporting U.FL antenna communication.
3. Carefully Engineered Power Management: Offers four operating modes with as low as 44μA in deep sleep mode, plus lithium battery charging management.
4. Thumb-Sized Design: Classic form factor and elegant single-sided component placement ideal for wearable devices.
5. Production-Ready: Compact PCB footprint with SMD design and component-free backside.

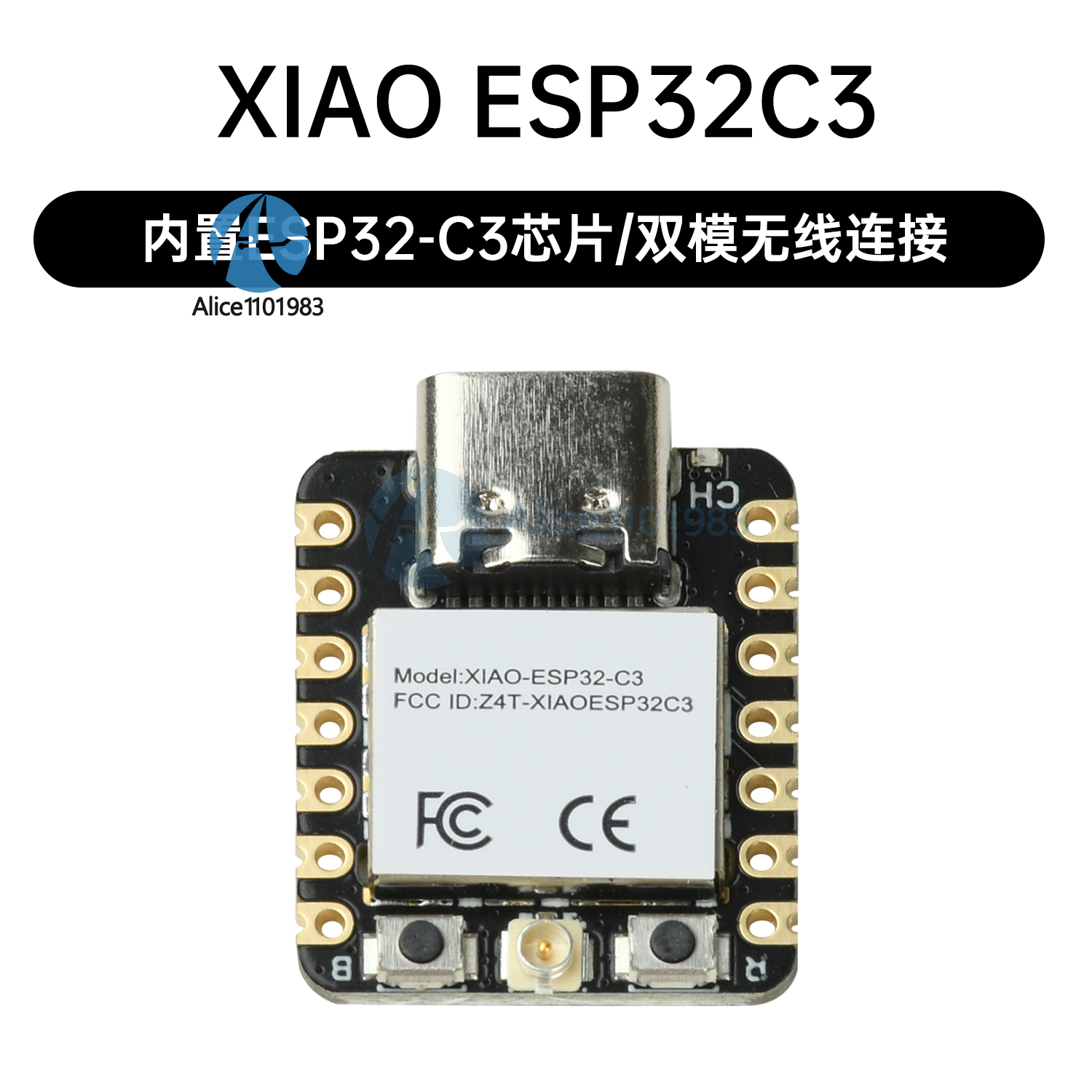

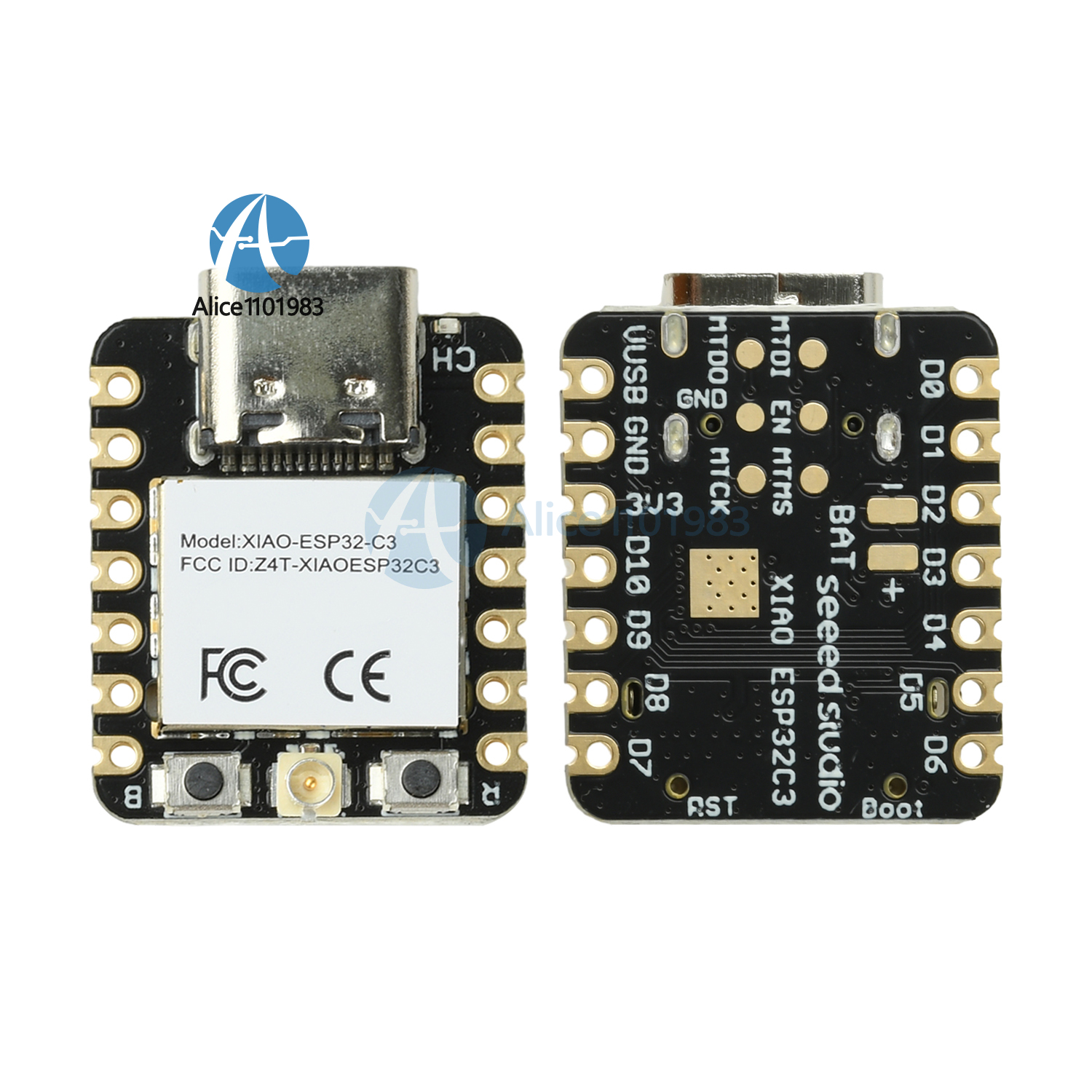

Product Description:

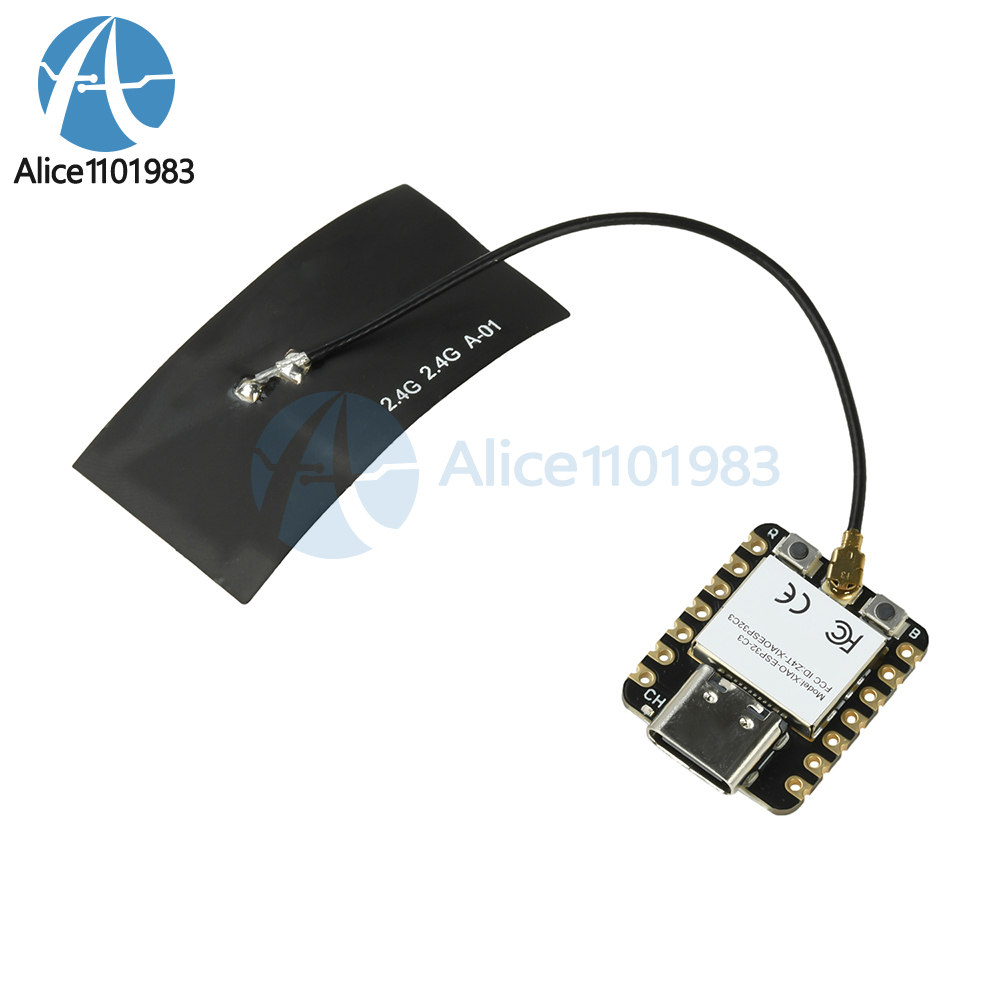

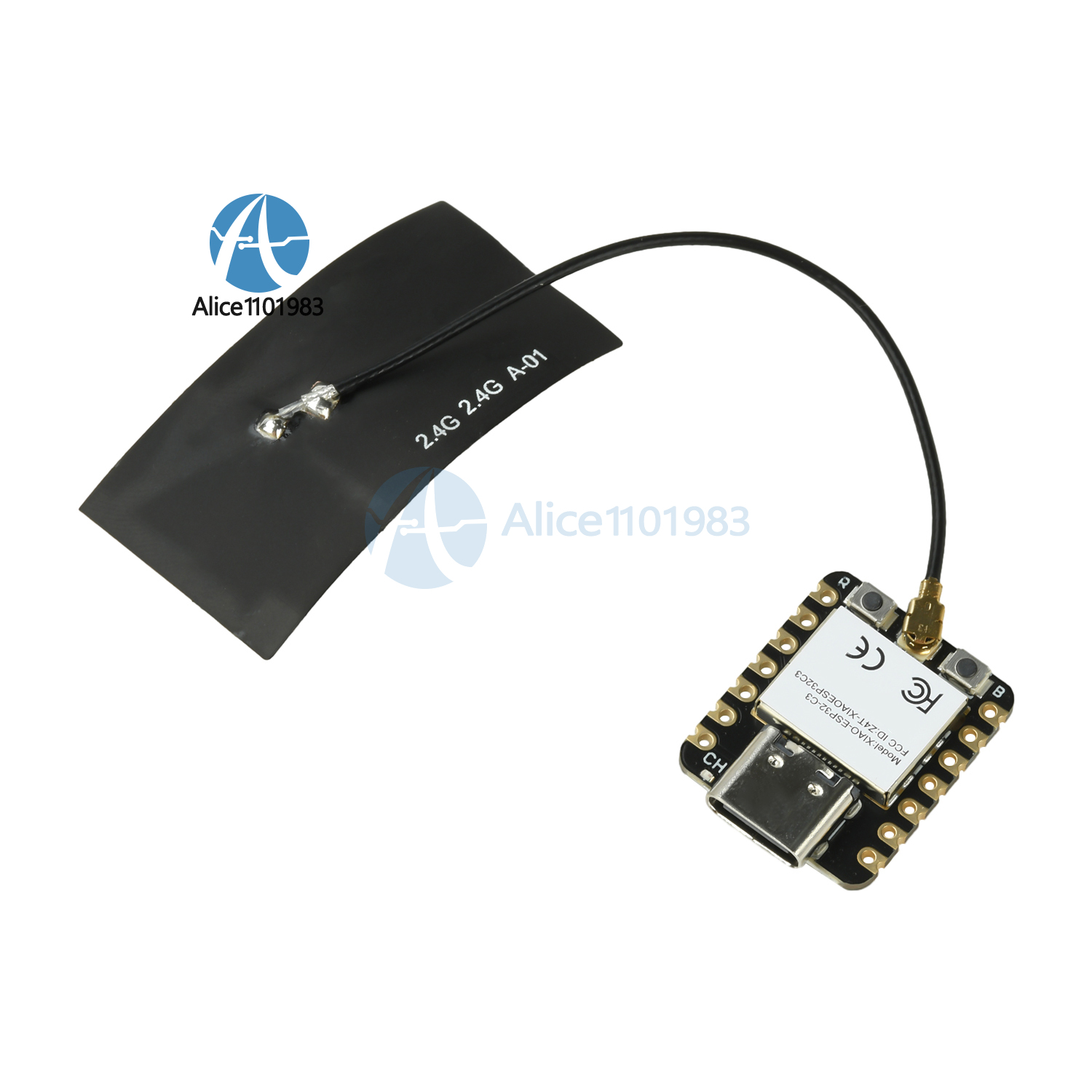

The XIAO ESP32C3 features a complete Wi-Fi system with Bluetooth Low Energy functionality. It offers a 44μA deep sleep mode and supports switching between four operating modes. Equipped with a battery charging chip and integrated circuits to enhance its load capacity, the board also includes an external antenna to boost signal strength for wireless applications. This provides expanded capabilities for wearable and portable devices or other applications.
The XIAO ESP32C3 features a complete Wi-Fi system with Bluetooth Low Energy functionality. It offers a 44μA deep sleep mode and supports switching between four operating modes. Equipped with a battery charging chip and integrated circuits to enhance its load capacity, the board also includes an external antenna to boost signal strength for wireless applications. This provides expanded capabilities for wearable and portable devices or other applications.
Product Specifications:
Product Name: ESP32-C3 SoC
Processor: RISC-V single-core 32-bit chip processor, operating frequency up to 160 MHz
Wireless: 2.4GHz Wi-Fi subsystem, Bluetooth 5.0/Bluetooth Mesh
On-chip Memory: 400KB SRAM and 4MB Flash
Interfaces: 1x UART, 1x I²C, 1x SPI, 11x GPIO (PWM), 4x ADC, 1x Reset Button, 1x Power Button
Operating Voltage: 3.3V @ 200mA
Charging Current: 350mA/100mA
Input Voltage (VIN): 5V
Deep Sleep Mode: >44μA
Power consumption with Wi-Fi enabled: <75mA
Modem sleep mode: <25mA
Light sleep mode: <4mA
Modem sleep mode: <27mA
Light sleep mode: <10mA
Operating temperature: -40°C to 85°C
Dimensions: 21mm x 18mm
Product Name: ESP32-C3 SoC
Processor: RISC-V single-core 32-bit chip processor, operating frequency up to 160 MHz
Wireless: 2.4GHz Wi-Fi subsystem, Bluetooth 5.0/Bluetooth Mesh
On-chip Memory: 400KB SRAM and 4MB Flash
Interfaces: 1x UART, 1x I²C, 1x SPI, 11x GPIO (PWM), 4x ADC, 1x Reset Button, 1x Power Button
Operating Voltage: 3.3V @ 200mA
Charging Current: 350mA/100mA
Input Voltage (VIN): 5V
Deep Sleep Mode: >44μA
Power consumption with Wi-Fi enabled: <75mA
Modem sleep mode: <25mA
Light sleep mode: <4mA
Modem sleep mode: <27mA
Light sleep mode: <10mA
Operating temperature: -40°C to 85°C
Dimensions: 21mm x 18mm

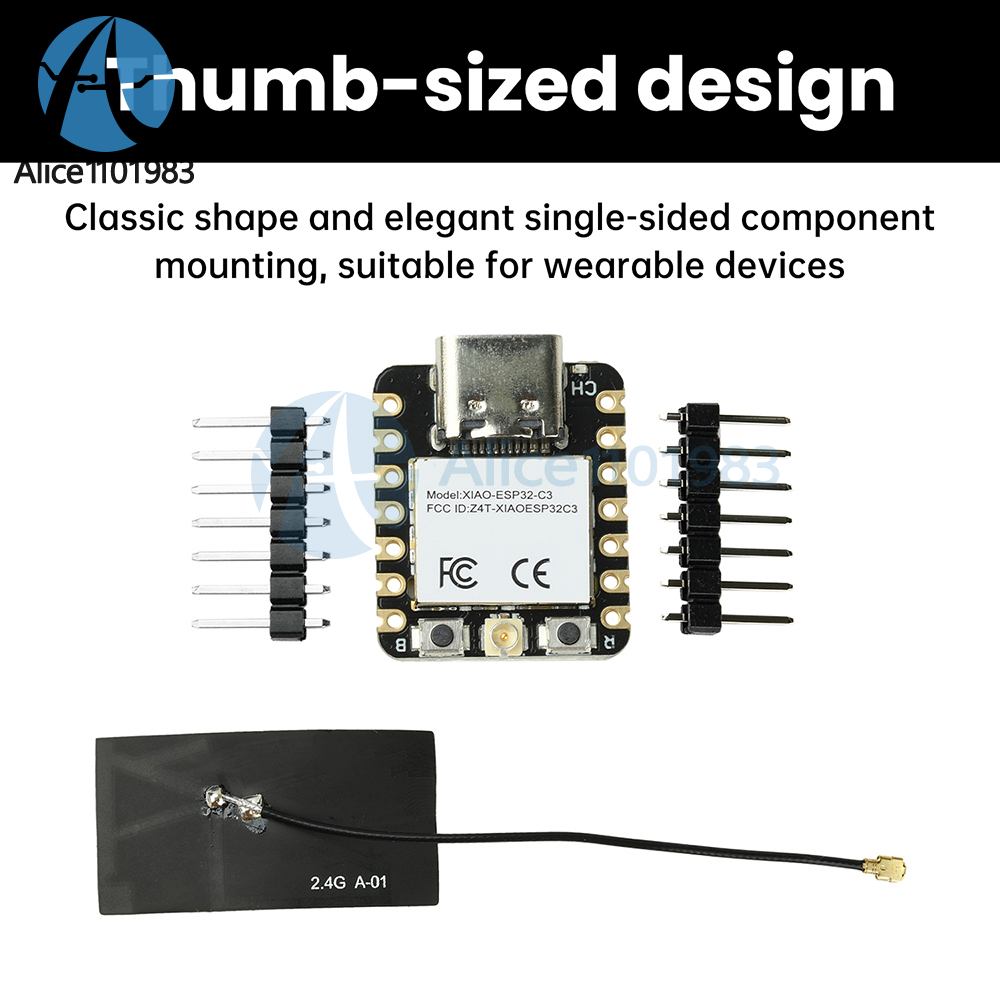

Product Listing:
1x Development Board
2x Pin Header
1x Antenna
1x Development Board
2x Pin Header
1x Antenna
