DC1036L 36W Digital UPS Uninterruptible Power Supply for Router 5V9V12V/15V/24V
Description
Features:

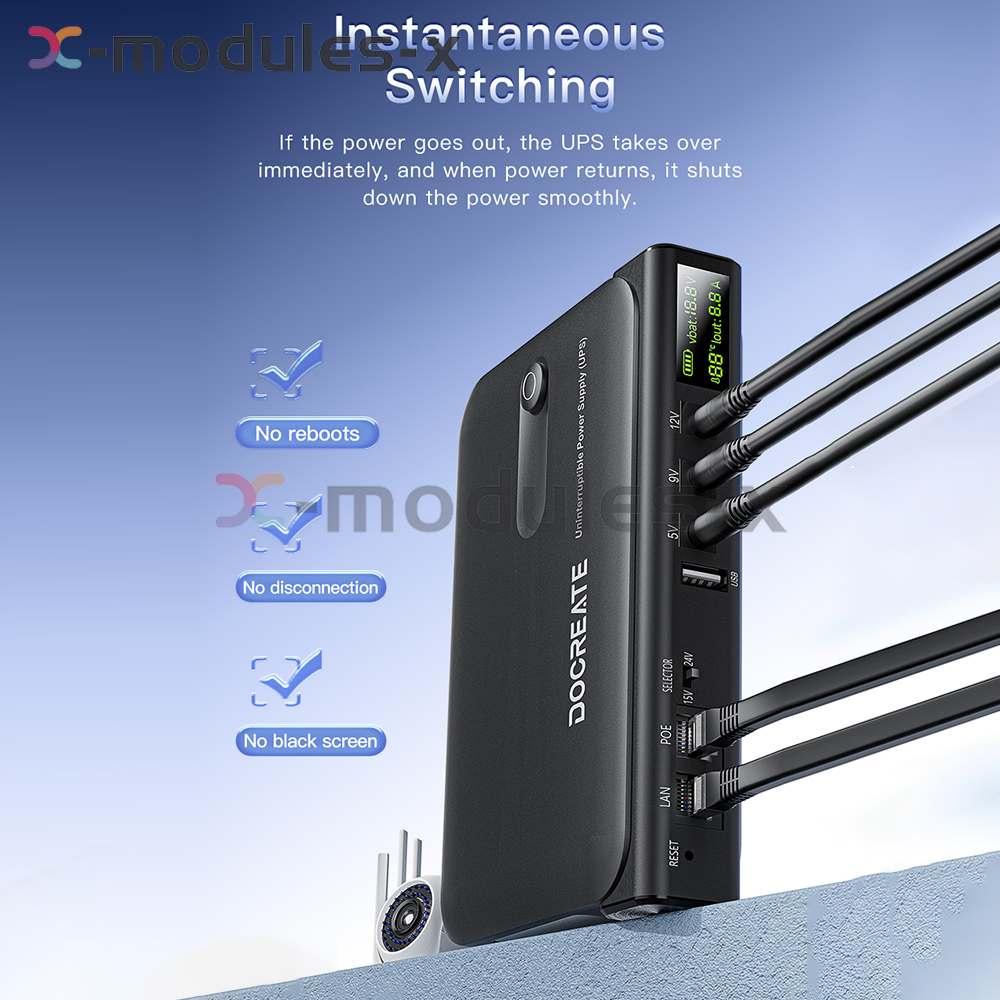

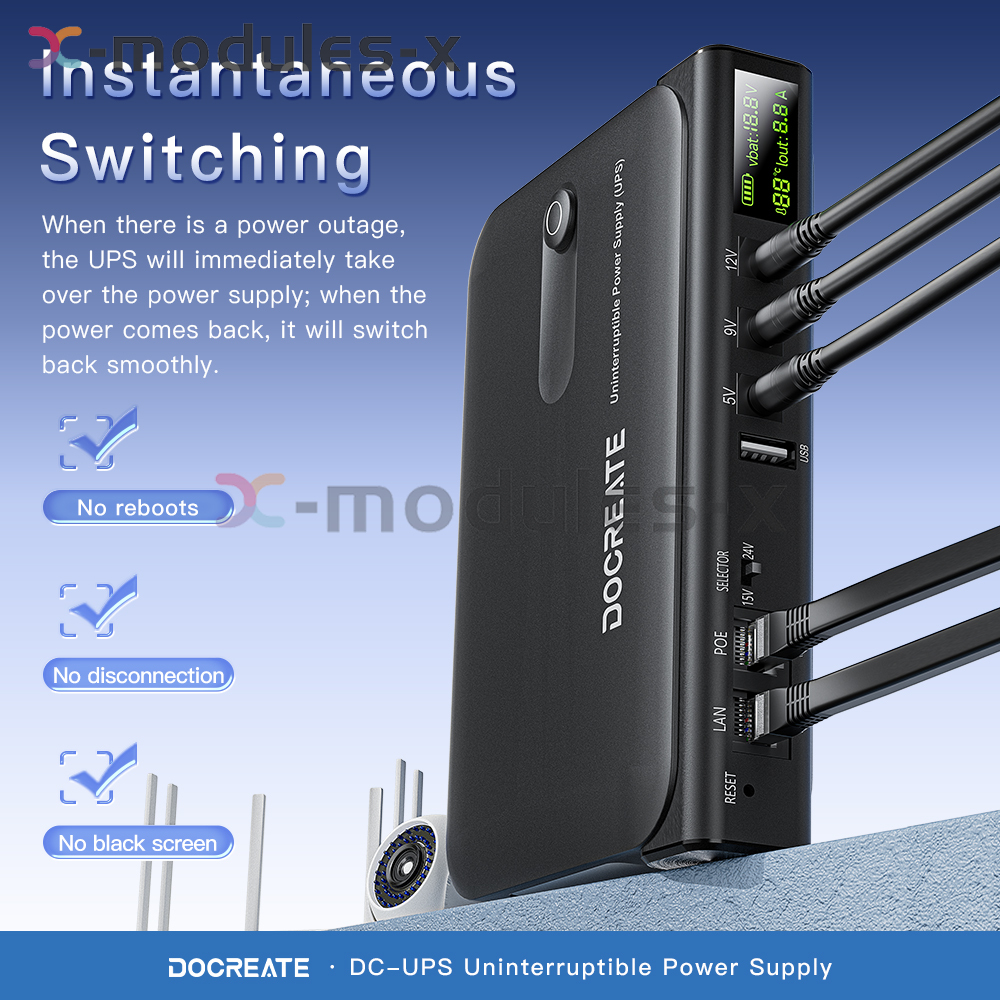

1.Designed for long-term operation: Not afraid of power outages, instant seamless switching, ups power supply will immediately take over power supply in case of power outage; when a call comes in, the device smoothly switches back without restarting, disconnecting from the internet, or going black during the process.
2.Overheating protection: Supports overheating protection. When the internal circuit temperature of the product exceeds 45 ℃, the temperature icon on the display screen starts flashing and the dc output is turned off. After the temperature cools down, the output is turned back on.

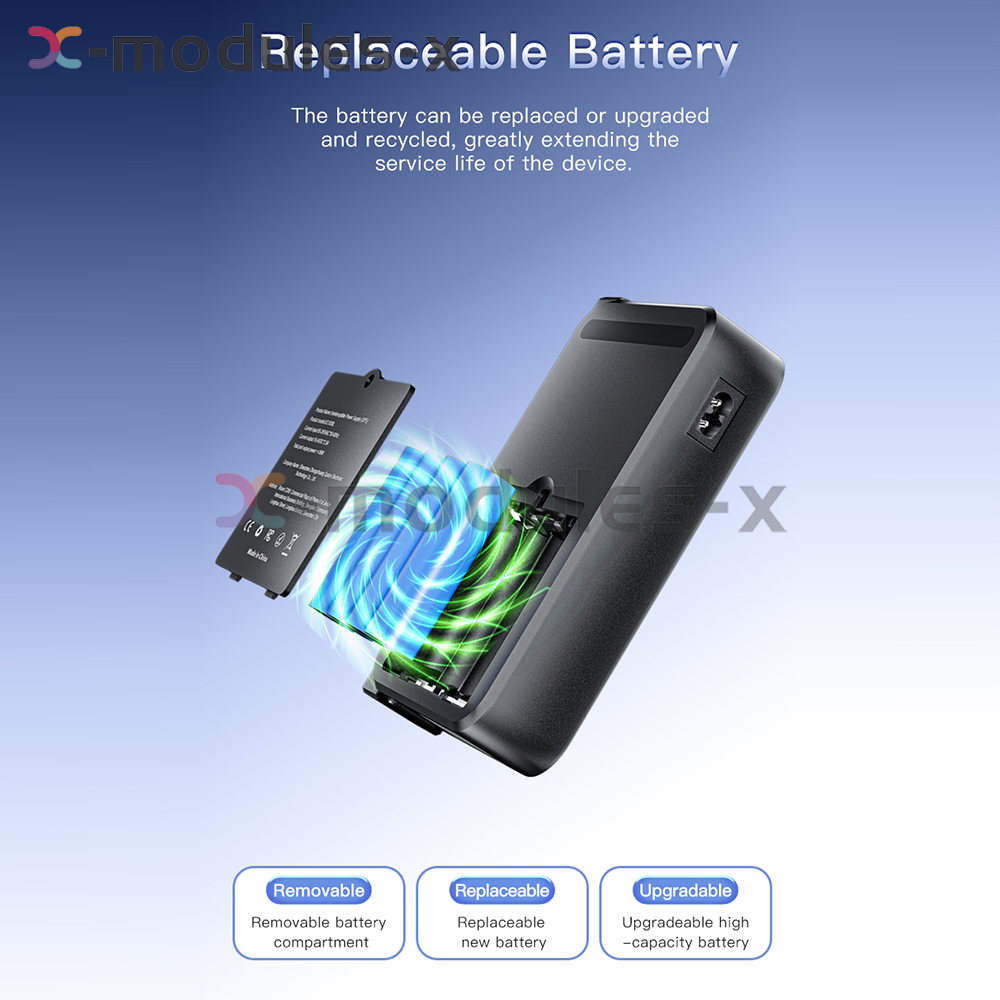

3.Interchangeable battery design: The 4-cell flat 18650 battery is easy to disassemble and can be replaced at any time without worrying about battery life when on the go.

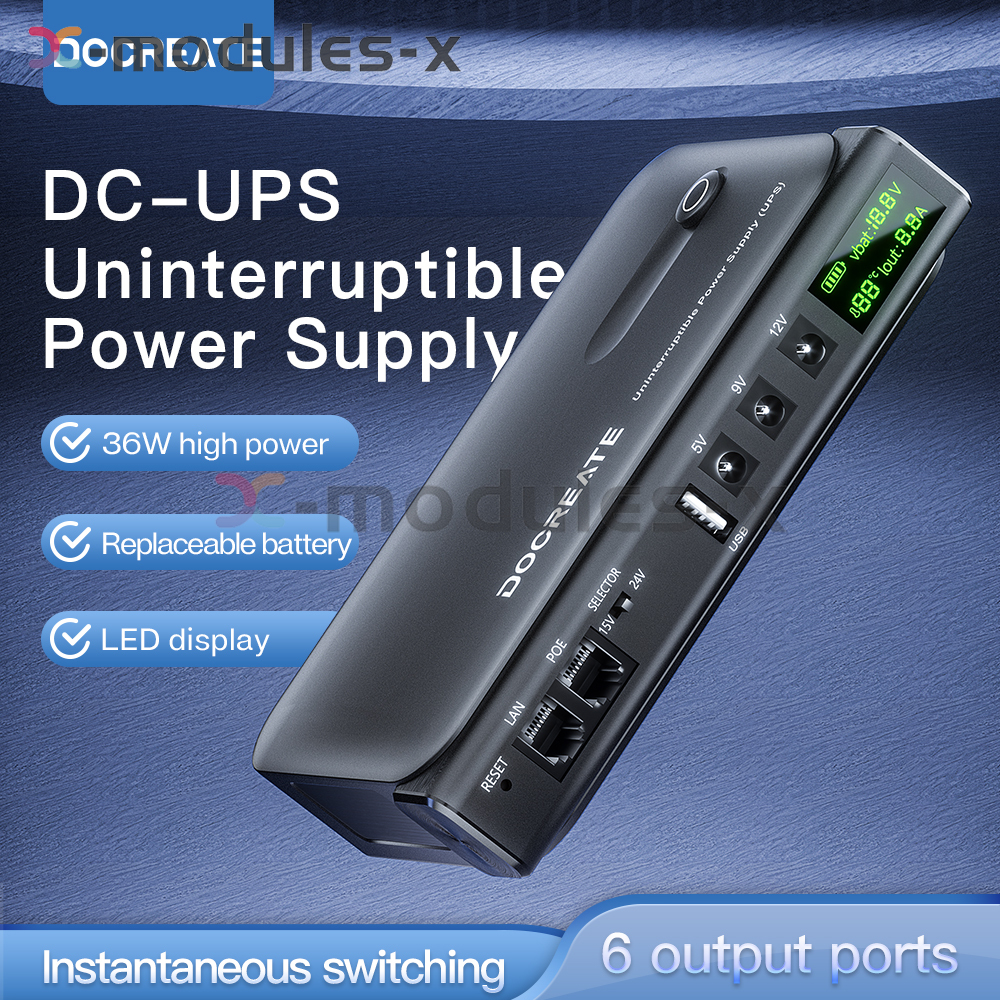

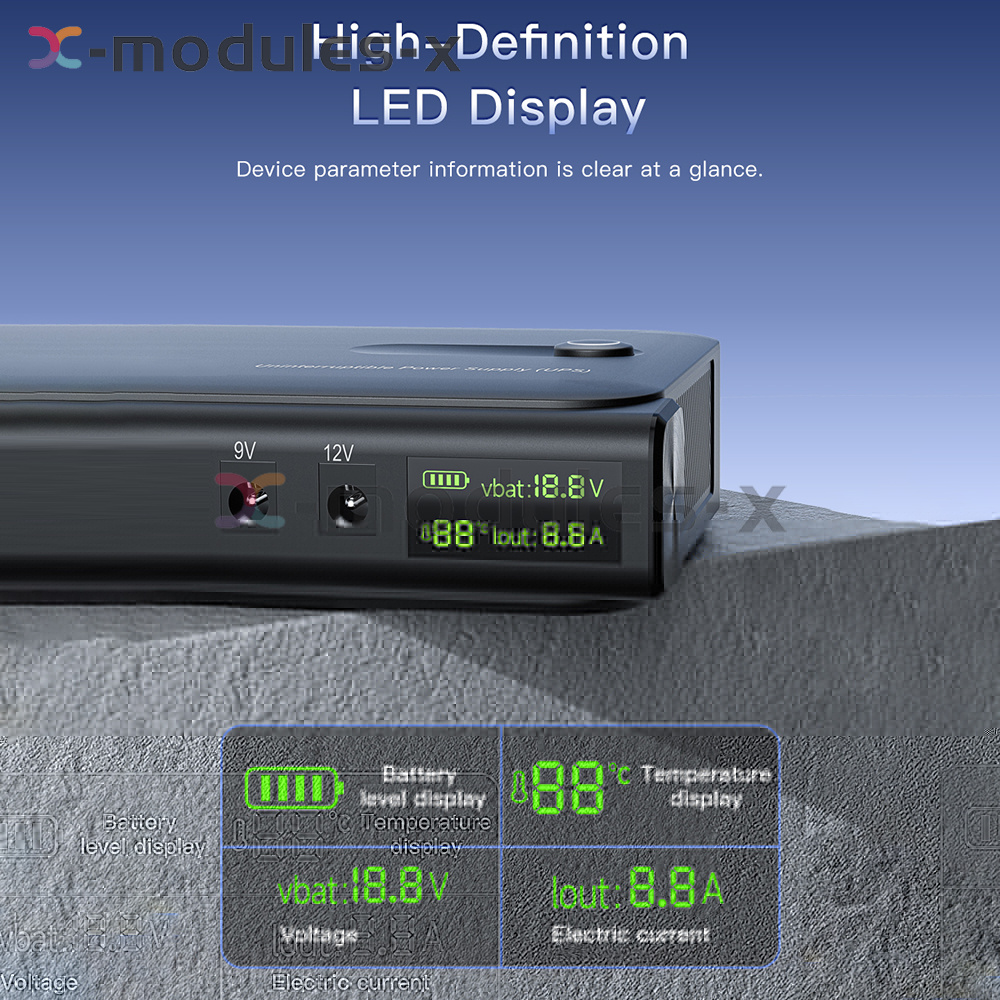

4.High definition led display screen: Current display, temperature display, voltage, current, power, equipment parameter information is clear at a glance, and the interface is intuitive to timely grasp the equipment operating status.
5.Battery reverse connection protection: Due to the special nature of 18650 batteries, misconnecting the positive and negative poles of the battery can cause equipment damage. With a protection mechanism in place, devices with misconnected batteries will automatically detect and prohibit power on operation, truly achieving worry free use.

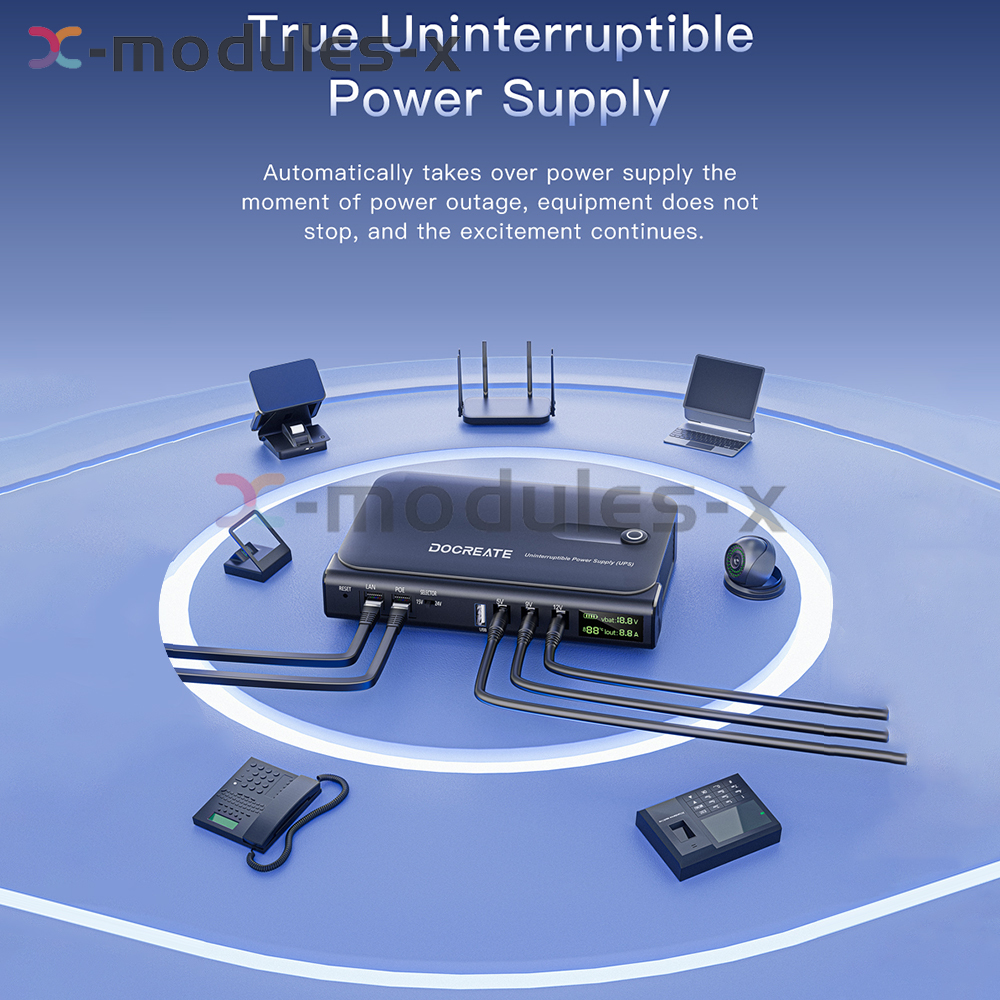

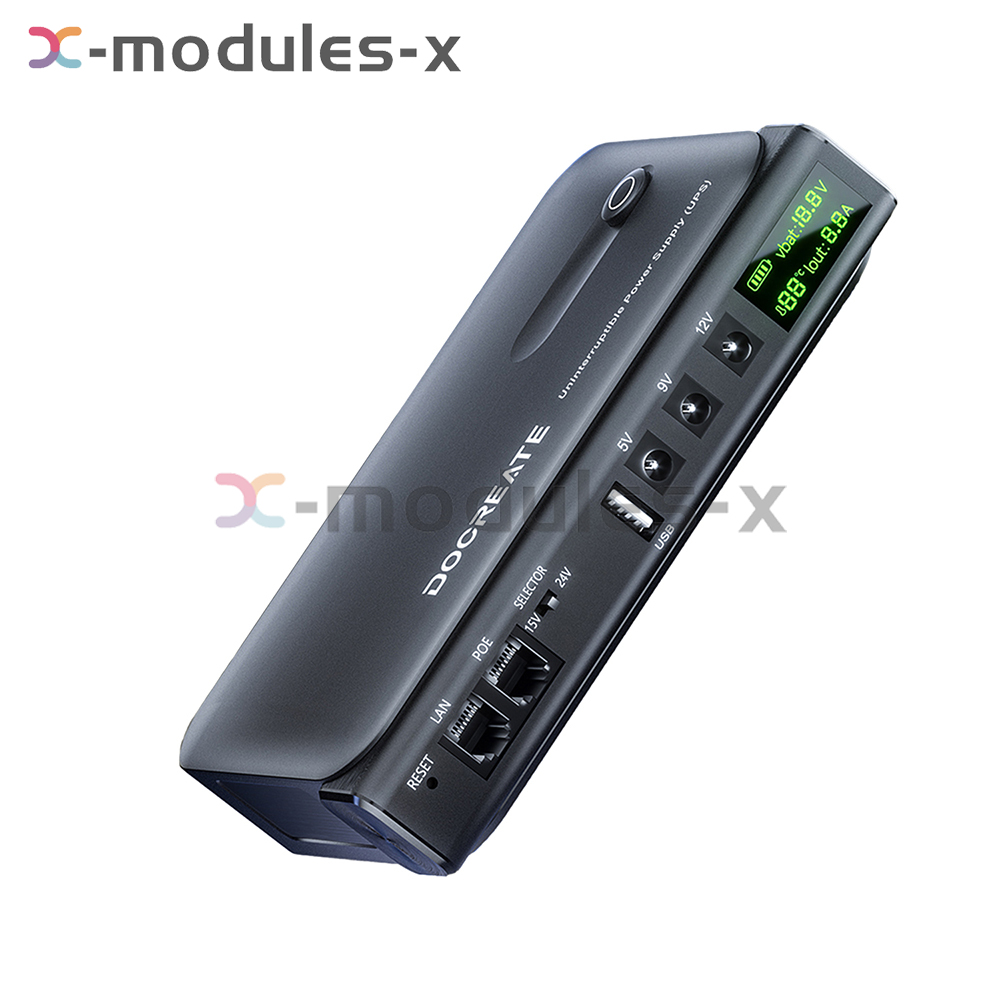

6.Multiple output voltage interfaces: Supports multiple voltage outputs for common dc voltages of 5v, 9v, 12v, and 24v, covering routers, optical switches, and other devices nas、 small hosts, etc.
Parameters:
Product name: digital ups uninterruptible power supply
Input: ac85-265v
Output current: 16.4v/dc 2.5a
Battery model: 18650
Battery capacity:>2000mah*4
Frequency: 50-60hz
Total output power: 36w
Output specifications:
Usb 5v/2a
Dc 5v/2a
Dc 9v/2a
Dc 12v/2a
Lan 15/24v-1a
Poe 15/24v-1a
Working temperature: 0℃~45℃
Humidity: 10% -90% rh
Power supply: Flat 18650 batteries*4 (not included in shipment)

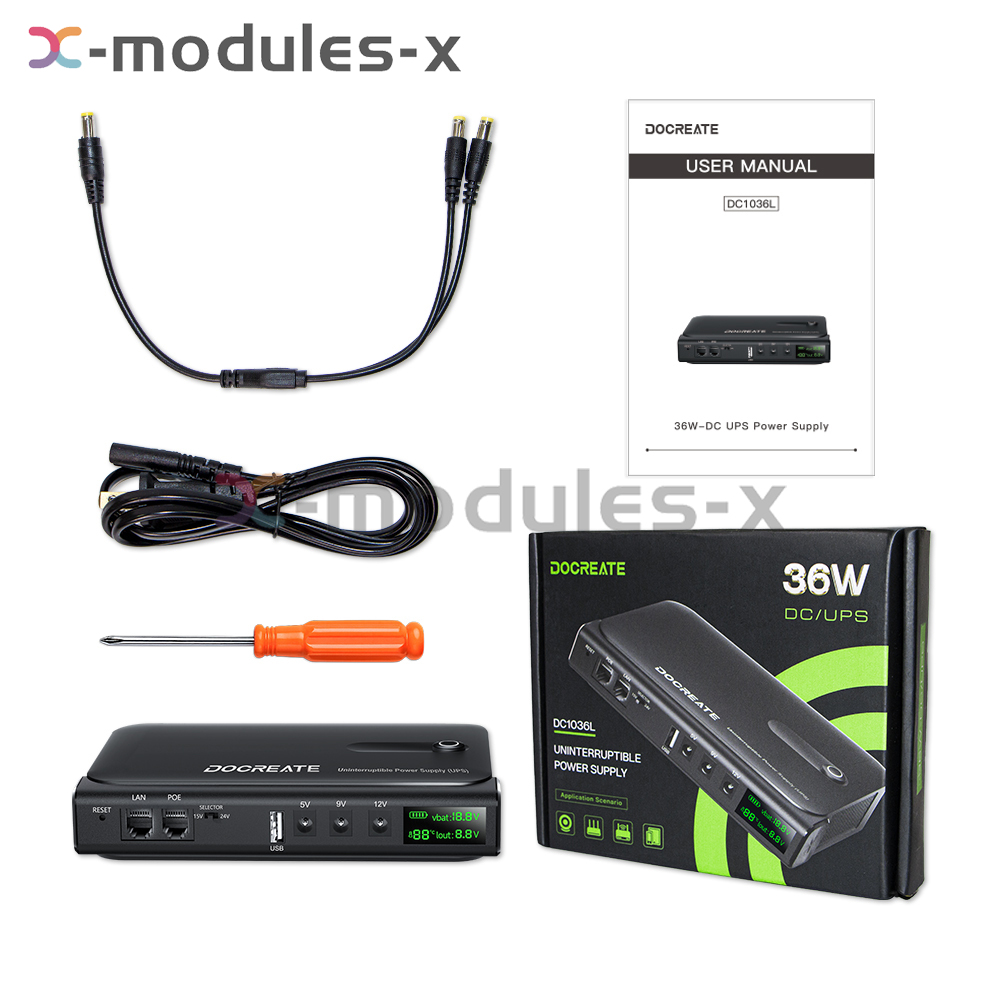

Package include:
Ups uninterruptible power supply * 1
Power cord * 1
One to two line * 1
One to one line * 1
Screwdriver * 1
Chinese and english instruction manual * 1
