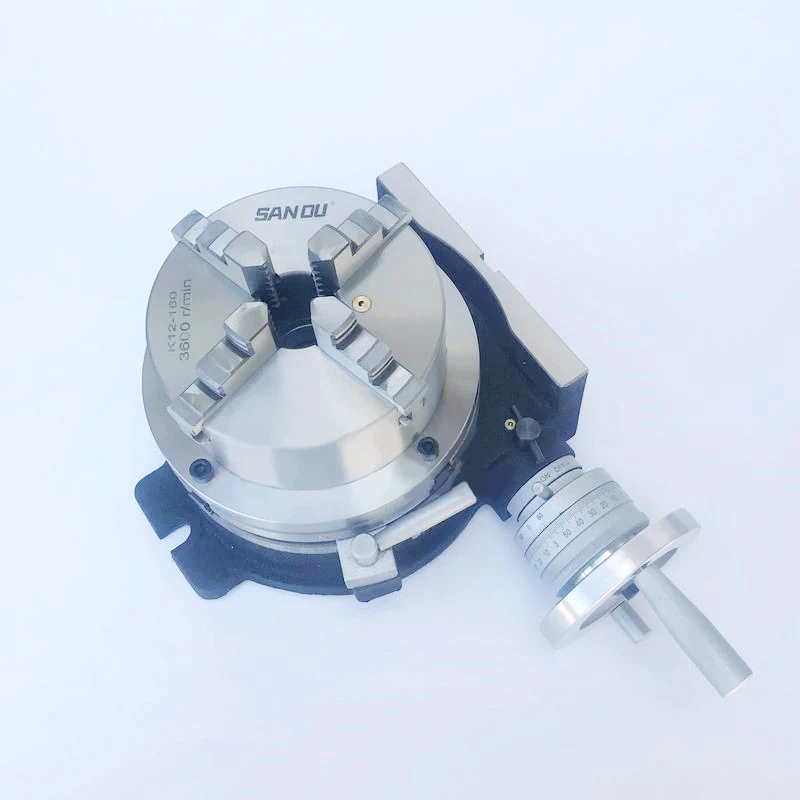

150mm diameter 6" with 125mm 4" For CNC Milling Drilling Grinding Mach

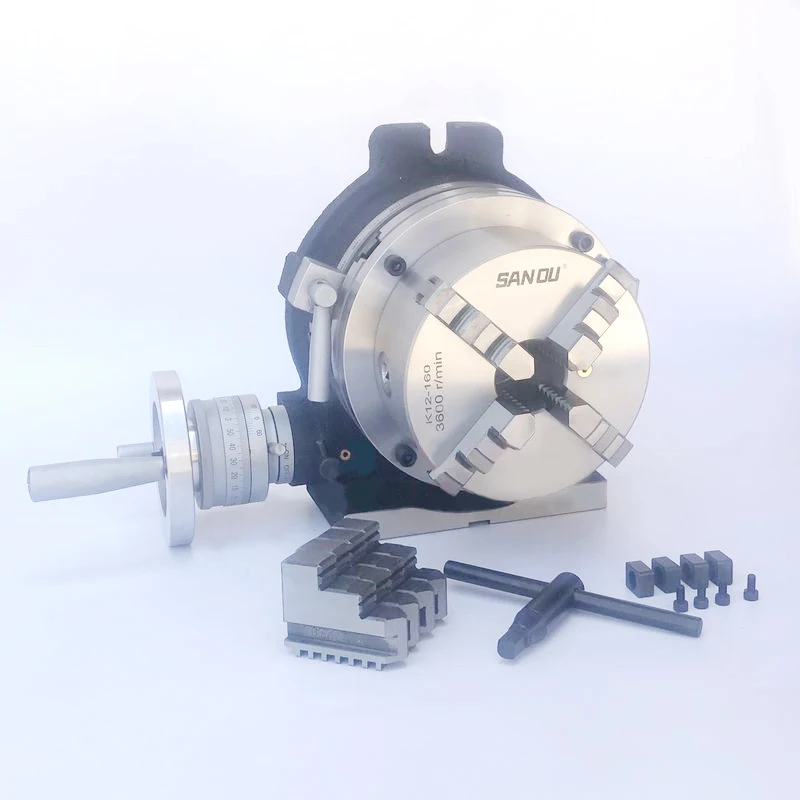

1. Accessories details: indexing plate with flange and chuck set
2. Chuck - a set of claws, a set of anti-claws, a locking wrench, a manual
Features:
Horizontal and horizontal, with high-strength flanges (the chuck does not need to be drilled, affecting the accuracy), using high-precision chucks, high precision.
The indexing heads are all installed. They are shipped to the customer after being corrected by the professional equipment. The customer can use the goods after receiving the goods.

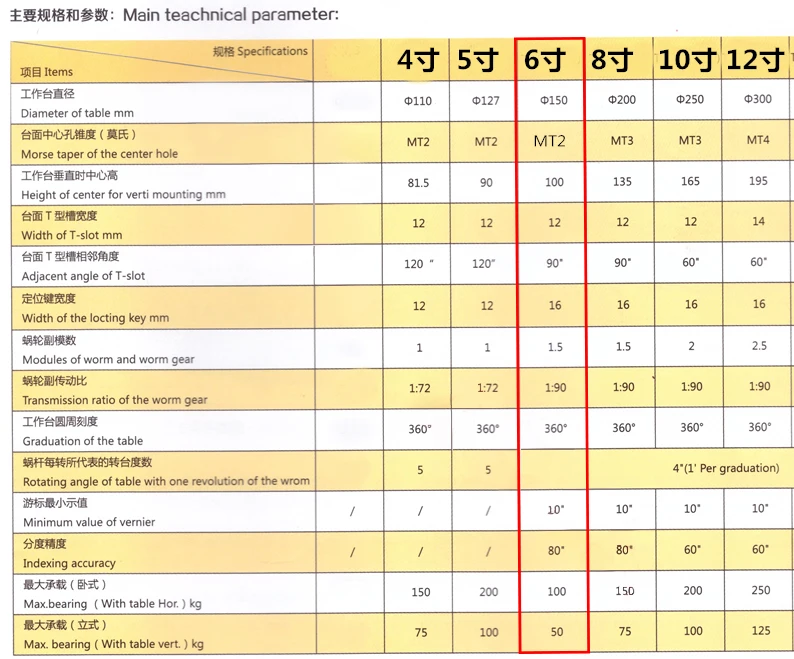

First, the technical description
1. Made of high strength FC30 cast iron
2. Suitable for milling or other special machines for split cutting
3. The new type of spindle locking system is stronger than the traditional double-sided plate type.
4. Can do 360 degree overturn, the handle turns 4 degrees, the minimum scale is 10 seconds. Accuracy 0.02
5. It can be used horizontally and vertically. Dual-purpose indexing plate.
The size of the indexing plate clamping range is as follows:
6 inch center height 100, the chuck can hold up to 120mm, the bottom to the chuck claw height is 180MM
Maintenance matters:
Regularly injecting lubricating oil such as butter, etc. in the place where the indexing head has a grease mouth.
Notice:
We are not responsible for any custom duty or import tax, it is buyer’s responsibility
.
