Features
1. Built-in diverse operating modes covering multiple standard motion profiles
2. Power-off memory function ensures settings remain intact after power loss, resuming operation upon restart
3. Supports standalone operation or seamless integration with other systems to meet varied application needs

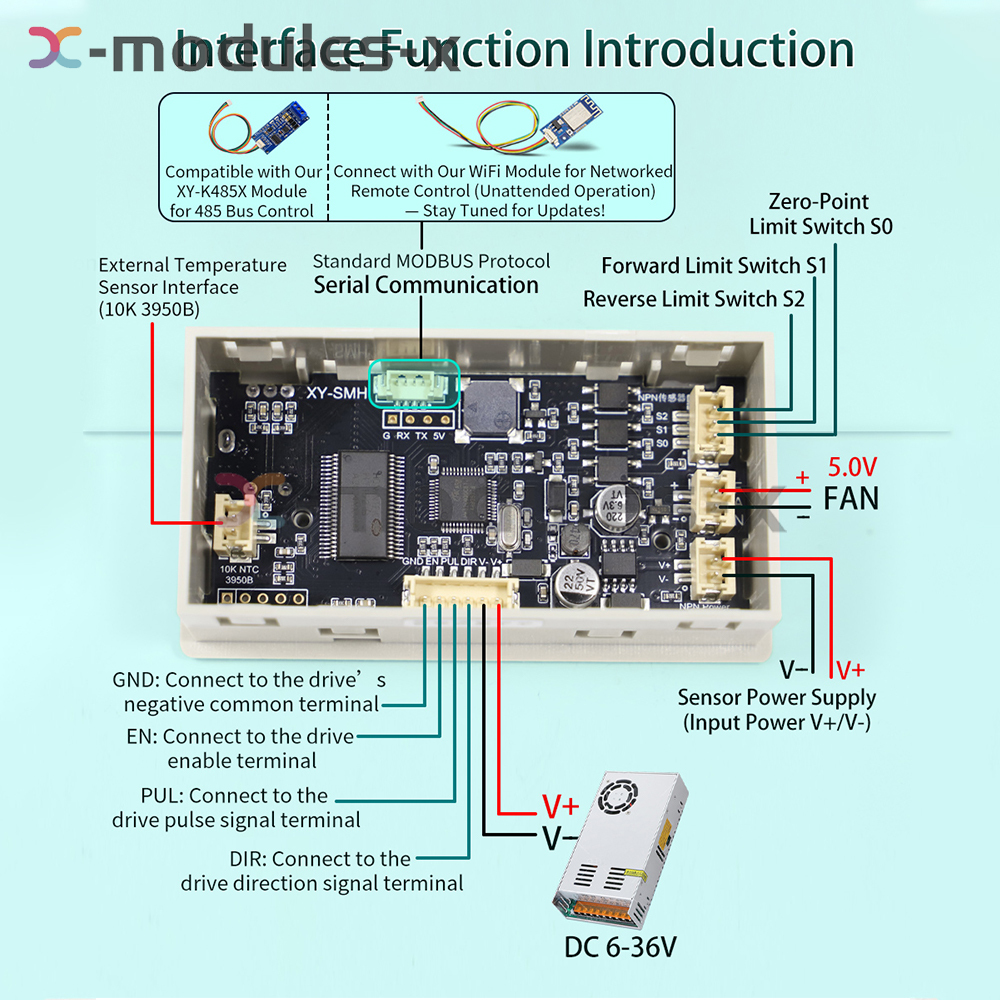

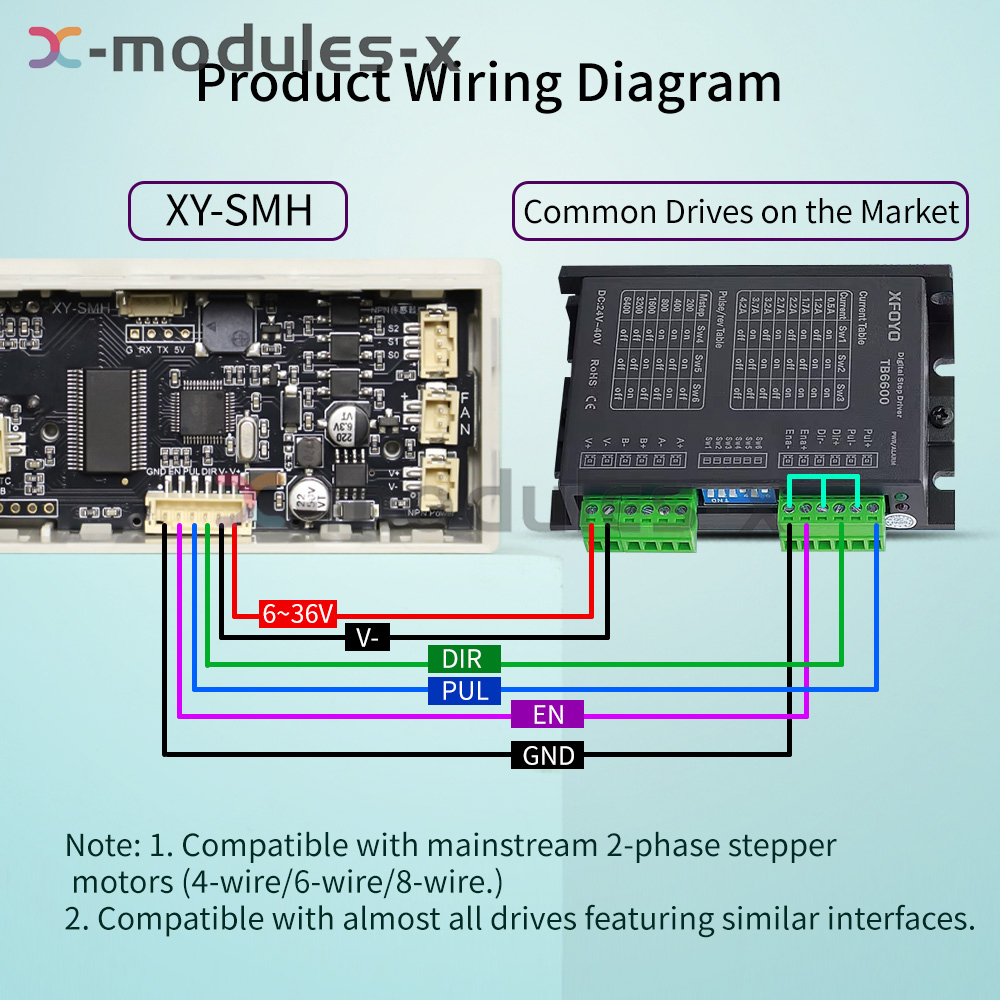

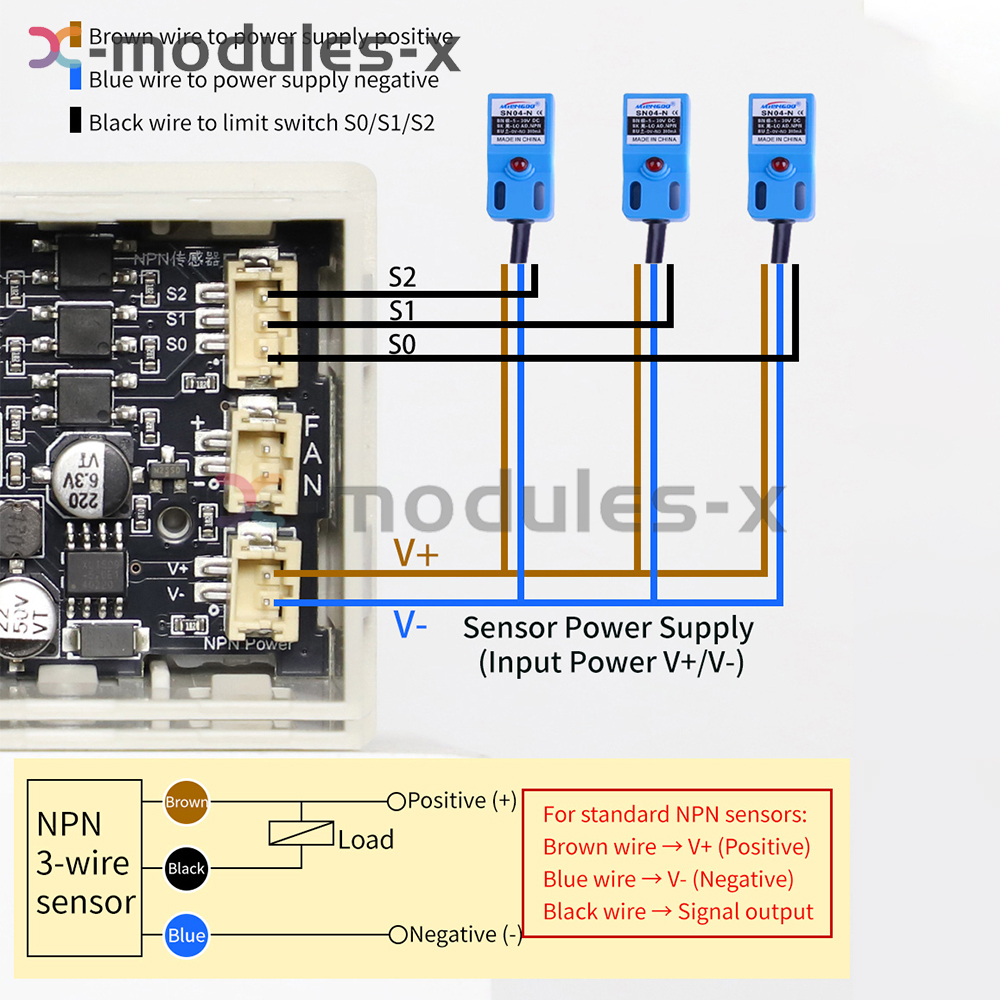

4. Provides expandable control interfaces for easy connection to external sensors or control systems
5. Specifically designed for two-phase four-wire stepper motors, suitable for general industrial control scenarios

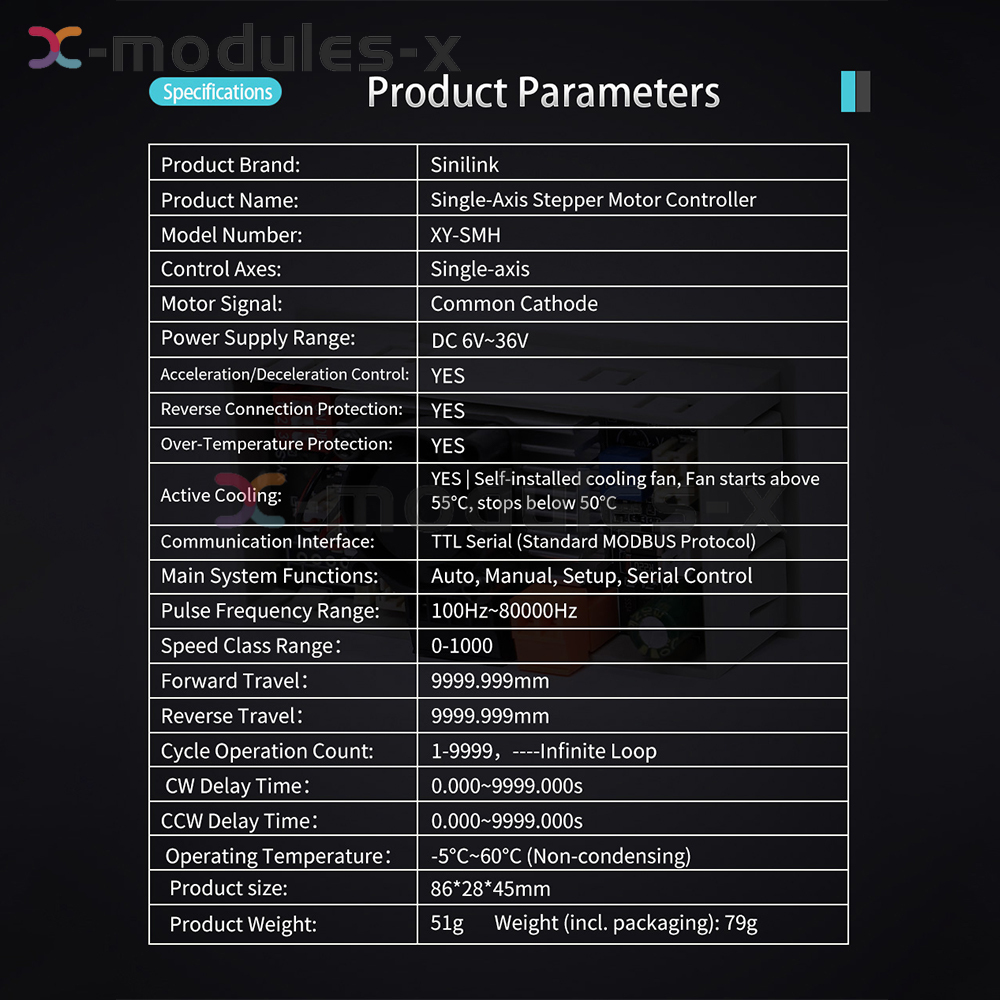

Parameter

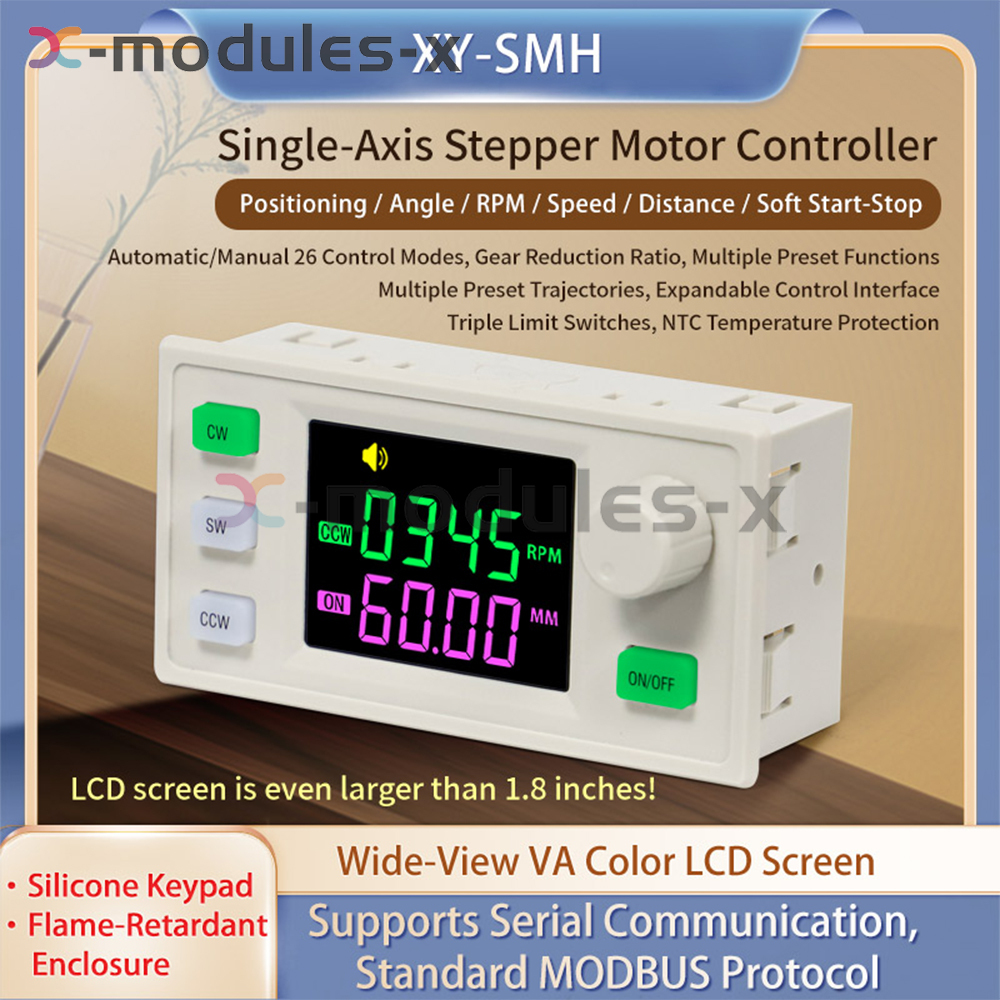

Product Name: Single-Axis Stepper Motor Controller
Model Number: XY-SMH
Number of Controlled Axes: Single-axis
Motor Signal: Common Cathode
Power Supply Range: Universal DC 6-36V
Acceleration/Deceleration Control: Yes
Input Reverse Polarity Protection: Yes
Over-Temperature Protection: Yes
Active Cooling: Yes (Supports external fan installation; fan activates above 55°C and deactivates below 50°C)
Communication Interface: Serial TTL (Standard MODBUS Protocol)

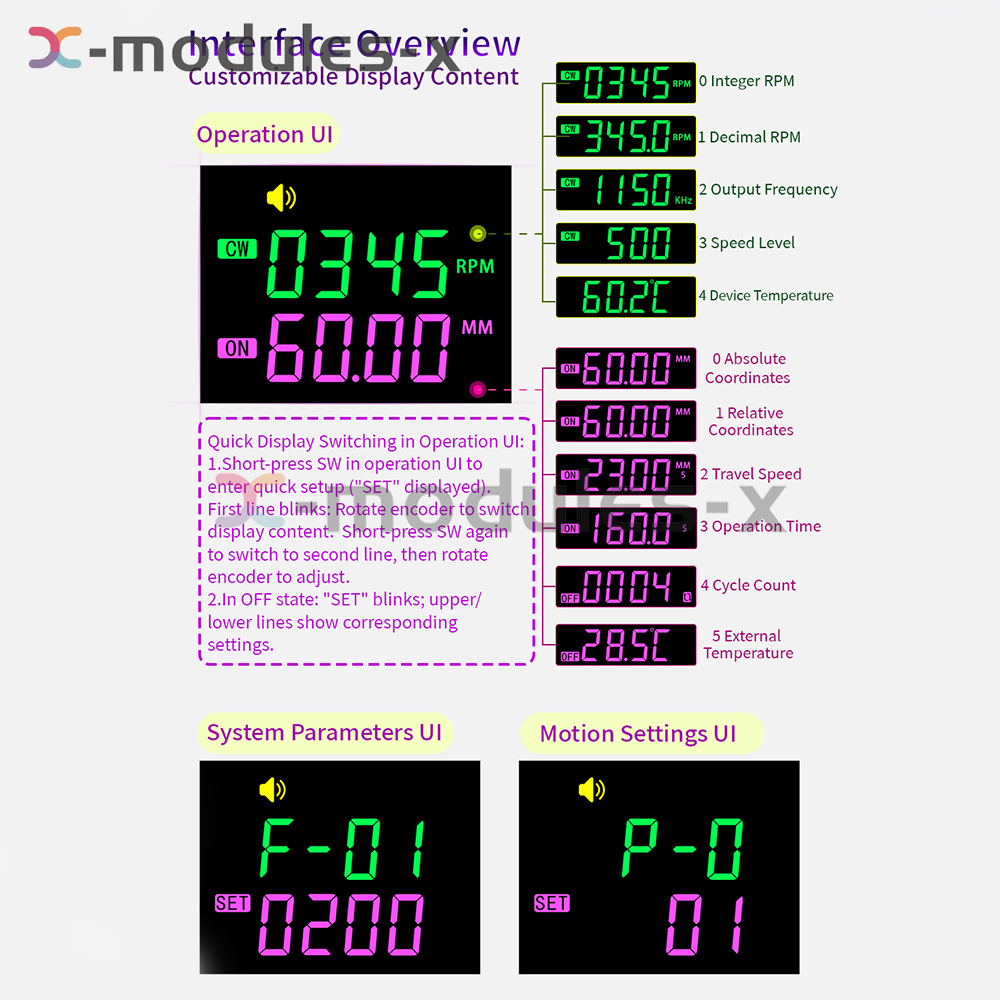

Primary System Functions: Auto, Manual, Setup, Serial Control
Pulse Frequency Range: 100Hz~80000Hz
Speed Level Range: 0-1000

Package include
Motor Controller*1
Flat Cable*1
