ESP32-C3 0.42-inch OLED WIFI Bluetooth Development Board Type-C 4M SPI Flash DIY
Description
Overview

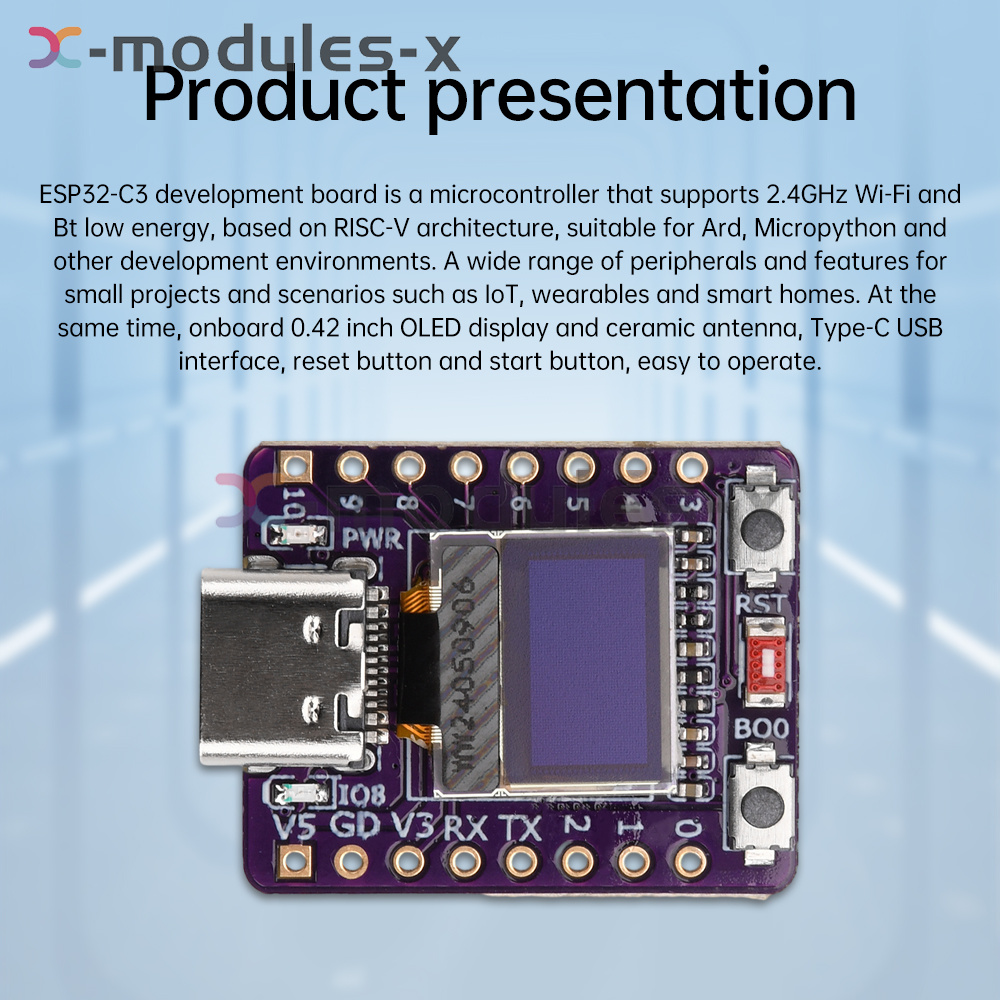

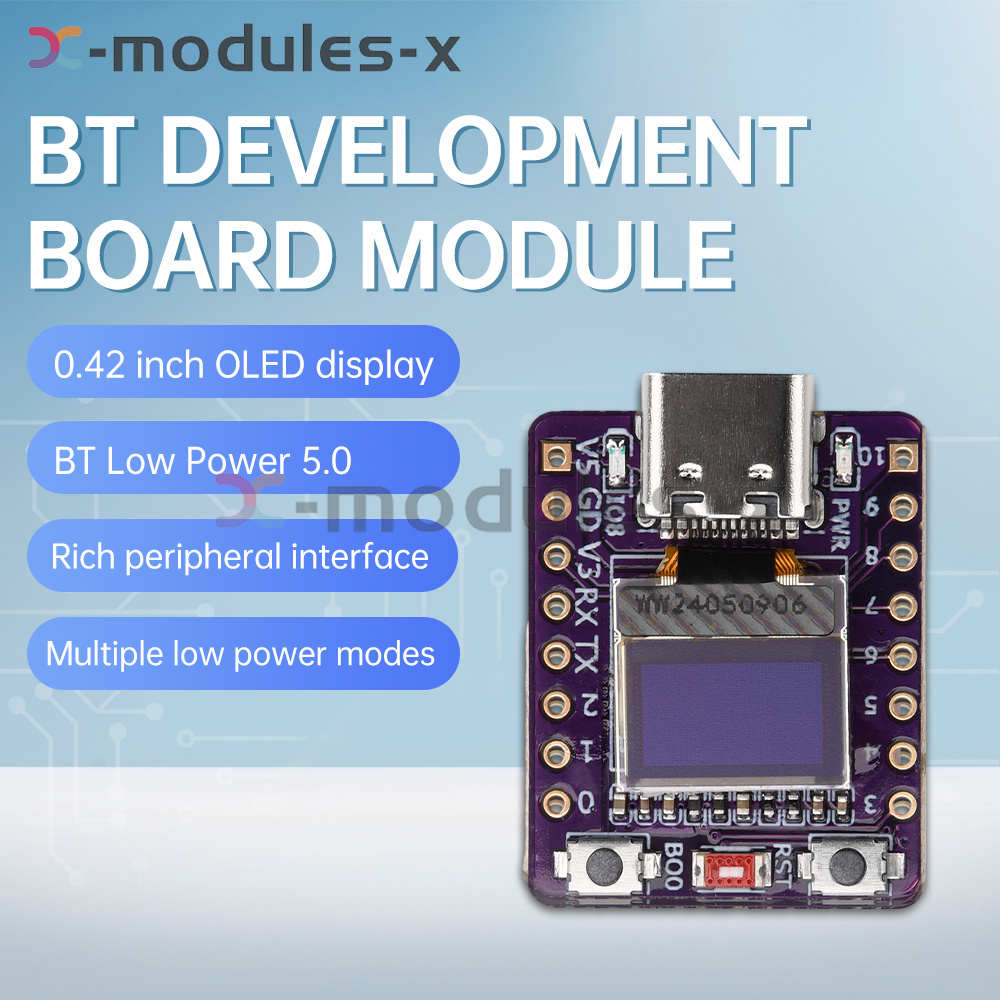

ESP32-C3 development board is a micro controller, supports 2.4 GHz Wi-Fi and Bluetooth low energy consumption, based on RISC-V architecture, suitable for Ard, Micropython and other development environments. With rich peripherals and functions, it is suitable for small projects and scenarios such as IoT, wearable devices and smart home. Meanwhile, the onboard 0.42-inch OLED display and ceramic antenna, Type-C USB interface, reset button and start button make the operation easy and fast.

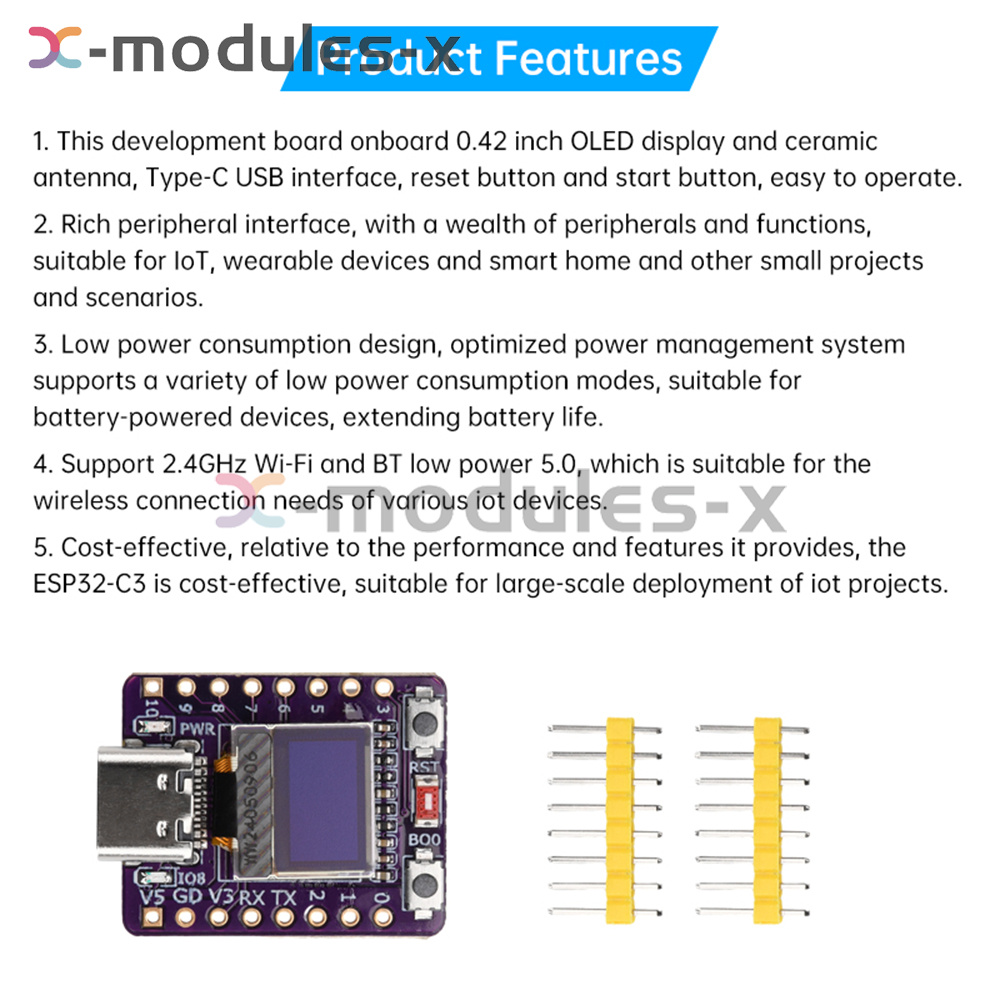

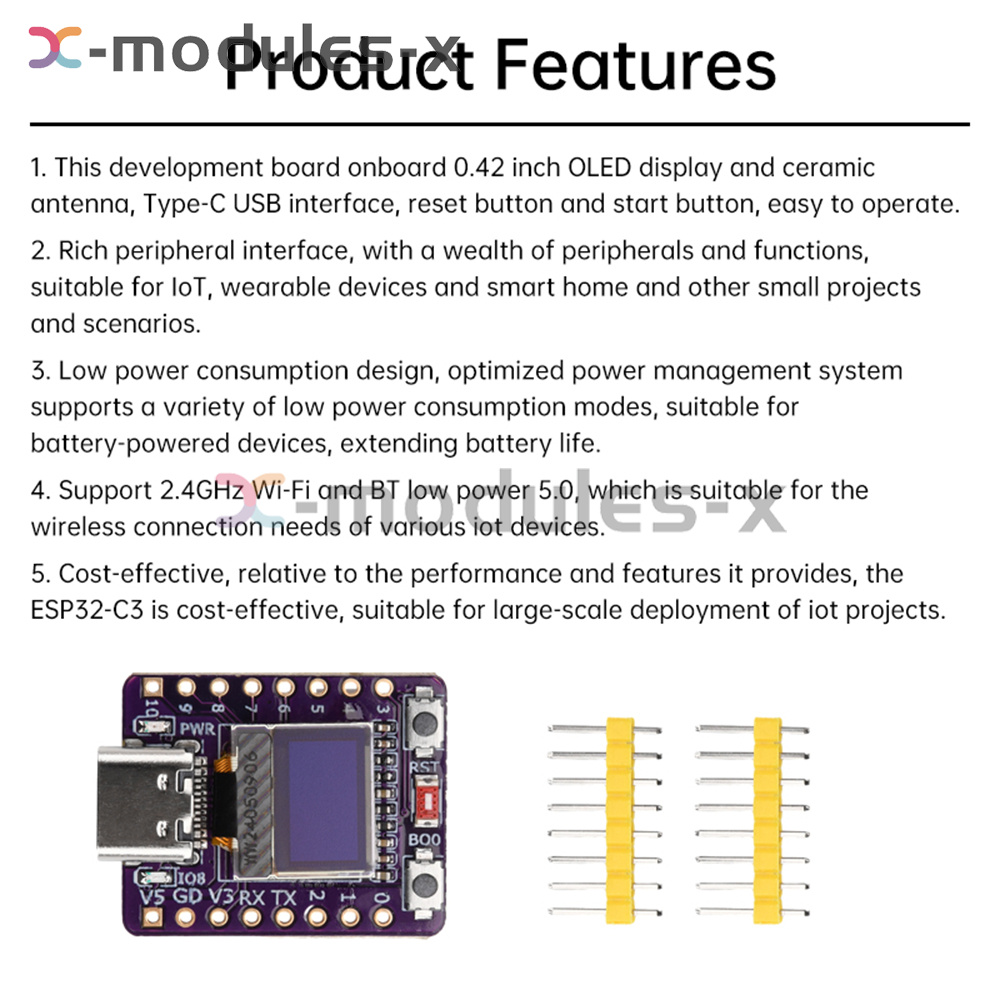

Features
1.This development board has a 0.42-inch OLED display and ceramic antenna on board, Type-C USB interface, reset button and start button, which is easy and fast to operate.
2.Rich peripheral interfaces with a wealth of peripherals and functions for small projects and scenarios such as IoT, wearable devices and smart home.
3. Low-power design, optimized power management system supports multiple low-power modes, suitable for battery-powered devices to extend battery life.
4. Supports 2.4GHz Wi-Fi and Bluetooth Low Power 5.0, suitable for all kinds of IoT devices with wireless connection needs.
5. Cost-effective, relative to the performance and features it offers, the ESP32-C3 is significantly cost-effective and suitable for large-scale deployment of IoT projects.
1.This development board has a 0.42-inch OLED display and ceramic antenna on board, Type-C USB interface, reset button and start button, which is easy and fast to operate.
2.Rich peripheral interfaces with a wealth of peripherals and functions for small projects and scenarios such as IoT, wearable devices and smart home.
3. Low-power design, optimized power management system supports multiple low-power modes, suitable for battery-powered devices to extend battery life.
4. Supports 2.4GHz Wi-Fi and Bluetooth Low Power 5.0, suitable for all kinds of IoT devices with wireless connection needs.
5. Cost-effective, relative to the performance and features it offers, the ESP32-C3 is significantly cost-effective and suitable for large-scale deployment of IoT projects.

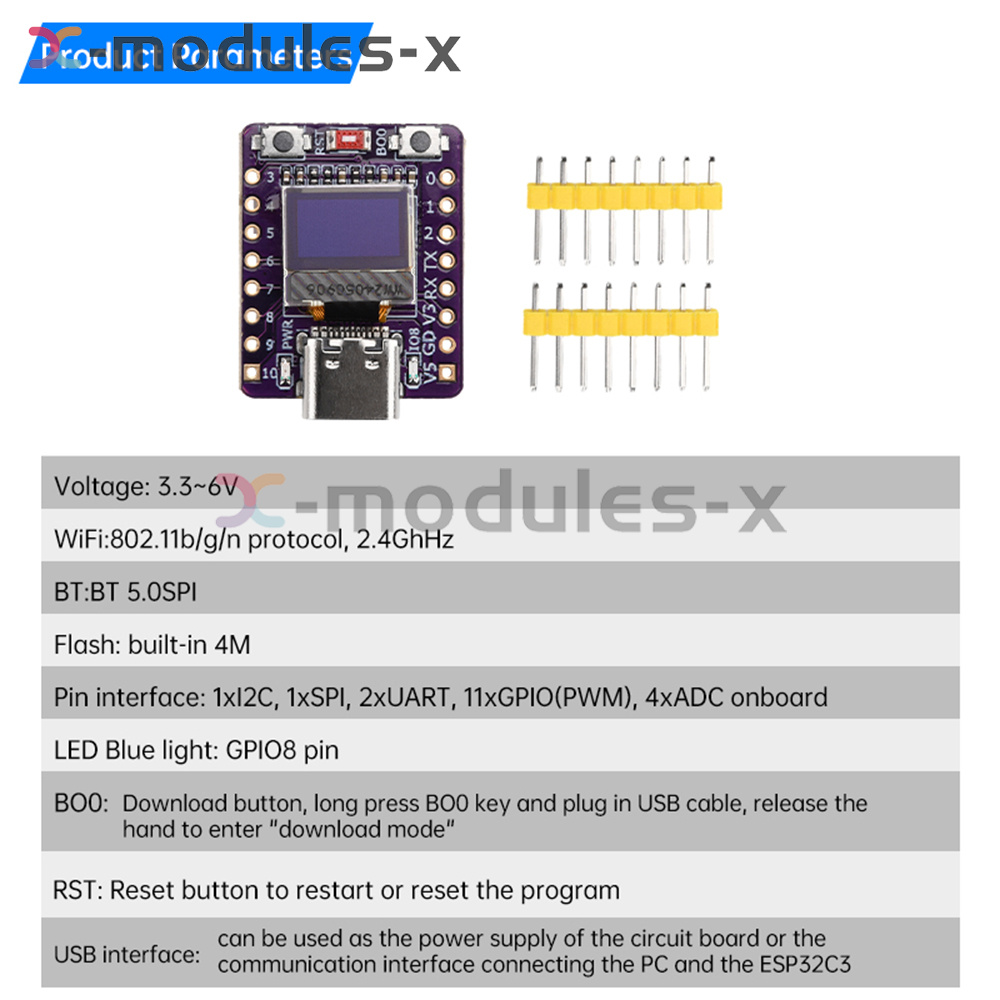

Specification
Voltage:3.3~6V
WiFi:802.11b/g/n protocol, 2.4GhHz
Bluetooth:BT 5.0
SPI Flash: Built-in 4M

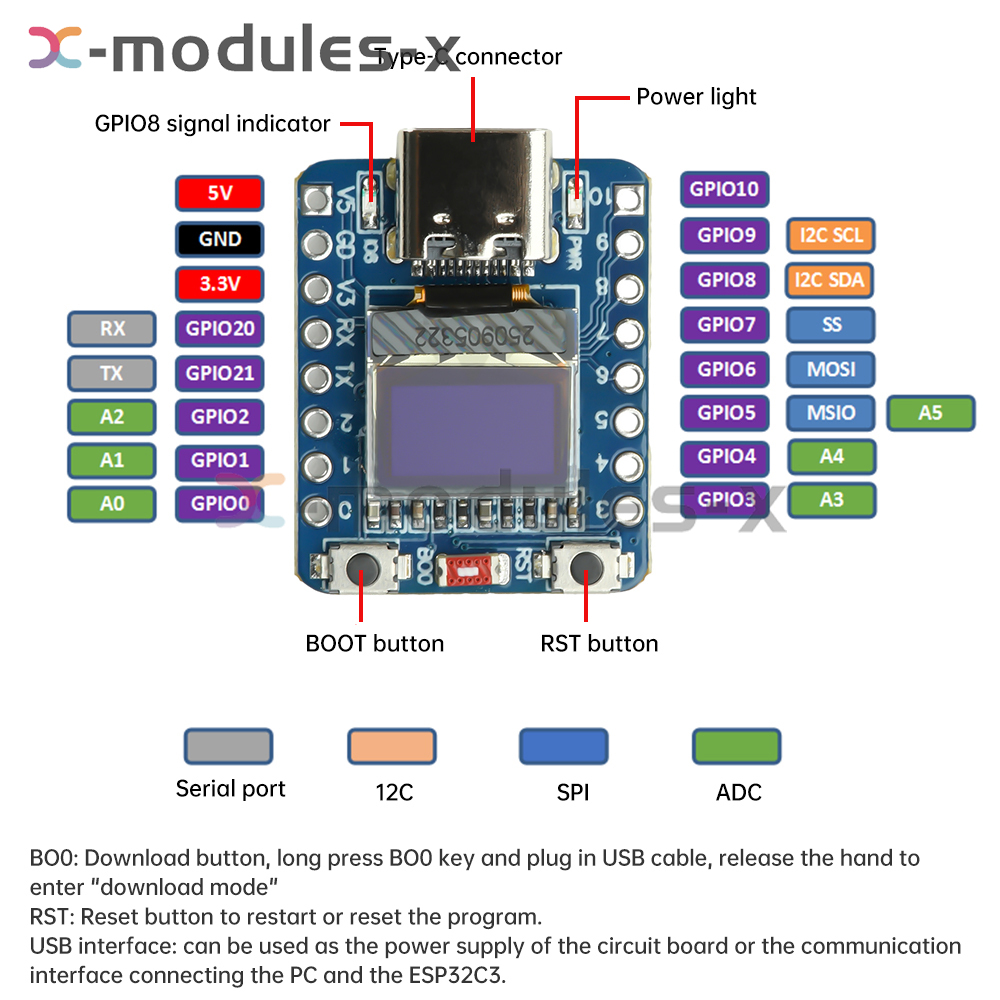

Pin Interface: 1xI2C, 1xSPI, 2xUART, 11xGPIO(PWM), 4xADC
On-board LED blue light: GPIO8 pin
BO0: download button, long press the BO0 key and then plug in the USB cable, release the hand can enter the “download mode”.
RST: Reset button, program run restart or reset.
USB interface: can be used as the power supply of the board or the communication interface between PC and ESP32C3.
Size: 24.8mm*20.45mm
Voltage:3.3~6V
WiFi:802.11b/g/n protocol, 2.4GhHz
Bluetooth:BT 5.0
SPI Flash: Built-in 4M
Pin Interface: 1xI2C, 1xSPI, 2xUART, 11xGPIO(PWM), 4xADC
On-board LED blue light: GPIO8 pin
BO0: download button, long press the BO0 key and then plug in the USB cable, release the hand can enter the “download mode”.
RST: Reset button, program run restart or reset.
USB interface: can be used as the power supply of the board or the communication interface between PC and ESP32C3.
Size: 24.8mm*20.45mm

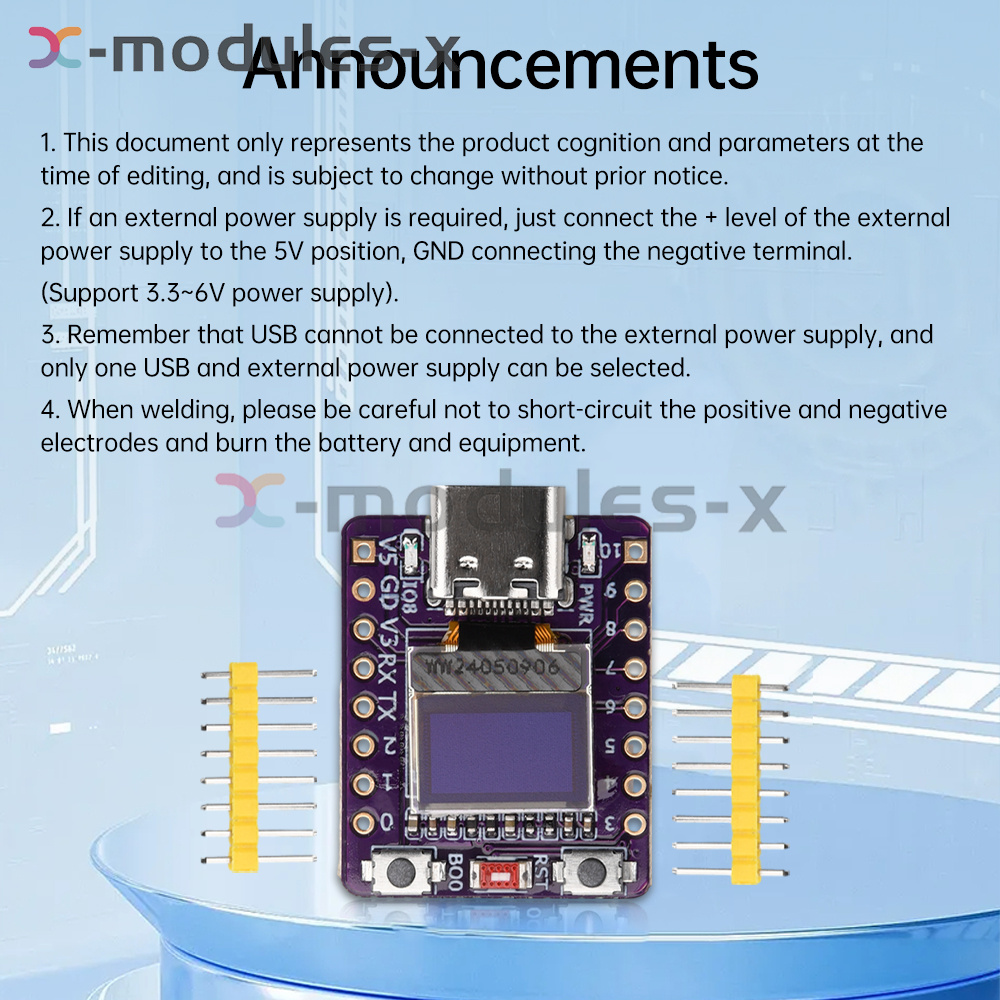

Note
1. This document only represents the product knowledge and parameters of the editor at the time, and any later changes without notice.
2. If you need external power supply only need to connect the external power supply + level to the position of 5V, GND to the negative pole. (Support 3.3~6V power supply).
3. Remember to connect the external power supply can not be connected to USB, USB and external power supply can only choose one.
4.Please be careful not to short-circuit the positive and negative poles and burn the battery and equipment when welding.
1. This document only represents the product knowledge and parameters of the editor at the time, and any later changes without notice.
2. If you need external power supply only need to connect the external power supply + level to the position of 5V, GND to the negative pole. (Support 3.3~6V power supply).
3. Remember to connect the external power supply can not be connected to USB, USB and external power supply can only choose one.
4.Please be careful not to short-circuit the positive and negative poles and burn the battery and equipment when welding.

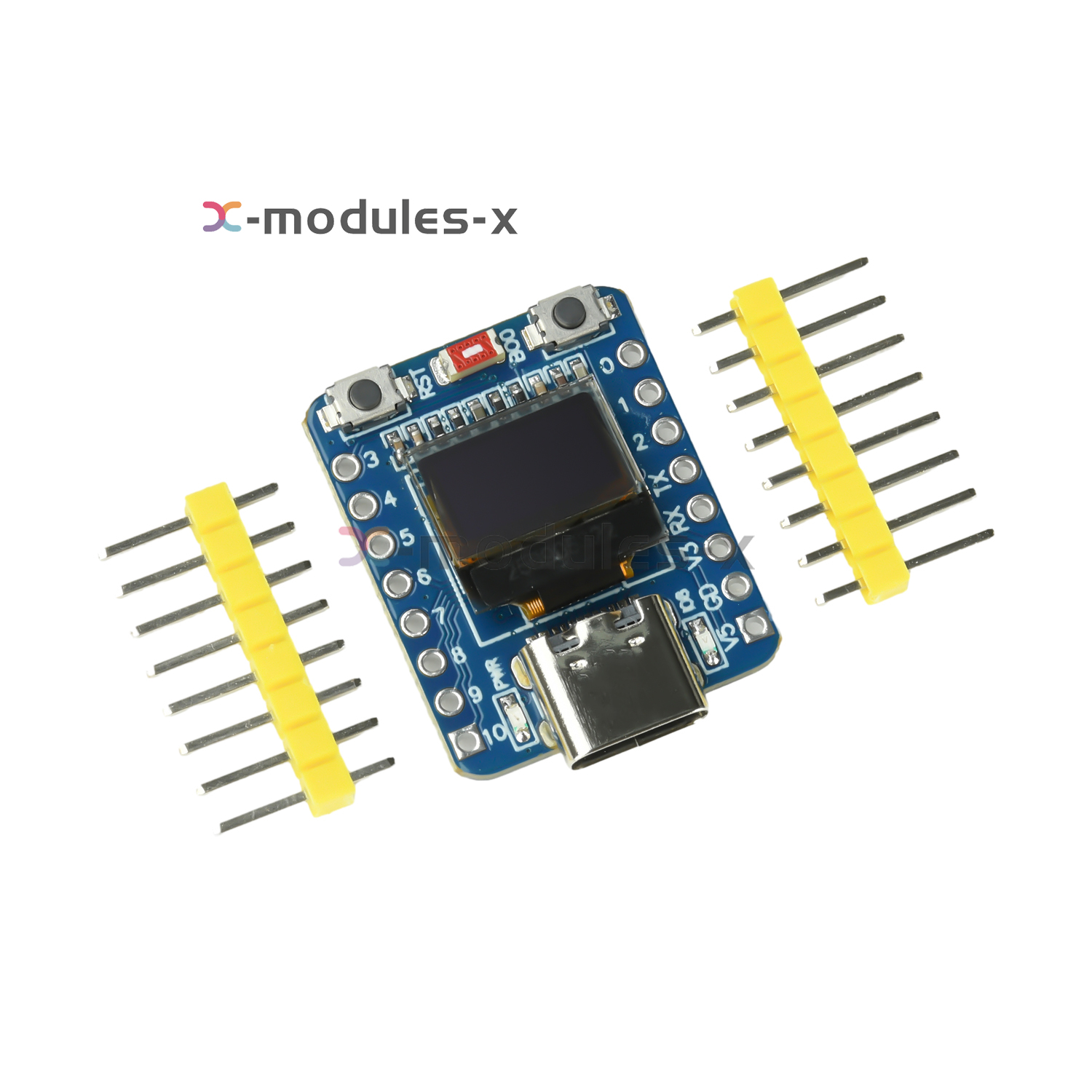

List
1 x Development Board
2 x Pin
1 x Development Board
2 x Pin
