DJI FPV 4K Drone Quadcopter - No Remote Controller/No Battery/No Charger


1 - It's ONLY compatible with DJI FPV Goggles V2/DJI Goggles 2/DJI Goggles Integra/Motion Controller/FPV Controller 2
2 - It's NOT compatible with DJI Goggles 3/DJI Goggles N3/Motion Controller 2/RC Motion 3/FPV Controller 3


DJI FPV 4K Drone Quadcopter
*There are NO remote controller,NO battery,NO charger in the box.*
**There are ONLY FPV aircraft with gimbal camera in the box.**
***The drone S/N code will be recorded by us before shipping.***

Original DJI,in stock.
Tested,working properly.
Please shop with confidence!

In The Box:

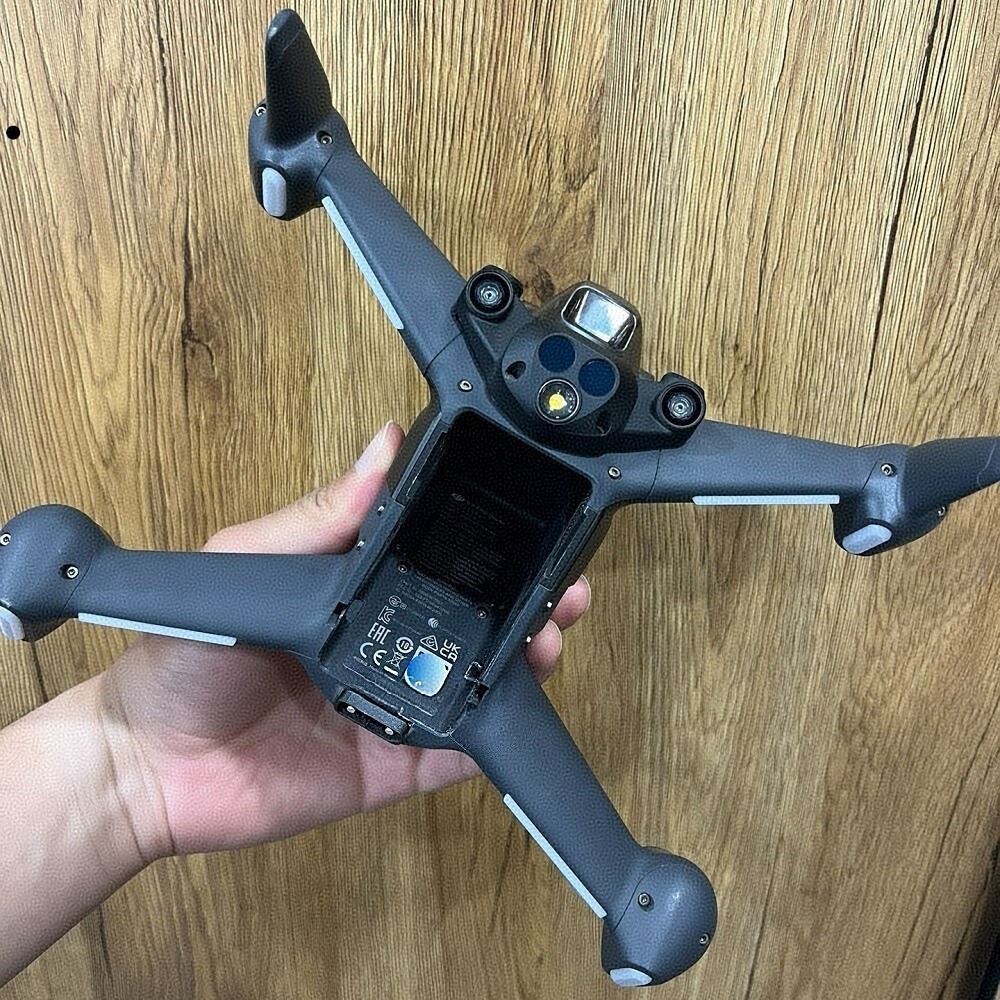

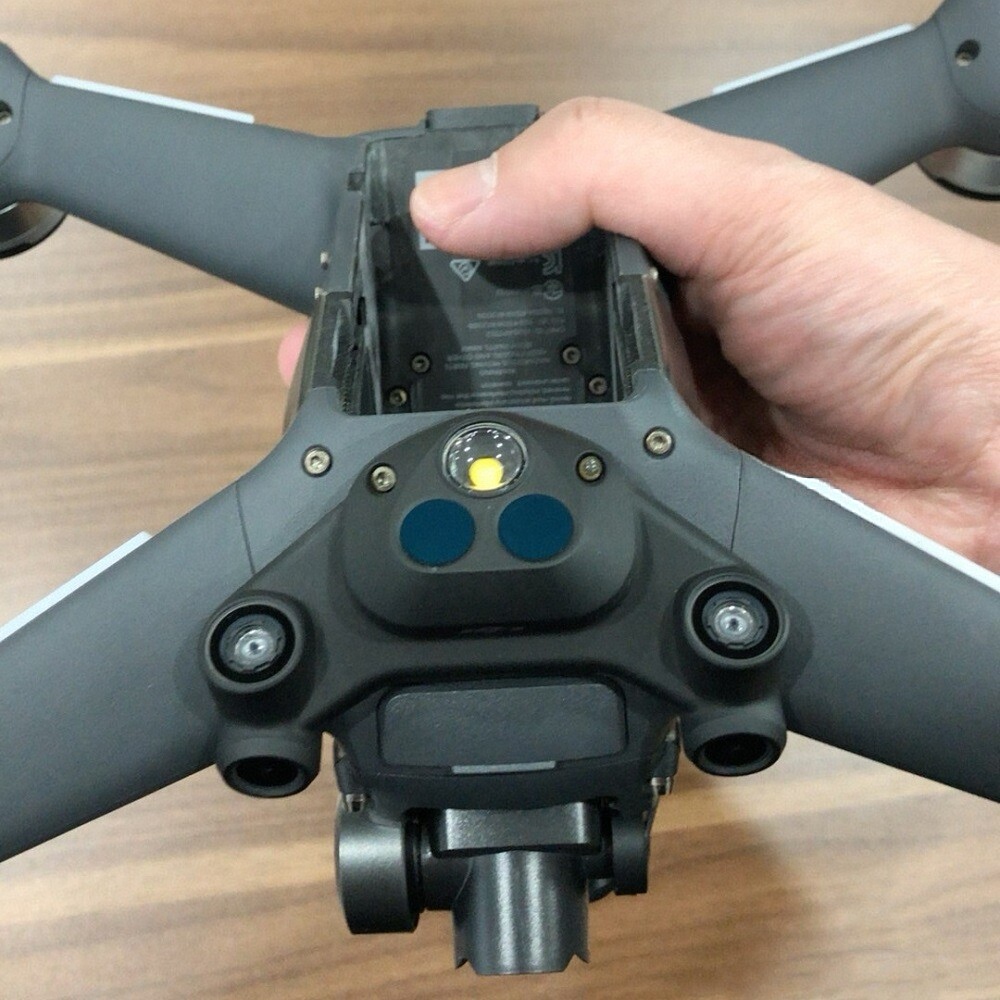

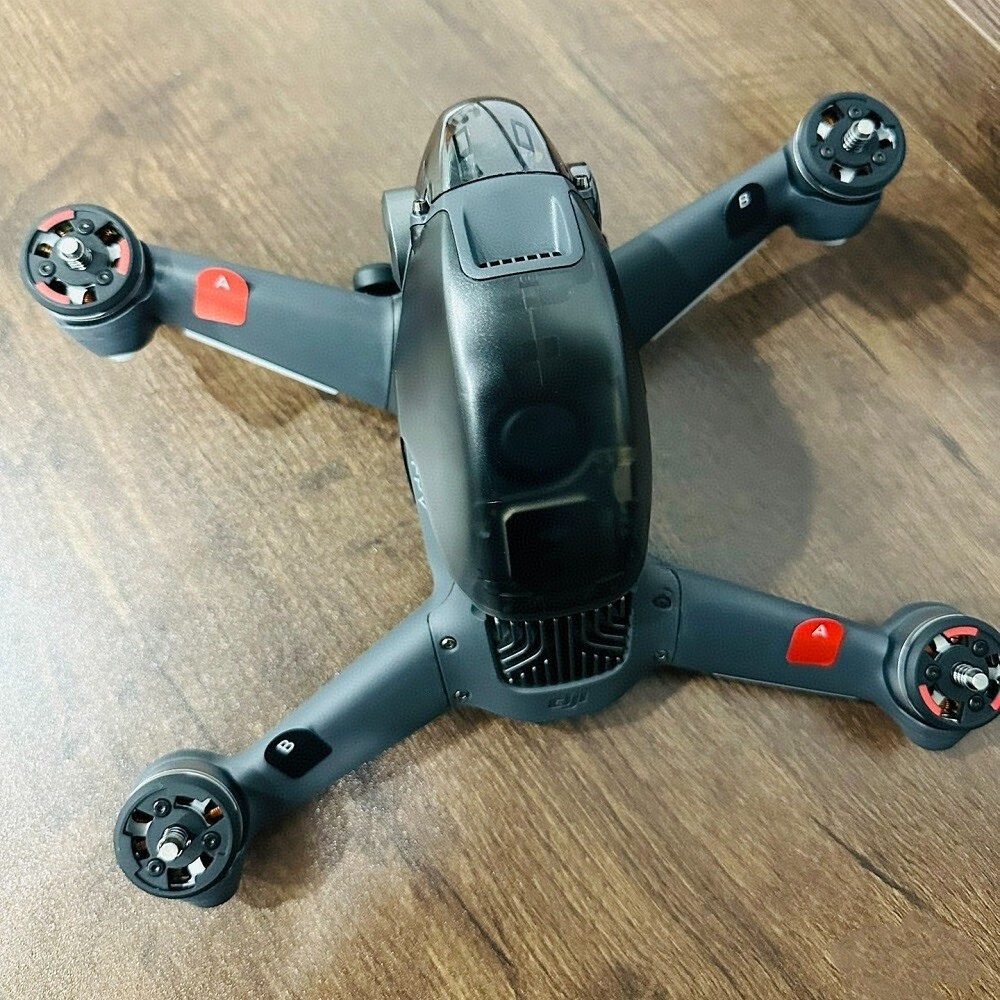

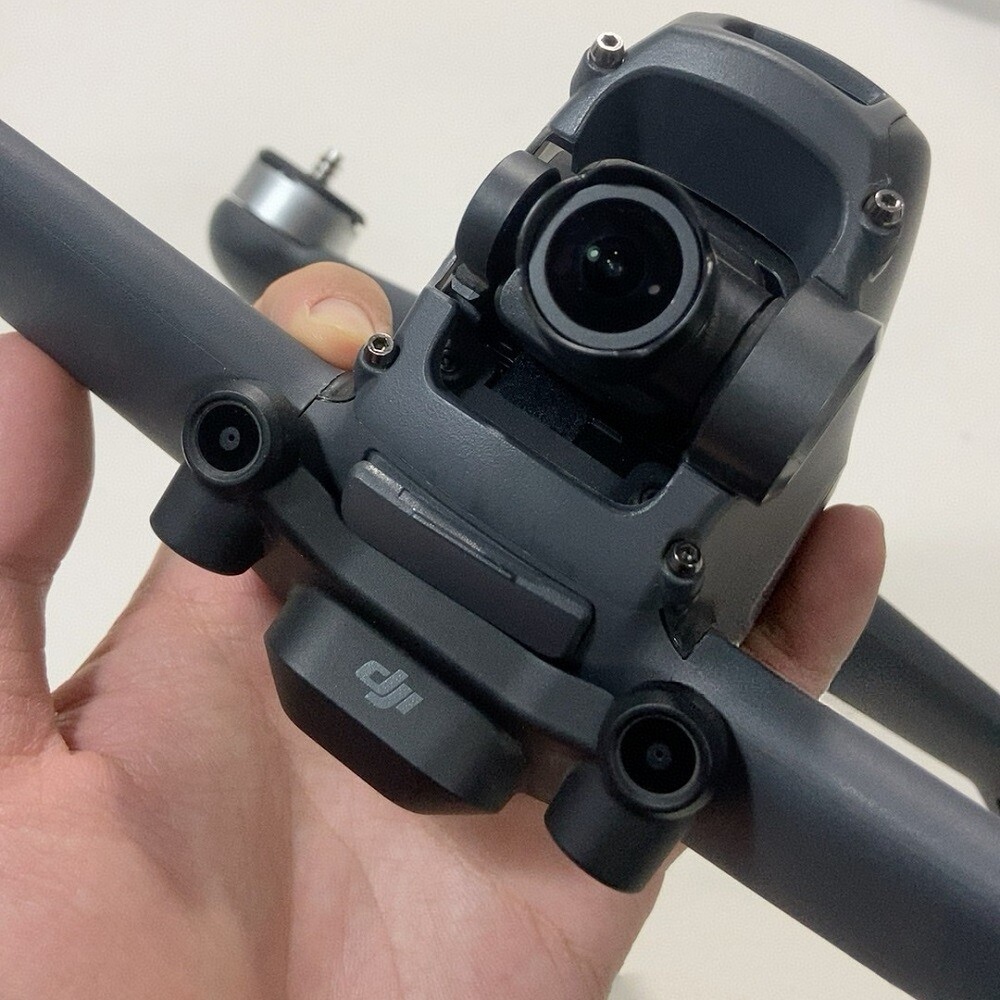

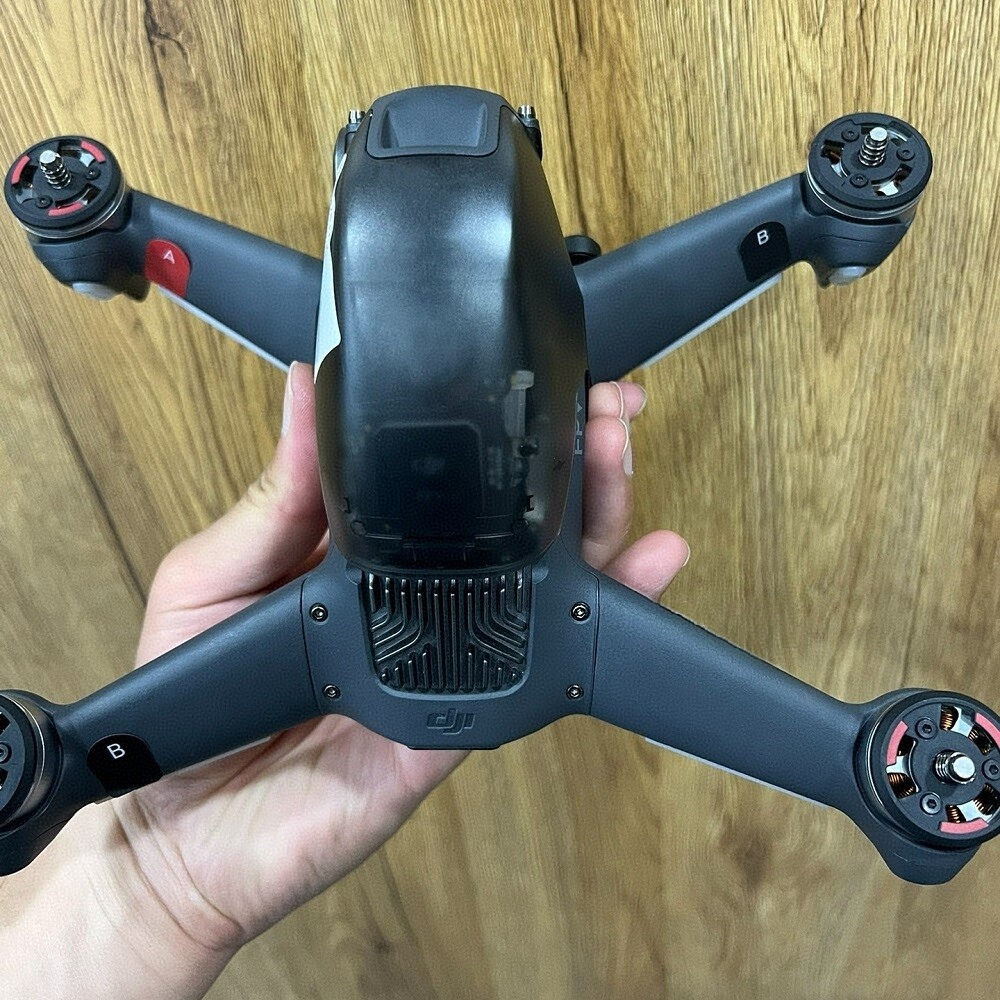

DJI FPV Aircraft x 1

Specifications:

Camera

Sensor
1/2.3-inch CMOS
Effective Pixels: 12 MP

Lens
FOV: 150°
Equivalent Focal Length: 14.66 mm
Aperture: f/2.8
Focus Mode: FF
Focus Range: 0.6 m to ∞

ISO Range:100-12800
Shutter Speed:1/50-1/8000 s
Still Photography Mode:Single Shot
Max Image Size:3840×2160
Photo Format:JPEG

Video Resolution
4K: 3840×2160@50/60fps
FHD: 1920× 1080@50/60/100/120fps

Video Format:MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Max Video Bitrate:120 Mbps
Color Mode:Standard, D-Cinelike
EIS:Supported
Distortion Correction:Supported

Supported File System
exFAT (recommended)
FAT32


Gimbal
Mechanical Range:Tilt: -65° to 70°
Controllable Range:Tilt: -50° to 58°
Stabilization:Single-axis (tilt), electronic roll axis
Max Control Speed:60°/s
Angular Vibration Range:±0.01° (Normal mode)
Electronic Roll Axis:Supported (can stabilize footage when the aircraft is tilted at up to 10°)


Aircraft
Takeoff Weight:Approx. 795 g

Dimensions
255×312×127 mm (with propellers)
178×232×127 mm (without propellers)

Diagonal Distance:245 mm

Max Ascent Speed
M mode: No limit
S mode: 15 m/s
N mode: 8 m/s

Max Descent Speed
M mode: No limit
S mode: 10 m/s
N mode: 7 m/s

Max Horizontal Speed
N mode: 15 m/s
S mode: 27 m/s
M mode: 39 m/s (27 m/s in Mainland China)

Max Horizontal Acceleration:0-100 kph: 2 s (in windless conditions while flying in M mode)
Max Flight Altitude:6000 m
Max Flight Time:Approx. 20 mins (measured while flying at 40 kph in windless conditions)
Max Hovering Time:Approx. 16 mins (measured when flying in windless conditions)
Max Flight Distance:16.8 km (measured in windless conditions)
Max Wind Speed Resistance:Level 6
Operating Temperature:-10° to 40° C (14° to 104° F)

Transmitter Power (EIRP)
2.400-2.4835 GHz
FCC: ≤ 31.5dBm
CE: ≤ 20 dBm
SRRC: ≤ 20 dBm
MIC: ≤ 20 dBm

5.725-5.850 Ghz
FCC: ≤ 31.5 dBm
CE: ≤ 14 dBm
SRRC: ≤ 25.5 dBm

Global Navigation Satellite System:GPS + GLONASS + Galileo

Hovering Accuracy Range
Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GPS positioning)

Horizontal:
±0.3 m (with vision positioning)
±1.5 m (with GPS positioning)

Supported SD Cards:microSD (up to 256 GB)
Internal Storage:N/A


Sensing System

Forward (Binocular)
Precision Measurement Range: 0.5-18 m
Obstacle Sensing: Available in N mode only
FOV: Horizontal 56°, Vertical 71°

Downward (Binocular + ToF)
ToF Effective Measurement Height: 10 m
Precise Hovering Range: 0.5-15 m
Vision Sensor Hovering Range 0.5-30 m

Downward Auxiliary Light:Single LED

Operating Environment
Surfaces with discernible patterns
Diffuse reflectivity > 20% (e.g. walls, trees, people)
Adequate lighting (lux > 15)
