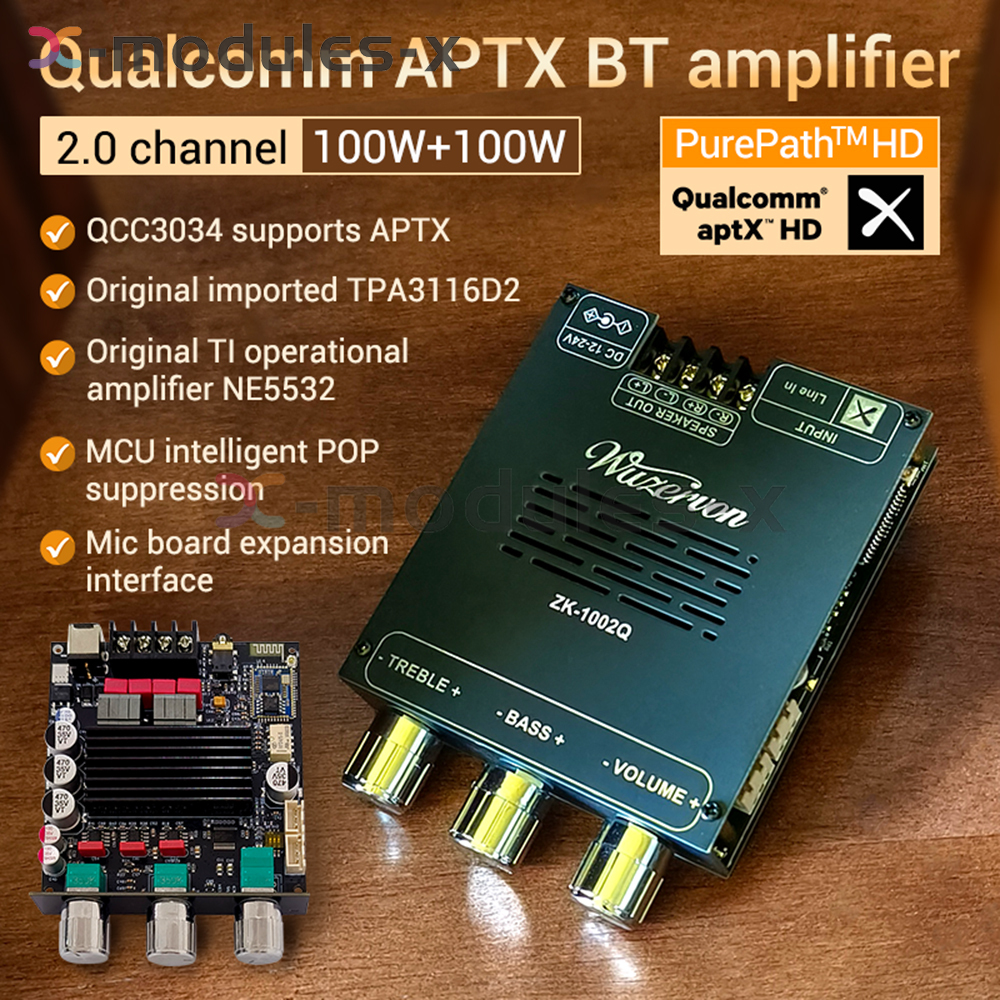

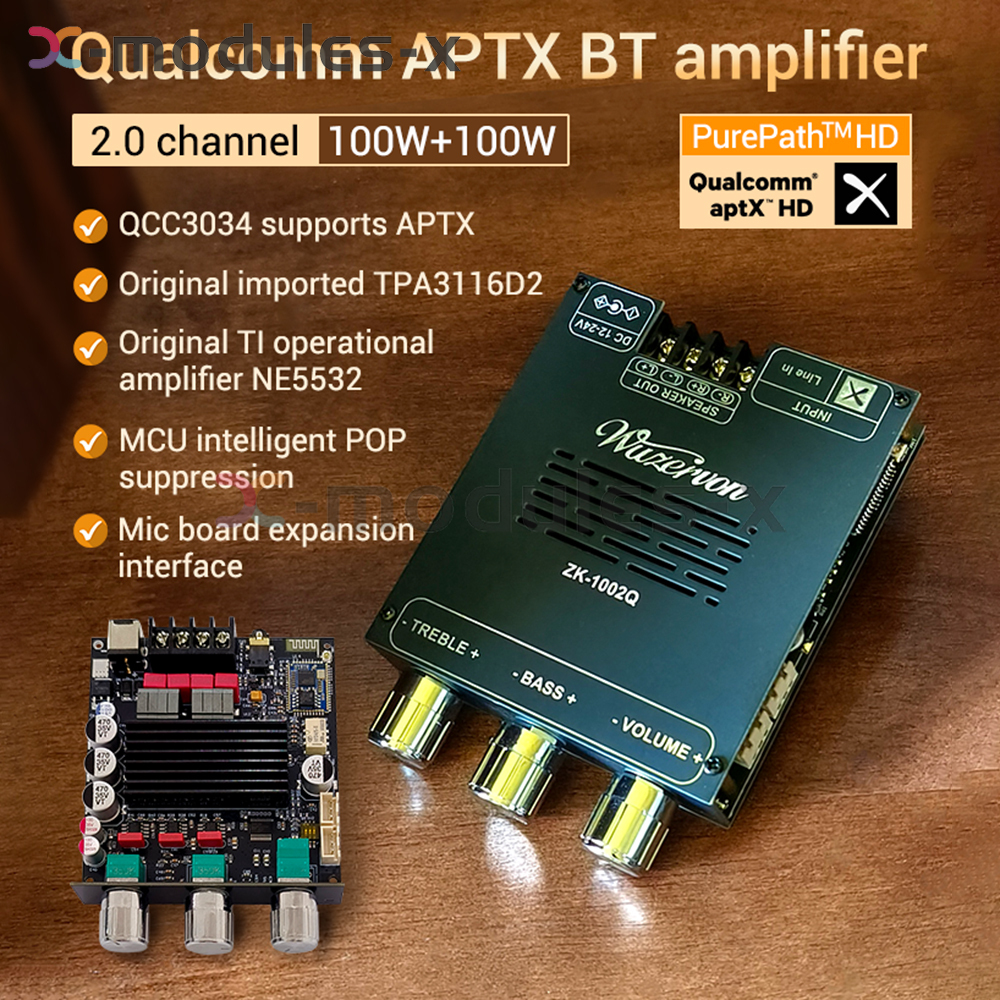

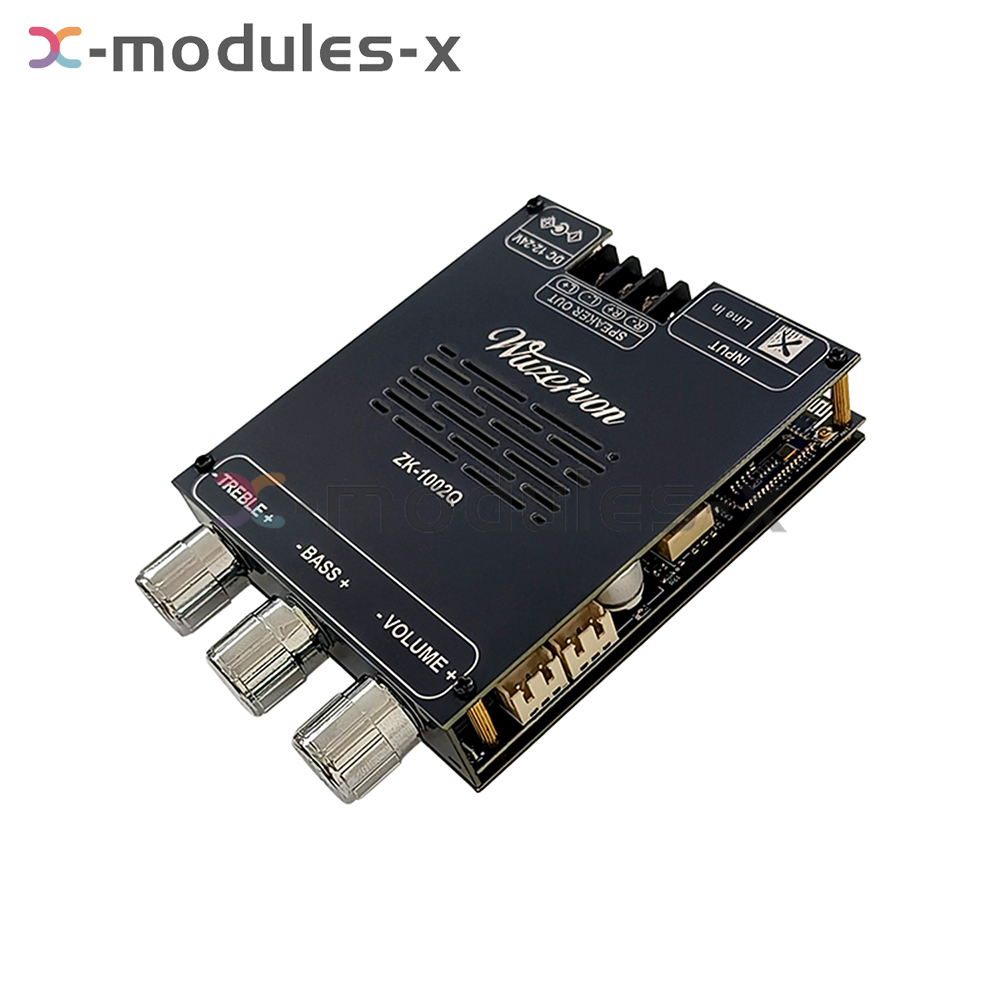

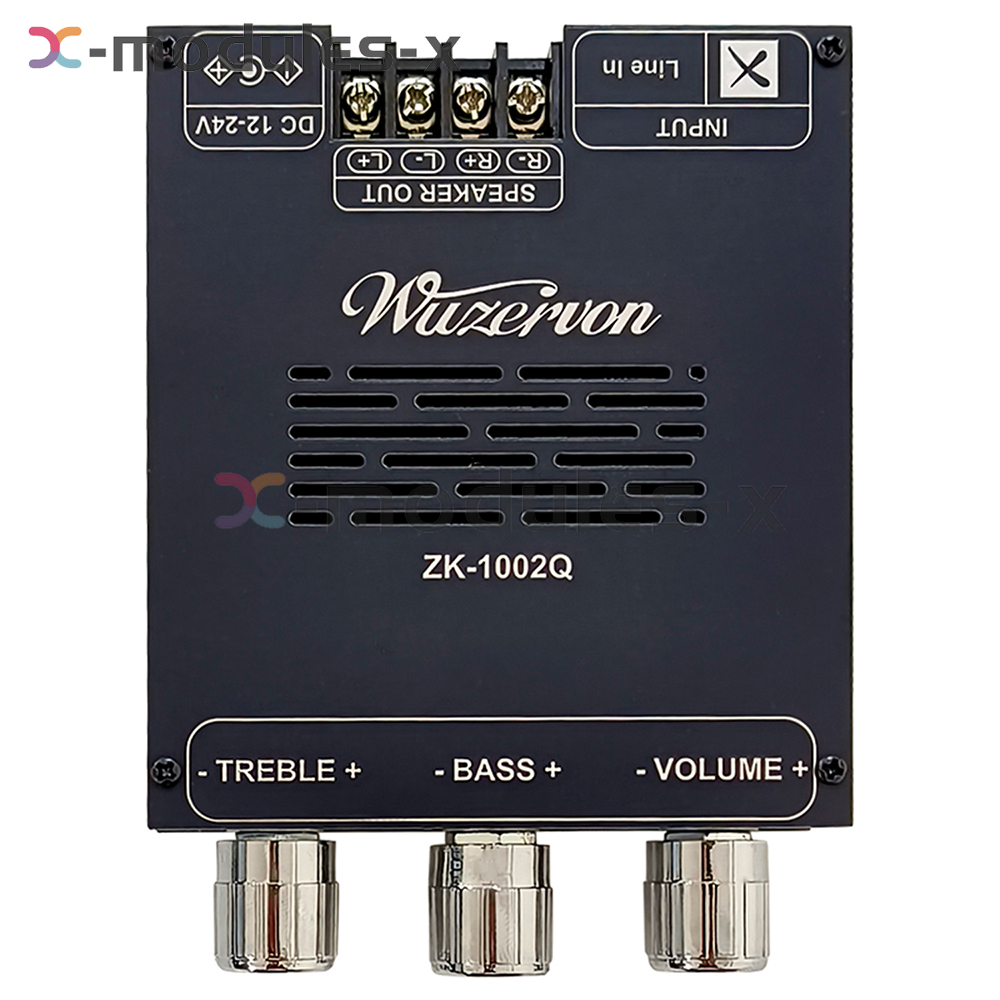

ZK-1002Q Bluetooth Power Amplifier Board QCC3034 + TPA3116 2.0CH APTX 100W+100W
Description
Product Features:

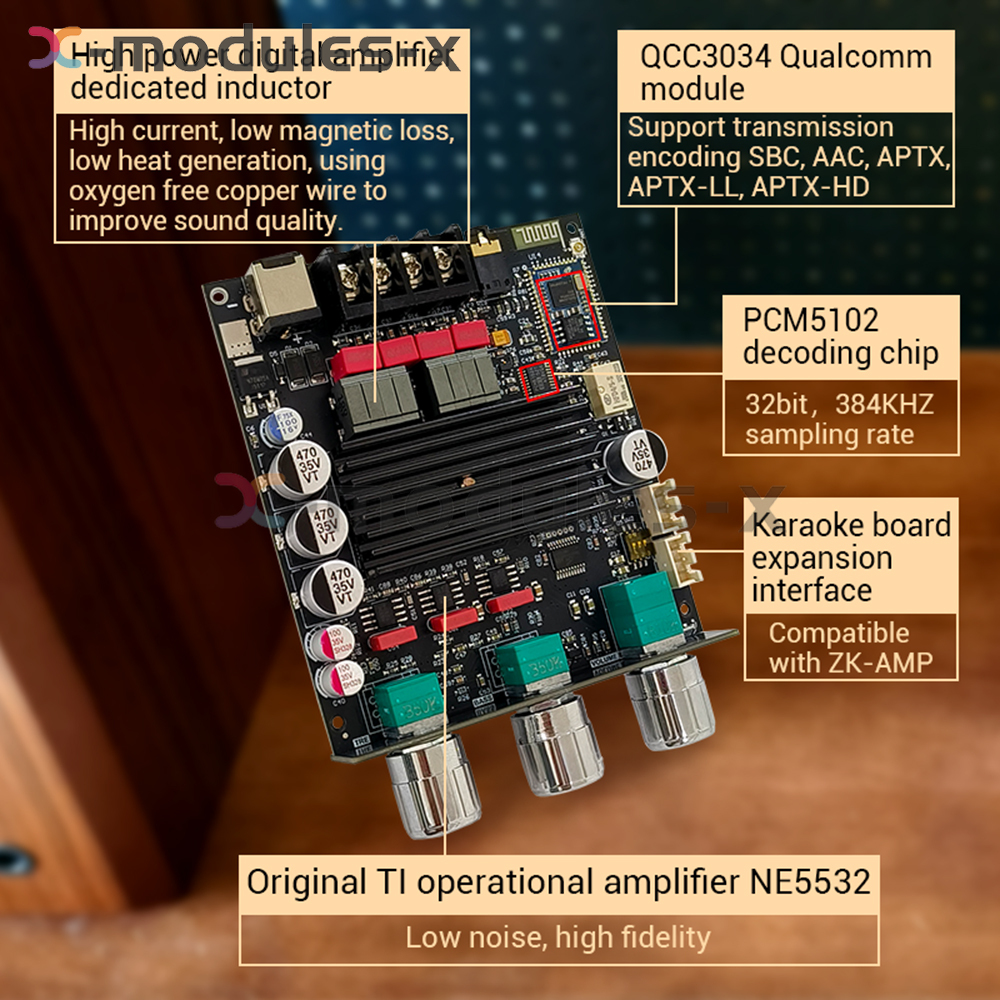

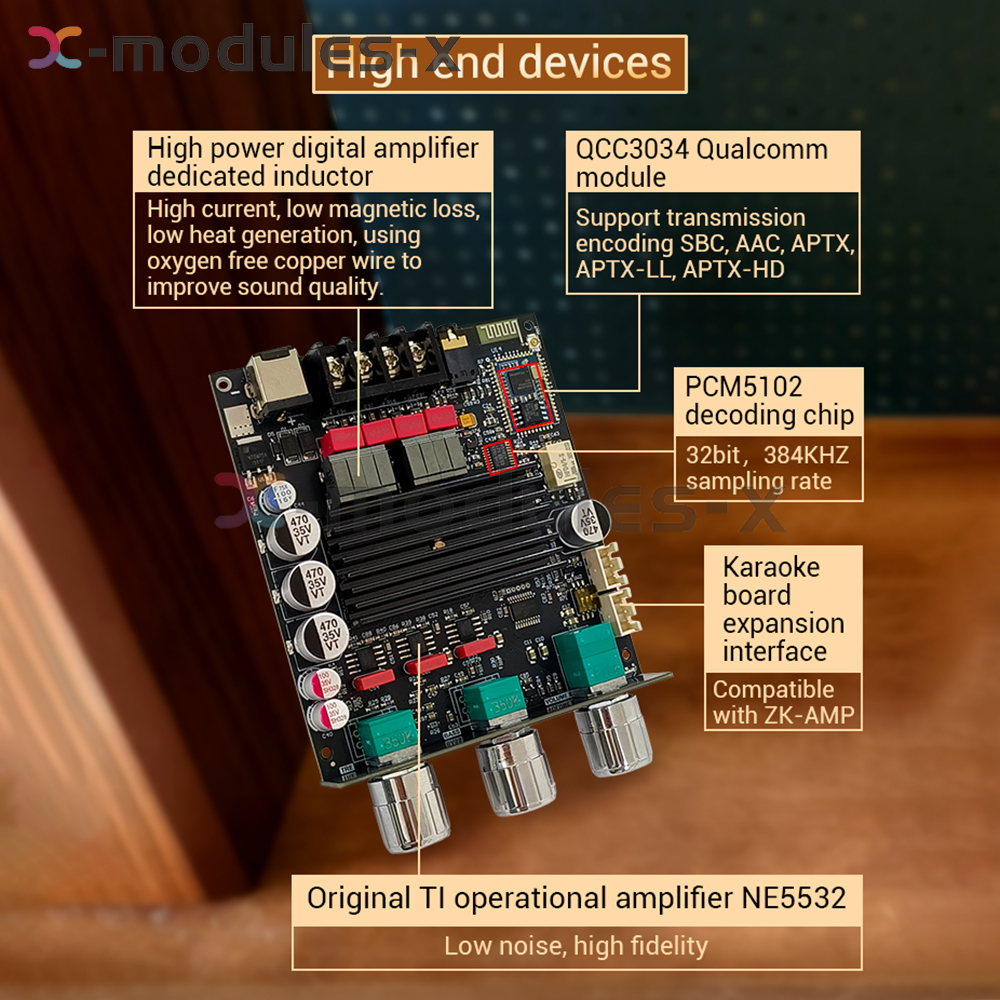

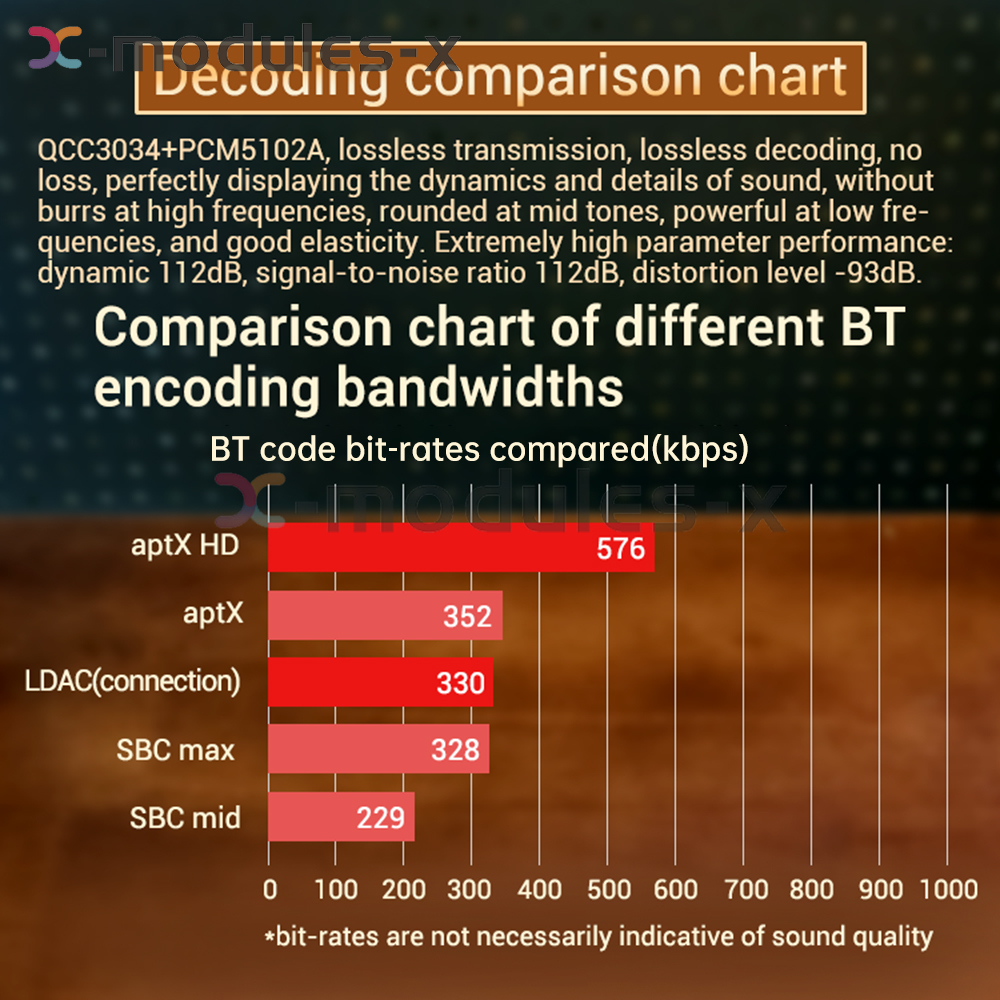

1. Powered by Qualcomm QCC3034 chipset, supporting APTX-HD lossless transmission for purer sound quality.
2. TPA3116D2 amplifier chip delivers 100W per channel for powerful output.
3. Supports Bluetooth 5.0 and AUX input with Bluetooth priority for seamless switching without interference.
4. All-copper inductors with low magnetic loss design ensure excellent heat dissipation and stable, reliable long-term operation.
5. Compatible with 3-8Ω speakers, offering versatile adaptability for home KTV systems and car audio setups.
1. Powered by Qualcomm QCC3034 chipset, supporting APTX-HD lossless transmission for purer sound quality.
2. TPA3116D2 amplifier chip delivers 100W per channel for powerful output.
3. Supports Bluetooth 5.0 and AUX input with Bluetooth priority for seamless switching without interference.
4. All-copper inductors with low magnetic loss design ensure excellent heat dissipation and stable, reliable long-term operation.
5. Compatible with 3-8Ω speakers, offering versatile adaptability for home KTV systems and car audio setups.
Product Specifications
Product Name: 2.0-Channel Qualcomm APTX Bluetooth Amplifier Board 100W+100W
Model: ZK-1002Q
Power Supply: Operating voltage range 12-24VDC. Recommended voltage 24V, current 5A or higher DC power supply. Must use DC power only—AC power not supported! Does not support 24V batteries; overvoltage occurs when fully charged!
Maximum Power: Left or Right Channel ≤100W Speaker Compatibility: Supports 3-8 ohm speakers rated up to 100W.
Bluetooth Chip: QCC3034, transmission range 15 meters.

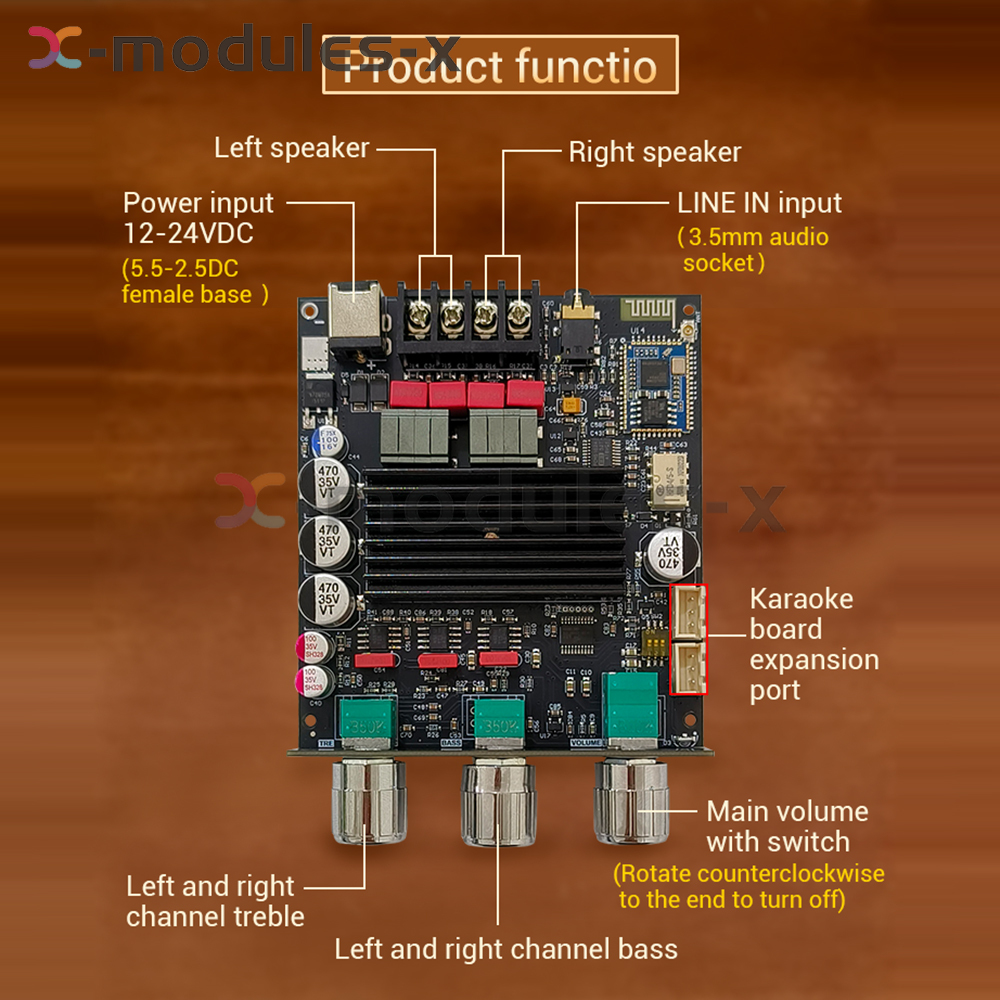

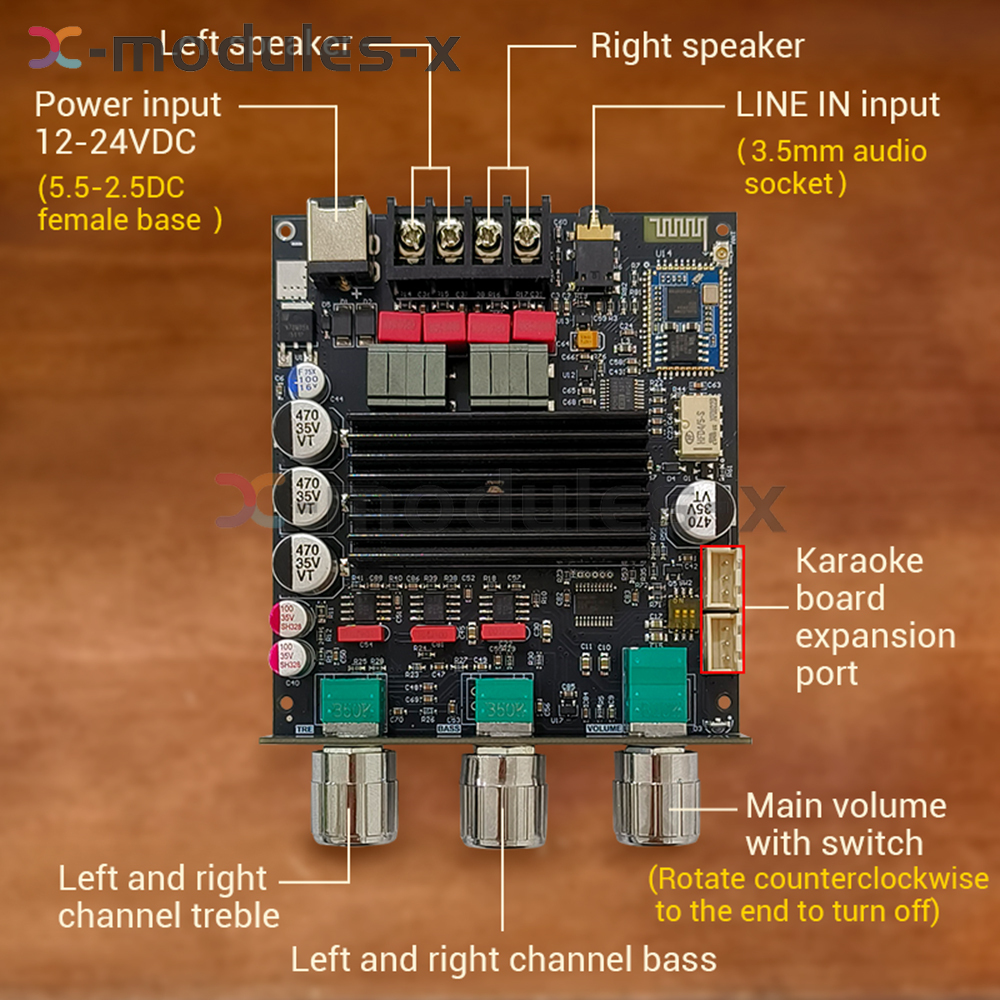

Input Methods: Bluetooth + AUX, Bluetooth takes priority. When using audio cable input, Bluetooth must be disconnected.
Number of Channels: 2.0 (Left/Right)
Amplifier Chip: TI Original TPA3116D2
Protection Mechanisms: Input under-voltage, overheating, overcurrent, short-circuit protection, reverse polarity protection.
Product Dimensions:
With Housing: 108x80x20.5mm
Without Housing: 108x80x14.5mm
Note: Sufficient output power is only achievable with adequate audio input and sufficient power supply voltage/current!!! Higher power supply voltage yields greater output power; lower speaker impedance yields greater output power!!! Ensure the power supply capacity exceeds the amplifier's actual operating power!!!

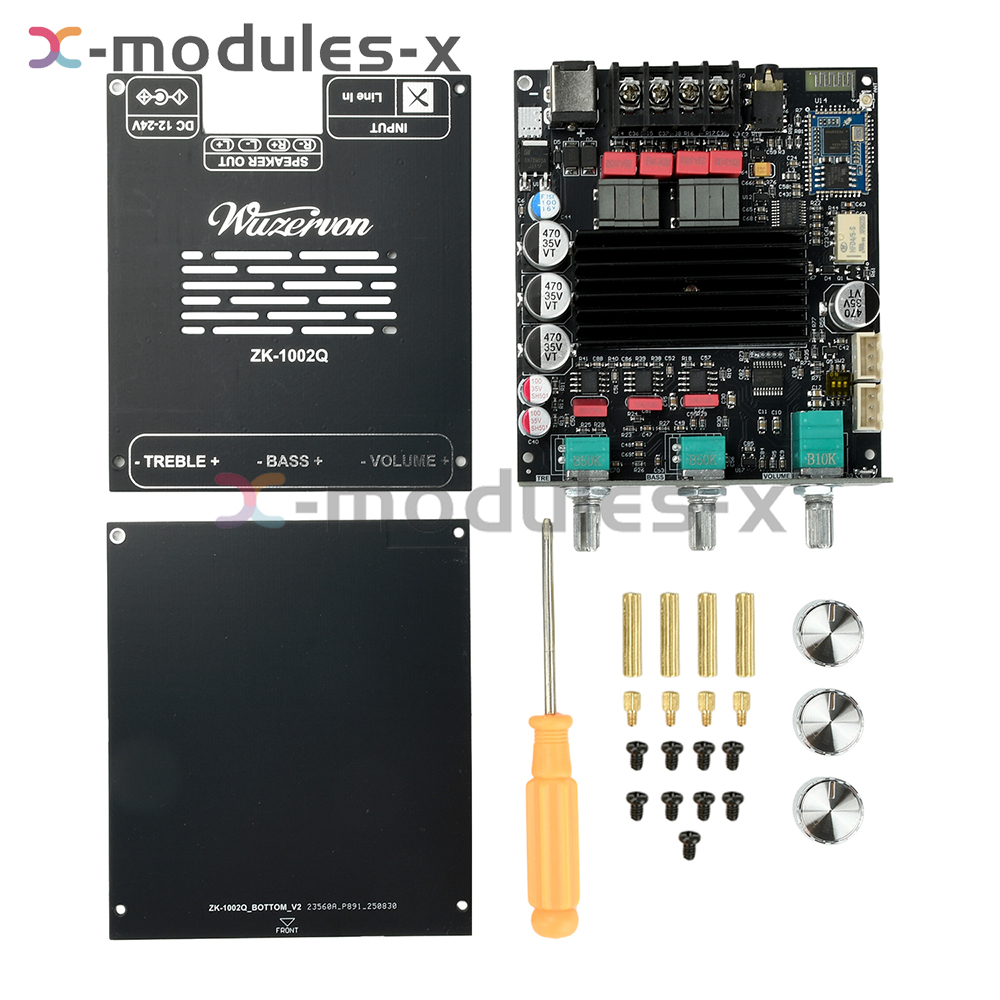

Package Contents:
1x Amplifier Board
1x Screwdriver
