Carbon road bike rim Disc brake rims are 22mm internal width , all these rims are clincher/ tubeless compatible, depths: 5045mm 。

On the two most popular sizes/depths 5045mm, we offered both symmetrical edition。 2 years warranty for all these rims!

The rim is made of T700 and T800 carbon cloth by hand, and is formed by automatic mechanical processing with an integrated process of hot pressing.

The physical property test of the rim shall be subject to the latest ISO/EU standards.

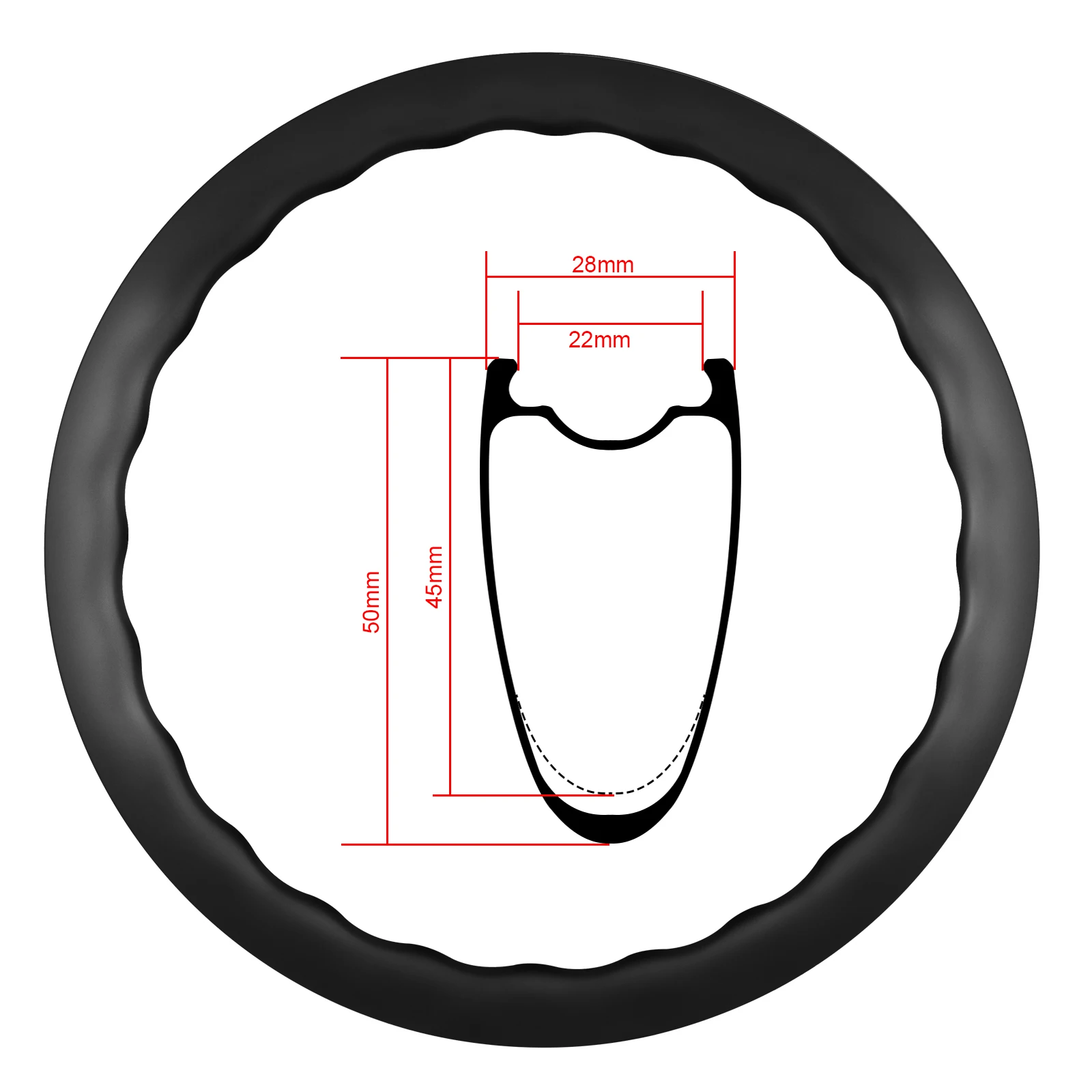

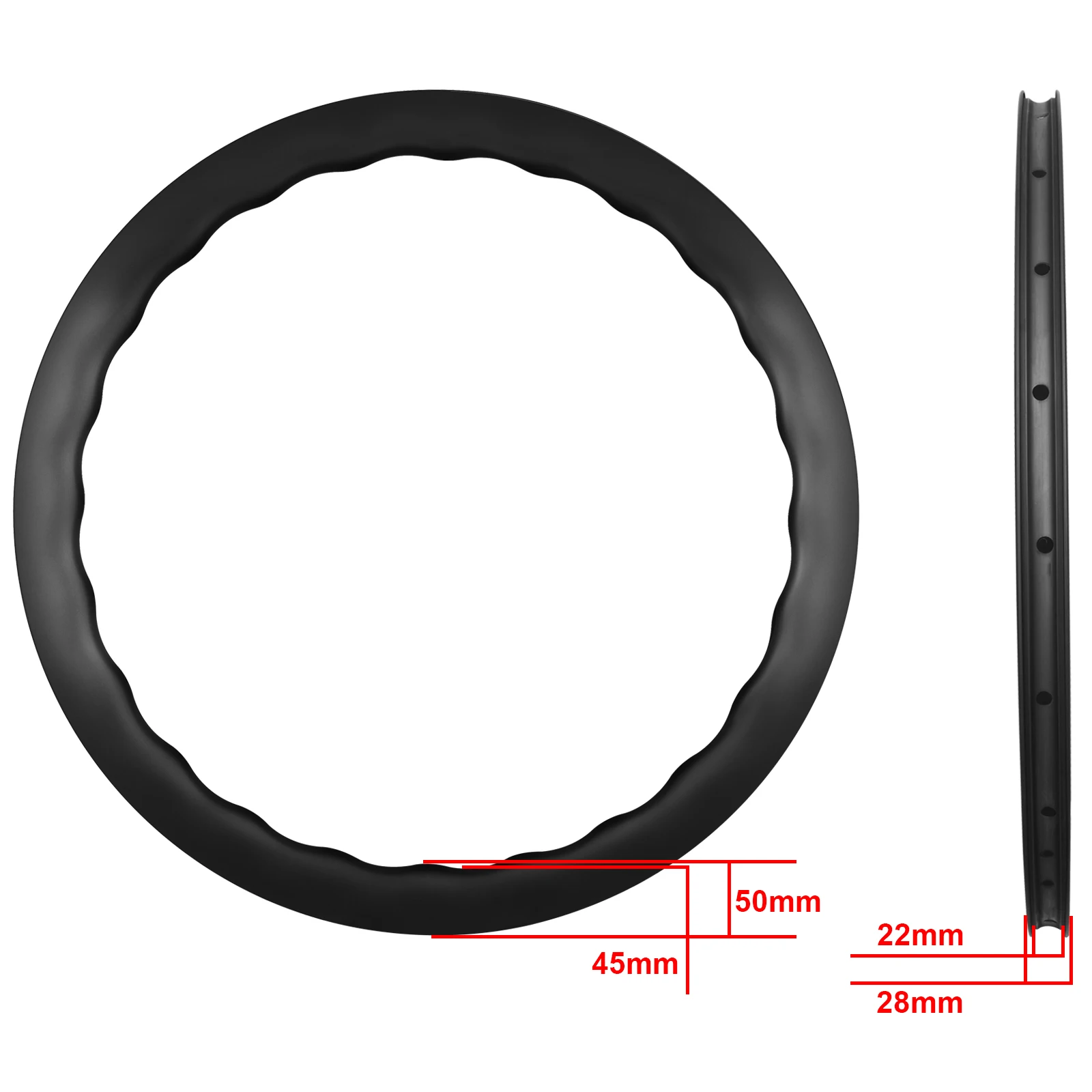

5045mm ERD: 542mm

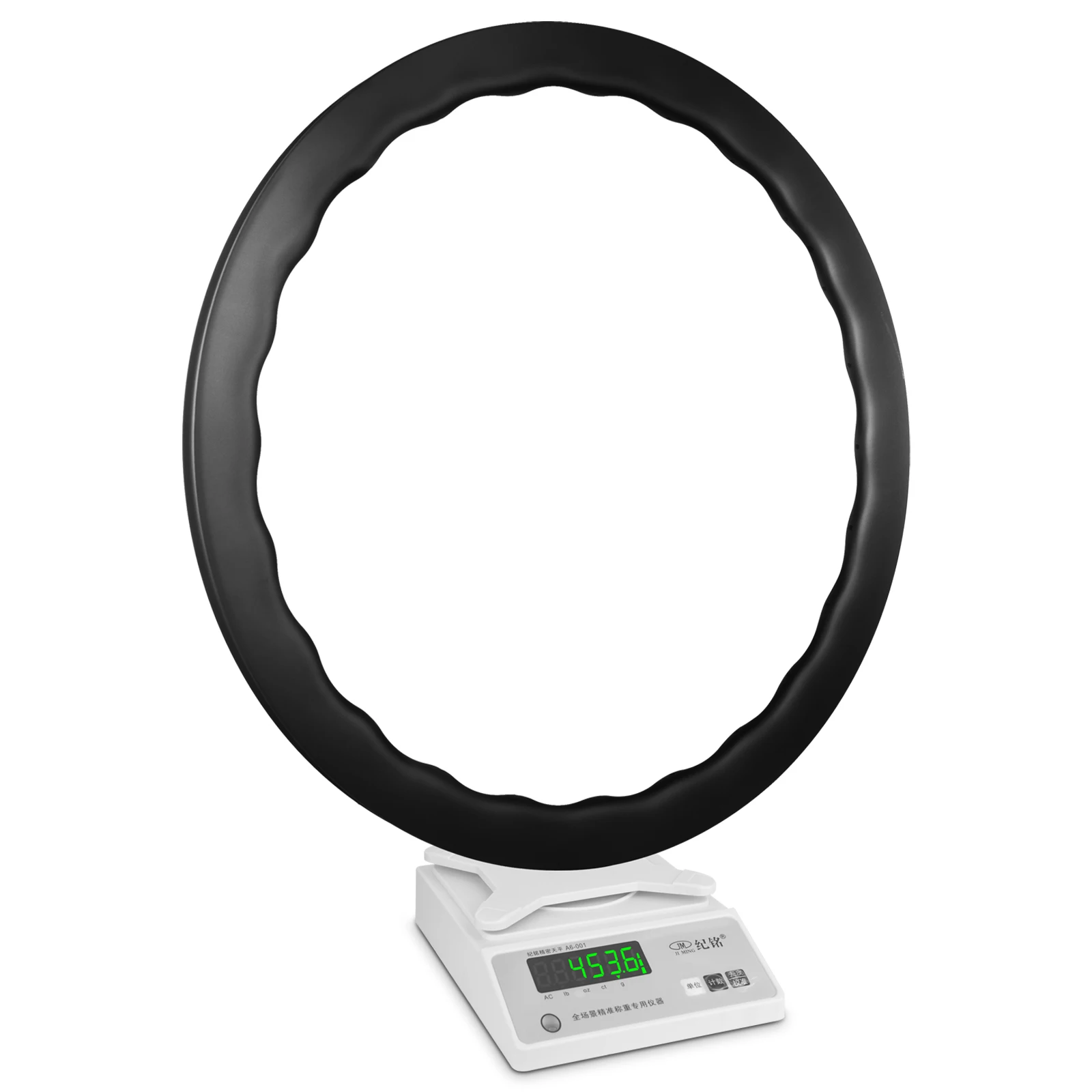

WEIGHT: 450g±15(50MM)

MATERIAL：Carbon

RIM DIAMETER：700C(ETRTO 622mm)

RIM HEIGHT：5045mm

INNER WIDTH：22 mm

OUTER WIDTH：28 mm

BRAKE INTERFACE：Disc brake

SPOKE HOLE：Front/Rear 24h

TUBELESS: Compatible

DECAL TYPE：UD

Max Cyclist Weight (on flat ground)：145kgs

Spoke Hole Angle ±9.5°

Spoke Tension 110~130kgf (recommended)

Tire Pressure 125psi / 8.62bar (recommended max)

Tire Size 23C ~ 32C (recommended)

Warranty 2 years
