Product Description
750MM Metal Lathe Mini Lathe
0.01 mm Spindle Accuracy & Metal Gears & 8-44 T.P.I

The 220 x 750 mm precision metal mini lathe features 750W motor, a 3-jaw chuck, a MT5 spindle taper, a MT2 tailstock taper, designed to perform various types of metal turning, simple to operate. Through high-frequency quenching process and precision grinding of high-quality cast iron bed. 50-2250±10%Rpm spindle speed is continuously adjustable. Steady rest and follow rest for large size or/and heavy workpieces.

  • Variable Speed Design

  • 750 mm Large Swing Range

  • Professional Compound Rest

  • Supportive & Protective

  • Accurate Tailstock

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Key Features

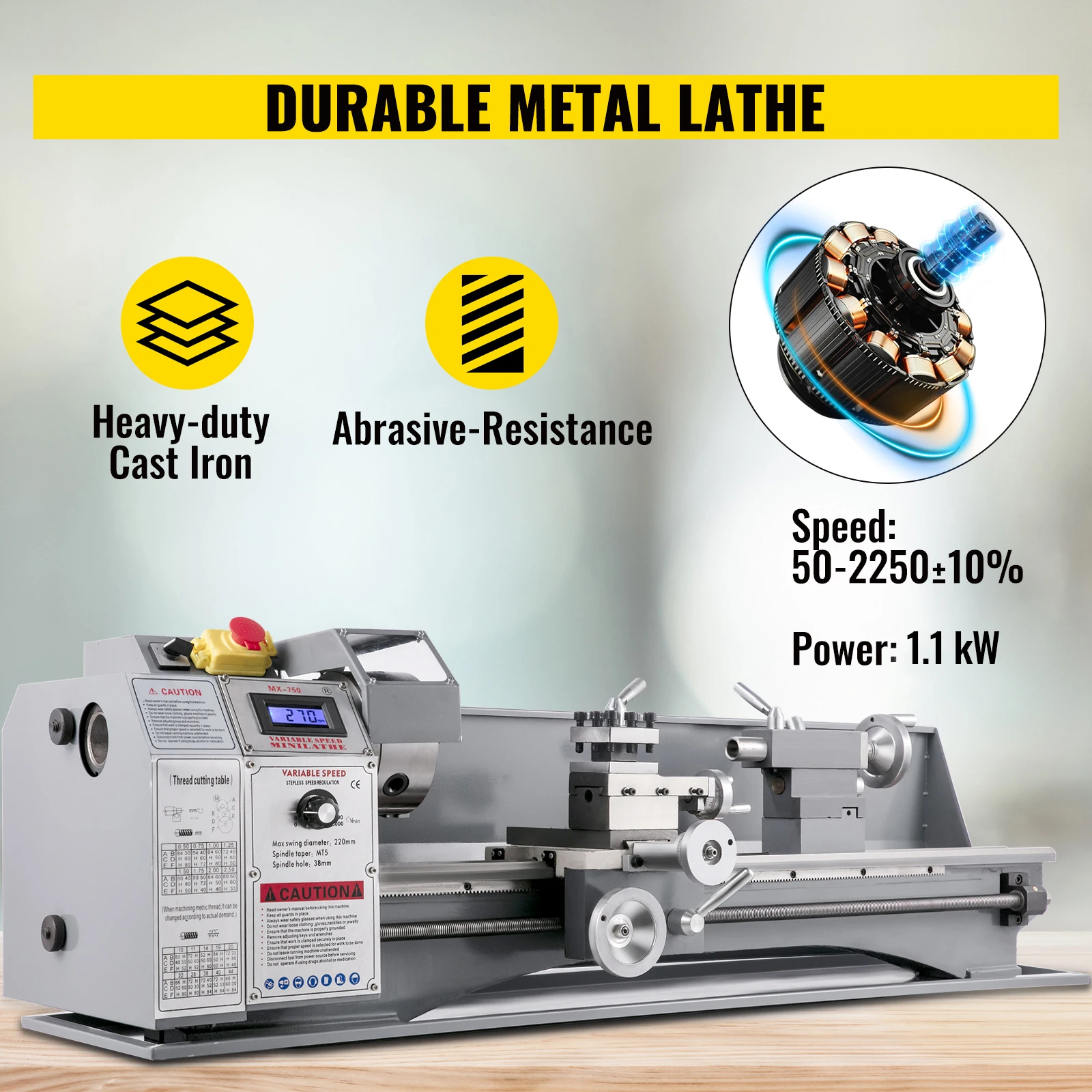

Rigid Cast Iron
The milling machine is made of rugged and wear-resistant cast iron, a tough material that features a long service life.

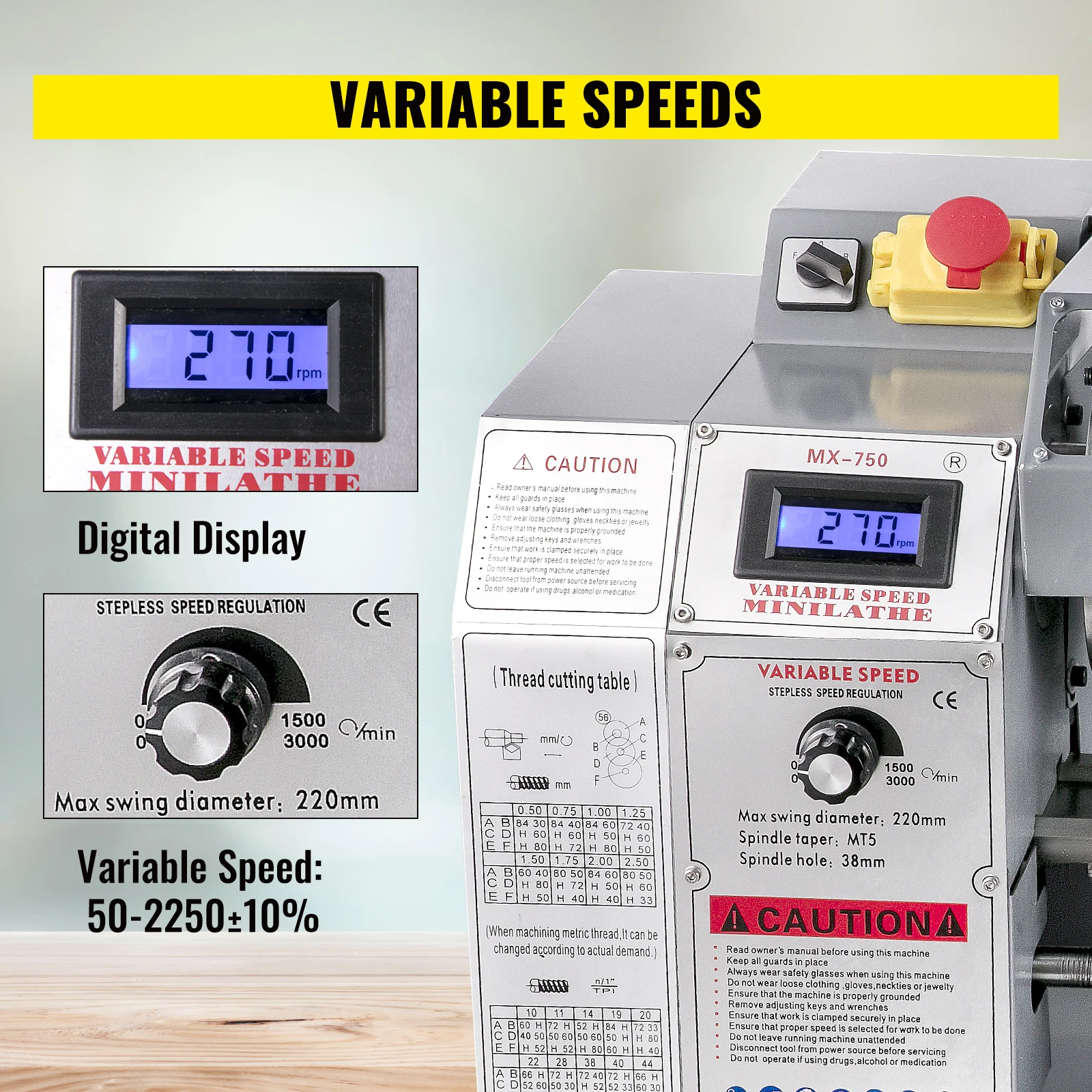

Variable Speeds
Motor Power: 750W, Variable Speed(RPM): 50-2250±10%. Taper in Spindle Nose: MT5. Easily change the speed by turning the switch. Meanwhile, the indicator beyond notifies you of the ongoing operations.
Effortless to Use
The pump core is made of high-quality aviation aluminum to resist compression, vibration, and corrosion. In addition, a durable metal shell protects the internal structure better and is not easily deformed.
Large Swing Range
Swing Over Bed: 8.7"/220 mm, Swing Over Cross Slide: 29.5"/750 mm, 3-Jaw Chuck Diameter: 4.9"/125 mm. The lathe machine is equipped with a foot stock which gives support to the longitudinal rotary axis of a workpiece.

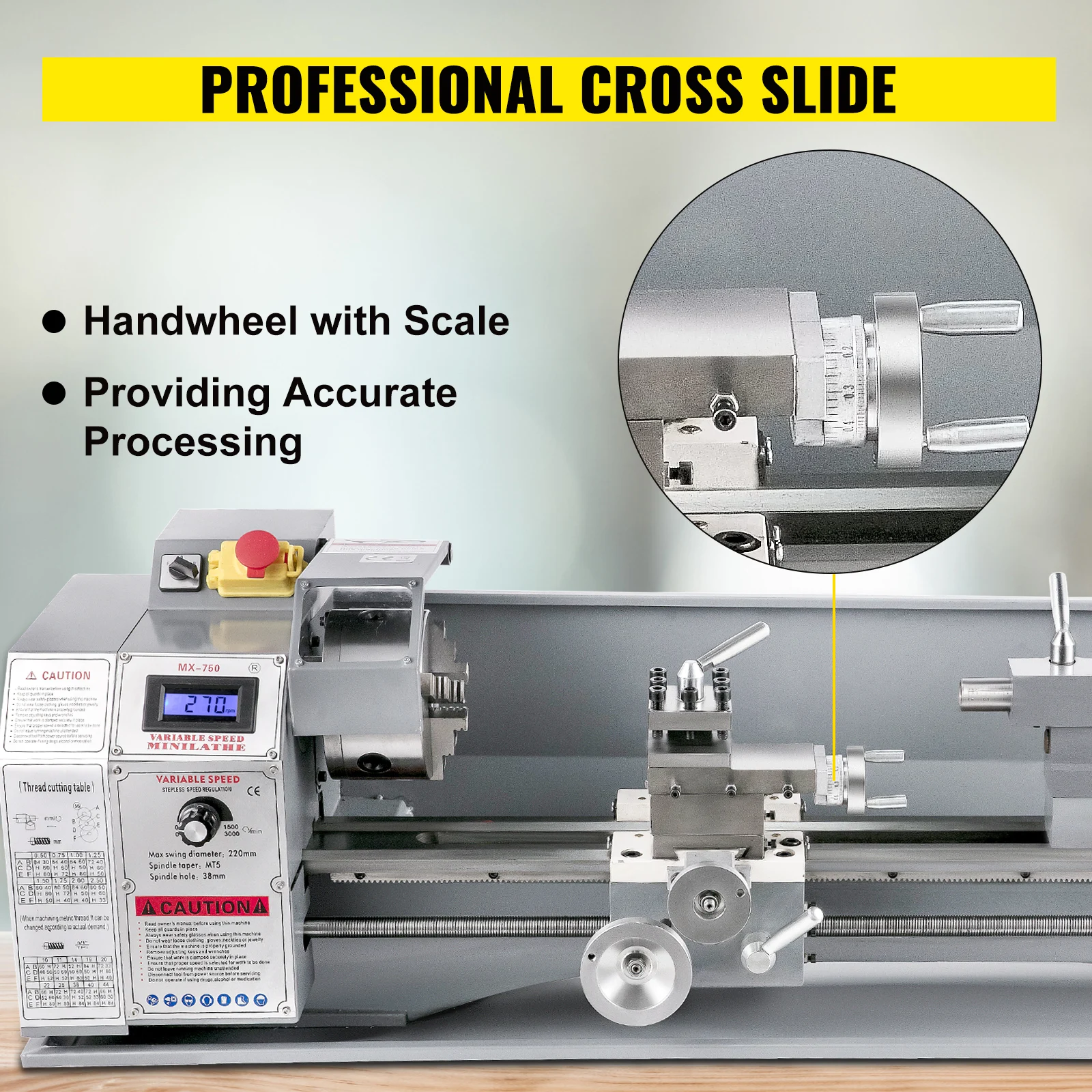

Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 8-44 T.P.I reversible lead screw. The v-slideways with distance between center: 29.5" / 750 mmm. A lamp is for accurate operation in a dark environment.

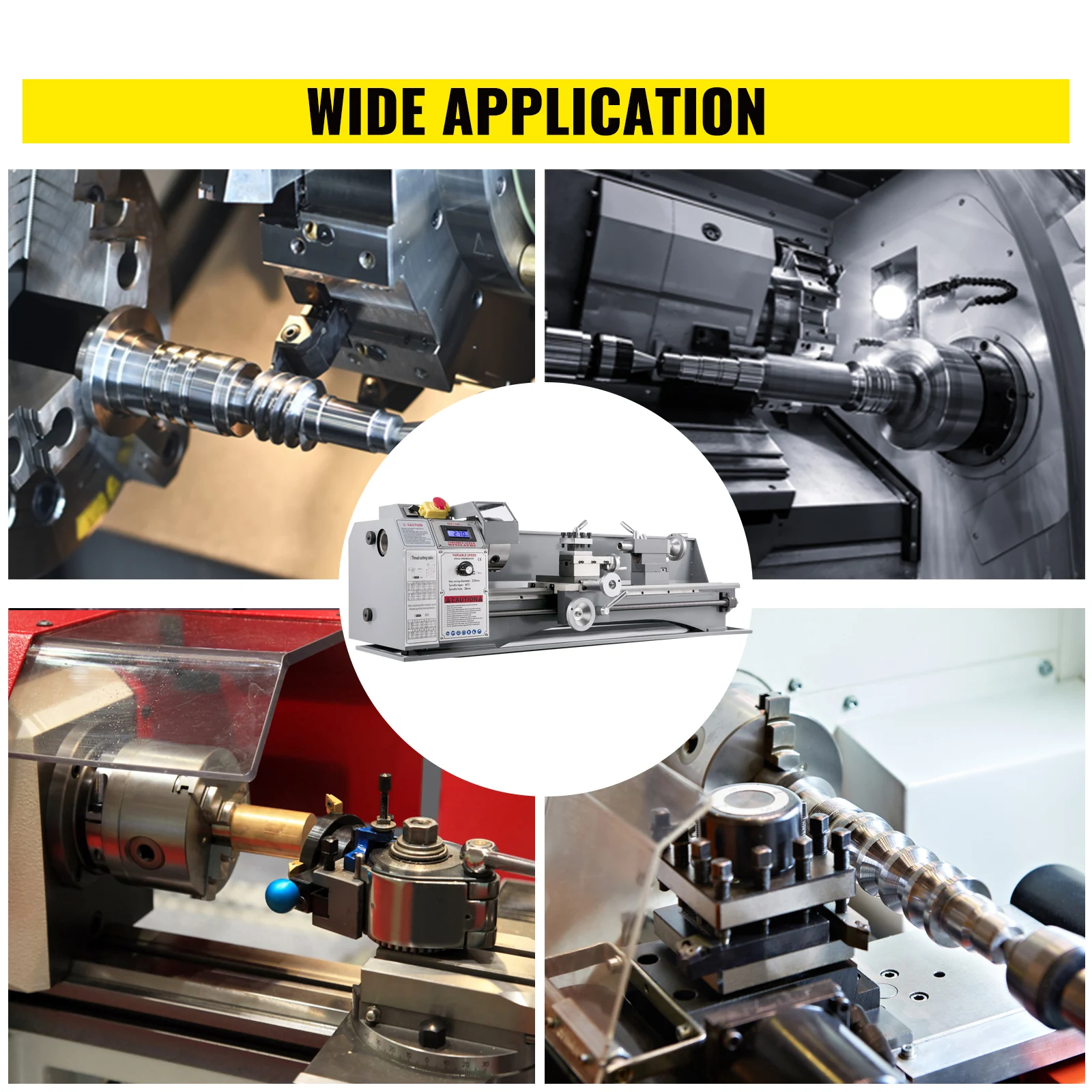

Wide Application
This mini metal lathe is idea for various processing tasks including turning, drilling, threading and cutting. The adjustment dials make your work with exact accuracy and precision.
220 x 750MM Metal Lathe

  • Power: 750W

  • Volt: 110V 60Hz for US CA MX; 220V 50Hz for EU RU

  • Phase: Single Phase

  • Swing Over Bed: 8.7" / 220 mm

  • Distance Between Centers: 29.5" / 750 mm

  • 3-Jaw Chuck Diameter: 4.9" / 125 mm

  • Hole Through Spindle: 1.5" / 38 mm

  • Spindle Accuracy: 0.01 mm

  • Variable Speed(Rpm): 50-2250 RPM ±10%

  • Range of Imperial Threads: 8-44 T.P.I

  • Range of Longitudinal Feed: 0.02" - 0.1" / 0.5 - 3 mm

  • Gear Material: Metal

  • Item Weight:186 lbs / 84 kg

  • Item Dimension: 40.2" × 12.3" × 13.6" / 102.2 × 31.3 × 34.7 cm

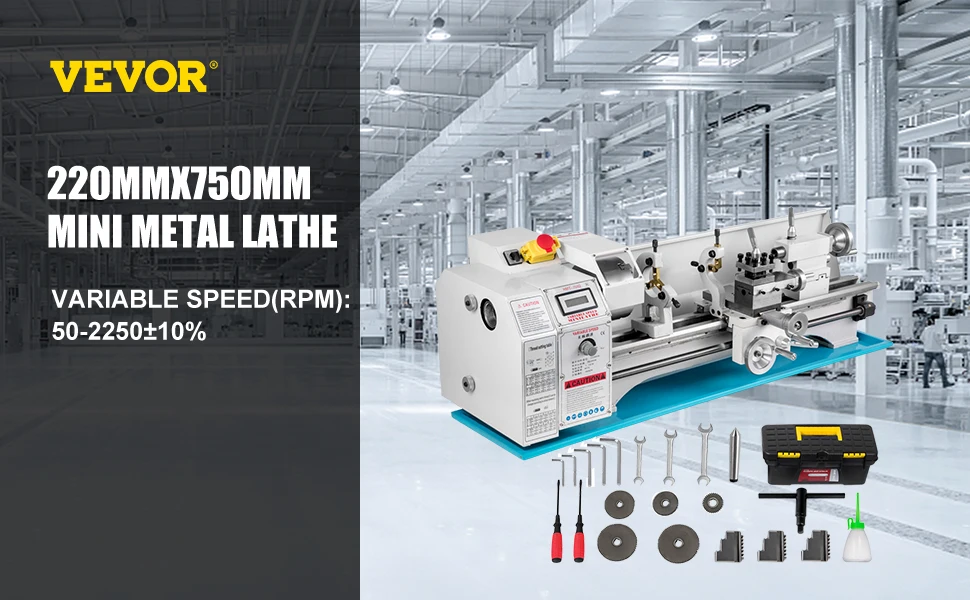

Package Content

  • 1 x Metal Lathe

  • 1 x Centre Rest

  • 1 x Dead Center MT2

  • 1 x Oil Gun

  • 3 x Jaws

  • 6 x Metal Gears

  • 1 x Instruction Manual

  • 2 x Screwdrivers

  • 1 x Accessory Kit

  • 1 x Chuck Wrench

  • 3 x Wrenches

  • 3 x Chuck Jaws


Features & Details

  • 【Infinitely Variable Speed】: The mini metal lathe is driven by DC motor with Power: 750W. Variable Speed(Rpm): 50-2250±10%. Taper in Spindle Nose: MT5. LED screen shows you the clear and accurate speed for accurate working. Soft start, change-over switch for clockwise or counter-clockwise spindle rotation. Operate either manually or with the adjustable auto feed rate.

  • 【750 mm Large Swing Range】: The bench top lathe brings a 3-jaw Chuck with Diameter: 4.9"/125 mm. Swing Over Bed: 8.7"/220 mm and Swing Over Cross Slide: 29.5"/750 mm offers more possibilities for large size or/and heavy workpieces. Taper in Spindle Nose: MT5. Range of Imperial Threads: 8-44 T.P.I.

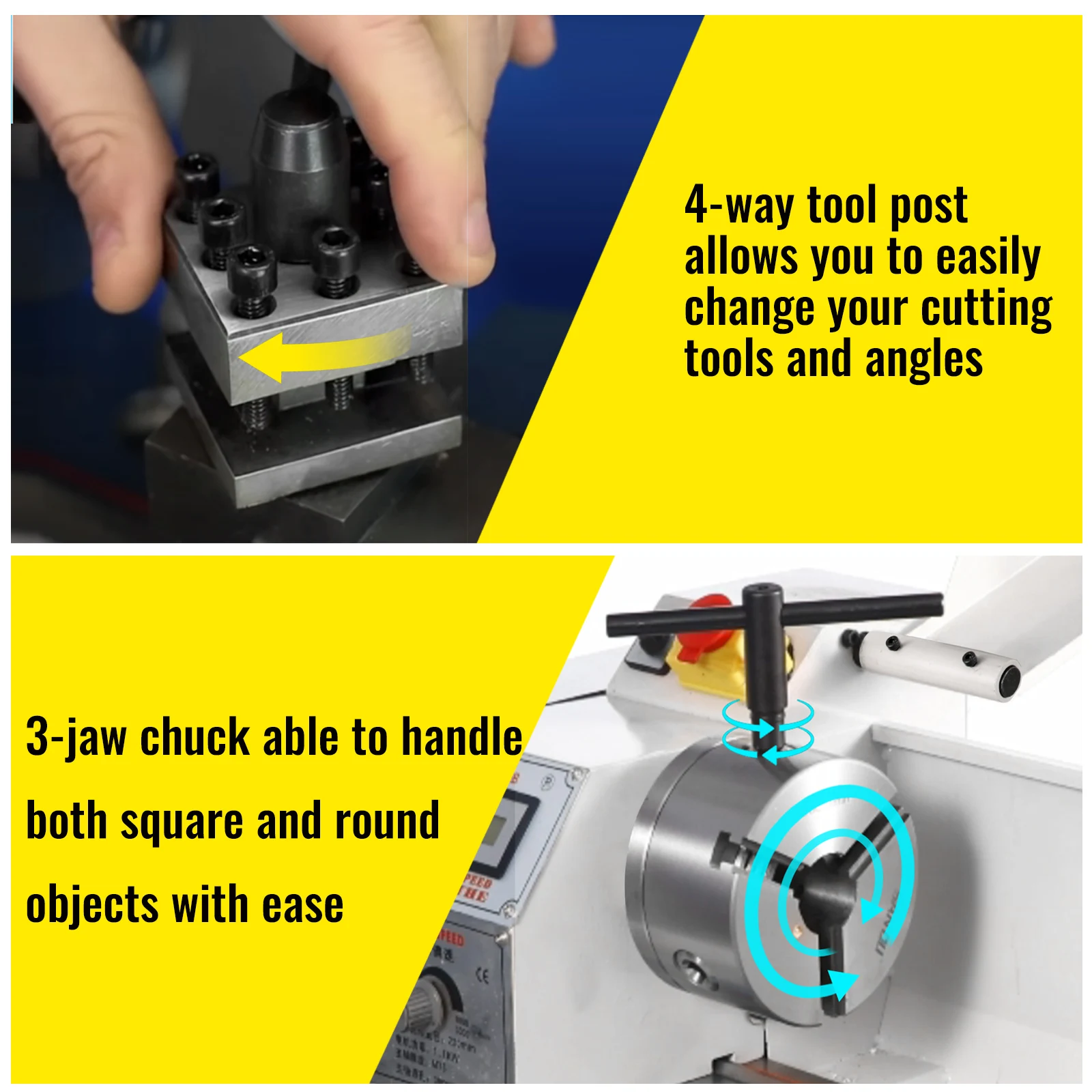

  • 【Professional Compound Rest】: The mini lathe machine quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest, moving blades freely with feed rod. Heat hardening lead screw.

  • 【Supportive & Protective】: Steady rest works as an end support, ensuring chatter-free operation. Follow rest is used for turning operations on long, slender workpices. Backsplash guard included.

  • 【Adjustable Tailstock】: Taper in Tailstock Spindle: MT2. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.
