Motor：

●Rated Voltage：36V/48V

●Rated Power：250W

●Rated Speed：about 28-30km/h

●RPM：207-270 RPM

●Torque(N.M)：29-31.2 N.M

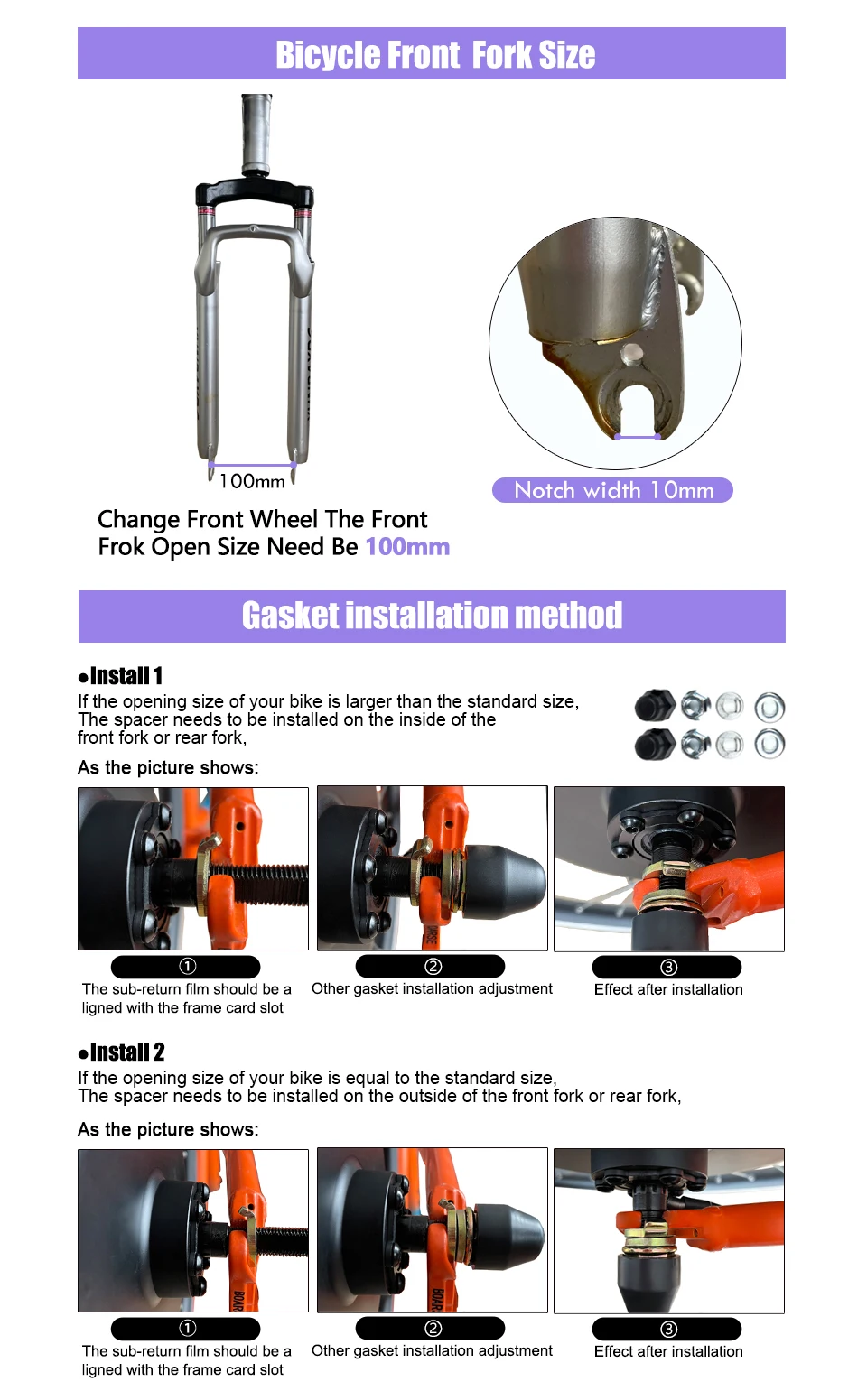

●Front Fork(mm)：100mm

●Brake Type：V/Disc Brake

●Type：Brushless gear hub motor

●Installation location:Front wheel

●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes

●Load≤200KG

●Motor cable length：200mm

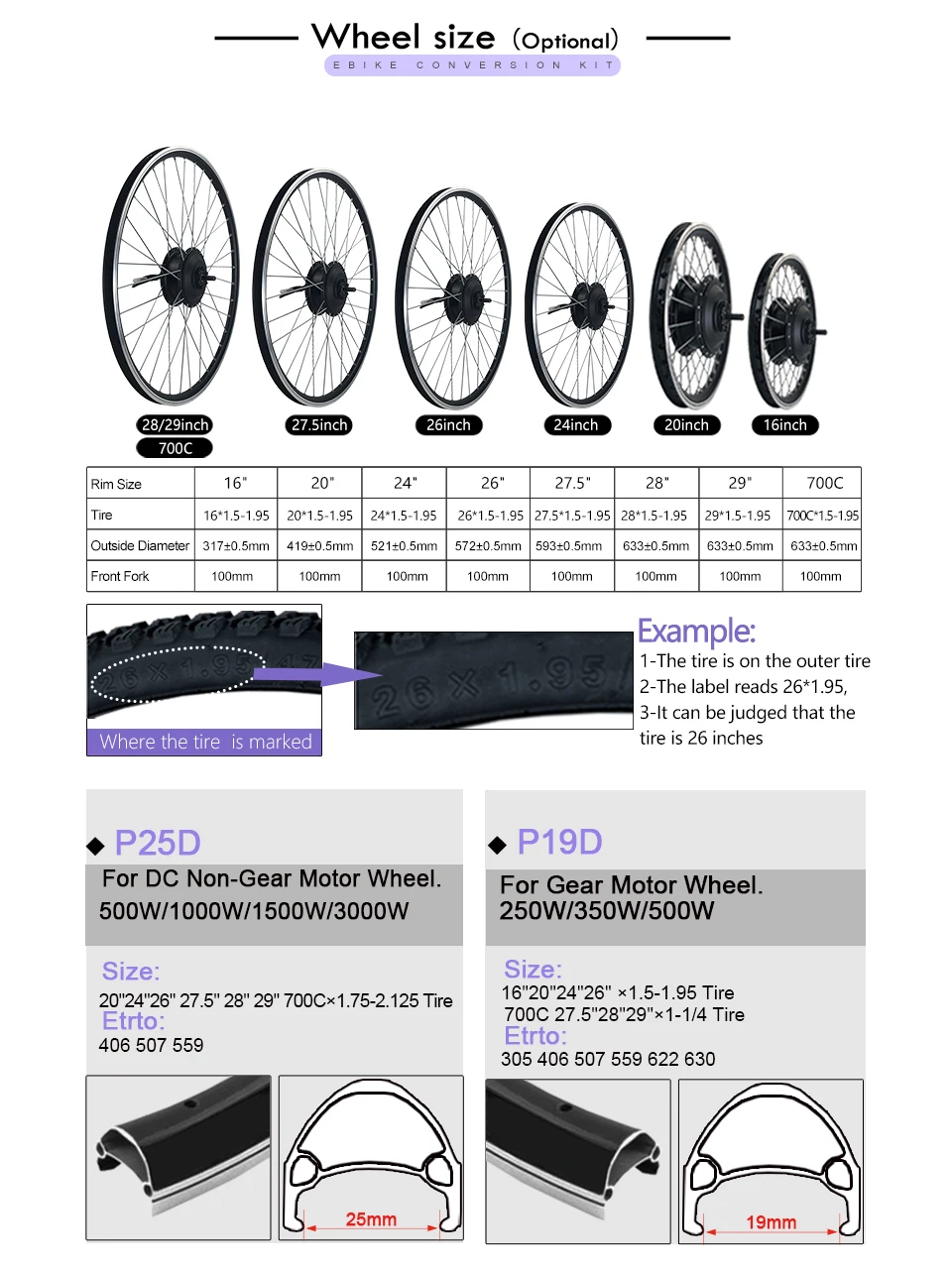

●Wheel size：16inch 20inch 24inch 26 inch 27.5inch 28inch 29inch 700C wheel

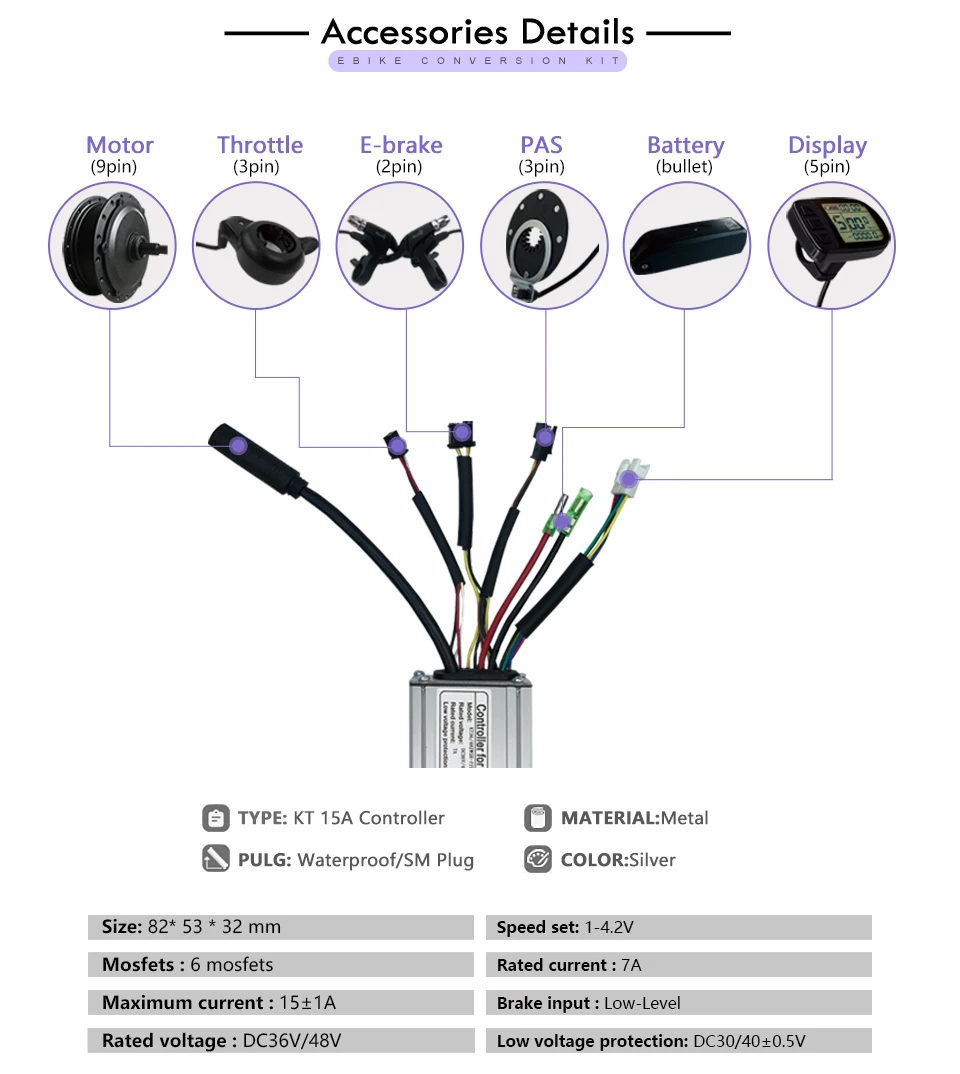

KT-Controller:

●Dimension :82* 53 * 32 mm

●Weight : about 250g

●Cable length :all about 10-13cm

●Mosfets:6 mosfets

●Maximum current :15±1A

●Rated voltage :DC36V/48V

●Speed set :1-4.2V

●Brake input :Low-Level

●Low voltage protection :DC30/40±0.5V

PAS KT-BZ-4(8) (Default):

● Type:KT-BZ-4(8) Pulse assist sensor

● Voltage:36V/48V

● Cable Length:180cm including the connector

● Magnet :8 Magnets

● Weight :100 g

● Plug Type:3 Pin SM plug

● Color :As pictures shown

● Material:Plastic

● Installation:Left

● Adaptation:Ebike Electric Bike Bicycle

130X Throttle (Default):

● Voltage:12V 24V 36V 48V 52V 60V 72V

● Wire length:180cm(SM)

● Weight :100g

● Waterproof :IP76

● Plug Type:3 Pin SM plug

● Color :Black

● Installation:Right

● Apply to:E-bike, E-Scooter, Ebike Conversion Kit

● Function:E-bike acceleratorFinger Thumb Throttle

115PDD E-Brake (Default):

● Type:115PDD E-brake Cut Off Power

● Voltage:12V 24V 36V 48V 60V 72V

● Cable Length:180cm (SM)

● Weight :300g

● Waterproof :IP76

● Material:Aluminum Alloy

● Installation:Left/Right

● Size:L156mm W105mm H34mm

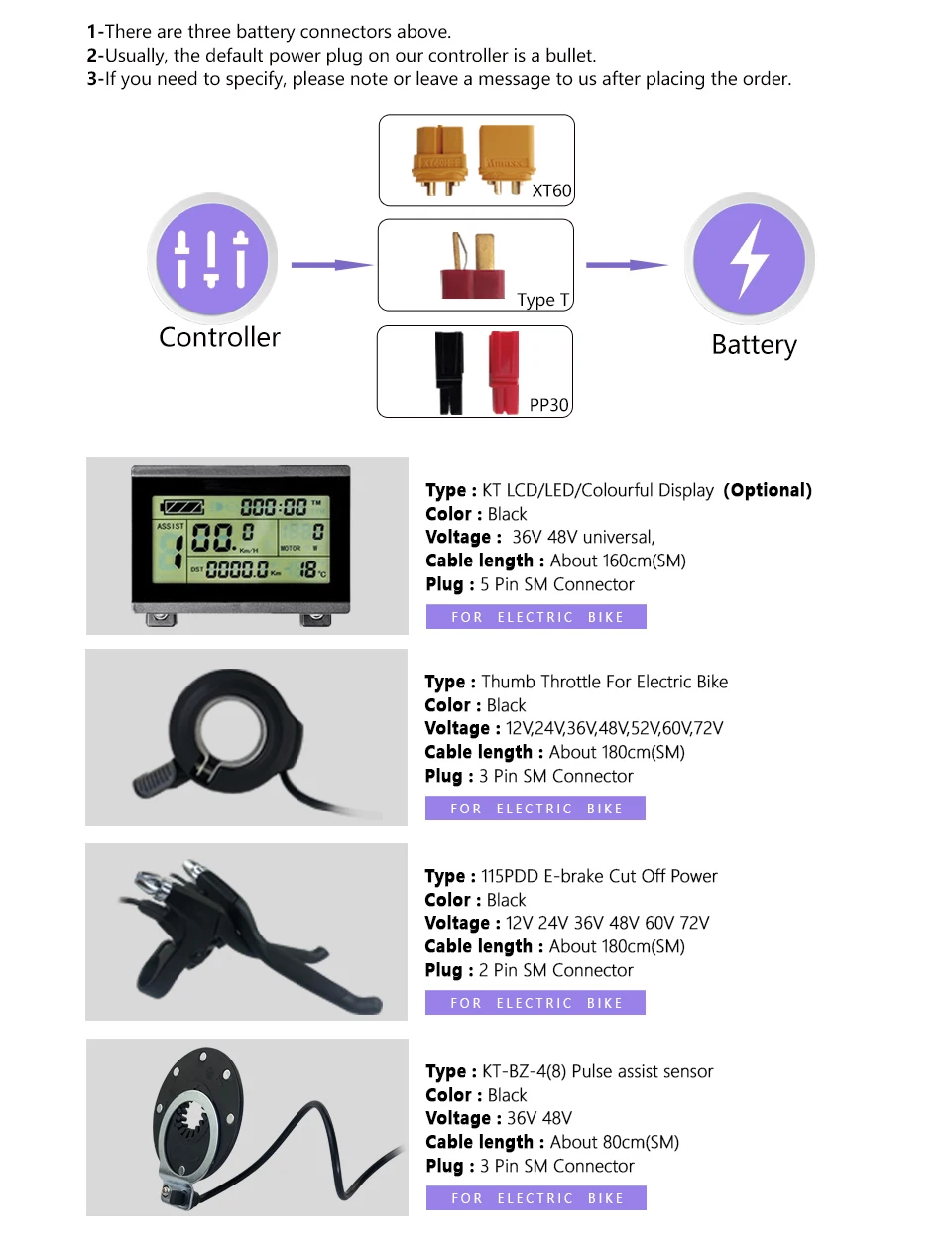

● Plug :2 pin SM plugDisplay（Opition):

● Type :KT LCD/LED/Colourful

KT-Display:

●Display：LCD3,LCD8H,LED880,

● Color :Black

● Voltage :36V 48V universal

● Cable length :About 180cm(SM)

● Plug :5 Pin SM plug
