4 Wheeling Plus

DRIVESHAFT FLANGE | 1510 SERIES | 37315-0K010

2003 - 2009 TOYOTA 4runner

Sentinel
DESCRIPTION

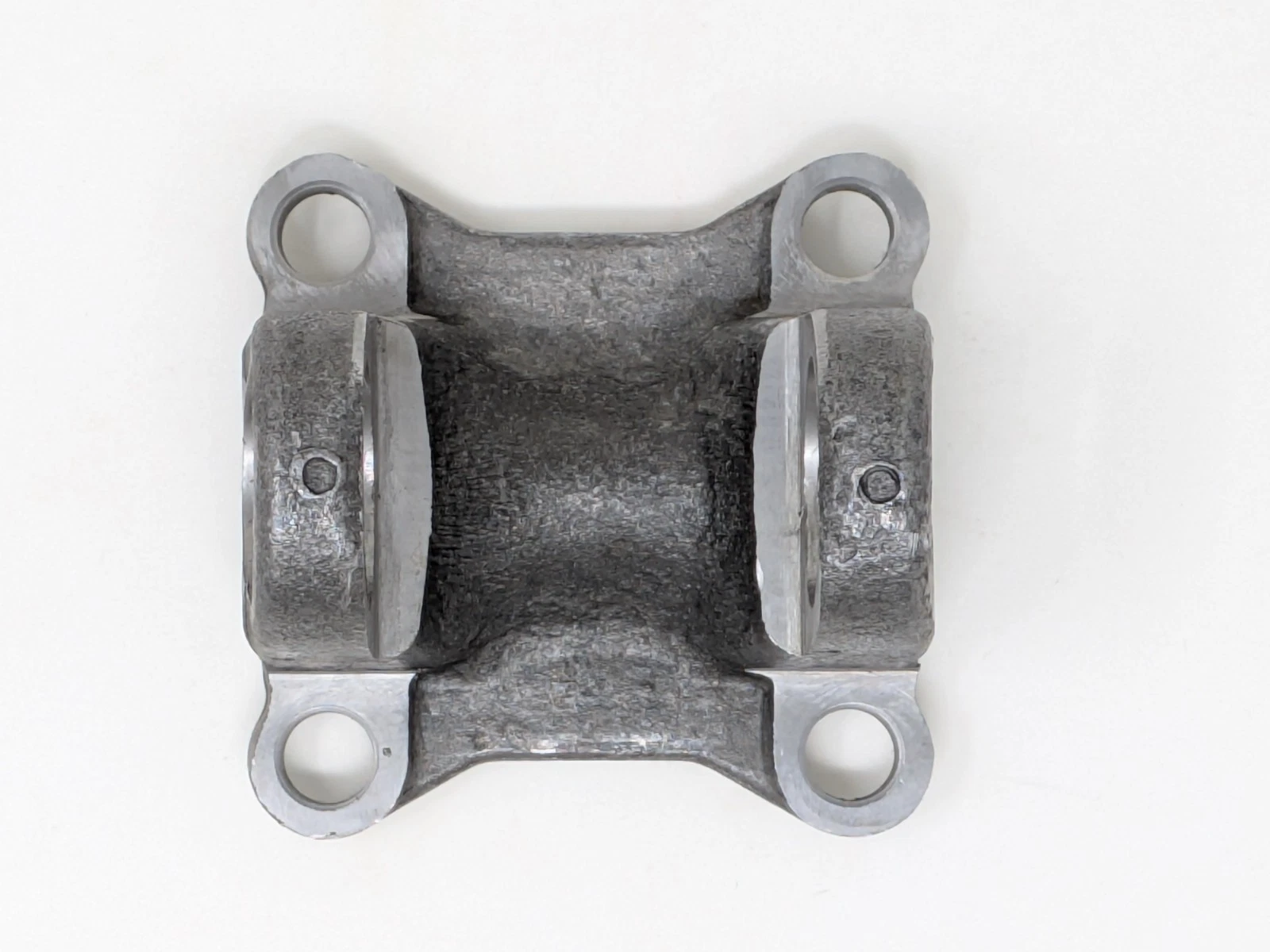

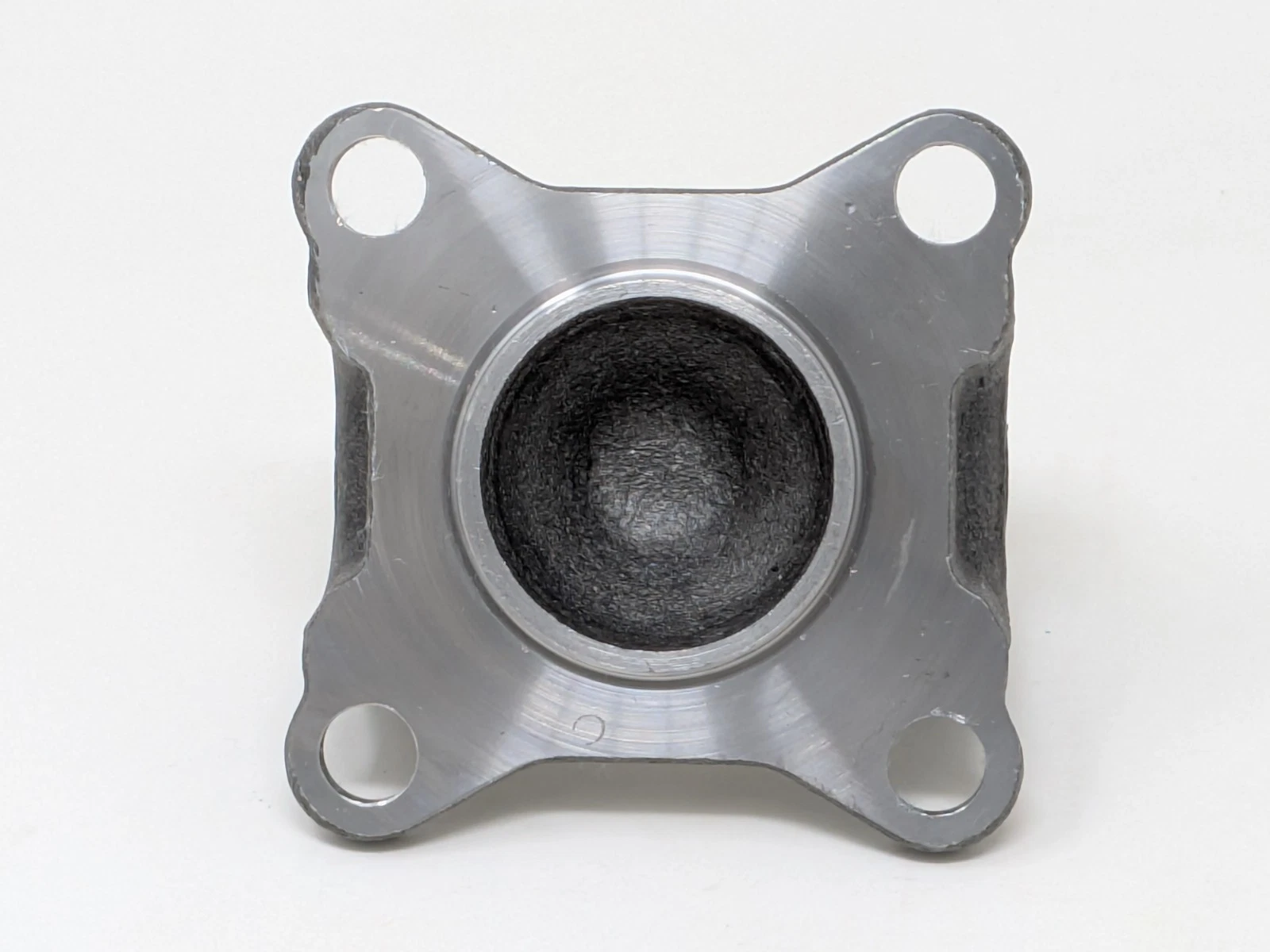

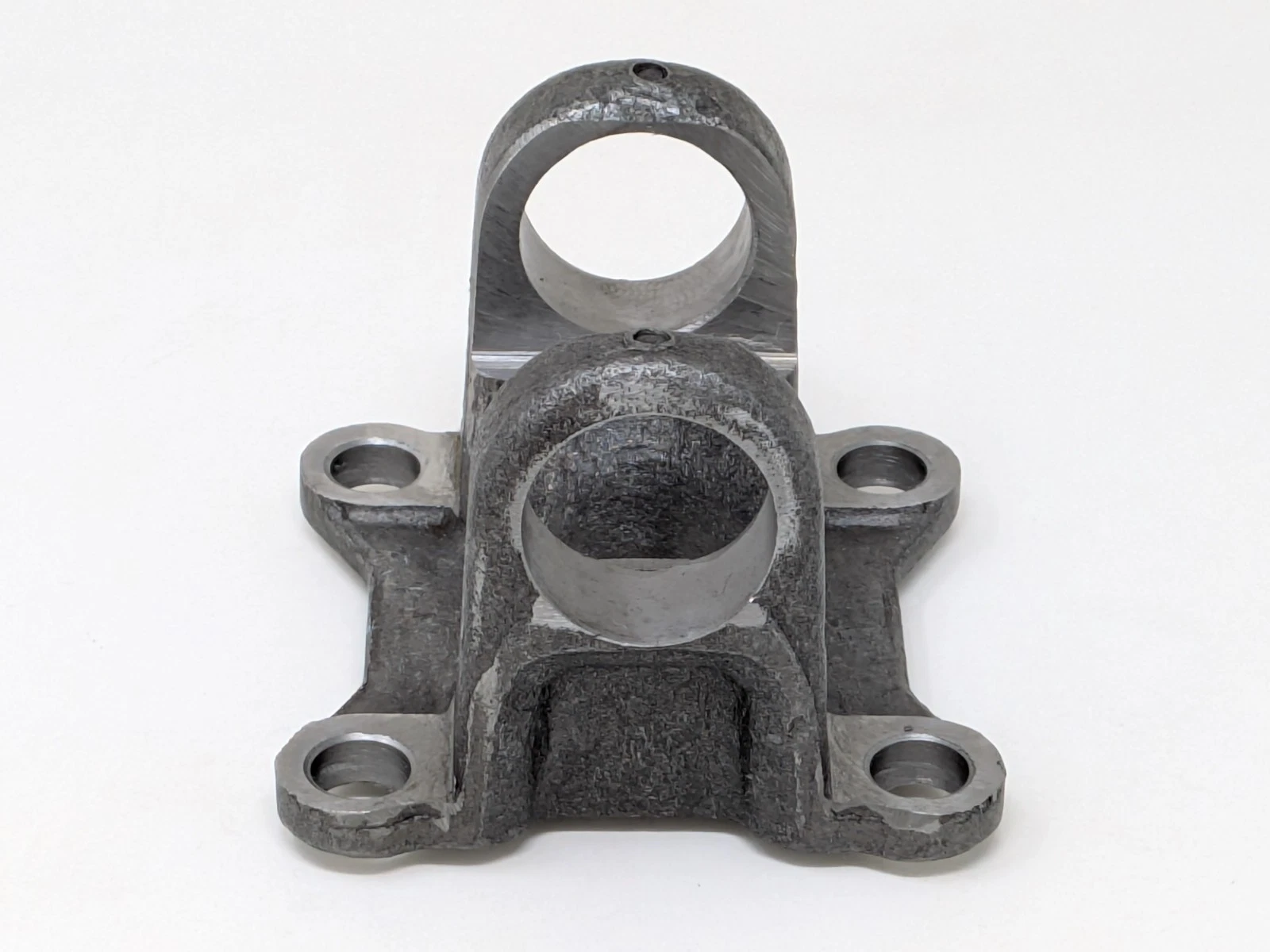

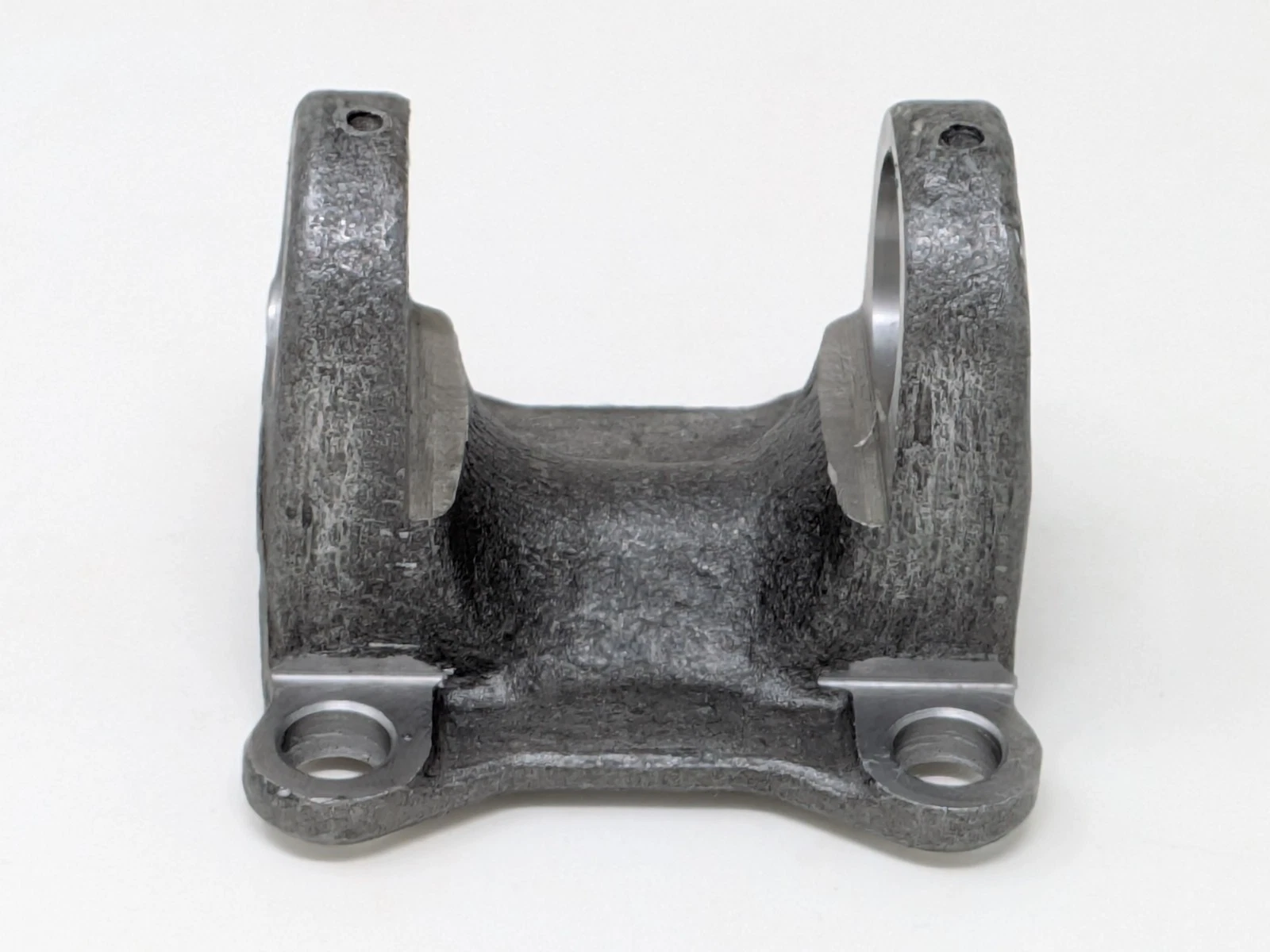

Driveshaft Flange | 1510 Series | 37315-0K010

Part # FL-T0K010

Vehicle Fitment:
2007 - 2014 Toyota FJ Cruiser
2003 - 2009 Toyota 4Runner
2003 - 2009 Lexus GX470

Vehicle Position:
Driveshaft at differential (3rd Member)

Description:
Replacement for OEM Toyota Flange Part #'s 37315-0K010
Flange Bolt Pattern (X & Y on diagram): 66mm x 66mm or 2.58" x 2.58"
Flange Bolt Spacing (Z on diagram): 92.5mm or 3.64"
Flange Bolt Holes: 4 evenly spaced in square bolt pattern
Center of U-Joint to Face (H on diagram): 44.4mm or 1.75"
Flange Pilot Diameter: 46mm or 1.811"
U-Joint Cap Diameter (D1 & D2 on diagram): 29mm or 1.142"
Snap Ring Groove to Snap Ring Groove (K1 on diagram): 52mm or 2.047"
Snap Ring Groove to Snap Ring Groove (K2 on diagram): 52mm or 2.047"
U-Joint Style: Inside Snap Ring (ISR) U-Joint Series: 1510
