Application
This permanent magnetic chuck is suitable for grinding machines, EDMs, line cutting, tapping machines, bench drills, and other processing.
Description
This permanentmagnetic chuck gap fine, magnetic force uniform strong permanent magnetic suction cup, the maximum vertical suction force up to 120 Newton per square centimeter. Our permanent magnetic sucker has a more stable structure, higher precision, and longer service life. This powerful permanent magnetic sucker can be widely used in the processing of grinding machines, EDM machines, wire cutting, tapping machines, table drills, etc.

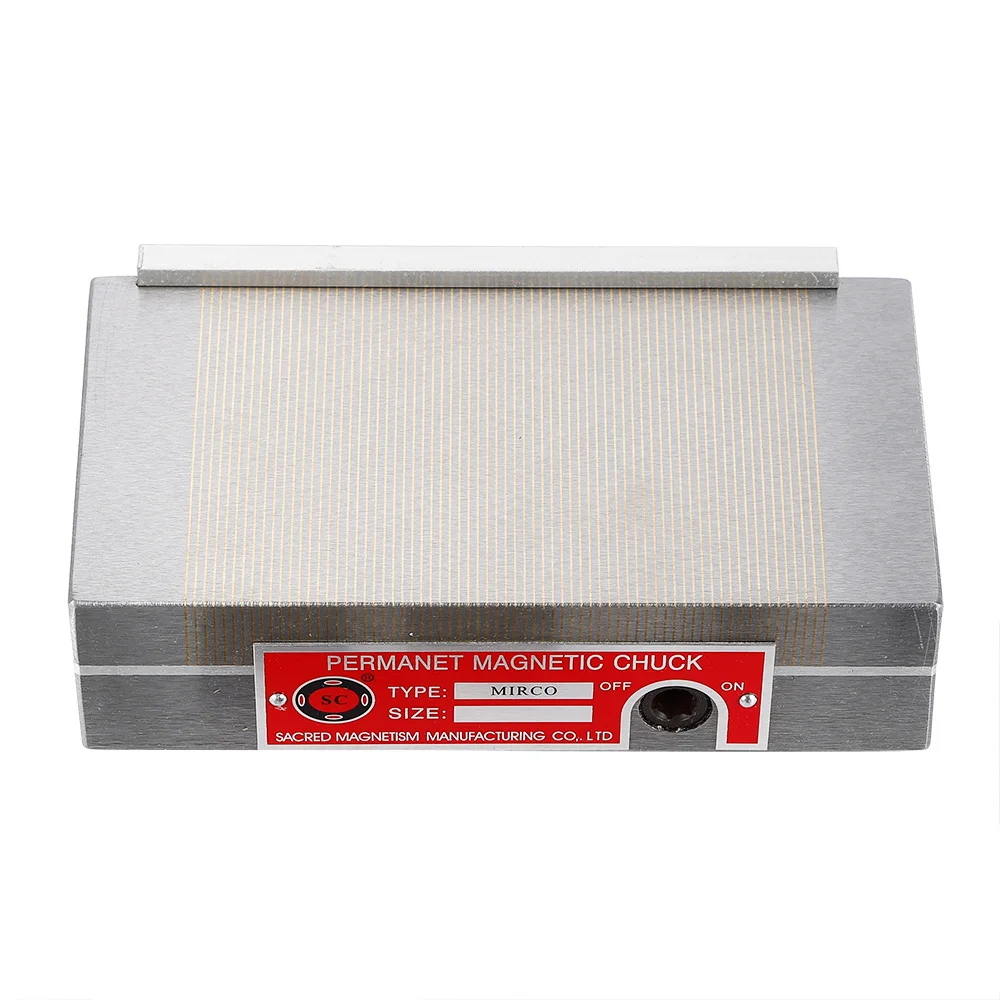

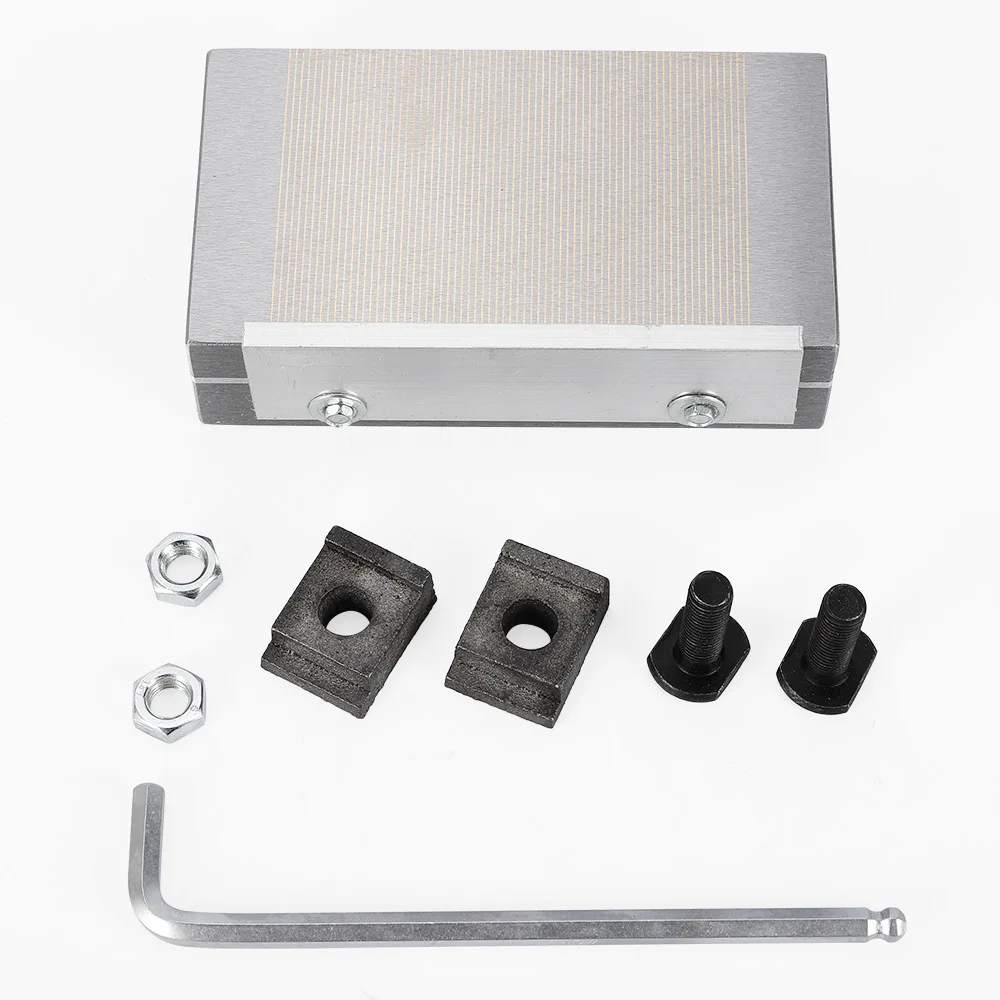

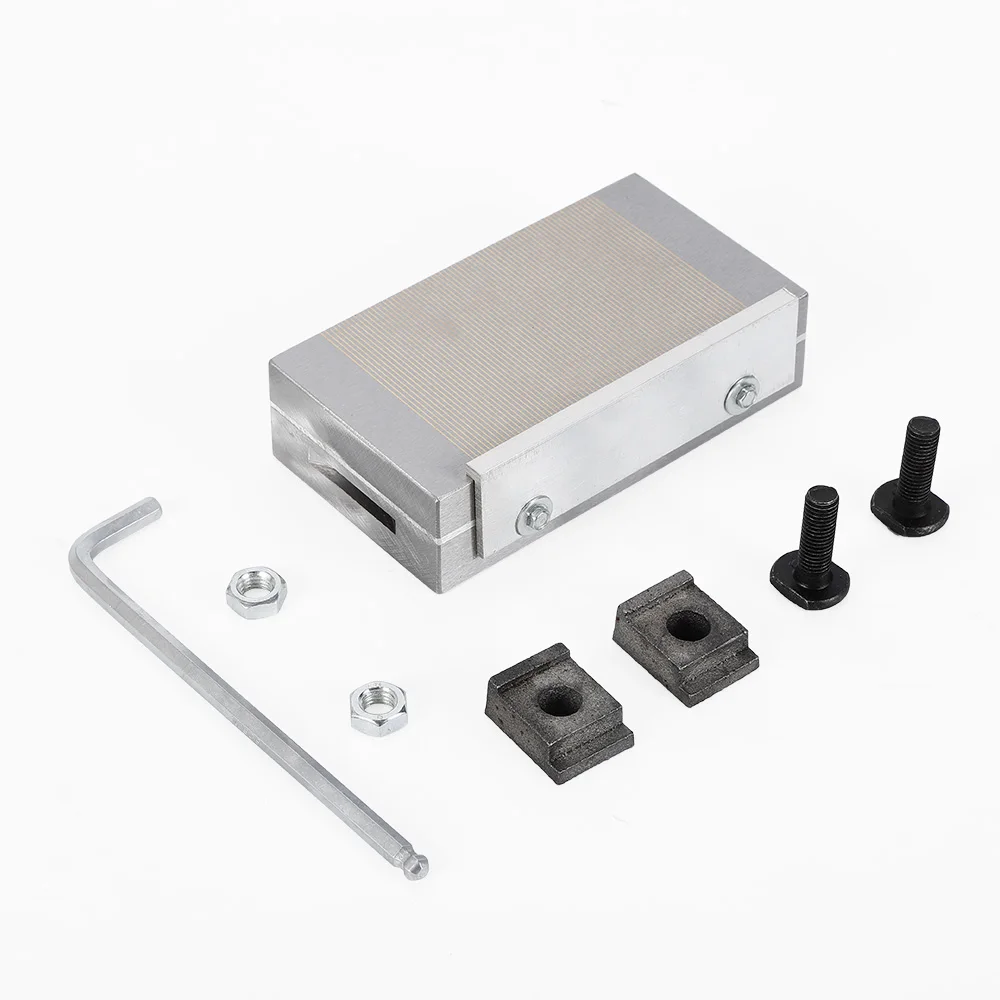

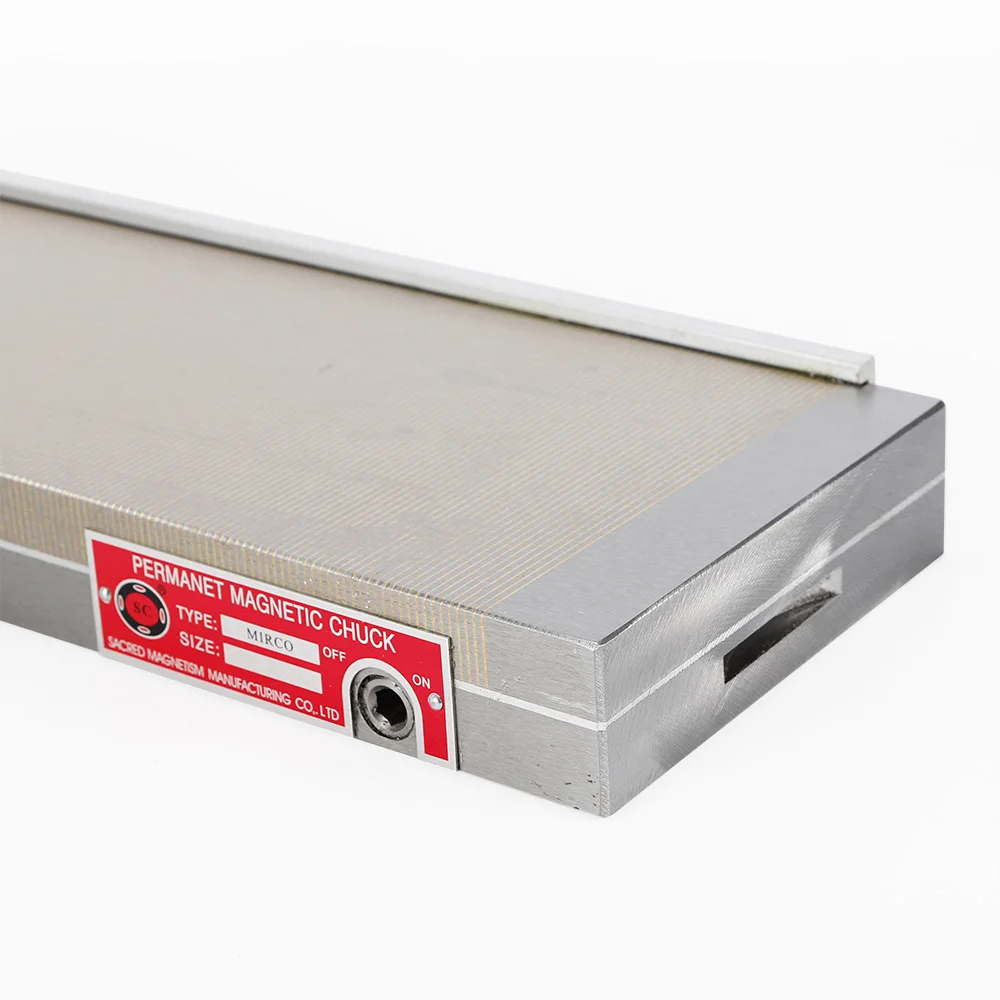

100*175mm Surface Grinder Permanent Magnetic Chuck
Specification
Material: Iron, Brass
Suction Force: 100N-120N

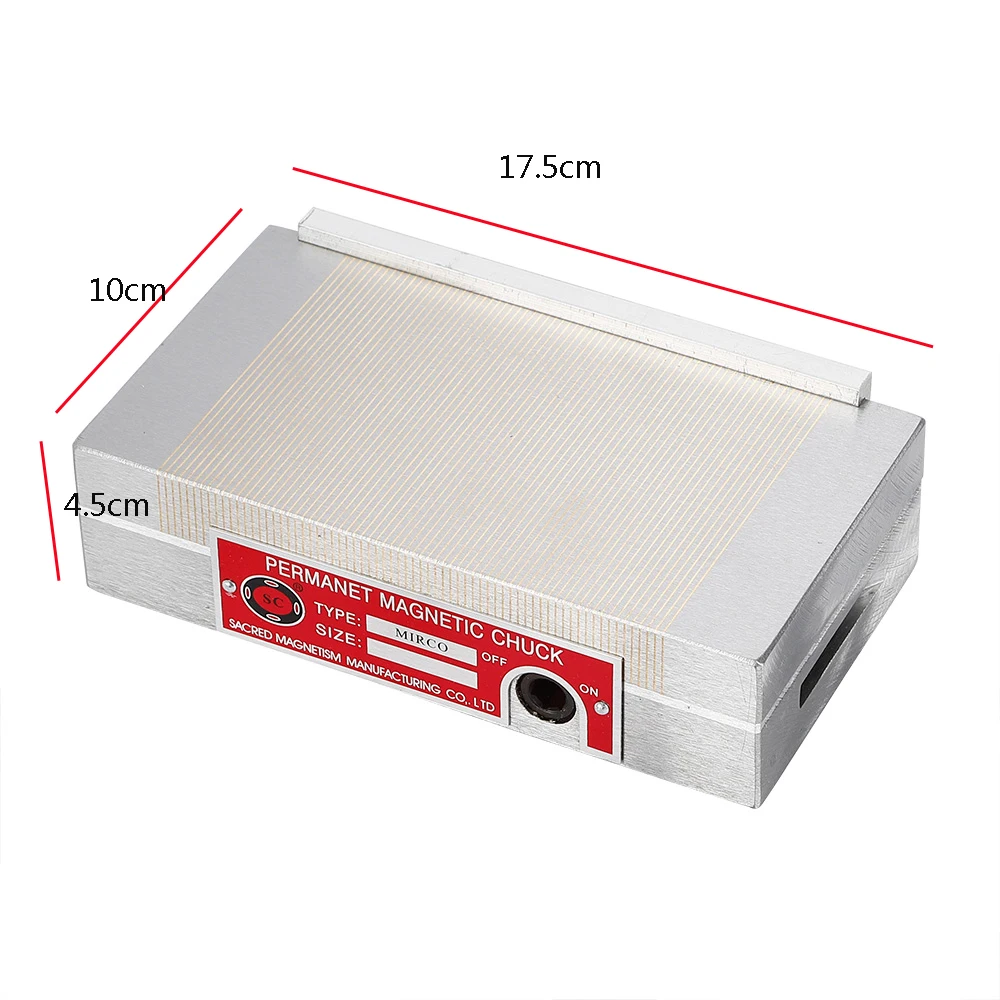

Product Size: 17.5*10*4.5cm/ 6.89*3.94*1.77in
Pole Pitch: 1.5+0.5mm/ 0.059+0.019in
Parallel Accuracy: Within 0.01mm/ 0.000394in
Net Weight: 5.5kg/ 12.13lbs

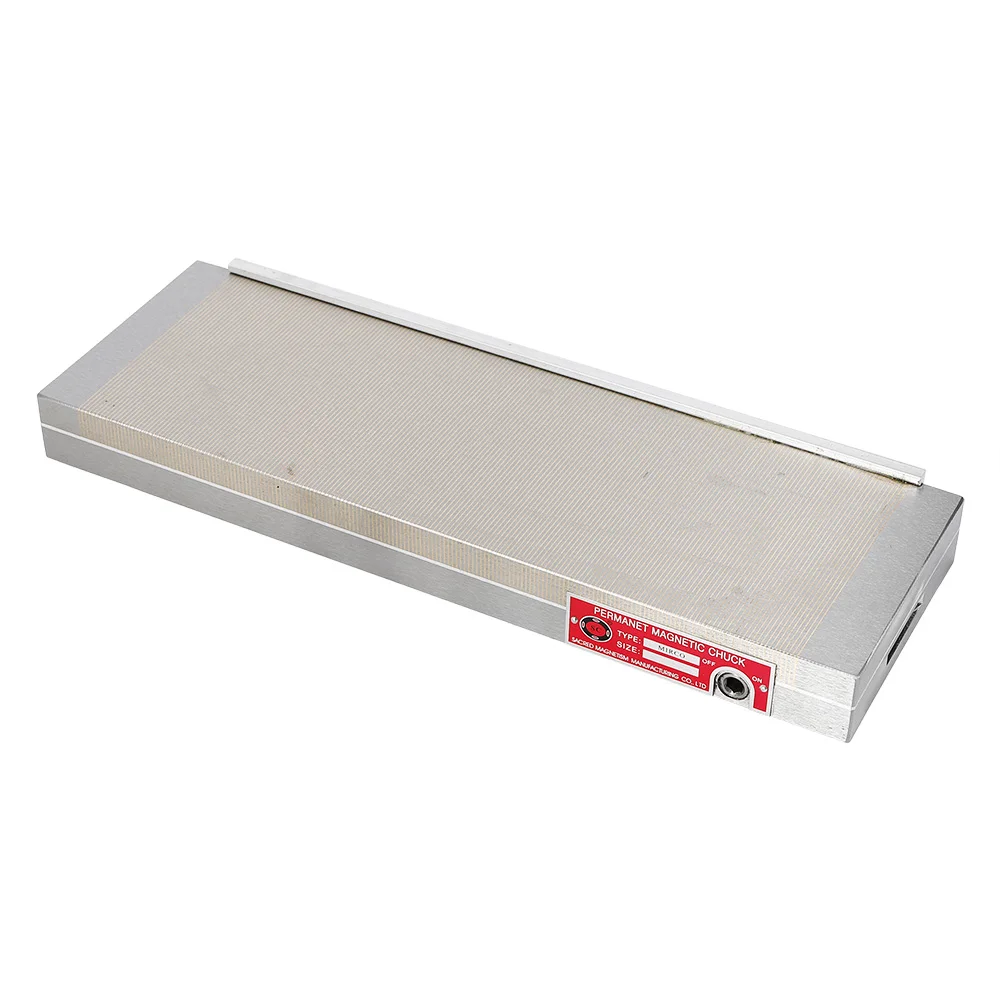

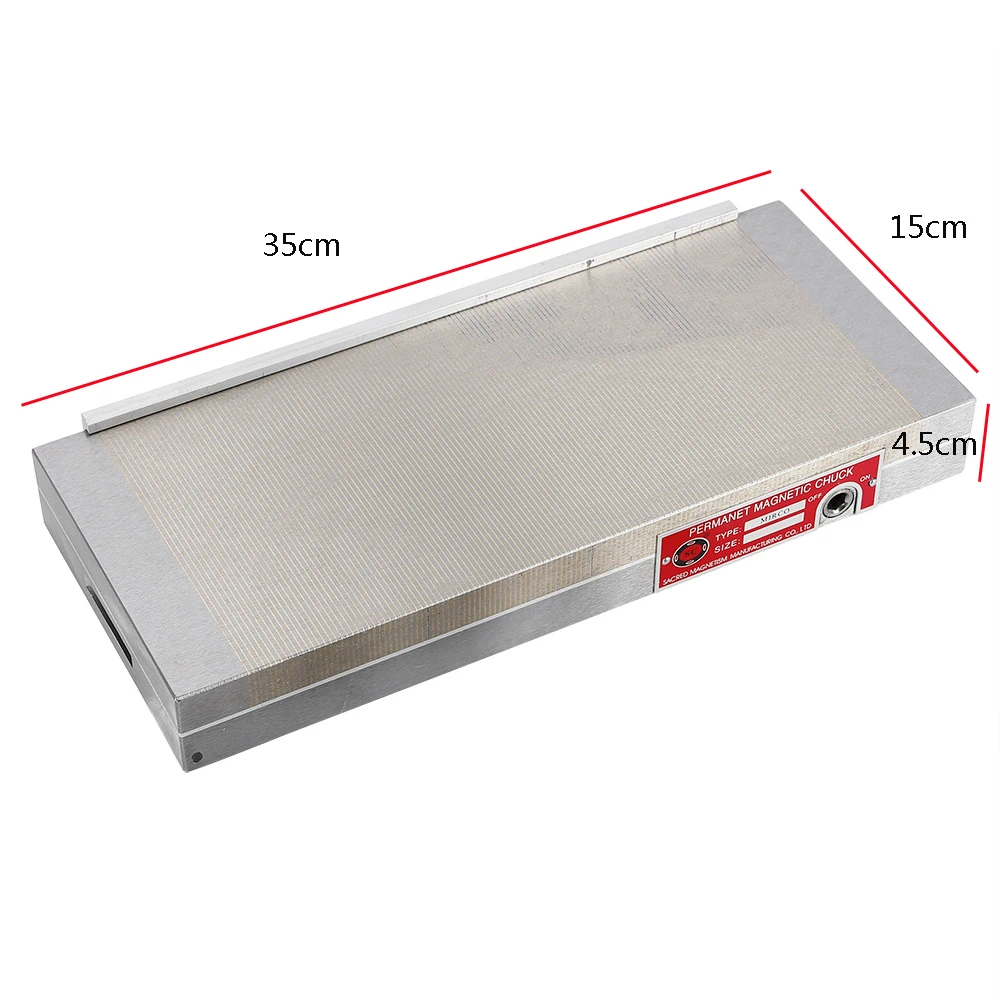

150*350mm Surface Grinder Permanent Magnetic Chuck
Specifications:
--Model: 150*350mm(6”x14”)
--Chuck height: 45mm
--Pole pitch: 1.5+0.5mm（2mm）
--Suction force: 100N-120N
--Net weight: 15.5kg
--product size: 35*15*4.5cm

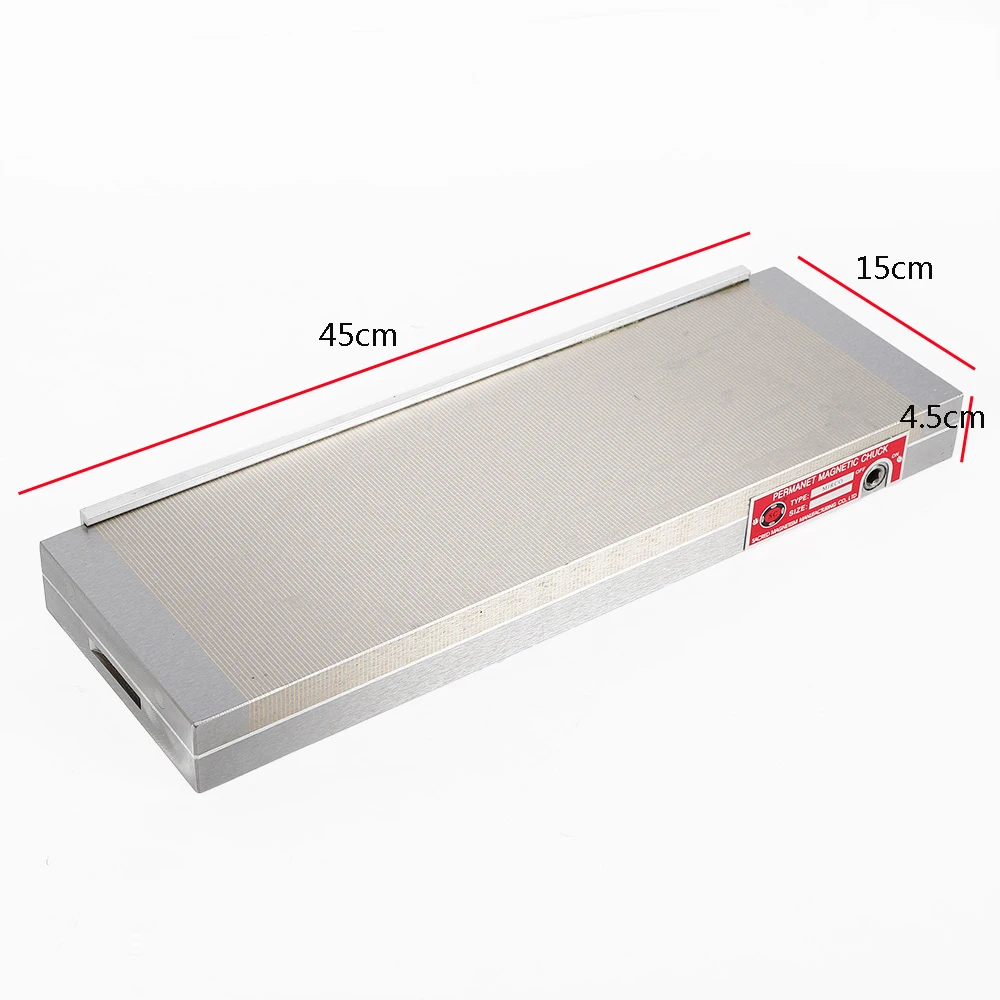

150*450mm Surface Grinder Permanent Magnetic Chuck
Specifications:
--Model: 150*450mm(6”x18”)
--Chuck height: 45mm
--Pole pitch: 1.5+0.5mm（2mm）
--Suction force: 100N-120N
--Net weight: 21kg
--product size: 45*15*4.5cm
Key Features
Good Material: The material of the permanent magnetic chuck is iron and brass, you do not have to worry about the permanent magnetic chuck will be deformed in transit and they have a longer service life. In addition, the smooth surface of it not easy to accumulate dust.
High Durability: On the one hand, it is made of iron and brass giving it a strong hardness and wear resistance. On the other hand, its panel brass welding and treatment can prolong the corrosion of cutting fluid.
High Efficiency: This permanent magnetic chuck adopts an optimized magnetic circuit design so that there is almost little residual magnetism after machining so that the machined workpiece can be easily taken off with higher efficiency.
Strong Magnetic Force: This product uses high-performance magnets with strong magnetic force and less residual magnetism.

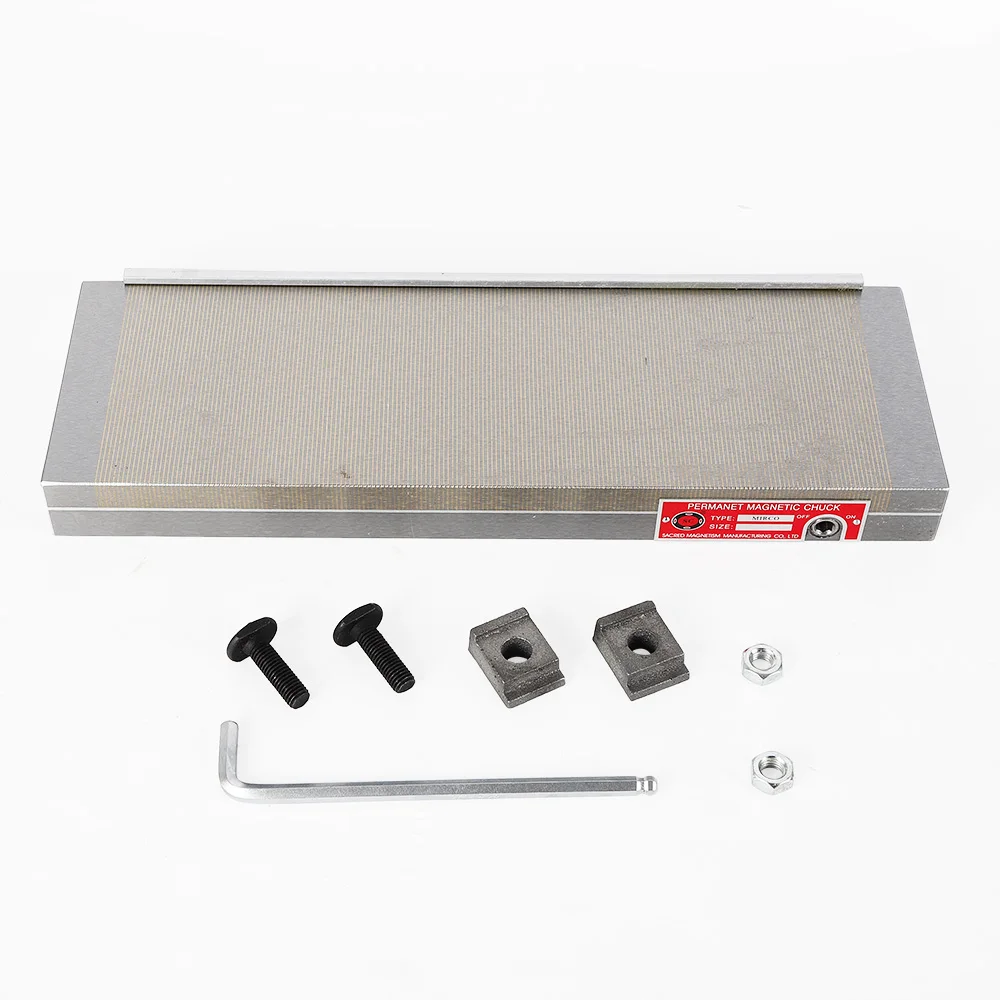

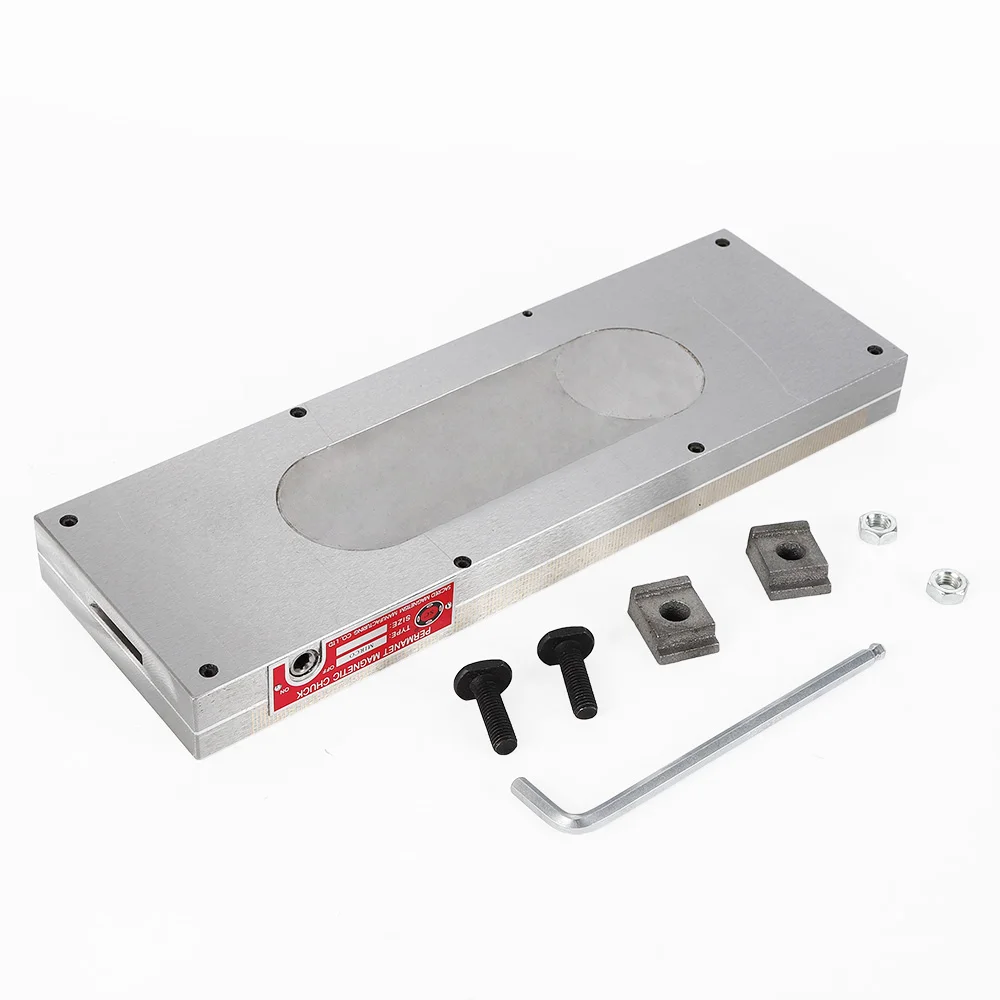

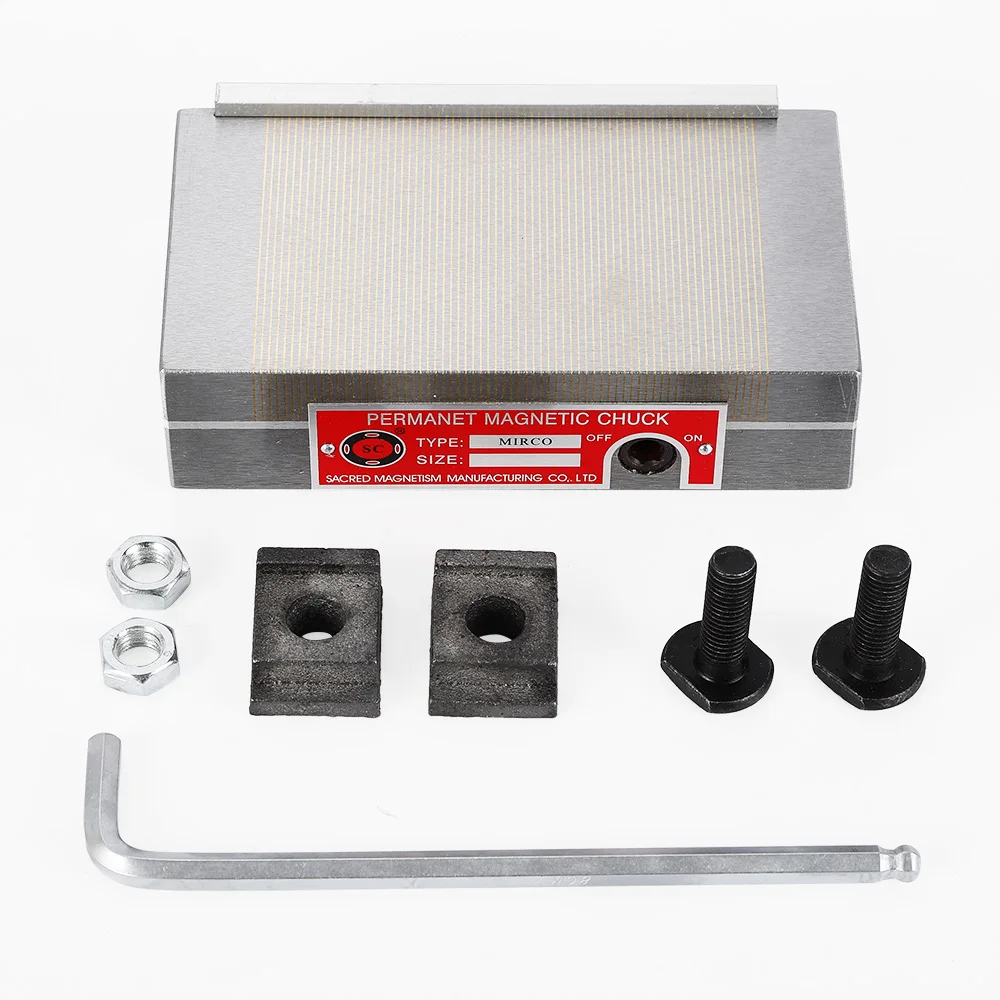

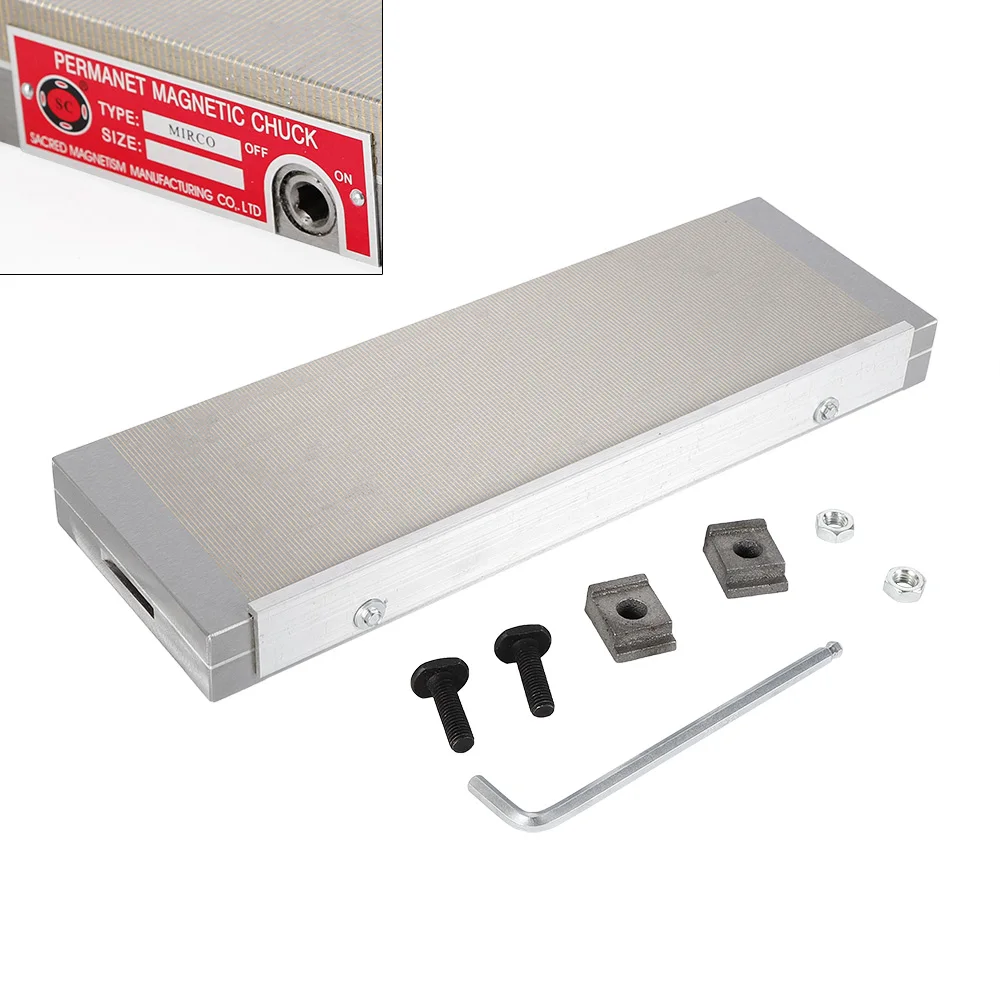

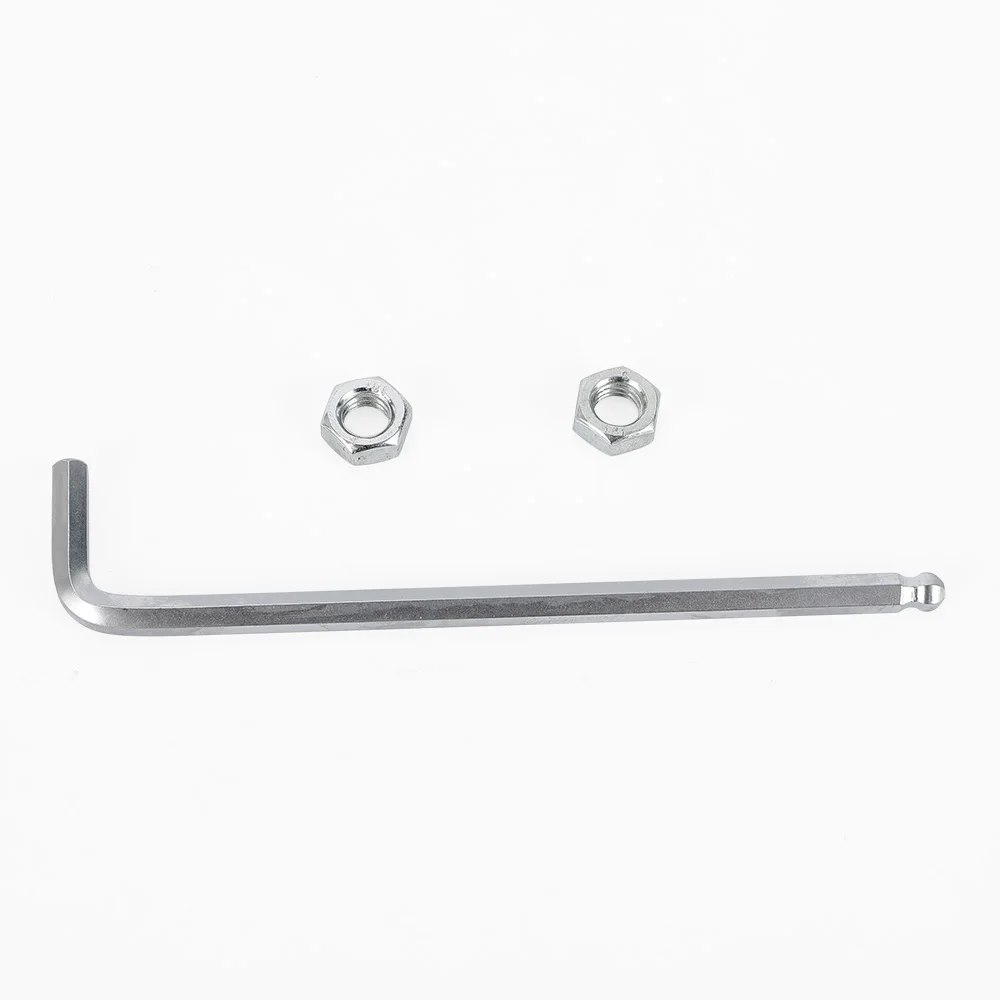

Easy to Operate: The use of this permanent magnetic chuck only requires a wrench to control the shaft hole to complete its operation. Simple operation makes it easy for even beginners to master.
High Suction Force: This permanent magnetic chuck has been tested with industrial pure iron and can reach a vertical pull of 100-120 N. The powerful suction force is more effective when processing fine parts.
Customer Service: We aim to provide quality products and services. If you have any problems, please free to contact us. We will reply and solve the problem for you as soon as possible.
