Dual Hole Spark Plug Tester Diagnostic Tool 12V Car Gasoline Ignition Analyzer

Feature:

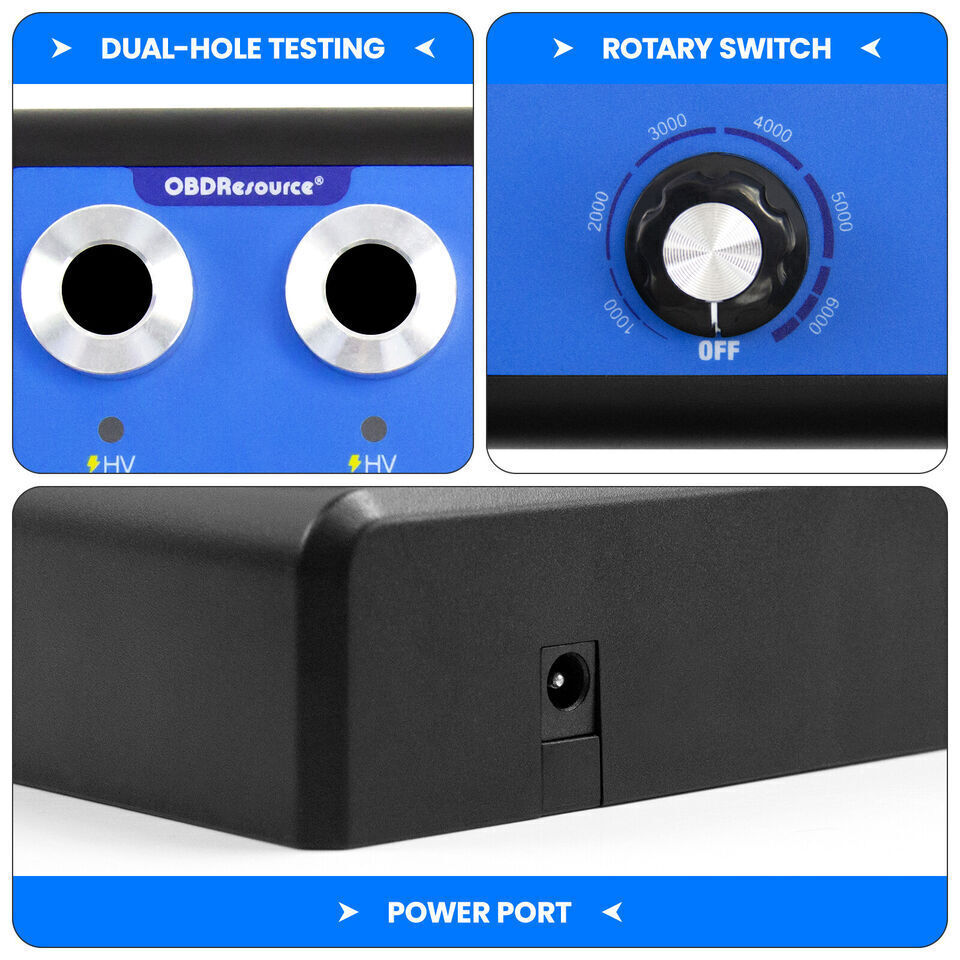

【Dual hole test】: By comparing the spark intensities of the two spark plugs,judge the performance and ignition intensity of the spark plugs,and replace the broken spark plugs in time. Spark plug tester has two spark plug socket, you could compare and test to make an accurate judgment at the same time.

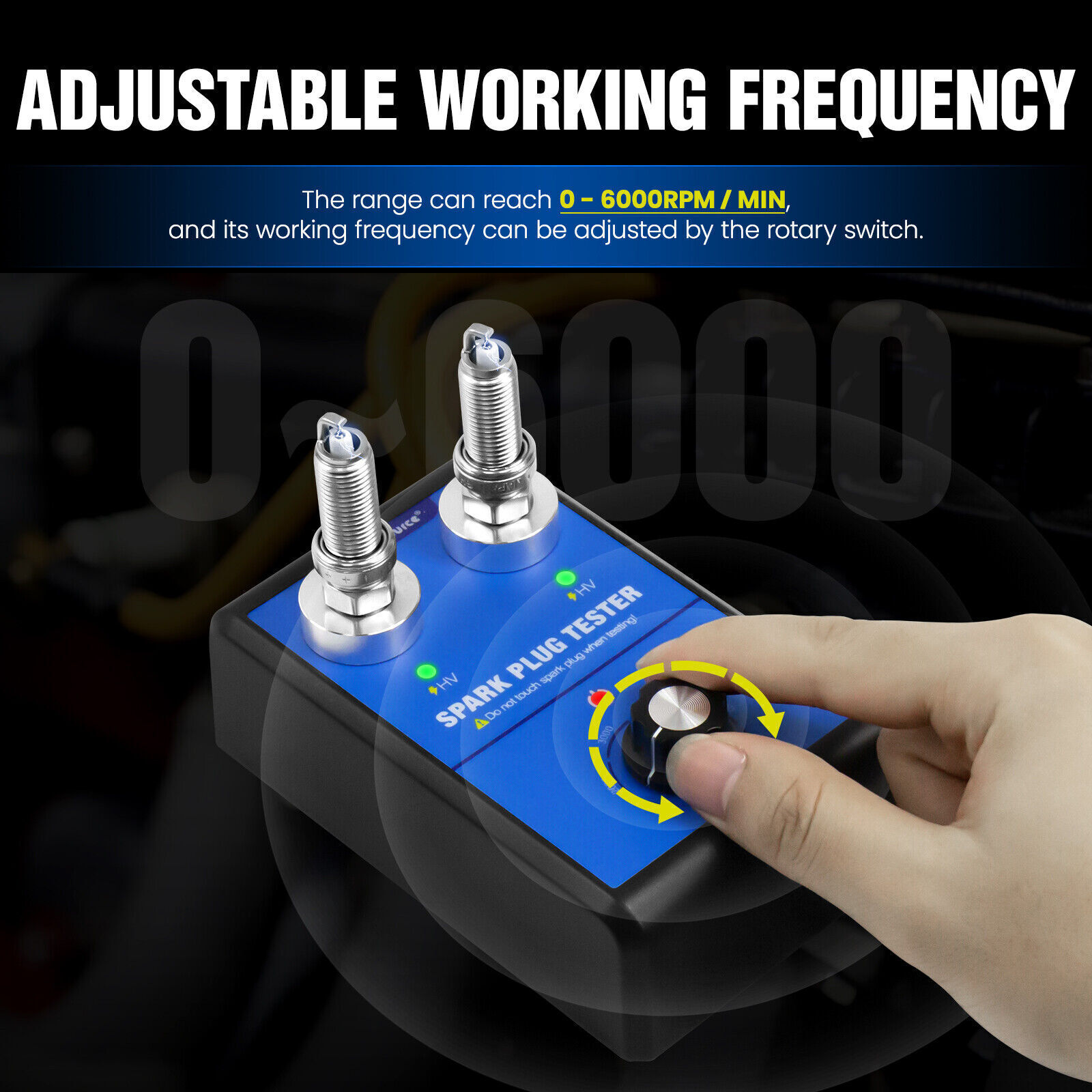

【Adjustable working frequency】: Spark Plug Tester working frequency of car is 0-6000 rpm. You can adjust it according by rotating the switch, which is very convenient. The higher the frequency, the stronger the spark intensity. It can truly simulate the working conditions of the engine. The measurement process is more effective and the measurement results are more accurate.
【Top and applicability】Car spark plug tester is made of thermoplastic polymer structural material (ABS), good heat resistance and impact resistance, and can extend its service life. It can be used to test 12V gasoline vehicles with a diameter of 13mm and is compatible with 99% of crankshaft engines and motorcycle spark plugs on the market.
【Plug and Play】:Spark plug tester is very simple. Spark plug to be tested needs to be placed in the test hole, and then connected to the power supply to start the test. It also has a power indicator light and two high-voltage signal indicators, which can help you observe the test more intuitively.
NOTE: It is not suitable for testing short plugs on lawn mowers, chainsaws, or most small motors.Please avoid strong light when using to avoid affecting the test results.


Car Spark Plug Test principle:
In automobile ignition system, the high-voltage ignition coil generates a high-voltage (10000 volts or more), and the spark plug diverts it form
high -tension ignition coil into the cylinder engine, spark between the spark plug electrodes will ignite the mixture. The Detector could tell the
good spark plugs from the bad by the strength of the spark.



Car Spark Plug Tester Using Note:
1. Please Turn Off Power before you place spark plug
2. The Spark Plug Tester is a high-voltage detector, so do not touch spark plug with hand at work to avoid danger.



Car Spark Plug Tester User Manual:
1.Place the Spark Plug into tester hole 1 or 2; If you want to compare the new spark plug and old one, place new spark plug into hole 1 and the old on into hole 2
2.Connect to power supply
3.Turn the key switch 4 clockwise to turn on tester, indicator 3 will light up, tester is now working at 1000rpm/min.
4. Again turn the key switch 4 clockwise,you can adjust the working frequency between 1000rpm to 5000rpm/min.
   The higher the frequency, the stronger the spark strength.



Gasoline Car Spark Plug Tester Product Parameters:

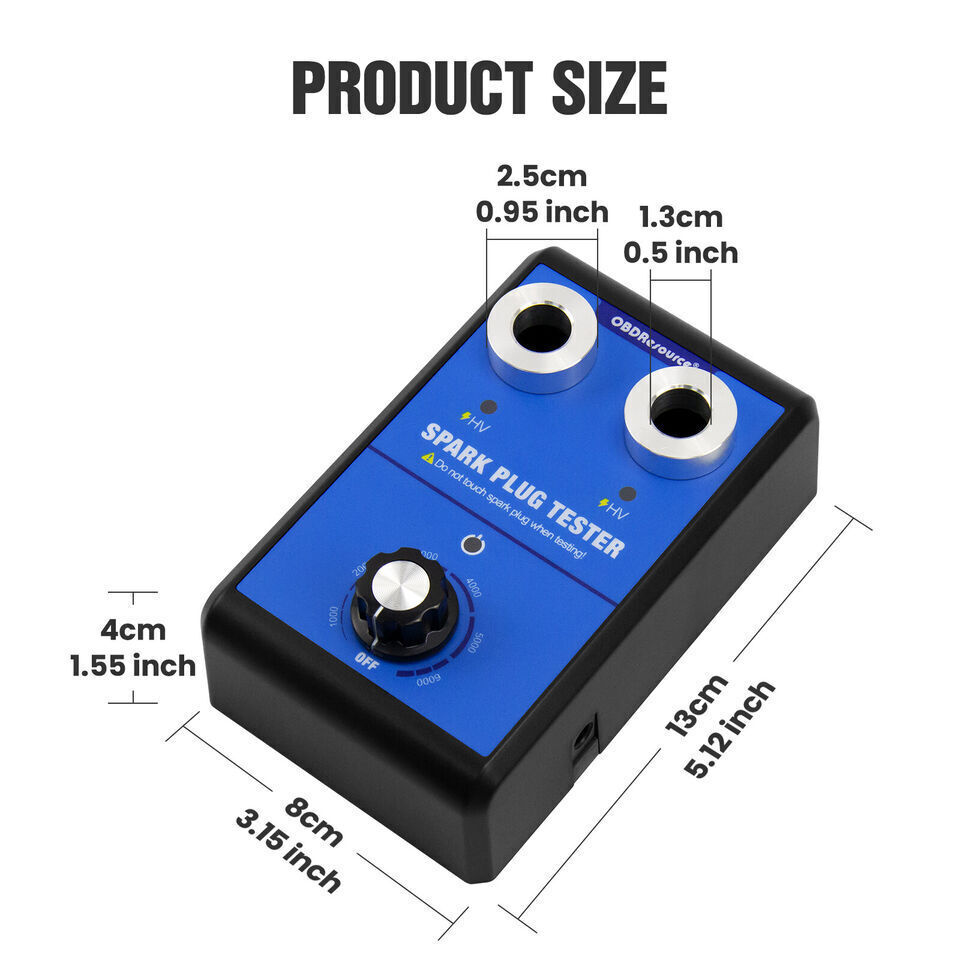

Main Unit Size:145*85*60mm
Main Unit Weight:220G( Not including Power Adapter)
Power Adapter: Input 100-240V AC /  Output 12V 1A DC

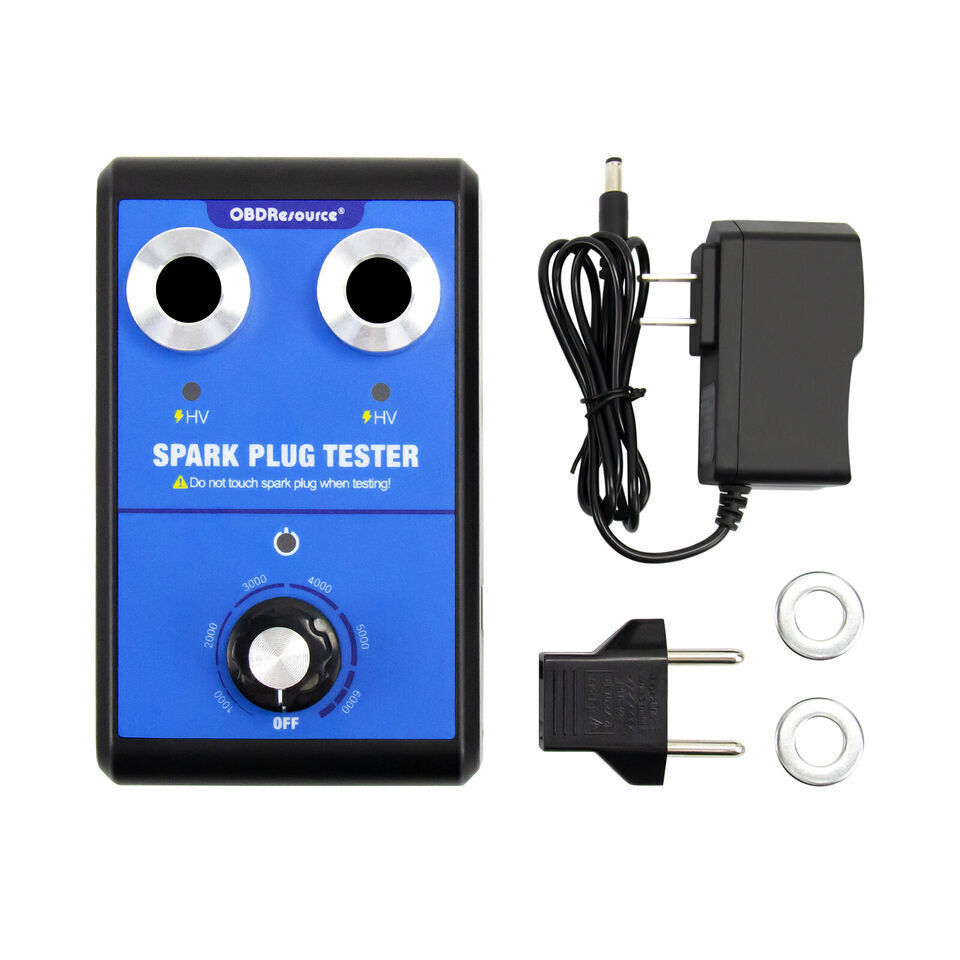

Package Includes:
1 x Spark plug tester
1 x Power Adapter
