Product description.

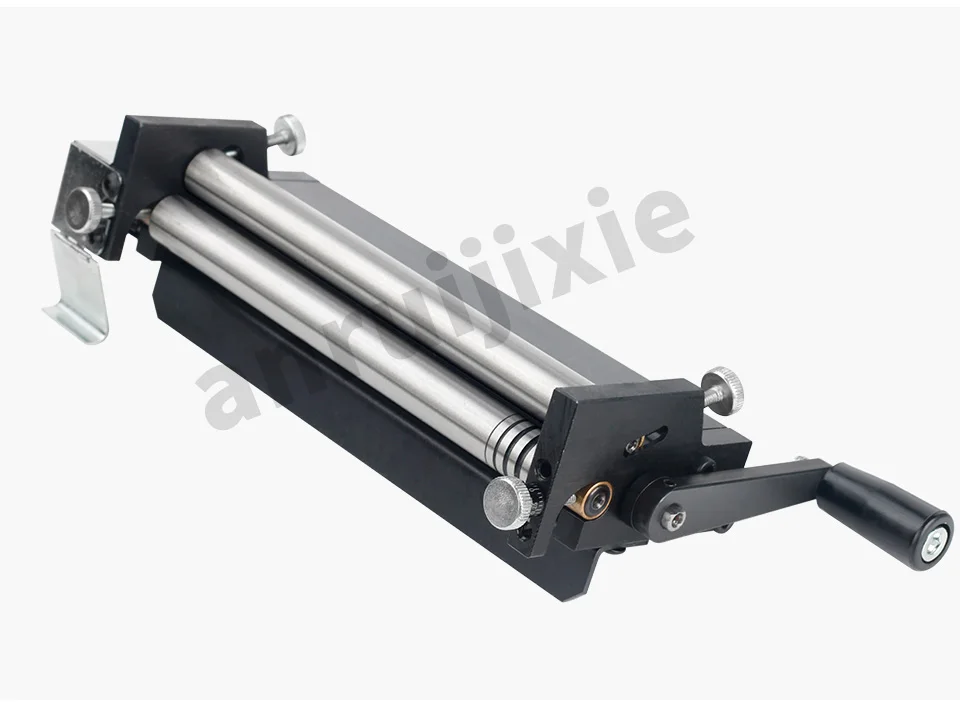

6-3/10"(160mm) Flat die tool for DIY mill rollers metal wire

Processing thickness: Depending on the size and material, the maximum plate processing thickness for galvanized sheet cannot exceed 2.5mm (7/64").

The maximum wire processing cannot exceed 2.5mm (7/64") wire diameter,

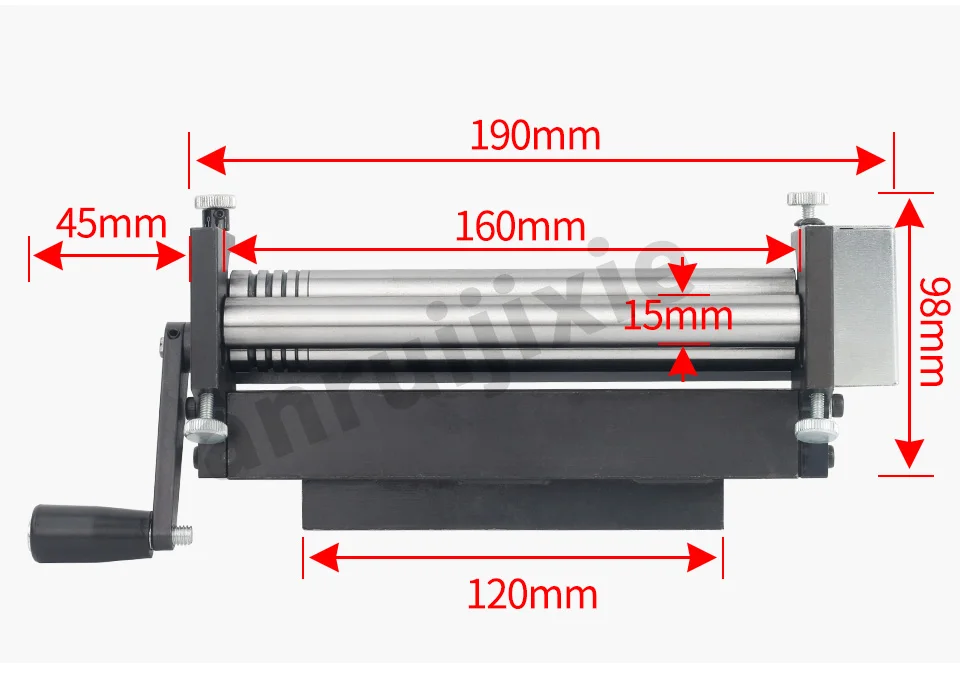

When processing a width of 160mm (6.3inch), the thickness of the sheet should not exceed 1mm (0.04inch).

For a processing width of 80mm (3.2inch), the thickness of the sheet must not exceed 2mm (5/64").

When processing a width of 50mm (2inch), the thickness of the sheet must not exceed 2.5mm (0.1inch).

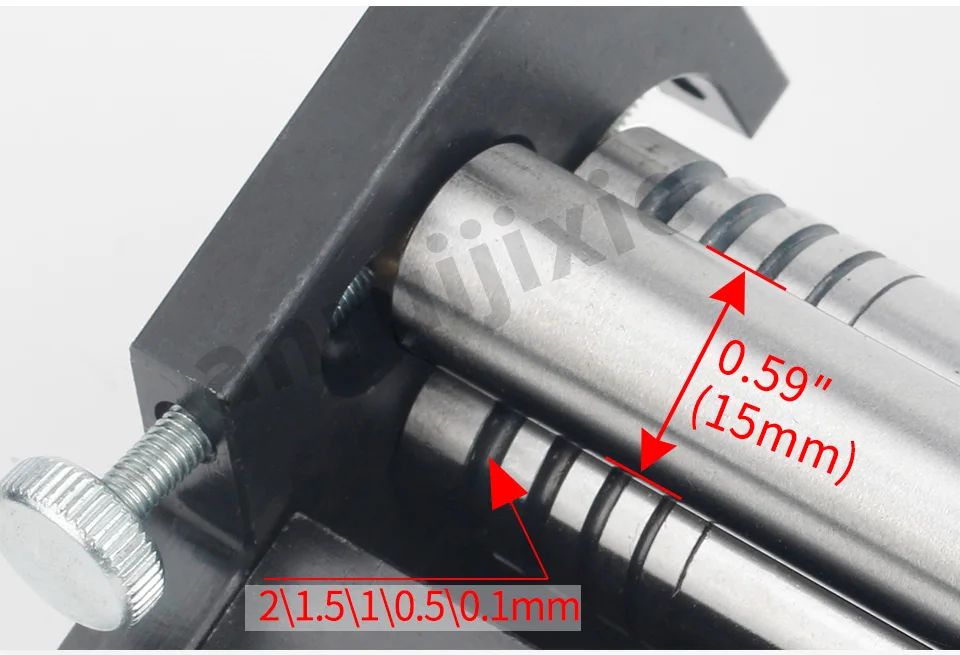

Rolling size:Two rolls with 3 wire grooves(1/16inch,5/64inch,1/8inch ) for wire forming,Minimum roll diameter:The minimum rolling circle diameter of shee
