Product Details

Product Features:
1. Ultrasonic distance sensing and obstacle avoidance, intelligently identifies obstacles and maneuvers around them.

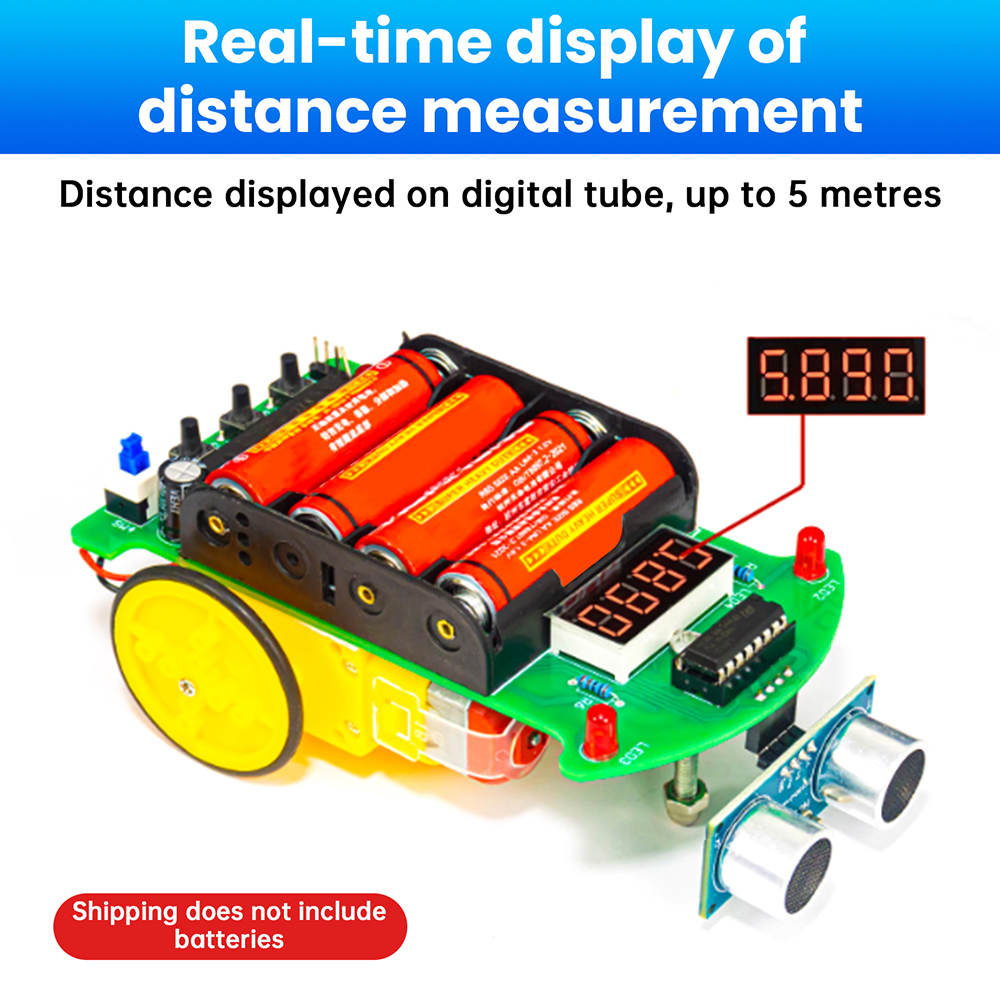

2. Real-time distance display via LED display, with a maximum detection range of 5 meters.
3. DIY kit design enhances hands-on skills, ideal for electronics enthusiasts.

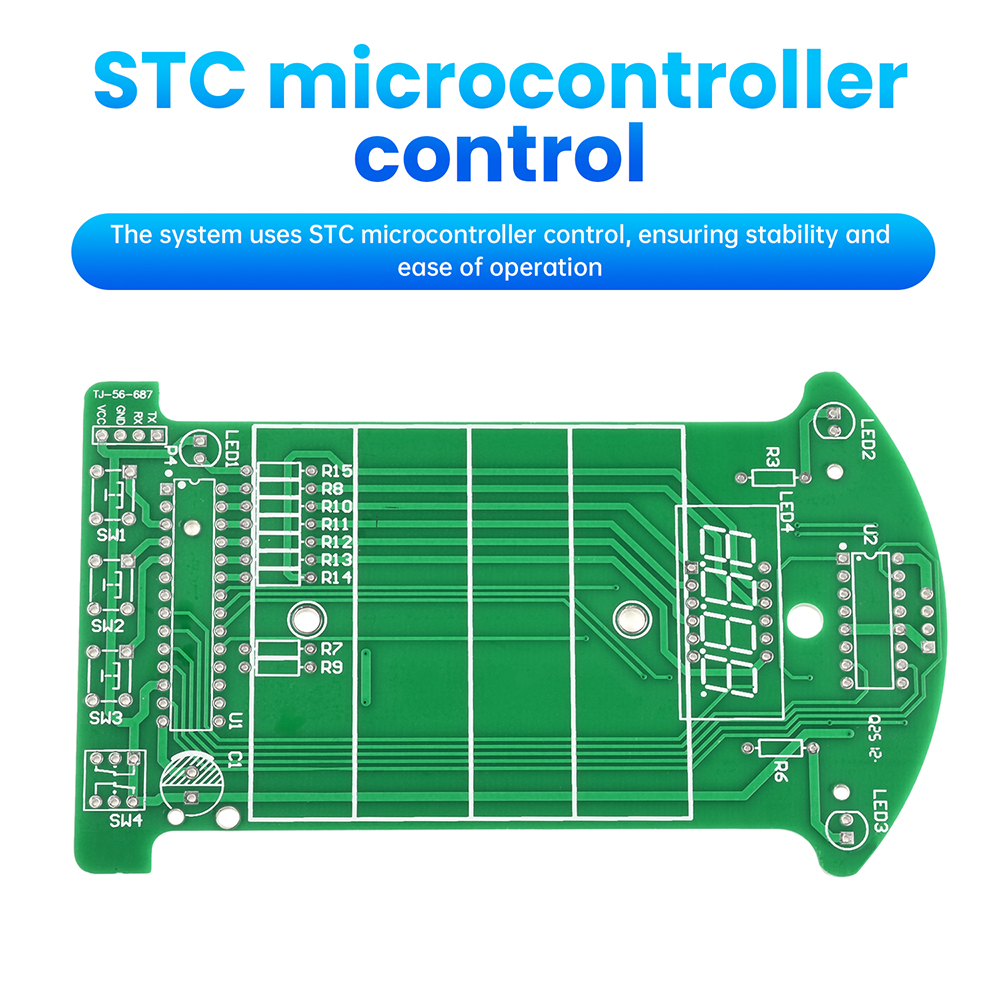

4. STC microcontroller-based system ensures stability and user-friendly operation.

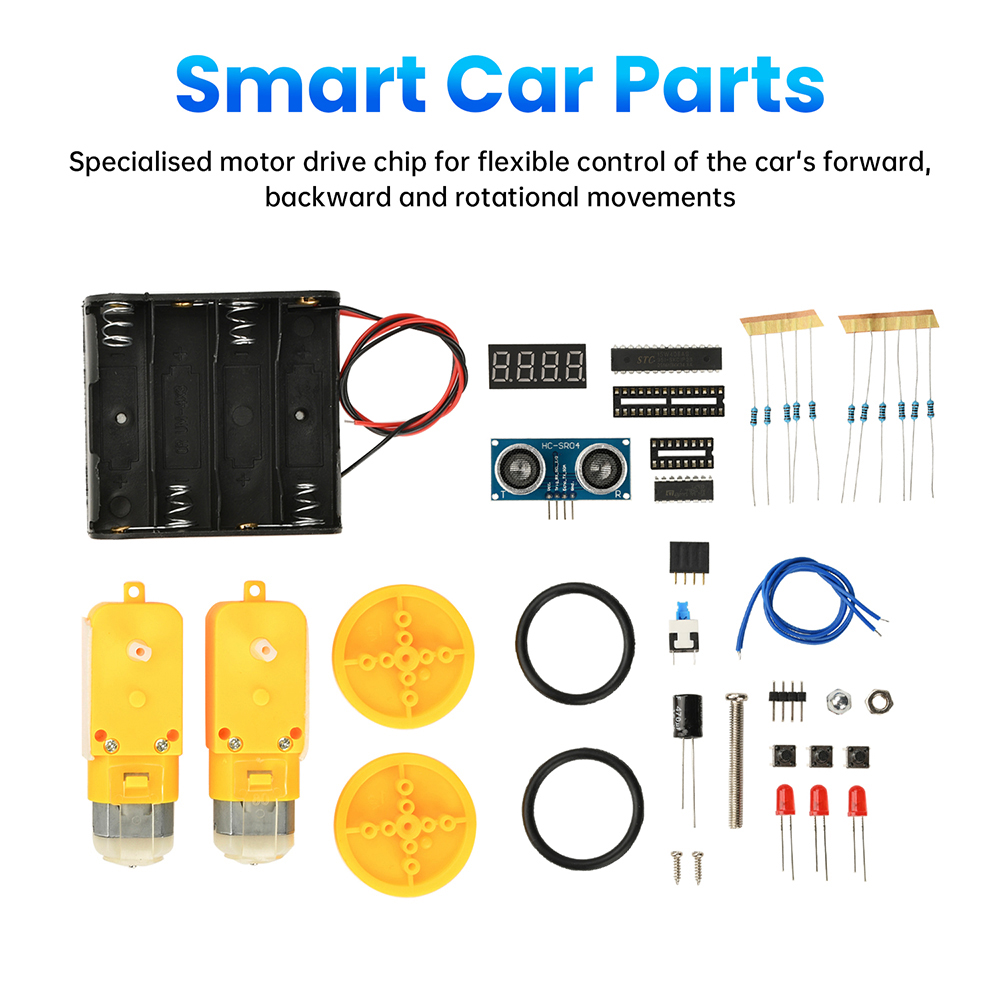

5. Dedicated motor driver chip enables precise control of forward/reverse/rotation movements.

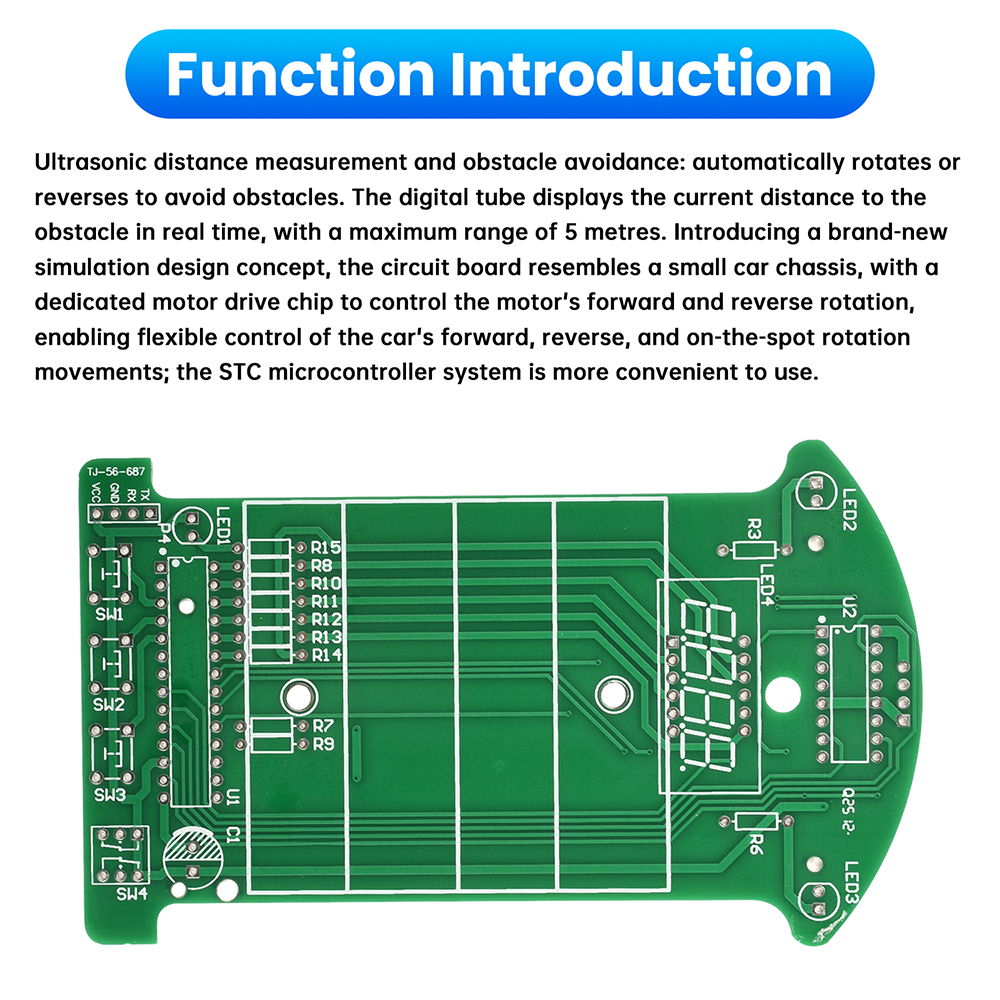

Function Introduction:

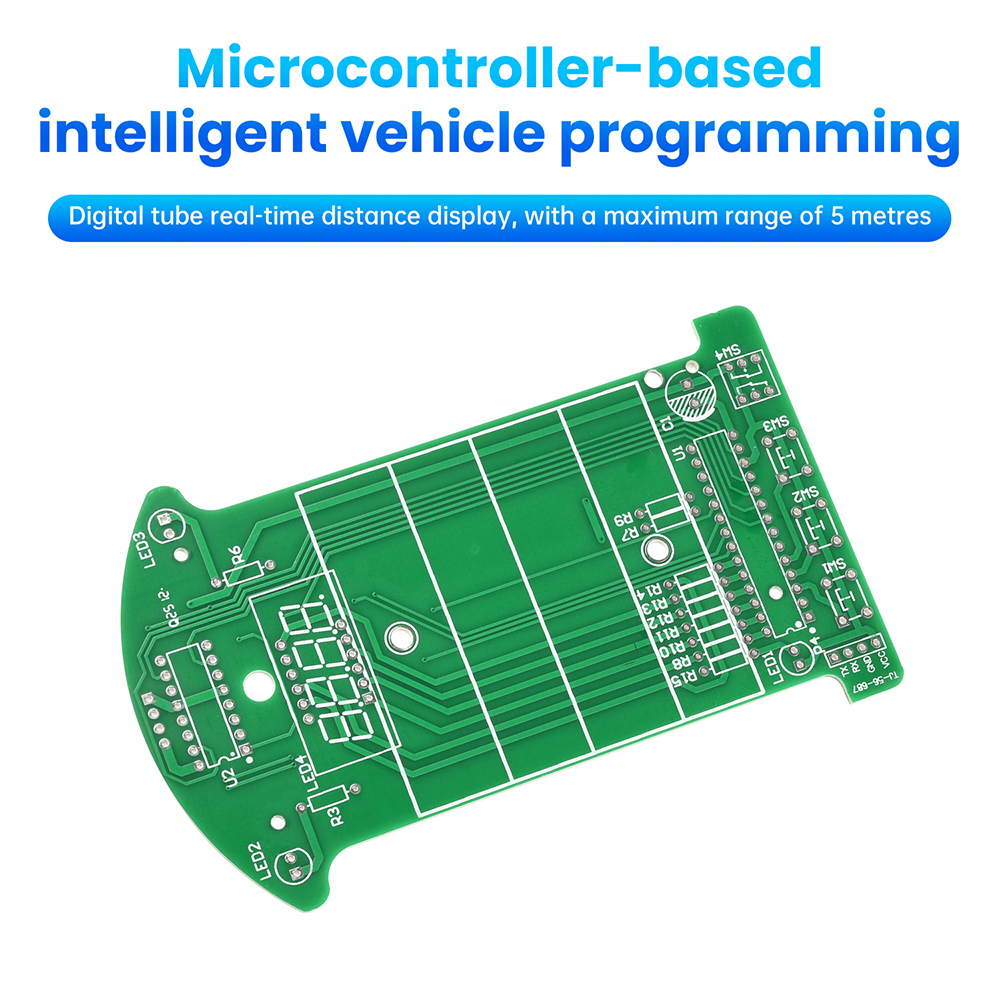

Ultrasonic distance sensing and obstacle avoidance automatically rotates or reverses upon detecting obstacles. Digital display shows real-time obstacle distance up to 5 meters. Innovative simulation design makes the circuit board resemble a vehicle chassis. Dedicated motor driver chip controls forward/reverse rotation, enabling flexible maneuvers like forward/backward movement and on-the-spot rotation. STC microcontroller system ensures user-friendly operation.

Product Specifications:

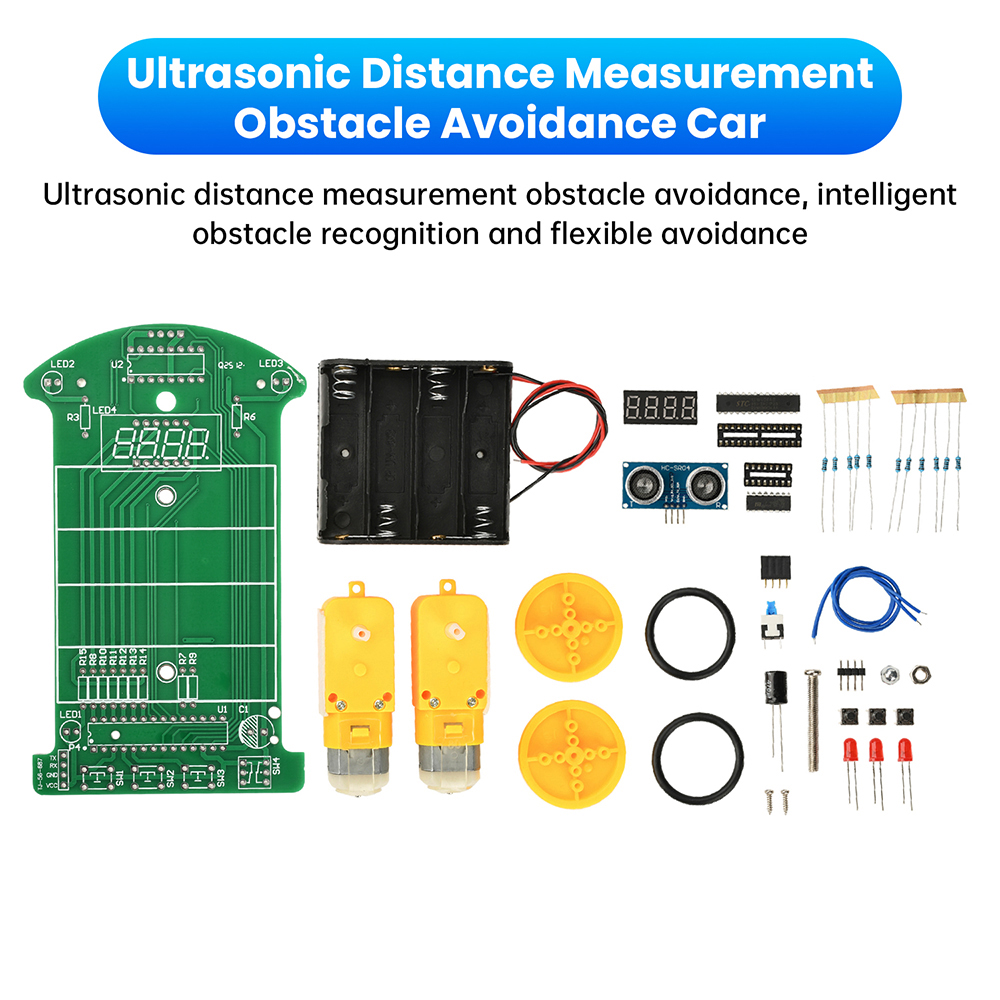

Product Name: Ultrasonic Distance Measurement Obstacle Avoidance Car Kit
Operating Voltage: DC5V (4 AA batteries)  battery not include
PCB Dimensions: 120*72mm

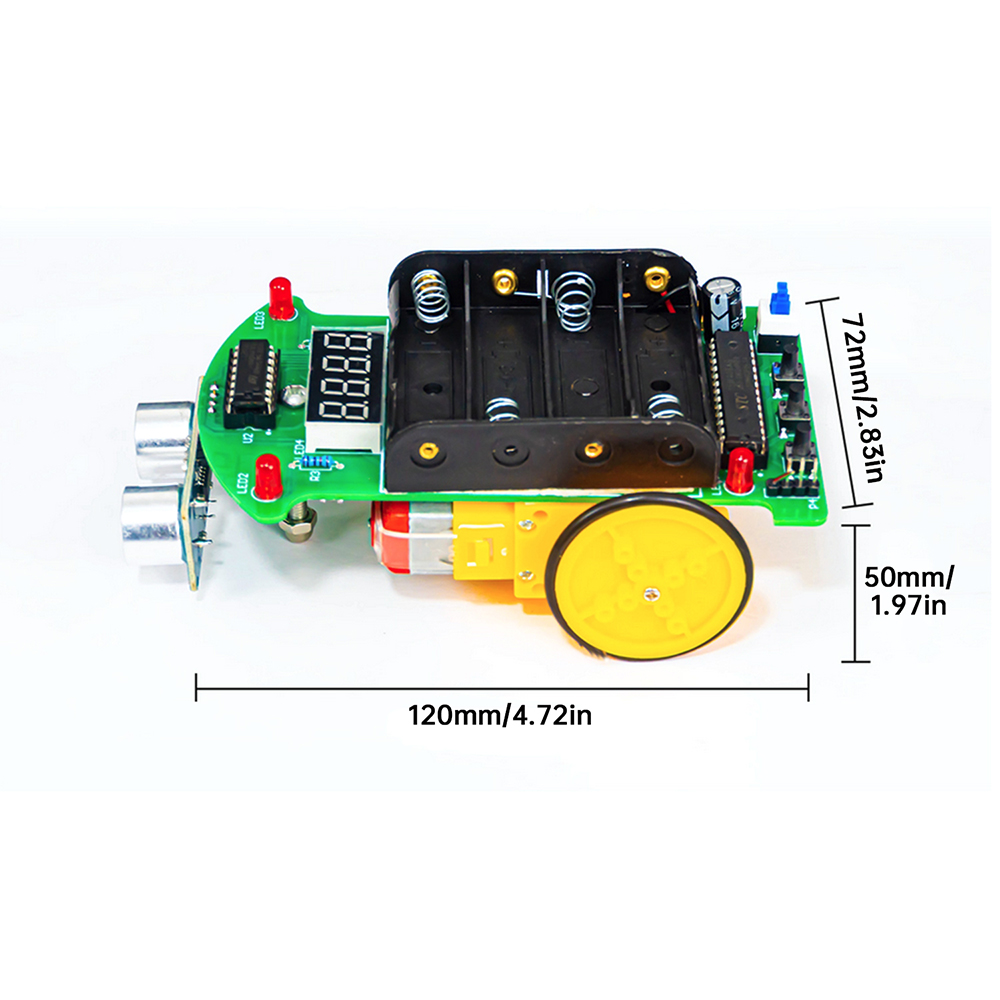

Assembled Dimensions: 120*72*50mm

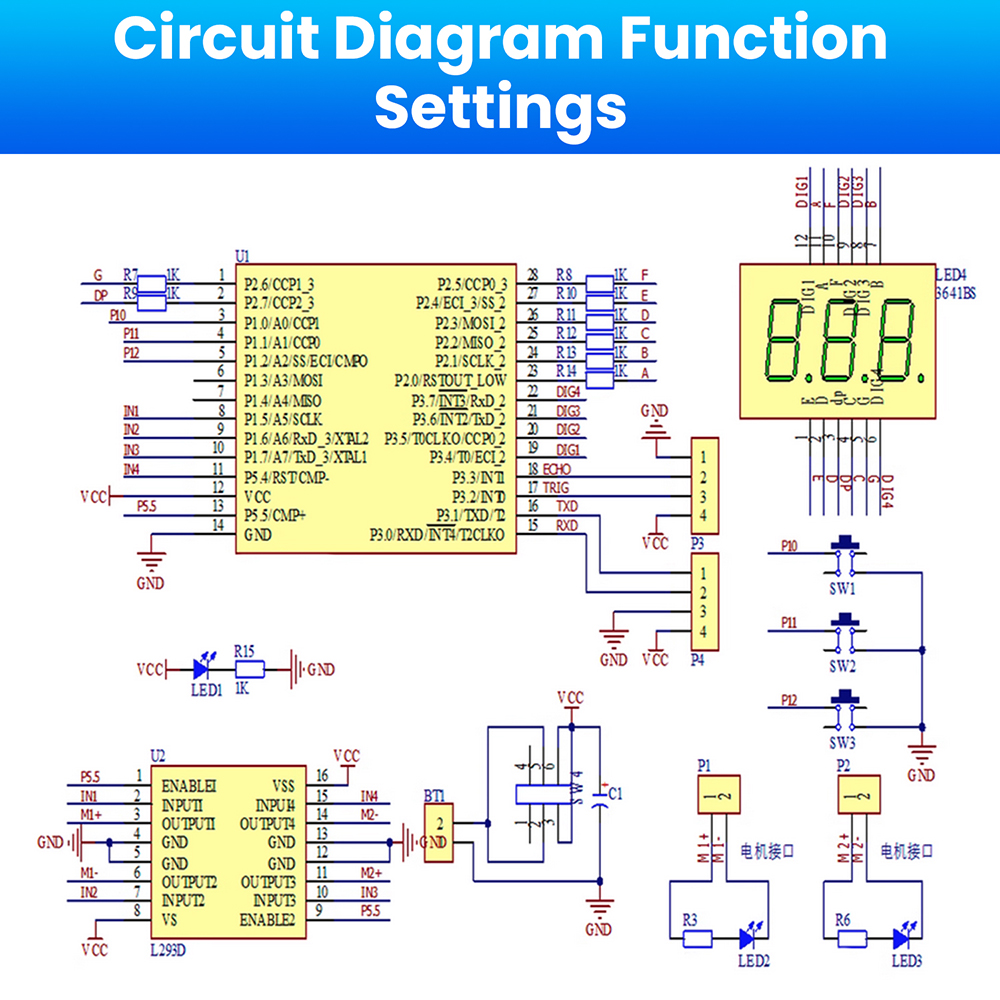

Function Settings:
1. Utilizes ultrasonic distance measurement with distance display on the seven-segment display, up to 5 meters.
2. Set obstacle avoidance distance via buttons. Adjustable range: 0~2.55 meters. Optimal range: 0~0.5 meters. Default: 0~0.2 meters. “0” disables obstacle avoidance.
3. Automatically rotates or reverses to avoid obstacles.

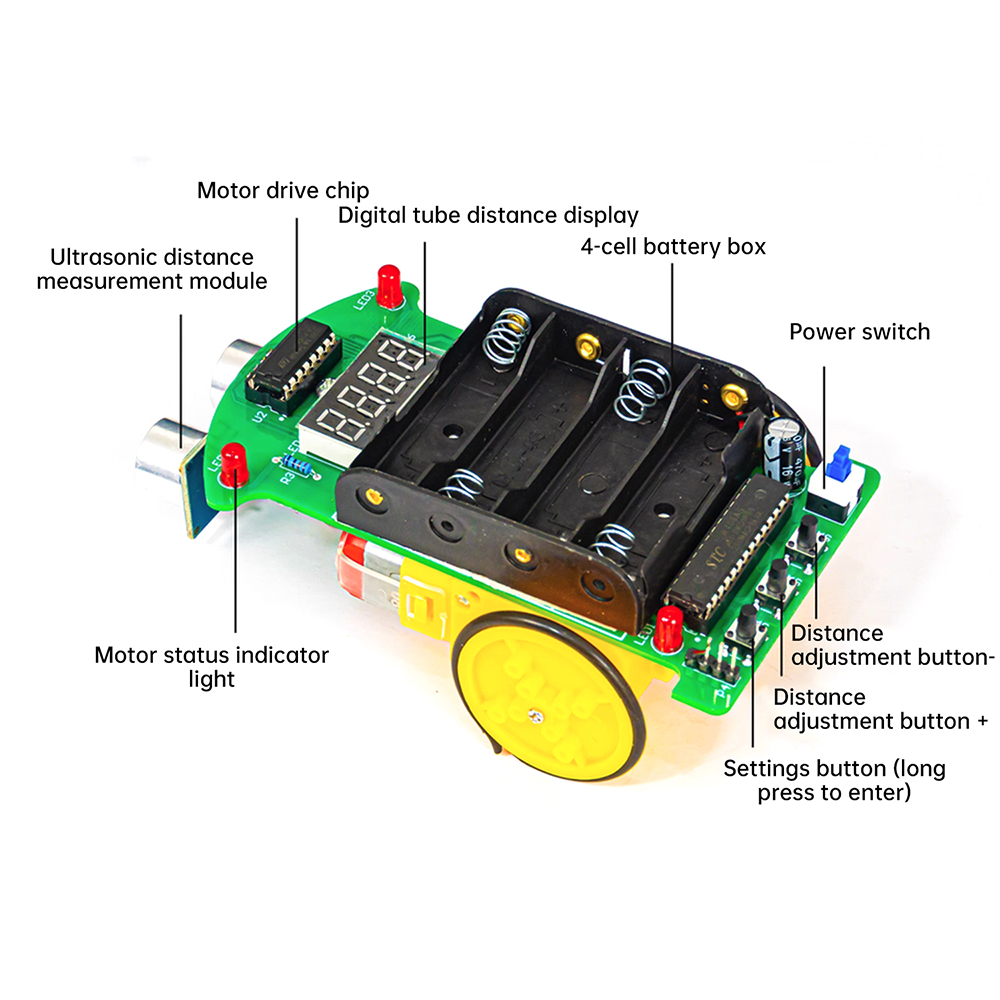

4. Long press SW1 to display the obstacle avoidance distance on the LED display, which will flash.
5. Adjust the distance using the “+” or “-” buttons, then press SW1 to save and exit.

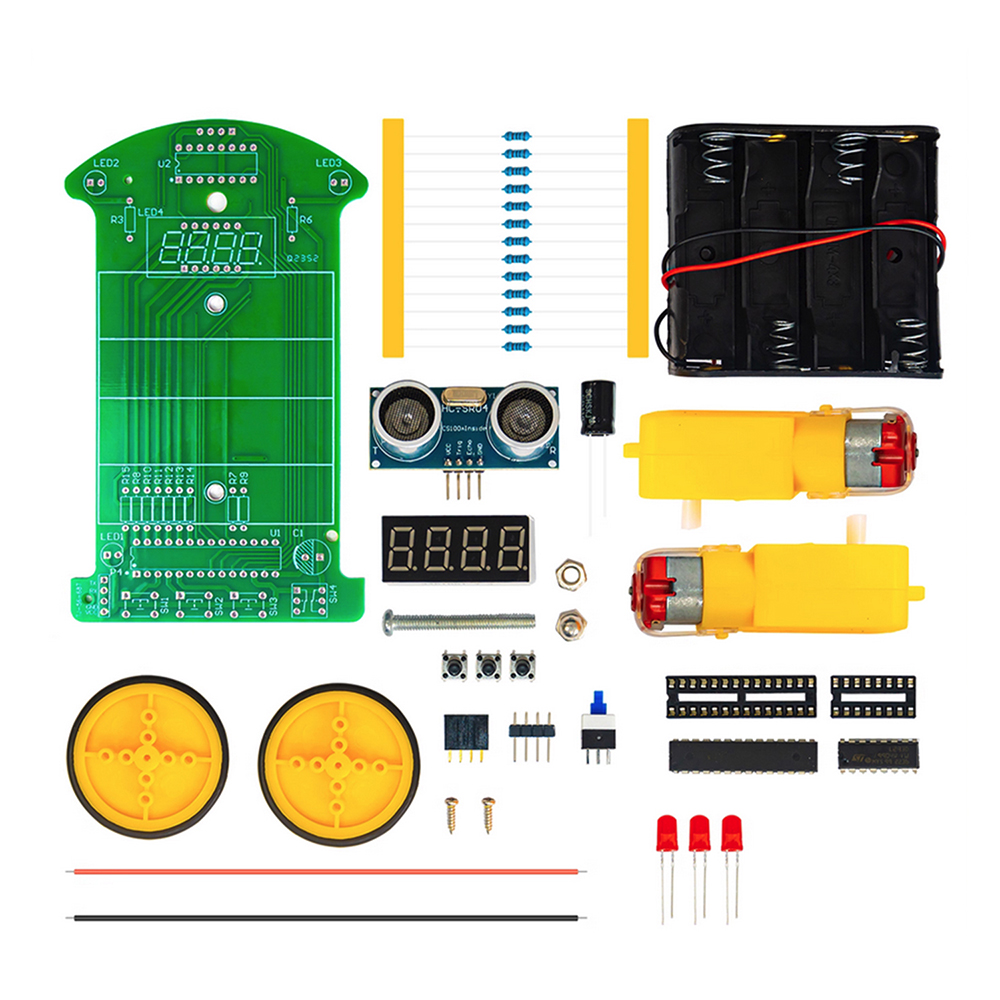

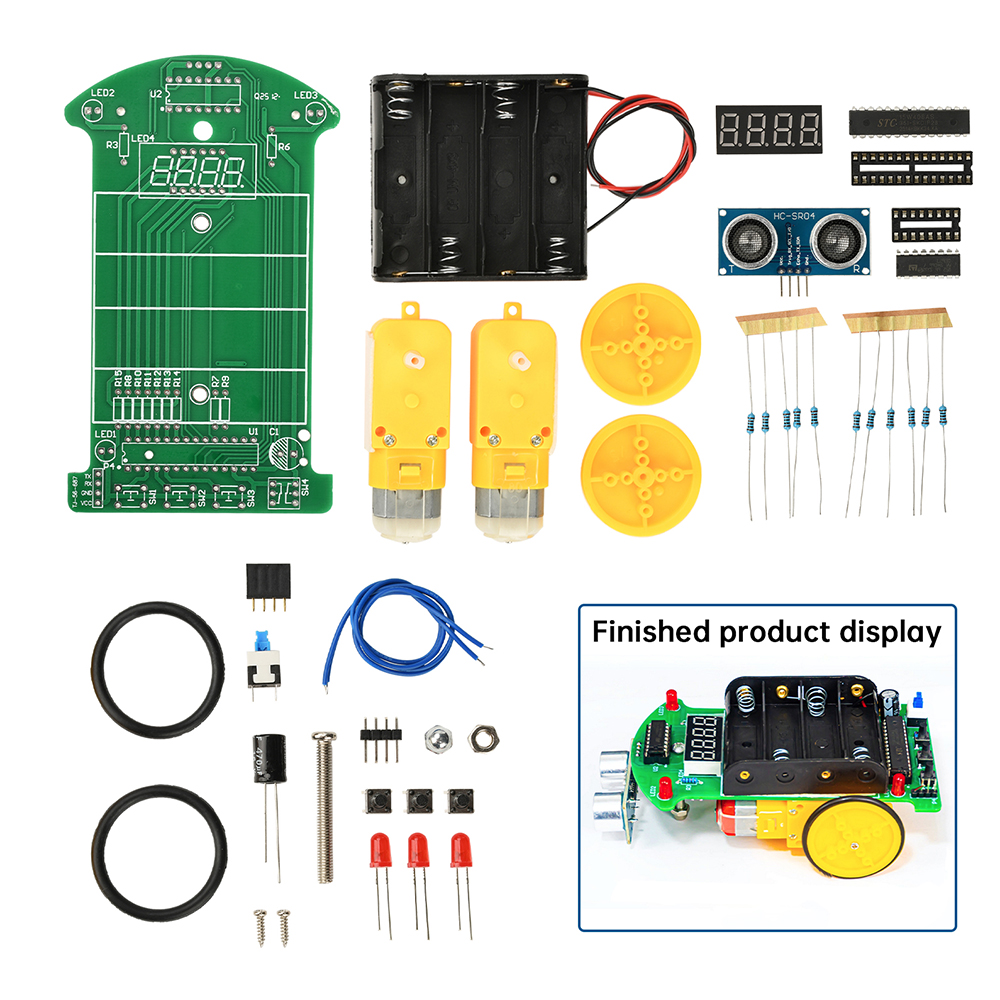

Product List:

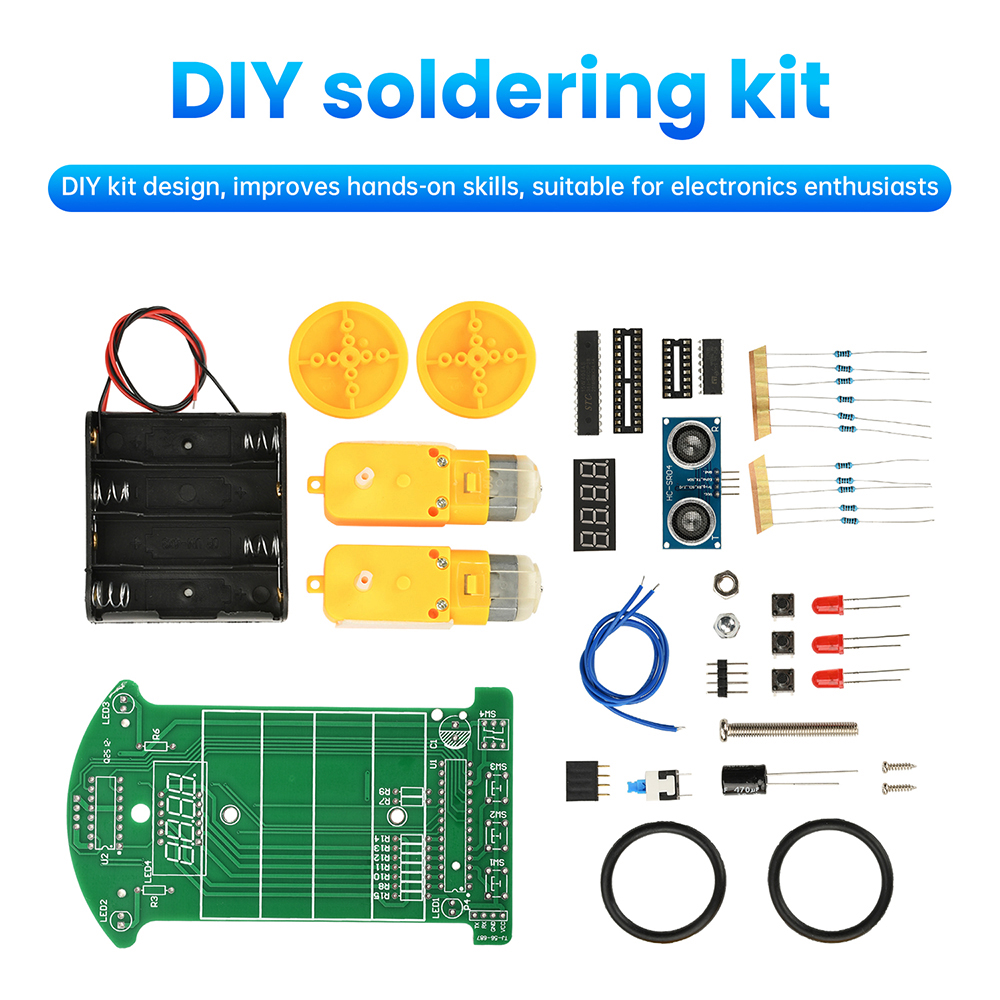

1x Obstacle Avoidance Car DIY Kit

Note: This product is a DIY kit, not a finished product! This soldering project requires basic electronics knowledge and hands-on skills.
