Product Description
Features:
1. High performance integrated design, integrating drivers and controllers, saving space, and easy installation
2. Support 42/57 specification stepper motors, suitable for various application scenarios, and meet different needs
3. Free switching between forward and reverse rotation, precise control of motor operation direction, strong flexibility
4. Supports TTL serial communication protocol, strong compatibility, easy to connect and debug with the main control device
5. High power drive design, stable and reliable output, suitable for high load working environment
Parameters:
Compatible motors: 42, 57, 86 stepper motors
Number of control axes: single axis
Motor signal: common cathode
Power supply range: DC10-30V universal
Driving capability: Peak 6.6A
Pulse frequency: up to 200KHZ
Instruction features: Simplify and optimize multiple commonly used instructions
Acceleration and deceleration control: available
Reverse input protection: Yes
Remote communication control: TTL serial port
Main functions of the system: automatic, manual, setting, serial port control
Speed range: 0.1-999 revolutions per minute
Number of forward pulses: 1-9999999 pulses
Number of inverted pulses: 1-9999999 pulses
Cycle work times: 1-9999 times
Forward rotation delay time: 0.0-999.9 seconds
Reverse delay time: 0.0-999.9 seconds
Product Introduction:

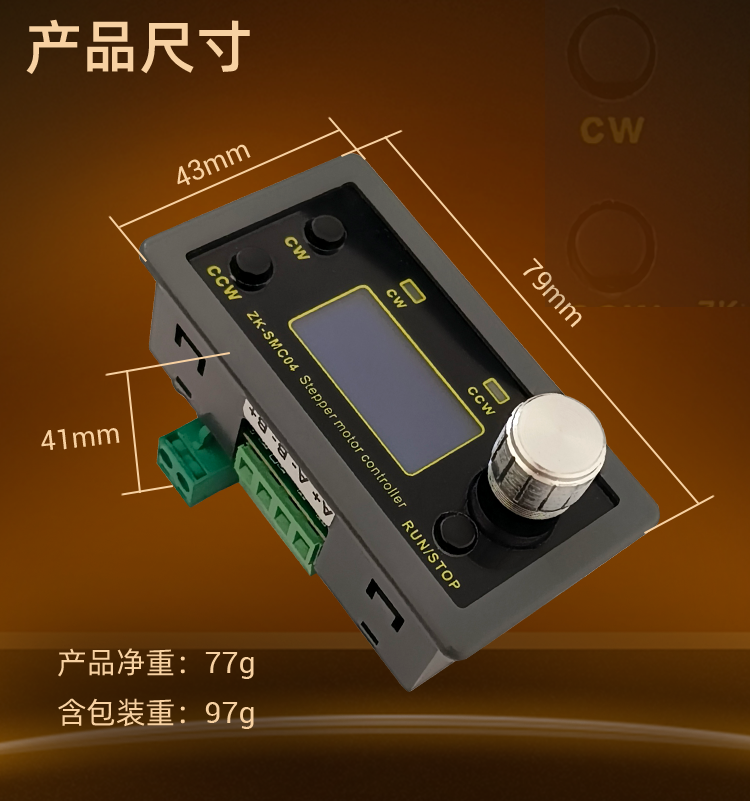

This is an operation control module specifically designed for single axis two-phase four wire stepper motors.
The module has multiple fixed operating modes built-in, allowing users to quickly choose the appropriate motion trajectory. You can save and set the distance/speed/delay/number of cycles in case of power failure. It can run independently as a module or be used in conjunction with other systems.
Can be used in general industrial control applications, but cannot be used in special industries such as medical, firefighting, or life critical fields.
Package List:
Motor controller * 1
PH2.0-8P terminal wire * 1
