For many applications, a portable metal pin stamping tool is required. For marking large machine parts and other heavy parts, the ability to move your marking machine to the item to be marked is invaluable. Manufacturers in the electronic, metal processing, aerospace, medical, and automotive industries often regard these machines as an integral part of their workflow.
The range of text, symbols, and graphics that can be printed with theXanyi Makrange of machines is extremely broad, but can include:
• VIN (Vehicle Identification Numbers),engine, car, truck chassis marking
• Time and Date,
• Lot numbers, Serial numbers, Chassis numbers,
• Company names and logos,
• Security codes, datamatrix code
TheXanyi Makrange of portable dot peen engraving machines offer good performance in terms of both speed and accuracy of engraving. These two factors are often the primary concern when considering such machines, and theXanyi Makrange does not disappoint in this respect.
TheXanyi Makrange, however, also offers several key advantages over other types of engraving machine. Primarily, the fact that these machines are totally portable means that they are invaluable for workshops and factories producing large, bulky parts and machinery.
In addition, theXanyi Makseries incorporates several key technological advances:
• The advanced HEF technology allows for marking even on uneven surfaces, even relatively narrow pipes.
• TheXanyi Makseries machines do not require discrete air compressor systems, which facilitates a compact installation suitable even for small workshops.

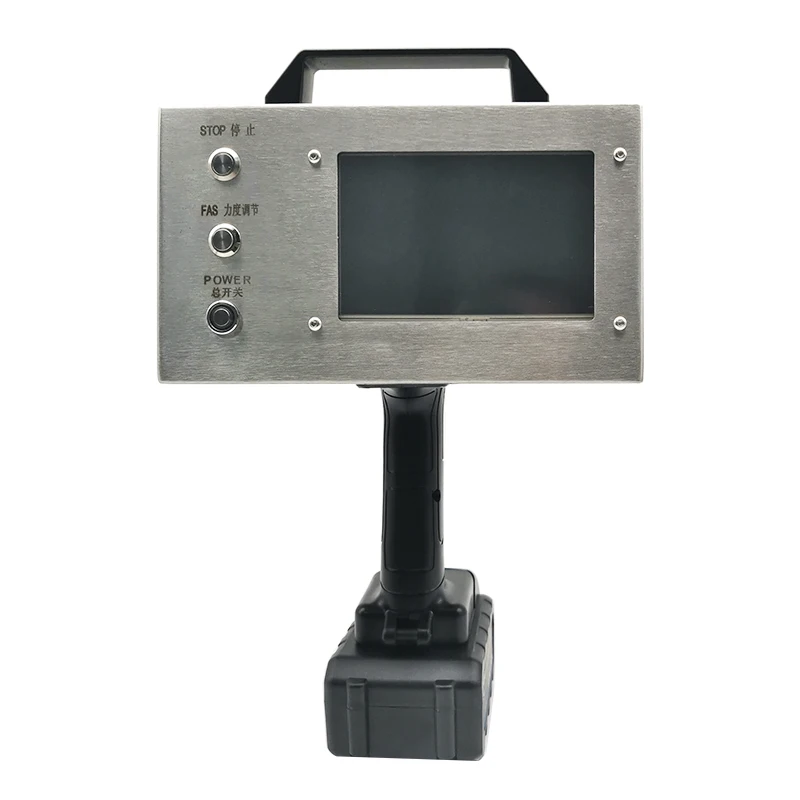

• Similarly, controlling theXanyi Makseries machines is accomplished through an incorporated touchscreen, a no separate PC workstation is needed. This gives direct control of the machine, and helps to minimize the compatibility and latency problems common on many other engraving machines.
• These marking machines are totally portable, needing only an electrical connection to function. Where even greater portability is required, an optional battery may be attached.
Print content including numbers, letters, Chinese characters, commonly used characters, and various graphics
Printing area 120*30 mm
Printing speed 5-100 characters/minute
Printing depth 0.1-1.2mm (depending on material properties)
Printing direction up, down, left, right, and arc options
Control method: automatic increase of serial number, automatic calculation and printing of VIN number
Power consumption ≤ 300W
Power supply lithium battery charging
Character size and spacing can be adjusted arbitrarily
Impact frequency 200-400Hz

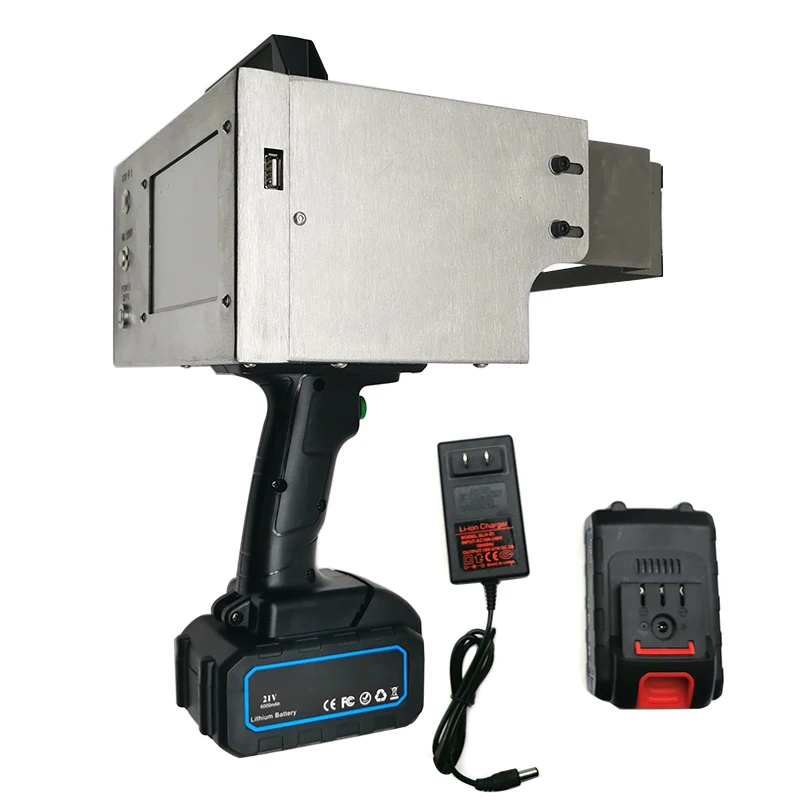

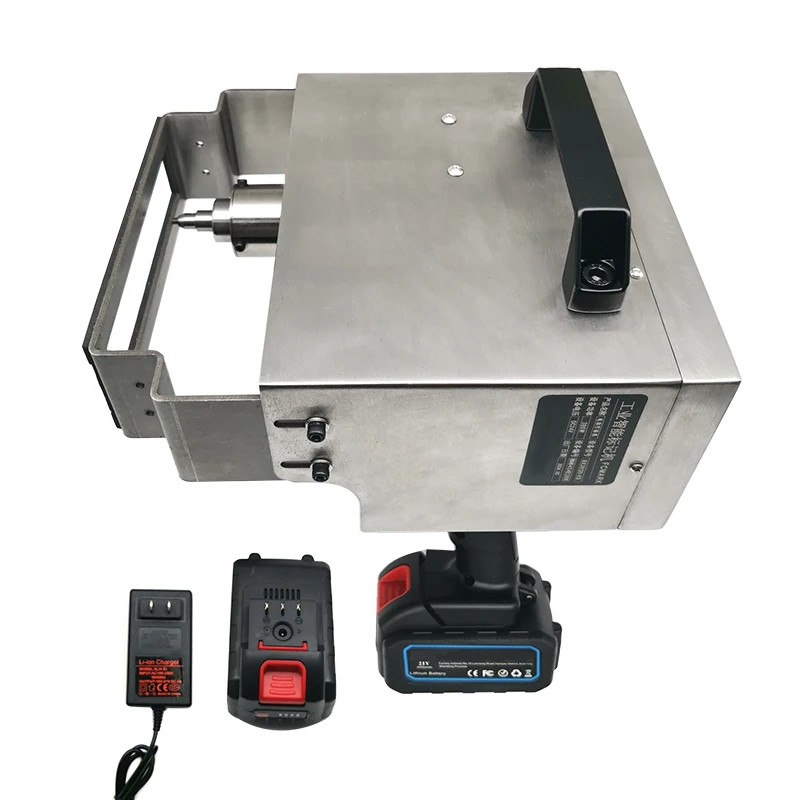

Packaging list:
Marking machine * 1
Lithium battery * 2
Power adapter * 1
Aluminum box * 1
Weight: 11kg
