original 1S - 24S Voltage Tester Lithium Batterij Pak Eencellige Meetserie Volt Li-Ion Lifepo4 Lto Lcd Scherm Display Meter 2S 3S 4S 5S 6S 7S 8S 9S 10S 11S 12S 13S 14S 15S 16S 17S 18S 19S 20S 21S 22S 23S 24S volt Test

--Press and hold the K1 button for 10 seconds to automatically switch to the English interface.

No cable for this tester, because different client has different specification, so the cables are also different, The hardware configurations between Chinese and English version are totally same,

Description of option accessory list:

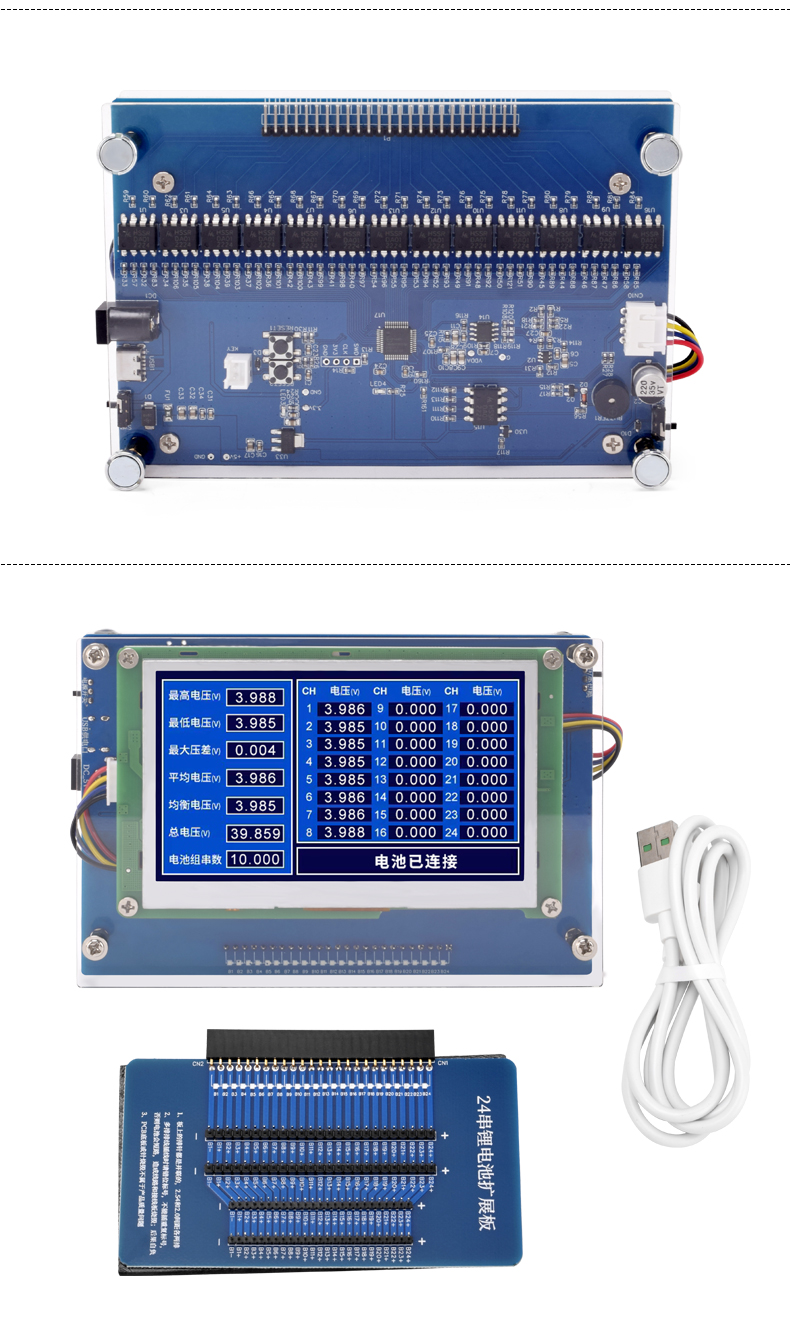

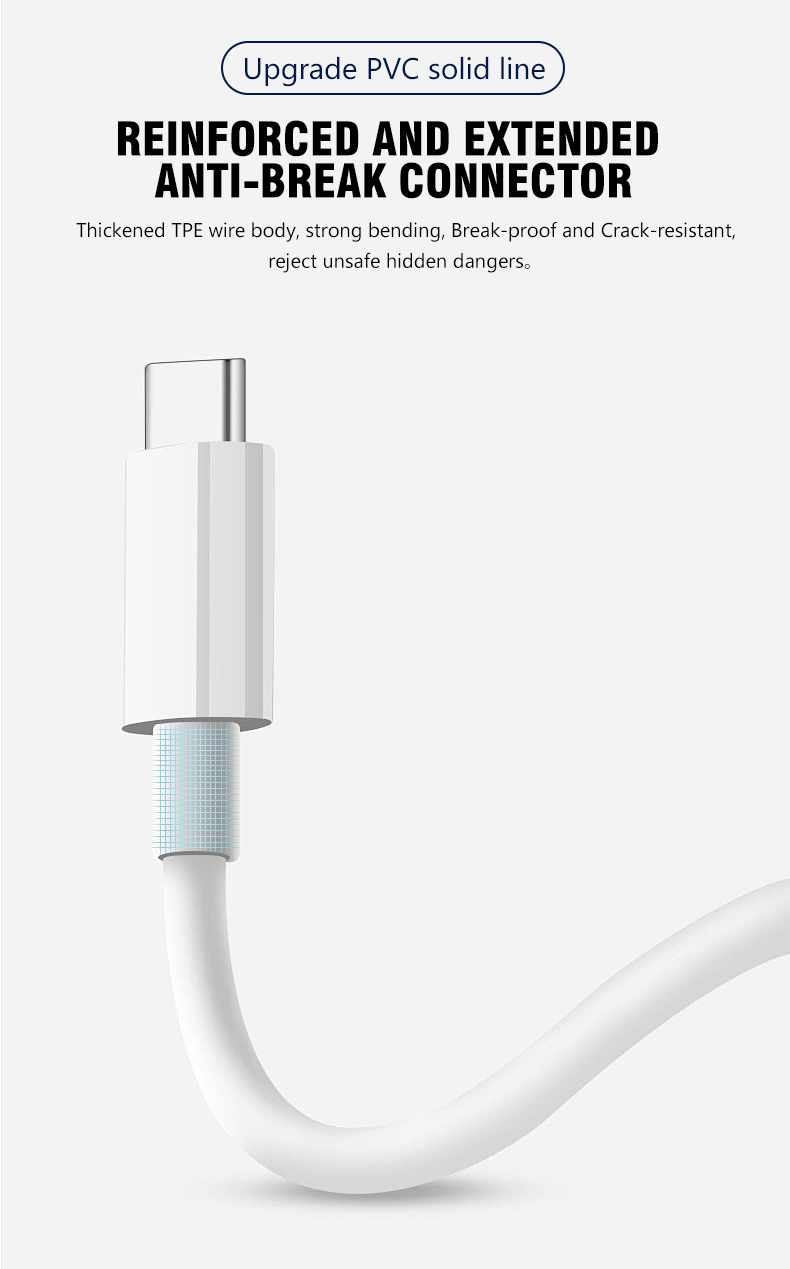

English interface version option: Tester*1+USB power cable*1

Notice:

1. The 2.0mm pin and 2.54mm pin on the tester are in parallel, it can only connected to one battery group, please don’t use metal conductor to touch them, if it’s burned by yourself, please pay for all of the shipping when you want to repair

2. If you are not professional for electronic and electrical technology, please don’t buy this product

3. The tester is designed to be used for the majority of friends to test the assembly of the battery pack test each string of voltage purposes, if you want to modify for other purposes, we will not provide any technical support,

1. Support negative voltage indication

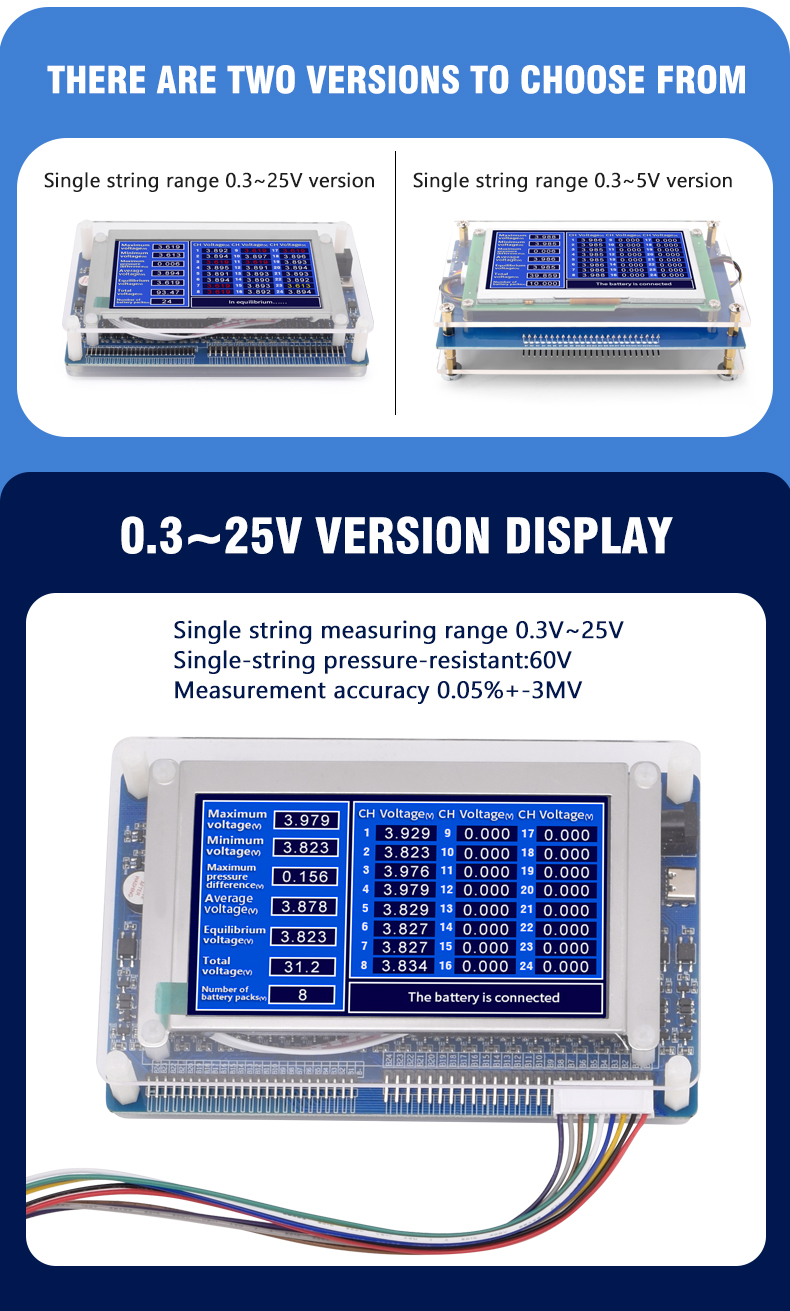

2. Single string measurement range: 0.1v-6v

3. Automatically recognize battery string amount

4. Display the maximum voltage, minimum voltage and maximum voltage difference between each cell

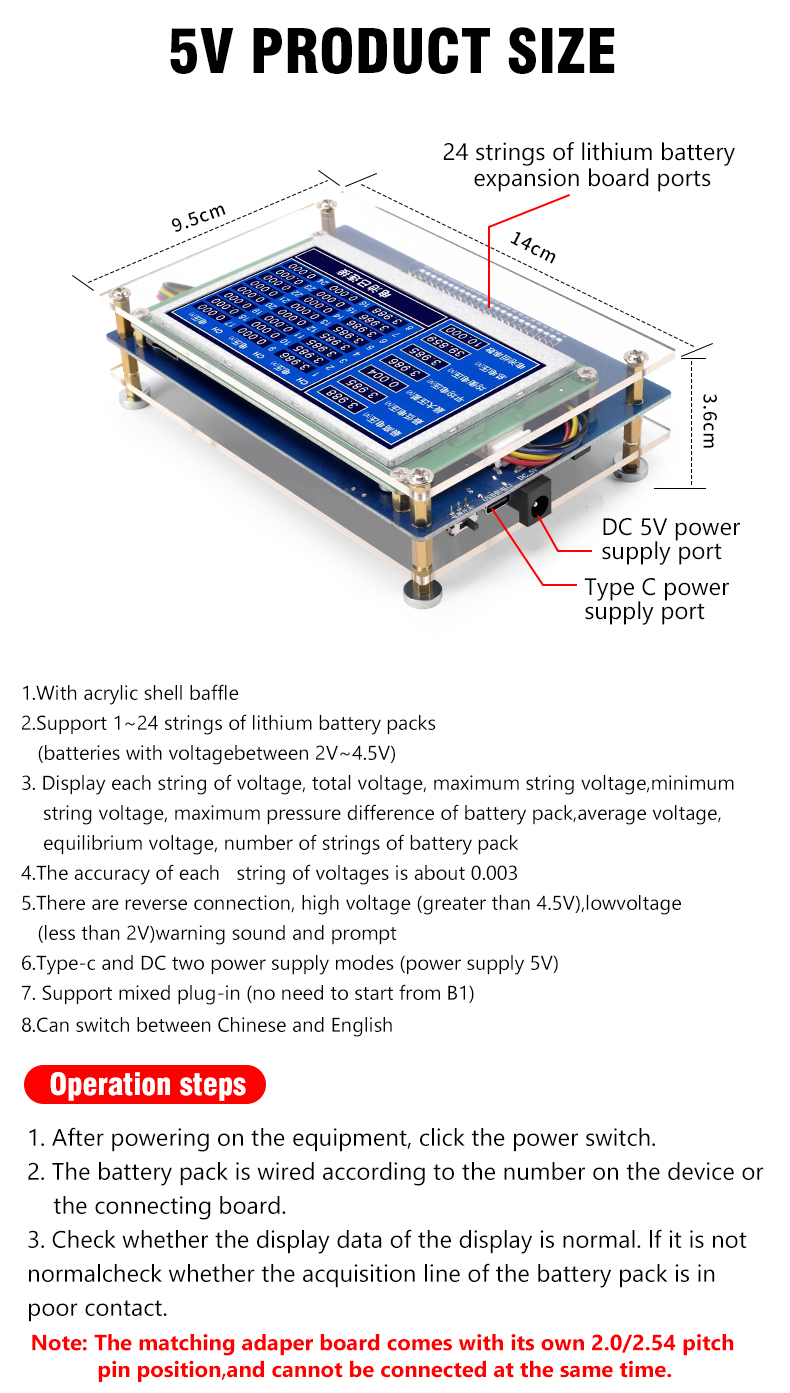

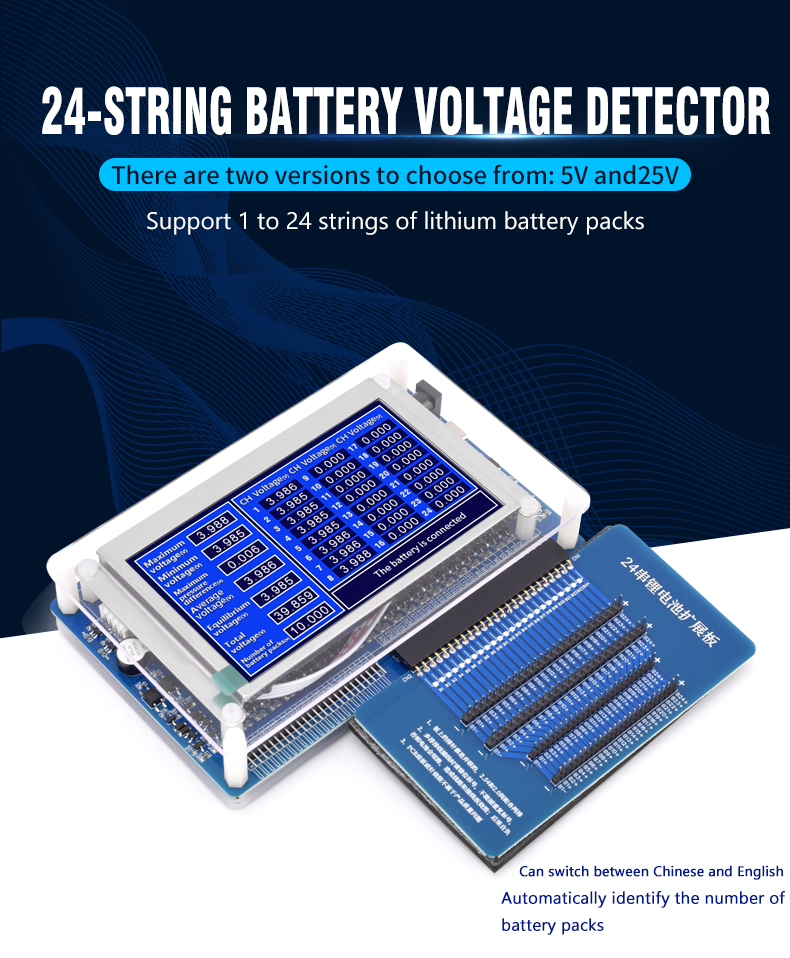

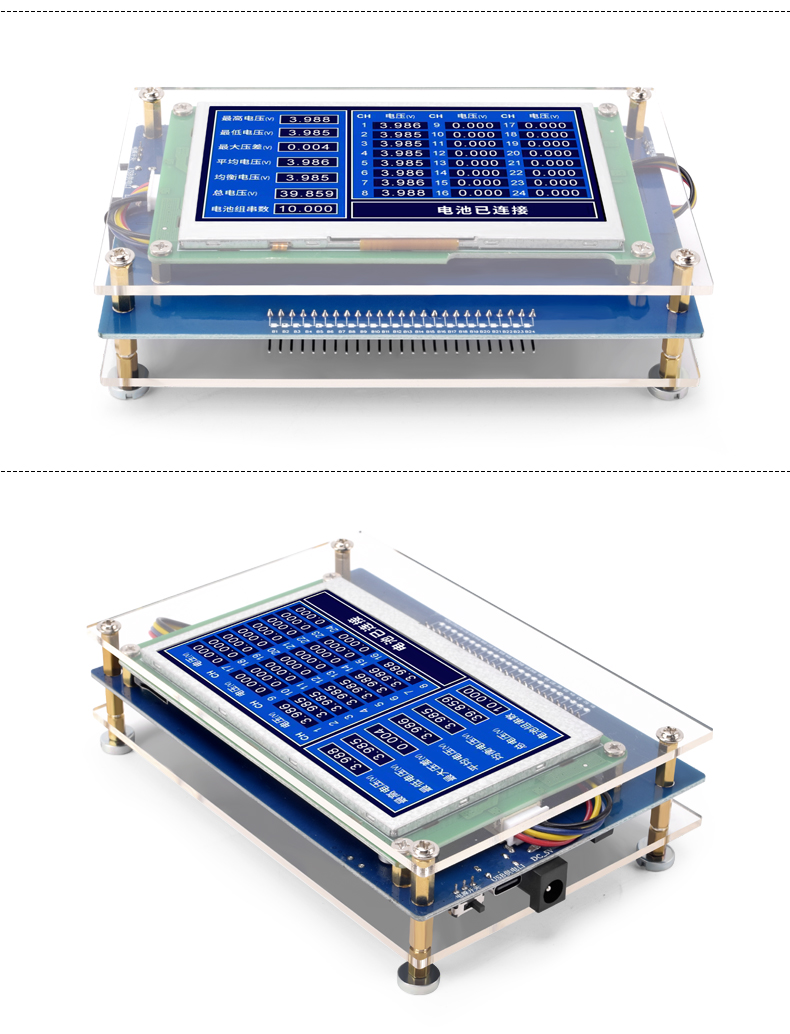

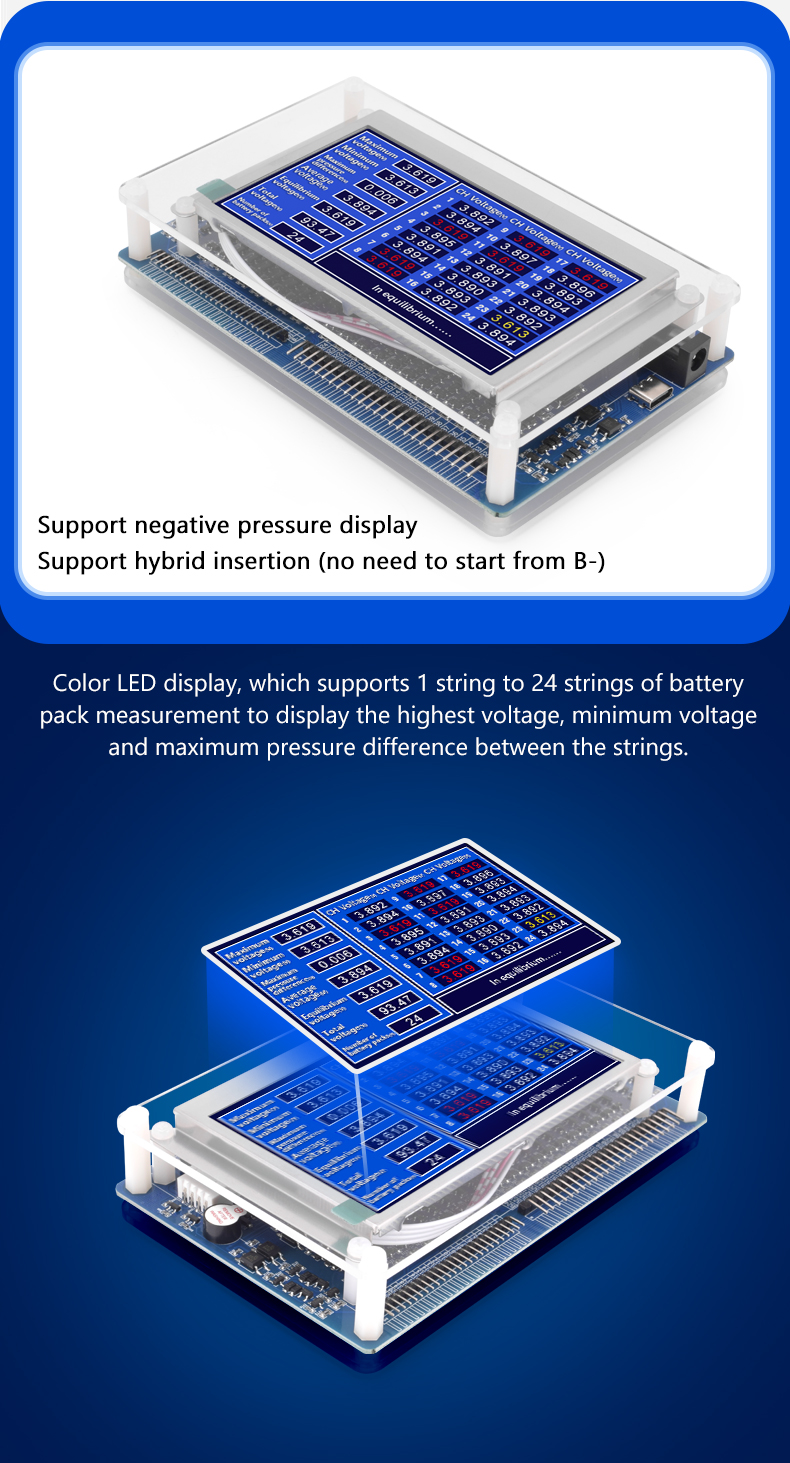

5. Color LCD display, supports the measurement for 1s-24s

Direction for use

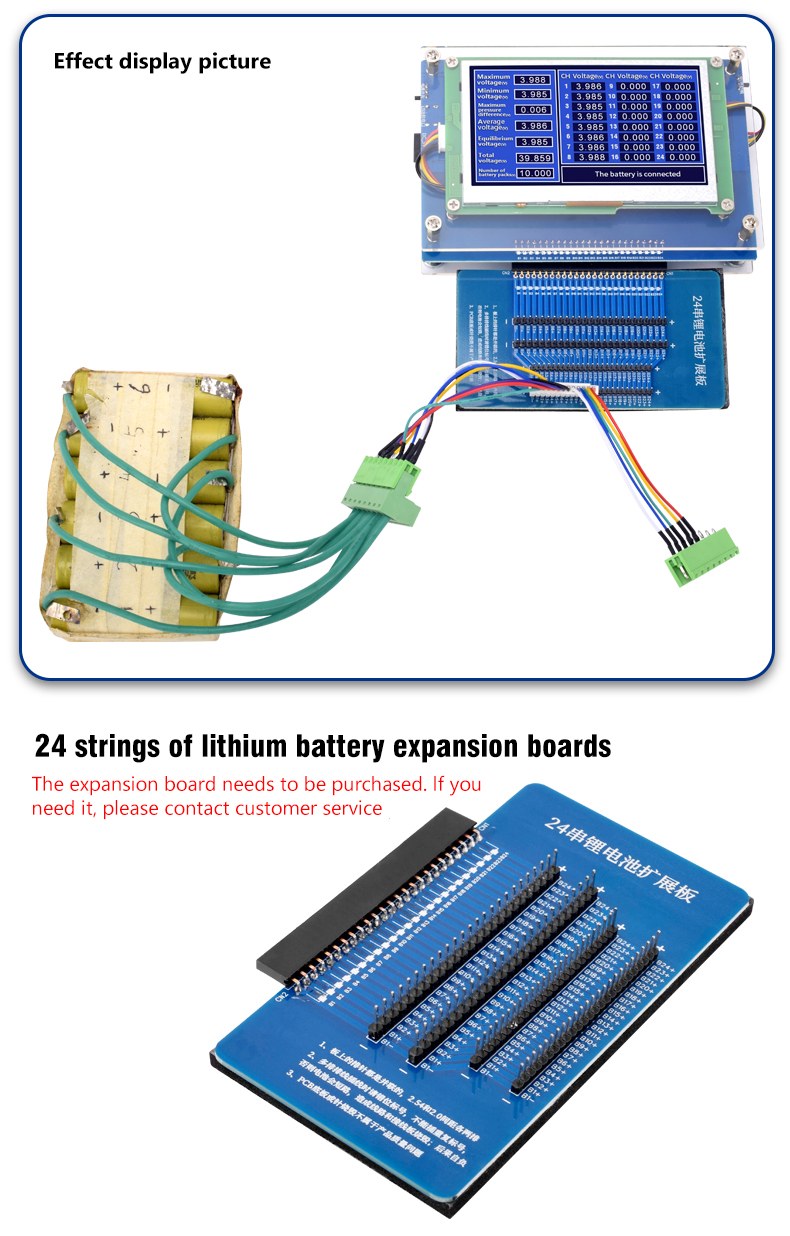

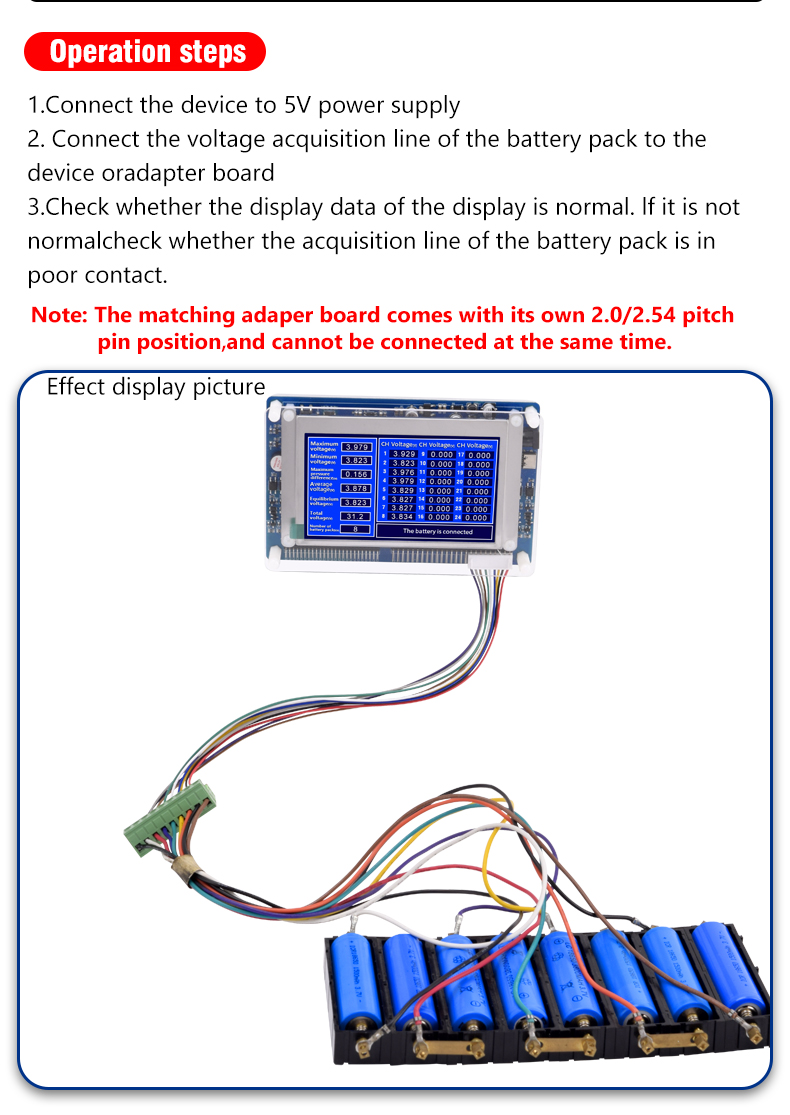

Connect the TypeC power port to the power supply, and then select the detection port according to its own interface, and then you can check whether the voltage difference is normal.

Matters needing attention

Please follow the instructions to insert the meter, the connector and cable sequence can not be wrong.
