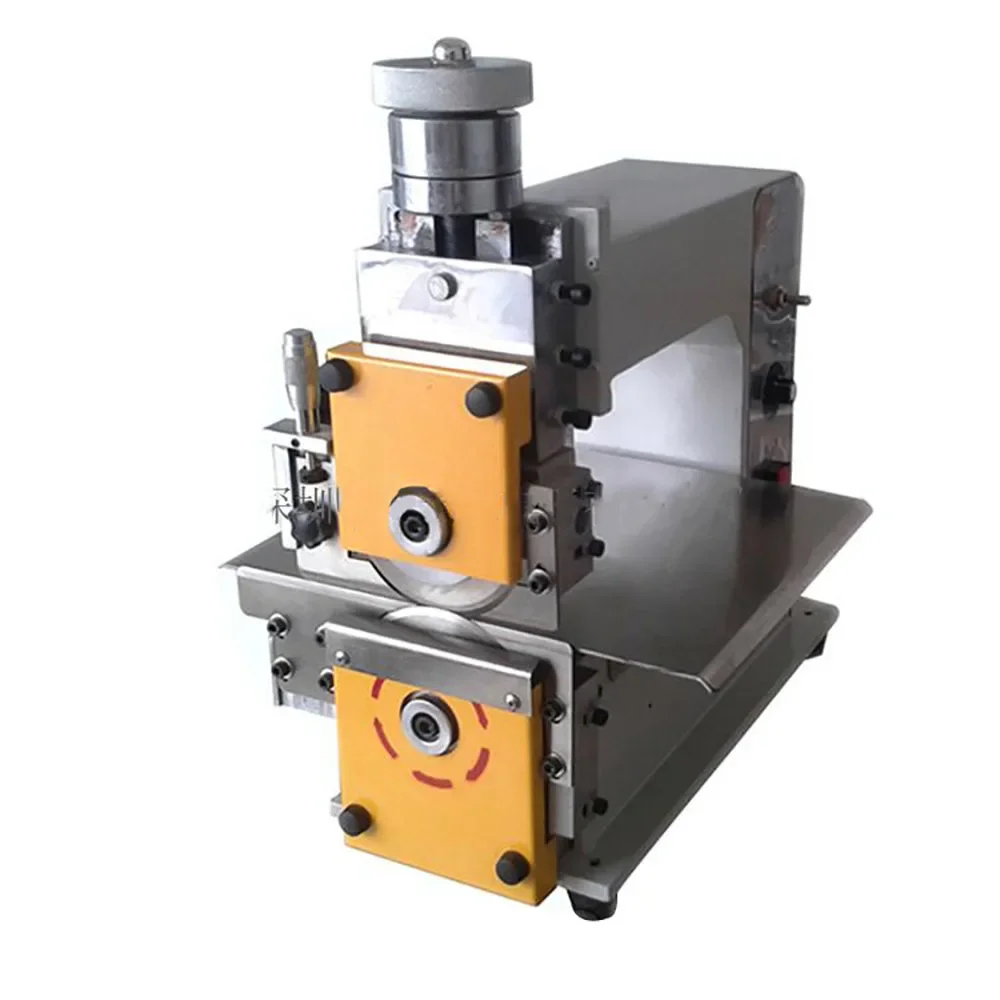

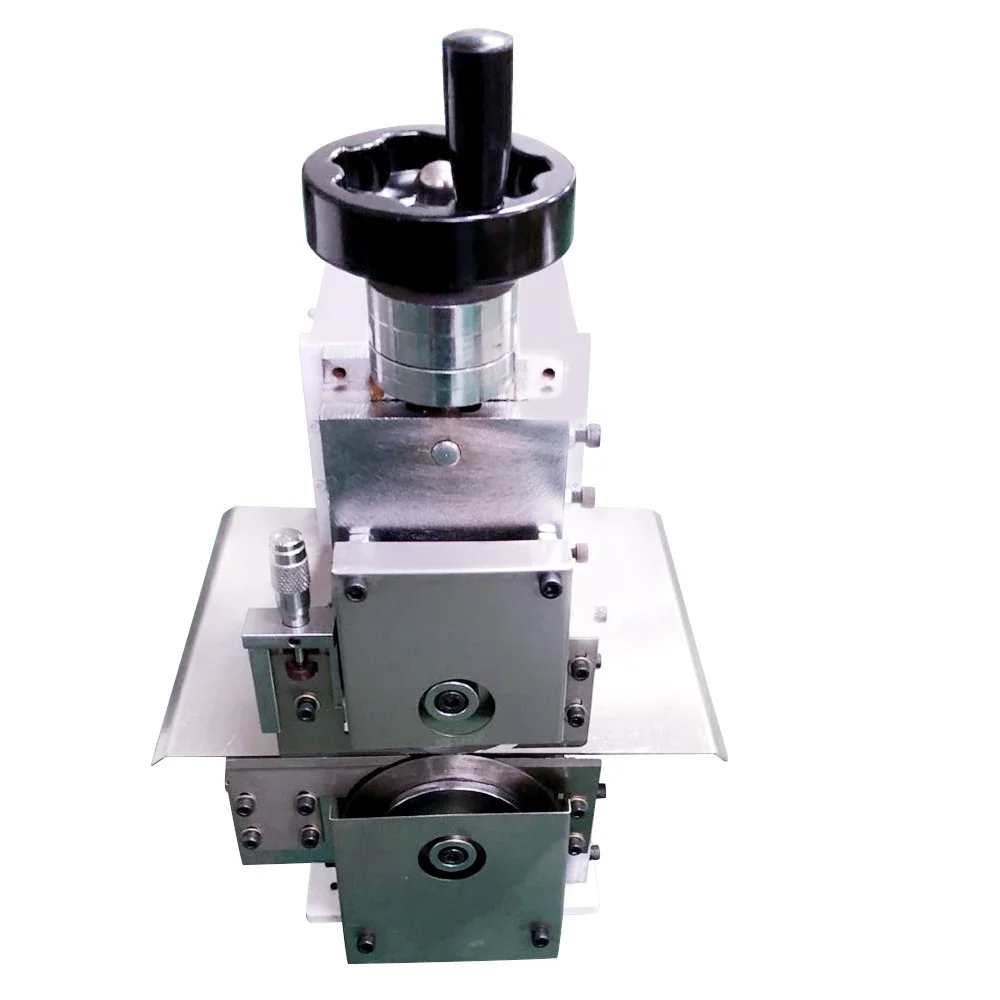

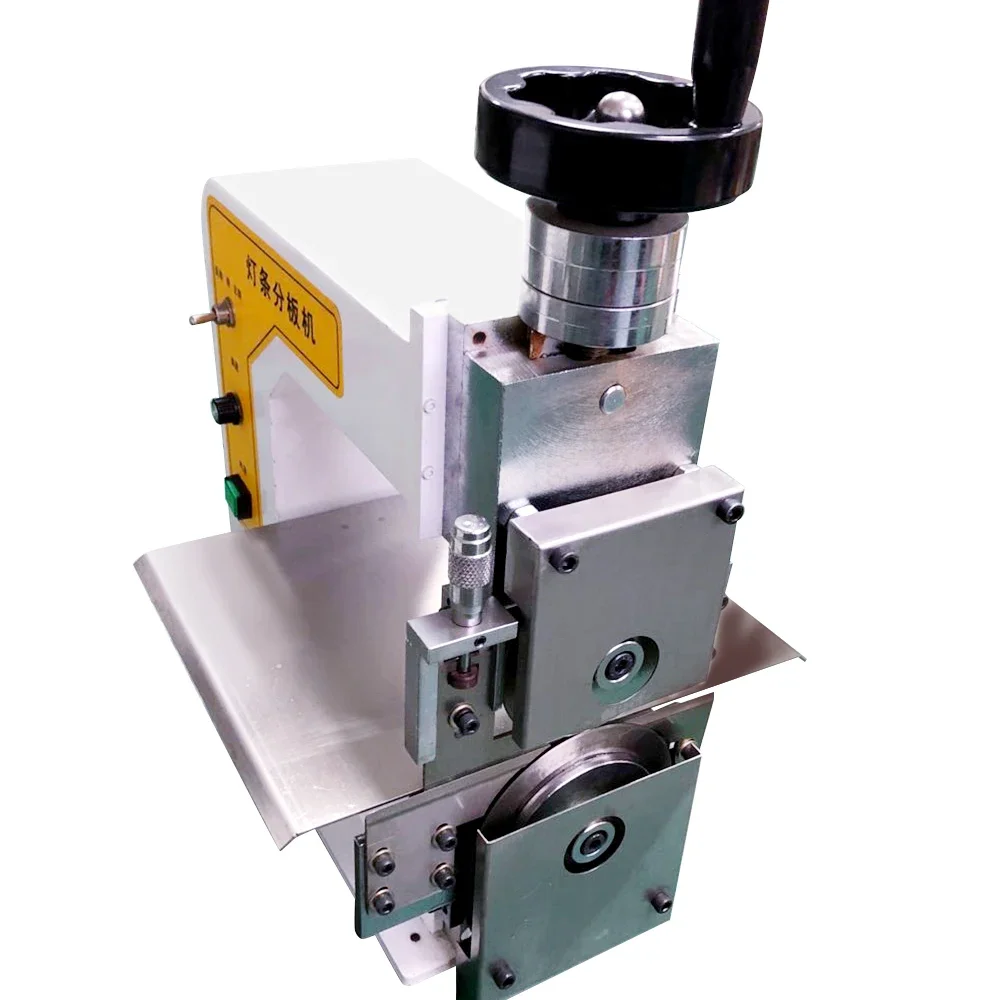

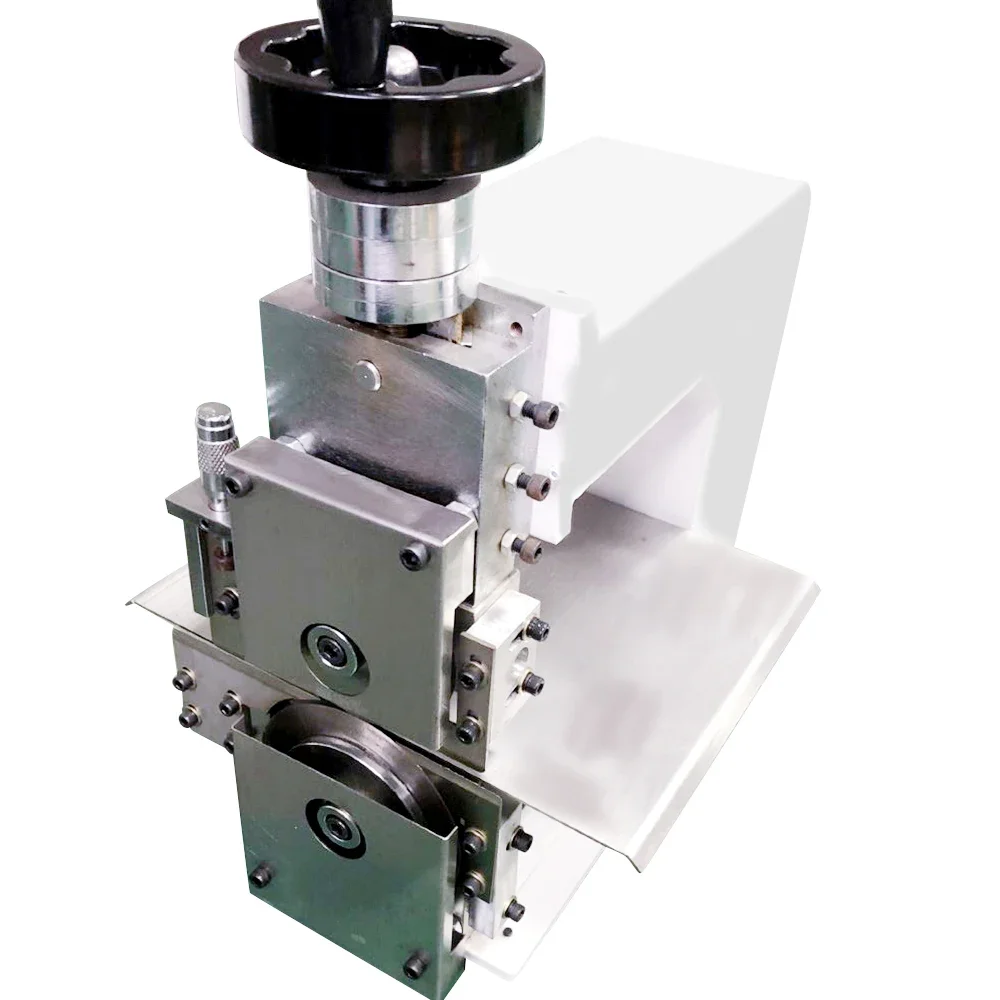

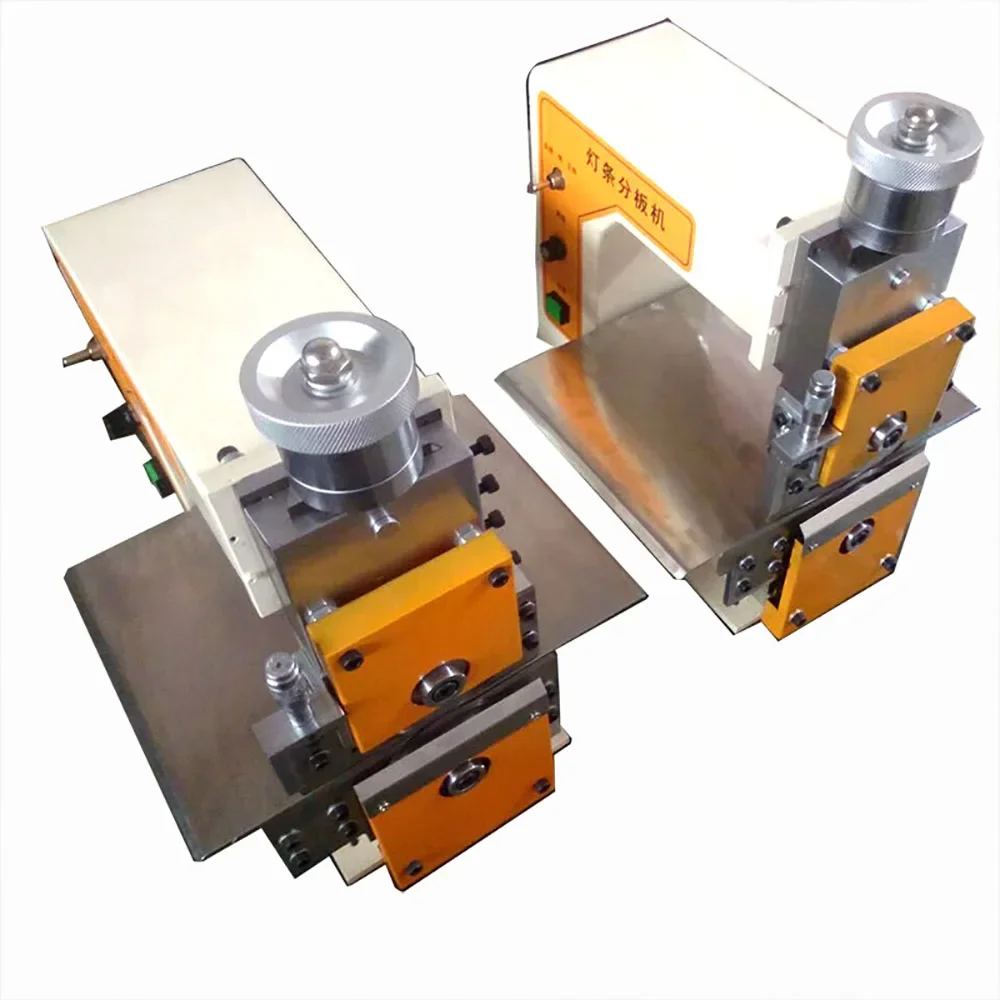

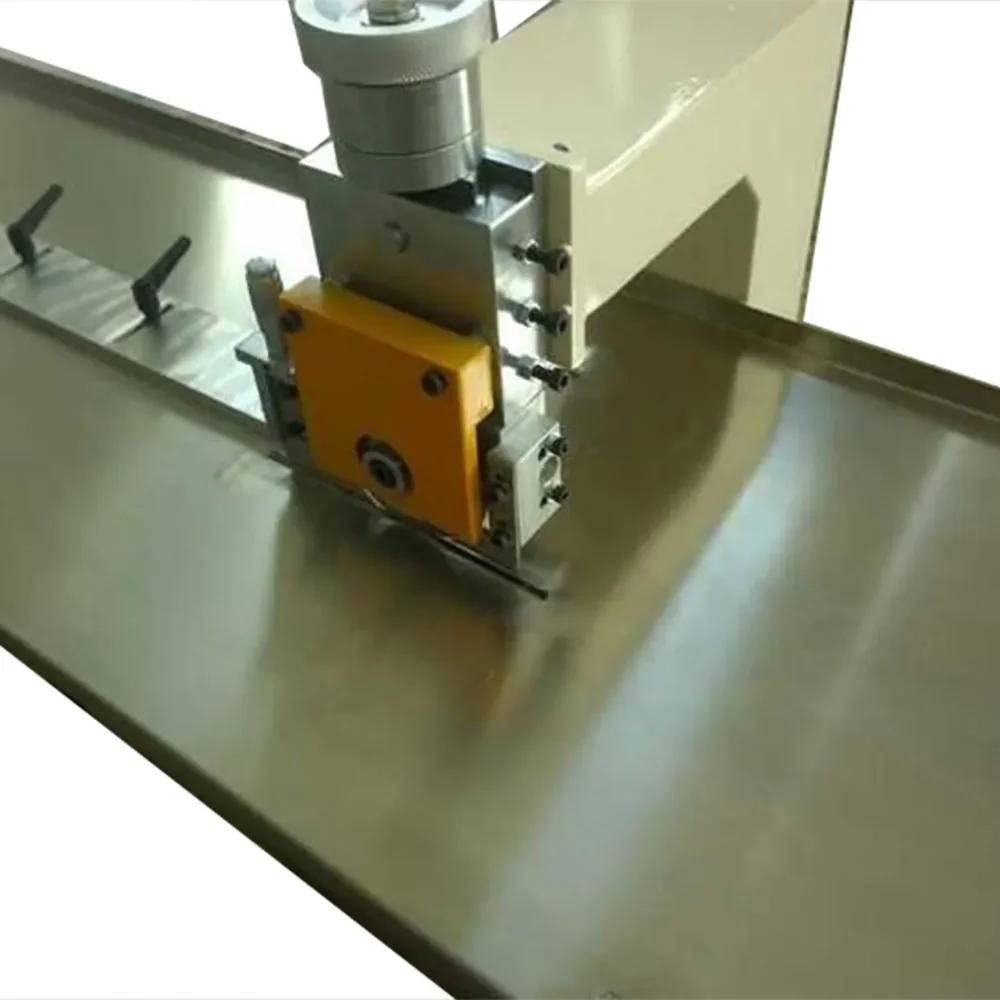

New V Cut Groove PCB Separating Separator Cutting Machine

Specifications:

Input Voltage: AC 220 V / 50 Hz

Power: 40 W

Vmax: 550 mm/s (Adjustable)

Thickness Range: 0.5 mm ~ 1.5 mm

The top blade base adjust range: 0 ~ 7 mm;

Maximum board component height: 35mm

The width of the plate that can be cut: 240mm (the length is no limit);

High Efficiency: Vmax = 550 mm/s (Adjustable);

Overall Dimension: 300 x 350 x 420 (mm) (L x W x H)

Net Weight: 29kg

Feature

1, Suitable for the engraving of the plates with V-cut groove, reducing the stress, can prevent the solder joint to crack effectively;

2, Simple constructer, light weight, more easy and convenient to move and ship;

3, Made of high intensity aluminum alloy except the machine frame;

4, The top and the bottom guide plate can be adjusted manually to solve the problem of the different height caused by the V-CUT groove;

5, Bottom blade adjustable function: The bottom blade base can adjustable, it is convenient to operate the point to point;

6, High accuracy and safe, easy to operate and maintenance
