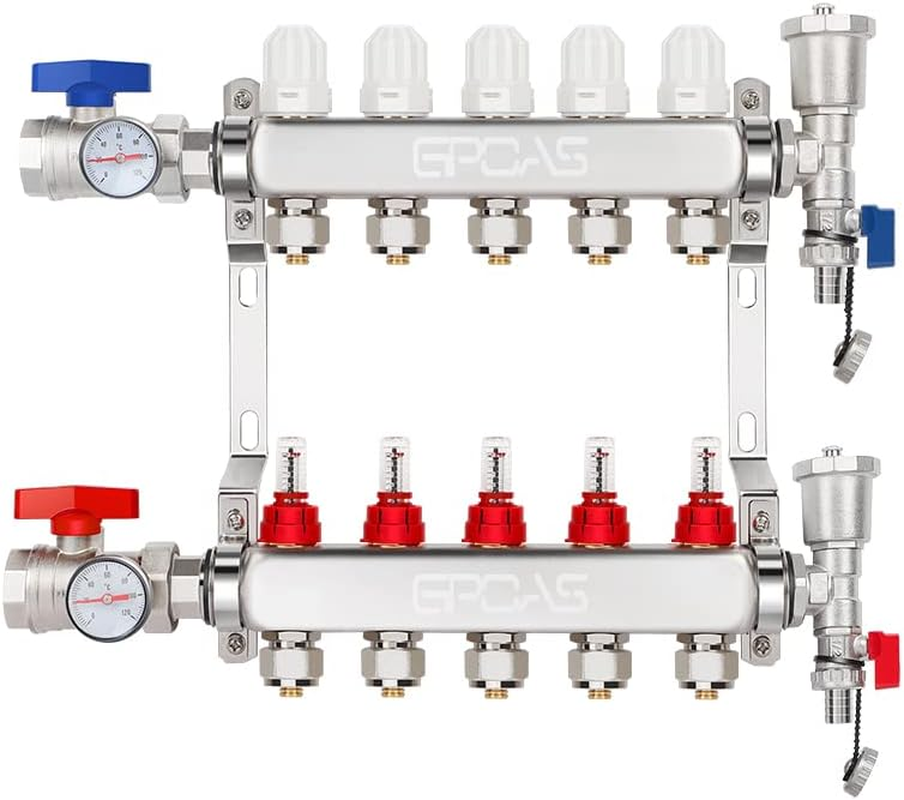

5-Branch Radiant Floor Heating Pex Manifold Hydronic Radiant for 1/2" PEX Tubing,5 Loops Radiant Heat Pex Manifold Set


Product

Just for you

We care about you and we always try to offer the best service possible. We choose with love our products and we'll bring to your  home using third warehouses and suppliers for the best experience possible.

if you'll get any kind of problem please don't esitate to contact us, we'll do our best for finding the best solution for you.

Shipping

Shipping

We always try to delivery the goods within 48 hours, but our maximum shipping and delivery time is between 5 and 8 days. Take in mind that  some events out of our control could put in delay your order, like climatic events or logistic problems. In this case we will do the best for resolve the issue and we will get in touc withyou.

Note:
Some items could't be shipped in your address for some reason, like address not available with our shipping service or some particular island. So we can delete any order that can't fit with out service, and we will  not take any responsability or any feedback for this. If you want know before placing the order if can be shipped, please get in touch with us before placing the order =)

You can return any item within 30 days, please contact us if you have any problem or just you don't like the item. We will  guide you with the right process for the faster return and refund possible.

Contact

Contact us

We take seriously our  reputation, if you have any issue, or the item has not been delivery, please contact us before taking any action or leaving any feedback. We will work together for finding the best  solution that will fit for you.

  • [PRODUCT PARAMETER]:5 LOOPS,Heat can be transmitted 50-75 square meters.1" NPT supply and return shut-off ball valves,SUS 304 stainless steel cold forming, corrosion resistance, no rust, better sealing, more precise control, the main tube is not demagnetized as a whole, longer life than demagnetization tubes, and higher hardness
  • [VISUAL FLOW METER]:The water inlet branch is equipped with a visual flow meter type shut-off valve, which can accurately adjust the water flow of each channel and prevent the branch from grabbing water. Just open the red cap and turn the red base to adjust the water volume of each channel to 0-5 liters/min. Effectively ensure the hydraulic balance of each road
  • [AUTO EXHAUST VALVE]:Automatic exhaust valve, in a continuous automatic manner, Eliminates the air inside when the system is filled with water and during operation.A hygroscopic vent cap prevents accidental drips
  • [ALL-COPPER NICKEL-PLATED HEXAGONAL LOWER JOINT]: All-copper material, nickel-plated treatment, anti-corrosion and durable, standard 6-point thread, 1/2 adapter, suitable for PERT PEXD and other floor heating pipes with an inner diameter of 12MM and an outer diameter of 16MM, professional thread sealant, Reinforcement + double seal to lock water
  • [EASY TO DISASSEMBLE]:Each part can be replaced and disassembled separately, the stainless steel body can be used for a long time, the internal space is large, and the flow is sufficient. It is a cost-effective water distributor, which is widely used in floor radiant heating systems, but not suitable for drinking water applications

Product description

NICKEL PLATED LIVE CONNECTOR

Suitable for PERT PEXD and other underfloor heating pipes with an internal diameter of 12mm and an external diameter of 16mm

304 STAINLESS STEEL BODY

Made of 304 stainless steel, using brushed technology, high temperature red punch forging, strong and durable, not easy to burst

1" NPT SHUT-OFF BALL VALVES

Smooth inner wall, 1" NPT pipe diameter, with its own thickened bracket, easy and fast installation

VISUAL FLOW METER

Highly accurate visual flow meter with scale display and consistent quality

  • Thermometer is Fahrenheit or Celsius?

    Celsius only

  • Is it suitable for regular 1/2" LED tubes?

    Suitable for tubes with 12mm inner diameter and 16mm outer diameter

  • What is the thread size of the ball valve?

    1" g thread for one end of the manifold and 1" npt thread for the other end

  • Can I purchase a 5/16" adapter to mount a manifold or 1/2" x 5/16" fitting?

    No, it must be 1/2"

  • What branch actuators are suitable?

    Do you want to use an electric actuator? If yes, then you need to buy a separate M30*1.5 electric heat actuator!

GPOAS 2 3 4 5 6 7 12 Branch Radiant Floor Heating PEX Manifold Set

Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.4 out of 5 stars 75
4.4 out of 5 stars 75
4.4 out of 5 stars 75
4.4 out of 5 stars 75
4.4 out of 5 stars 75
4.4 out of 5 stars 75
4.4 out of 5 stars 75
Price
$94.99$94.99 $109.99$109.99 $139.99$139.99 $169.99$169.99 $169.99$169.99 $268.99$268.99
PEX Tubing Sizes
1/2 inch 1/2 inch 1/2 inch 1/2 inch 1/2 inch 1/2 inch 1/2 inch
Max. flow/branch
5L/min 5L/min 5L/min 5L/min 5L/min 5L/min 5L/min
Temperature Range
1-70℃ 1-70℃ 1-70℃ 1-70℃ 1-70℃ 1-70℃ 1-70℃
Material
Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Valve inlet connections
1 inch NPT 1 inch NPT 1 inch NPT 1 inch NPT 1 inch NPT 1 inch NPT 1 inch NPT
No.of PEX Inlet/Return Valves
2 3 4 5 6 7 12
5-Branch Radiant Floor Heating Pex Manifold Hydronic Radiant for 1/2

Other details


Item model number 167640-5350-1716248941
Part Number 167640-5350-1716248941
Item dimensions L x W x H 19.06 x 15.35 x 2.44 inches
Size 5 Loops
Number of Pieces 5
Color Red
Material Stainless Steel,Pex
Material Type Stainless Steel,Pex
Connector Type Cap
Style 5 Loop
Item Weight 5.06 Kilograms
Thread Type NPT
Measurement System inch
Batteries Required? No
Exterior Finish Nickel
Product Dimensions 19.06 x 15.35 x 2.44 inches
Thread Size 0.5 inch
Included Components Floor Heating Manifold
